Delivered Apparatus

FEATURES:

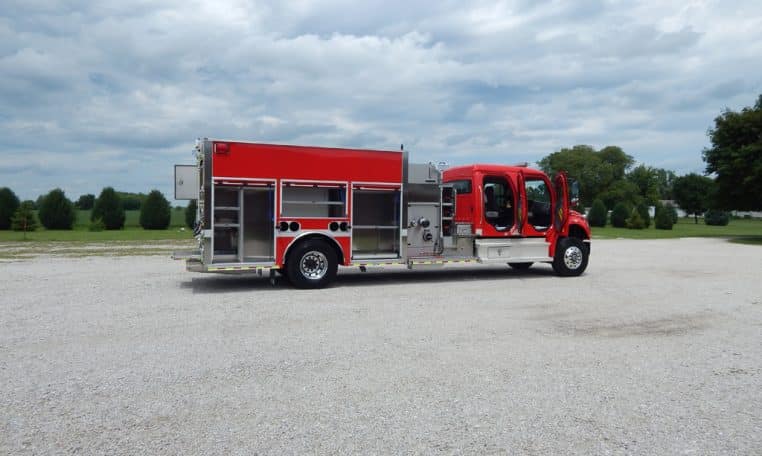

• Freightliner M2 106 Crew Cab Chassis
• Cummins L9 360EV HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless-Steel Body and Subframe
• Hale DSD 150 SS, 1500-GPM Split-Shaft Pump

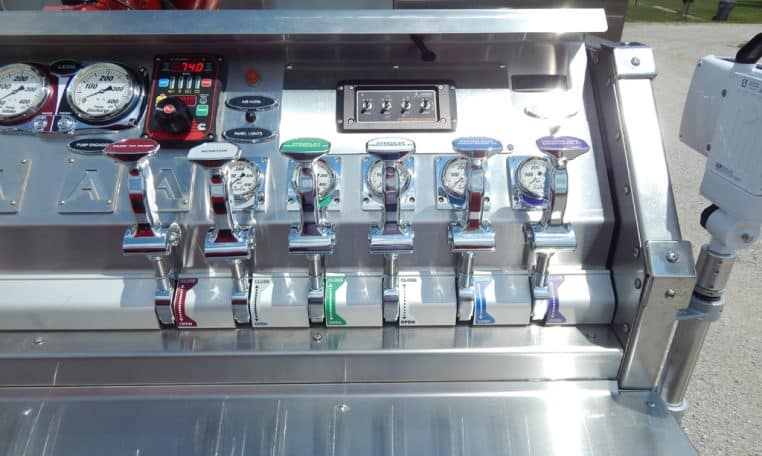

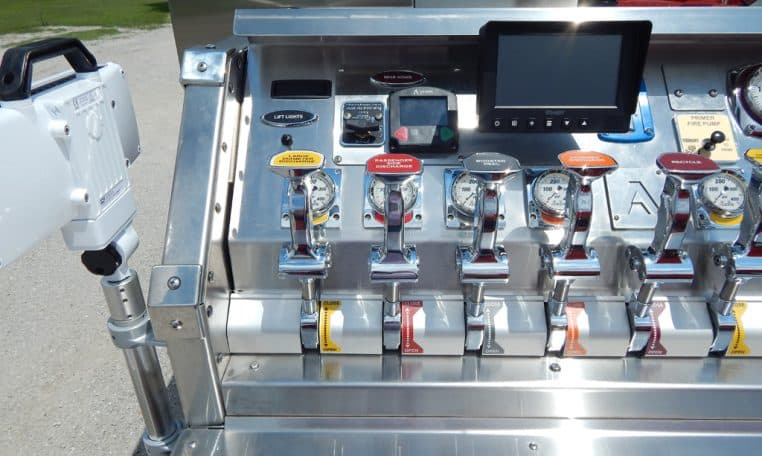

• Top Mount Control Pump Module

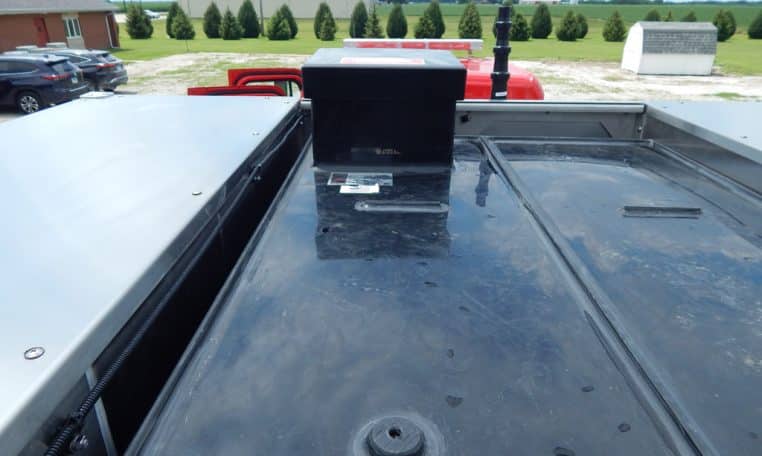

• 900-Gallon Poly Tank
• Two (2) 6” Intakes, One (1) Each Side
• One (1) 2 ½” Gated Suction Left Side
• One (1) 5” Intake Rear, Adapted to 6”
• Cartridge Lay Preconnects, Two (2) 1 ½”, One (1) 2 ½”
• Three (3) 2 ½” Discharges, Two (2) Left Side, One (1) Right Side
• One (1) 3” Discharge with 5” Storz Adaptor, Right Side
• Akron 3440 Deckmaster Deck Gun with Akron 3406 Extend-A-Gun
• One (1) 100’ 1” Booster Reel Rear Compartment
• ROM Painted Roll-Up Doors with Pull Straps
• Four (4) Dual Wheel Well Air Bottle Compartments, Two (2) Each Side
• Two (2) 250# Roll Out Trays, L1 and R1 Compartments
• One (1) 500# Roll Out Tray, Rear
• Ladder Storage Compartment Rear in Hosebed
• Suction Hose Storage Two (2) 6”x10’ Through Rear Compartment
• Grain Bin Rescue Tunnel Panel Storage L3/R3 Compartments
• One (1) Hinged PACTRAC Tool Board with PACTRAC on Rear Wall L2 Compartment
• Six (6) Folding Steps Rear, Two (2) Folding Steps at Pump Controls
• Progressive Dynamics 40-Amp Charger with Air Compressor
• Kussmaul 20-Amp 120V Super Auto-Eject Shoreline Connection Left Side
• Two (2) Air Horns Hood Mounted
• Whelen LED Warning Light Package
• Four (4) FRC Telescopic LED Floodlights, One (1) Each Side of Pump Panel, Two (2) Rear
• Aluminum Rub Rails with LED Ground Lights and LED Warning Lights
• Whelen LED Tank Gauge Rear
• LED Bulkhead Hose Bed Lighting
• 10’ 9” Overall height
• 34’ 8” Overall length
• 276” Wheelbase
• 163.54” Cab to Axle
• 16,000 FAWR
• 30,000 RAWR
• 46,000 GVWR
