Delivered Apparatus

FEATURES:

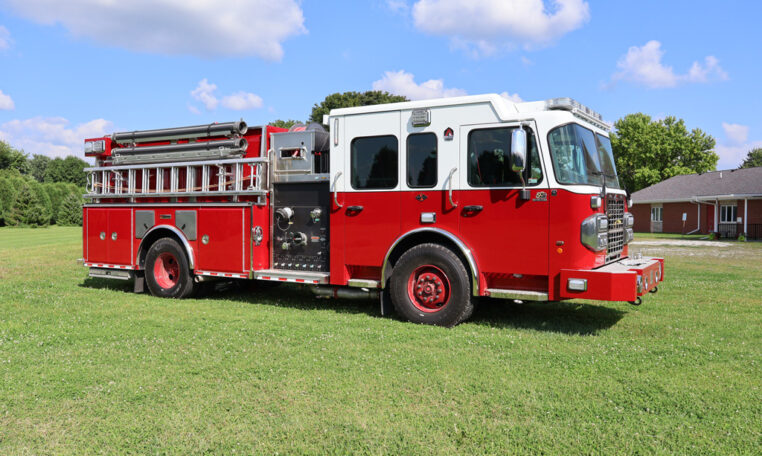

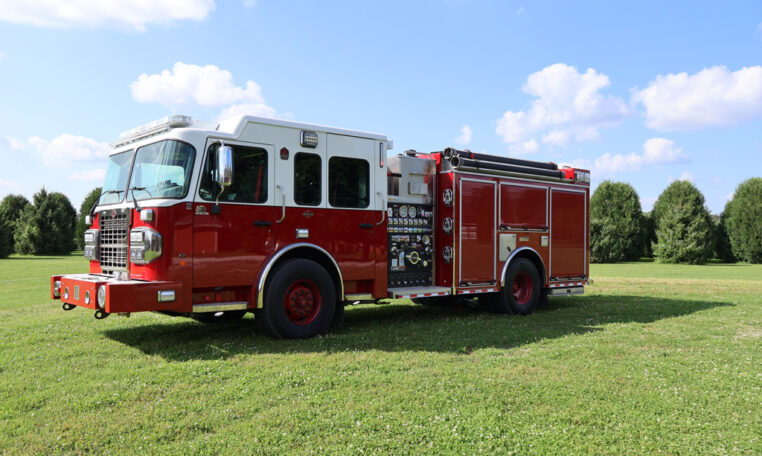

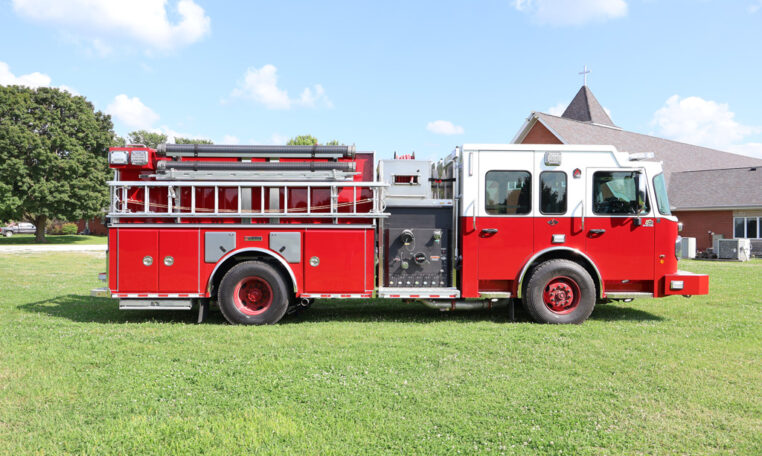

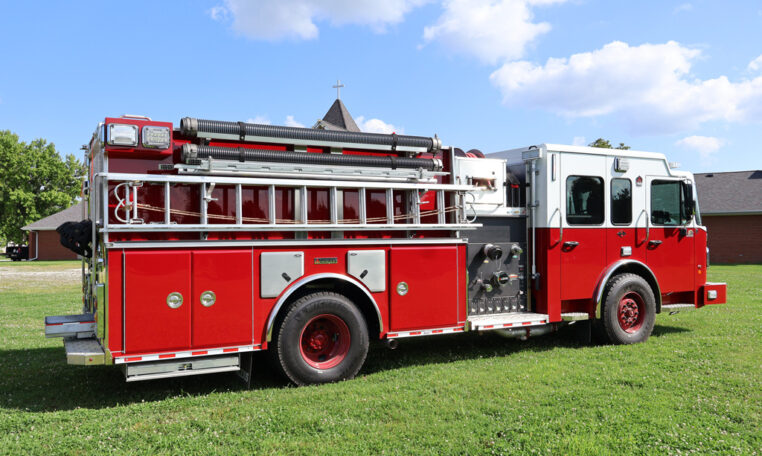

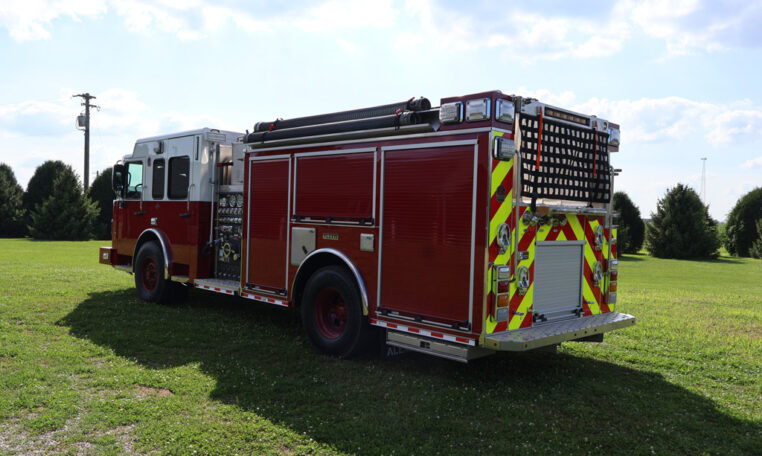

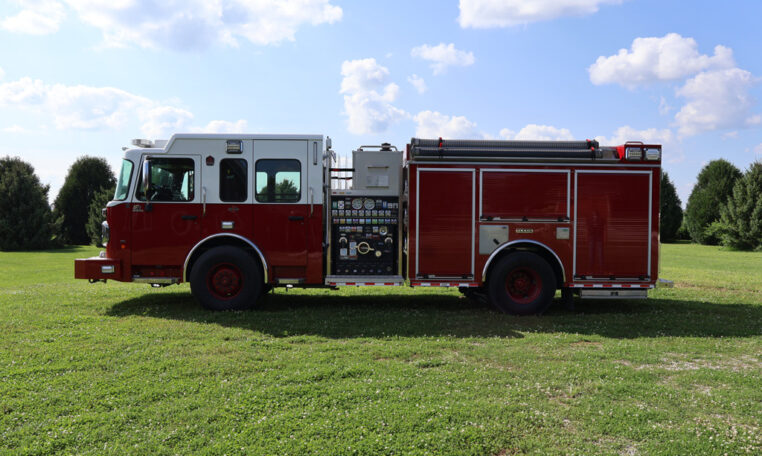

• Spartan Metro Star EMFD Chassis with 10” Raised Roof
• Cummins L9 450 HP Diesel Engine
• Allison 3000 EVS Transmission
• Heavy Duty Stainless Steel Body with Stainless Steel Subframe

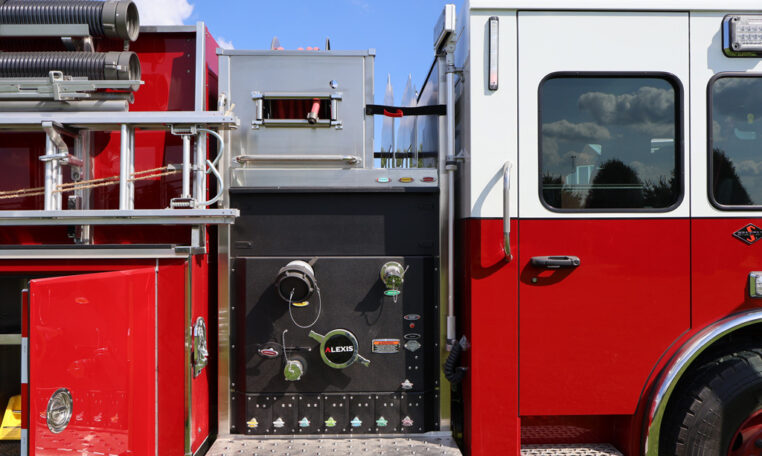

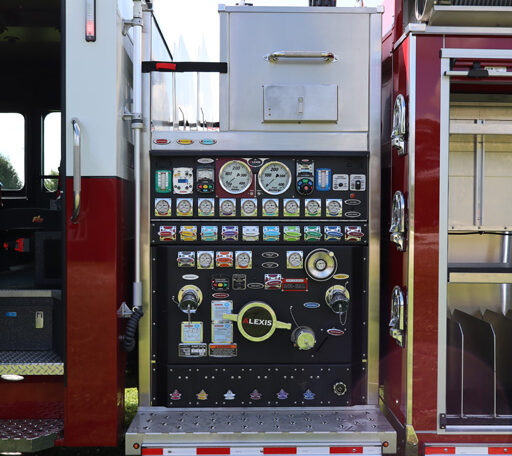

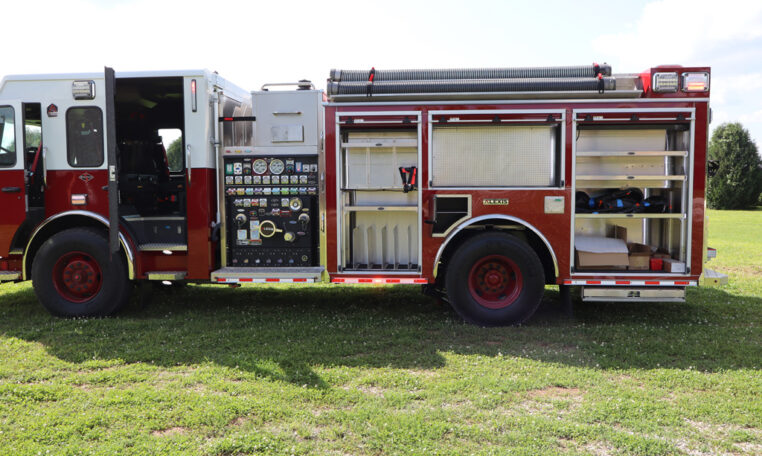

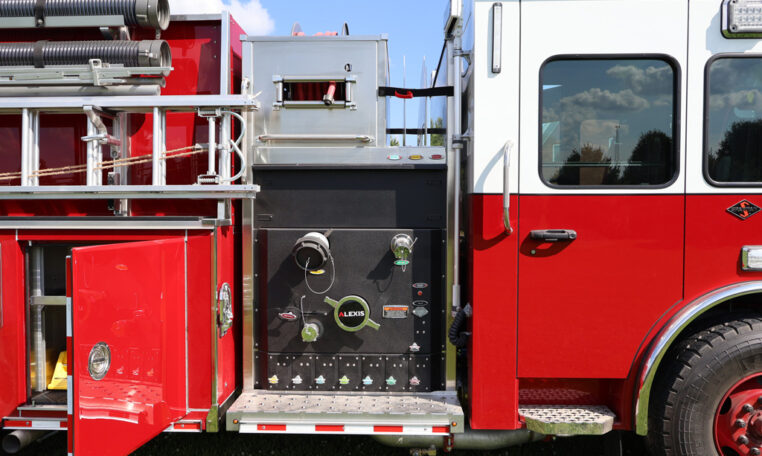

• Stainless Steel Side Control Pump Module with Stainless Steel Subframe
• Waterous S100 1500 GPM Pump
• Trident 2-Location Air Primer
• FRC Pump Boss Max Pressure Governor Monitoring System
• FRC TankVision Water Tank Level Gauge
• Two (2) 6” Intakes, One (1) Each Side
• One (1) 5” Front Intake – Right Side
• Two (2) 2½” Gated Intakes, One (1) Each Side
• Two (2) 2½” Discharges, Left Side and One (1) 2½” Discharge, Right Side

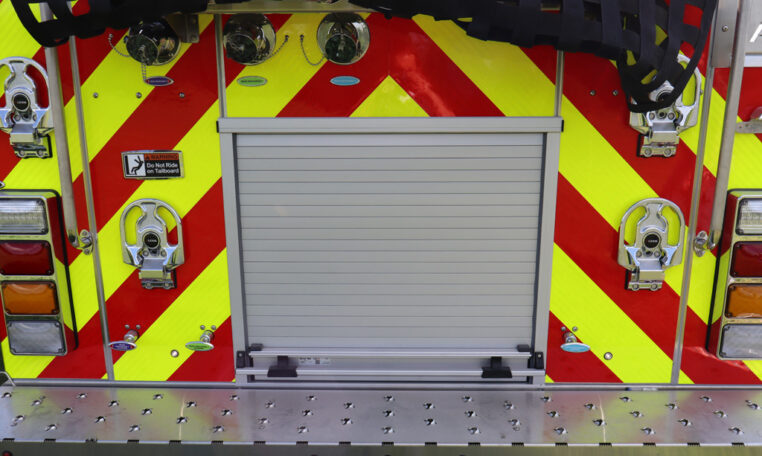

• Three (3) 2½” Discharges, Rear
• One (1) 4” Discharge with 5” Storz Elbow, Right Side
• Waterous Aquis 3.0 Foam System with 30 Gallon Foam Tank

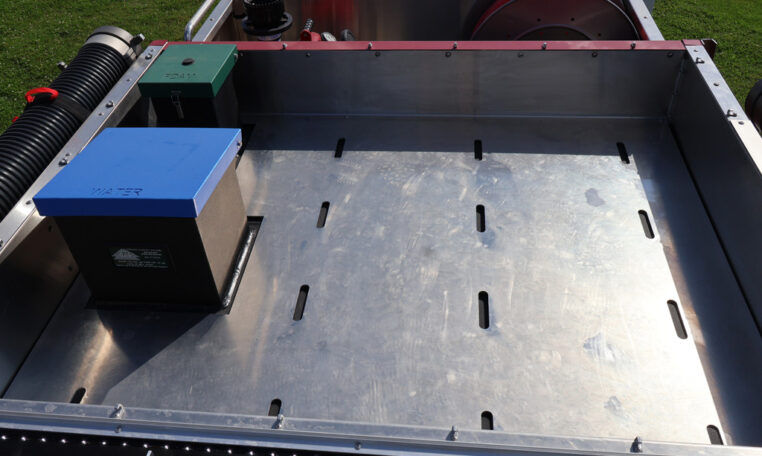

• One (1) 3” Discharge Dunnage Area with TFT Crossfire Deck Gun and Extenda-Gun
• Three (3) 1½” Deep Cut Crosslay Preconnects
• One (1) 1½” Bumper Extension Preconnect

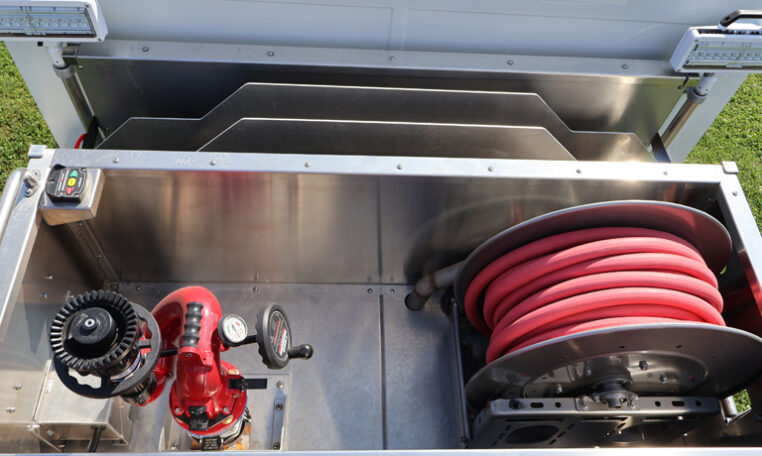

• One (1) Booster Reel Pump Module Dunnage Area on the Right Side with 150’ of 1” Booster Hose

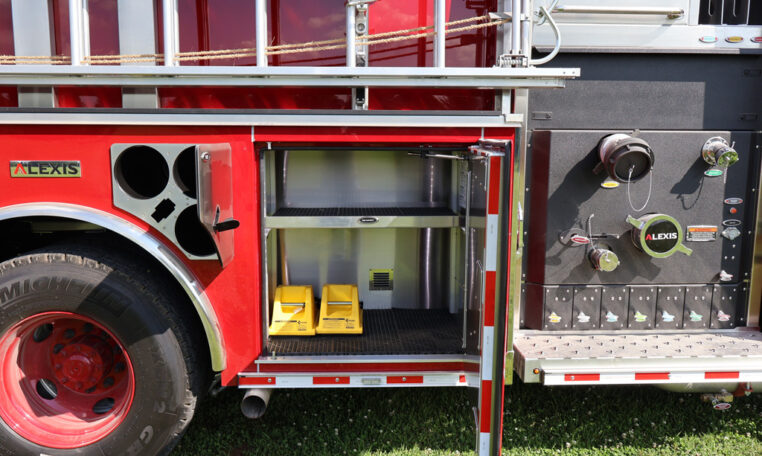

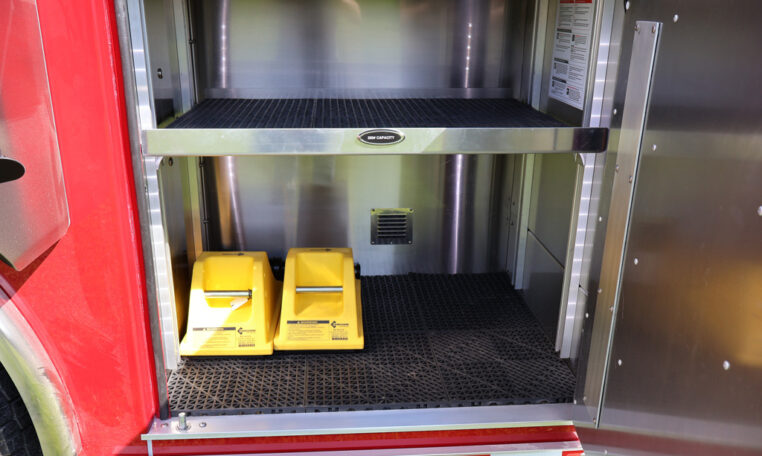

• Two (2) Triple Air Bottle Wheel Well Compartments
• One (1) General Storage Wheel Well Compartment

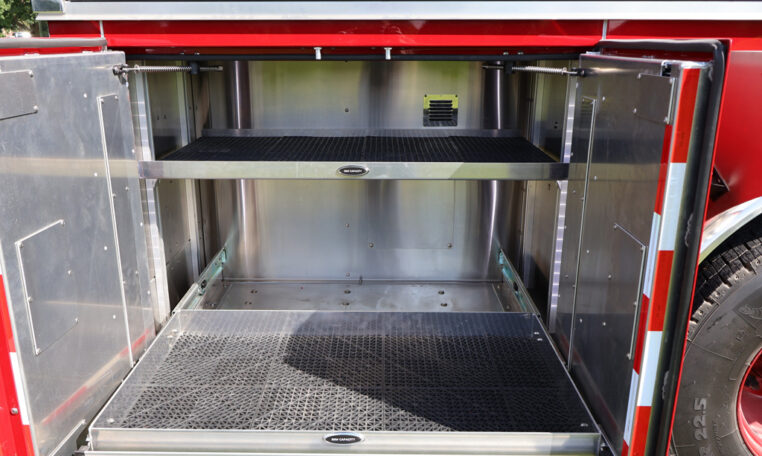

• Hinged Beveled Lap Style Doors – Right Side Compartments

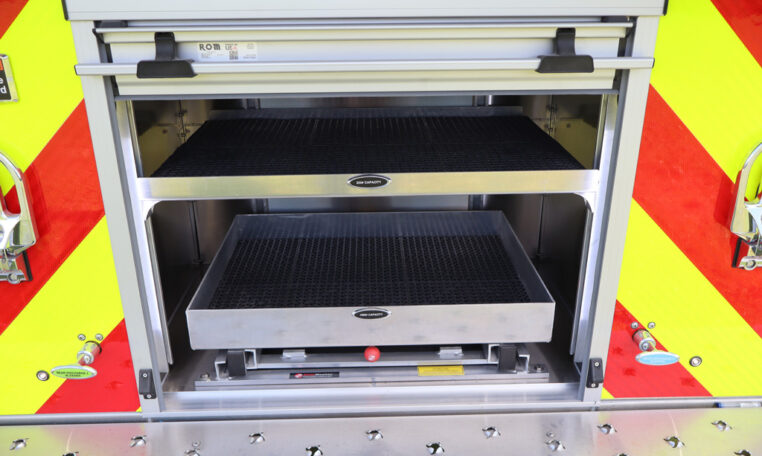

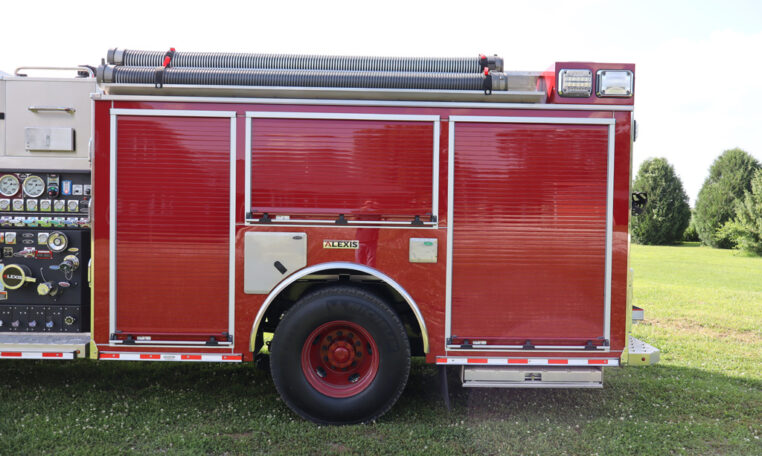

• ROM Painted Roll Up Doors – Left Side Compartments

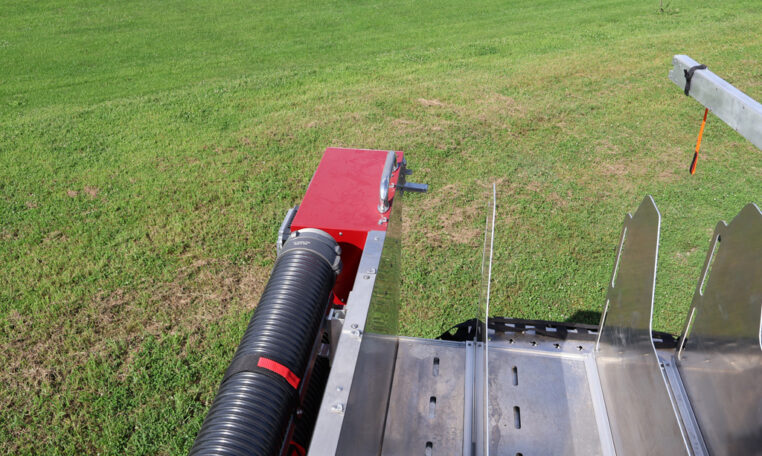

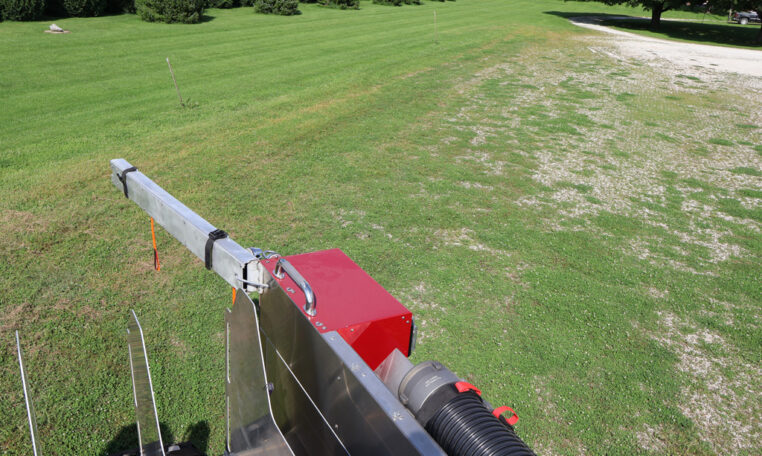

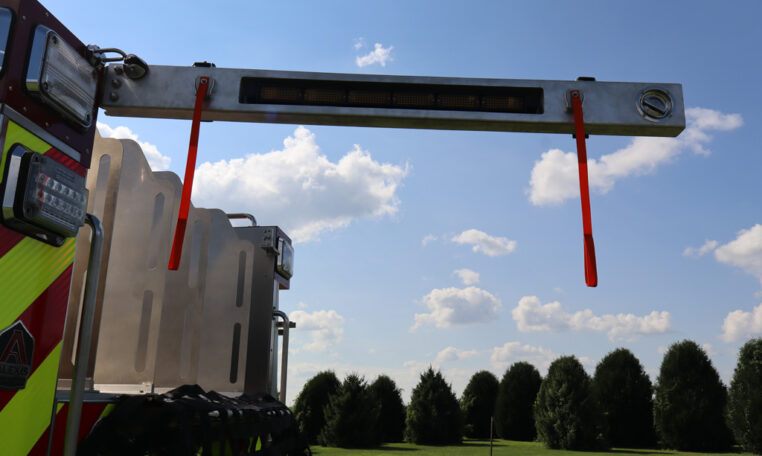

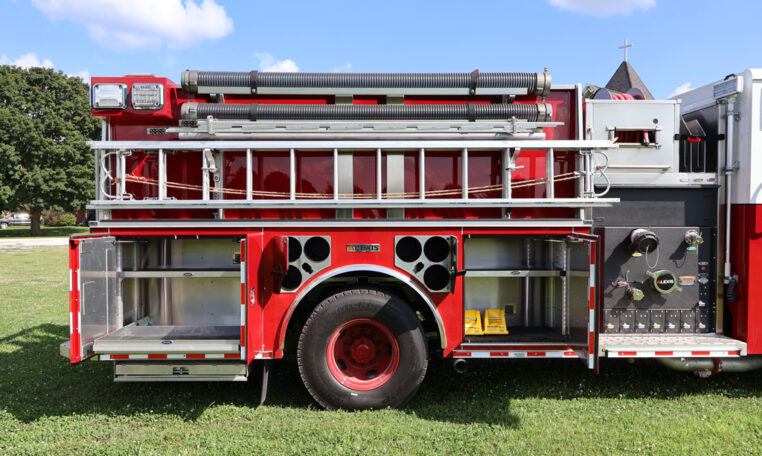

• Zico Electric Ladder Rack, Right Side

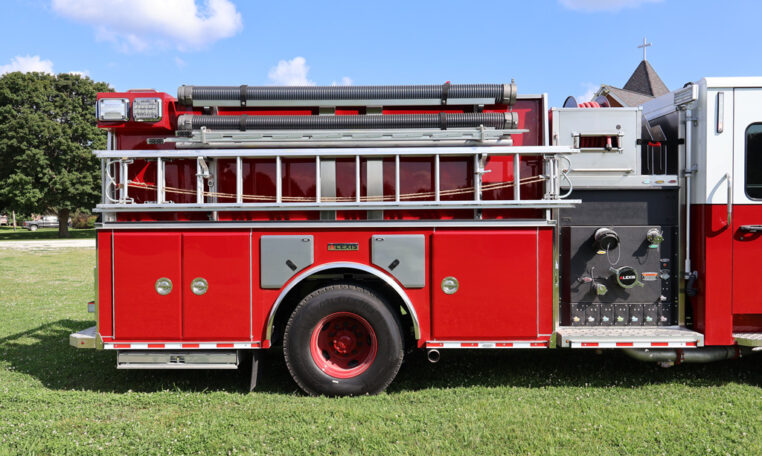

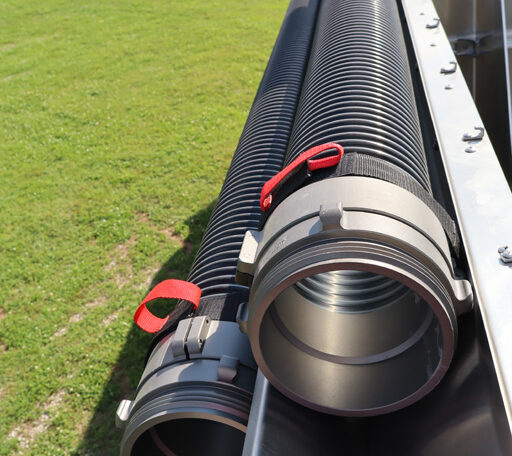

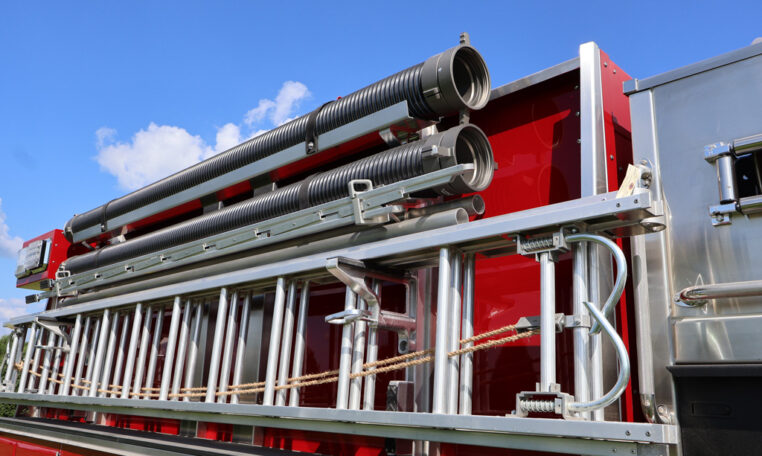

• Suction Hose Storage for Two (2) Lengths of Suction Hose Left Side Above the Compartments and Two (2) Lengths Right Side, Total of Four (4) 10’ Lengths
• 1000 Gallon Poly Tank
• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Kussmaul Chief 4012 Battery Charger
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side of Cab
• Whelen LED Warning Light Package with Rear Arrow Stick

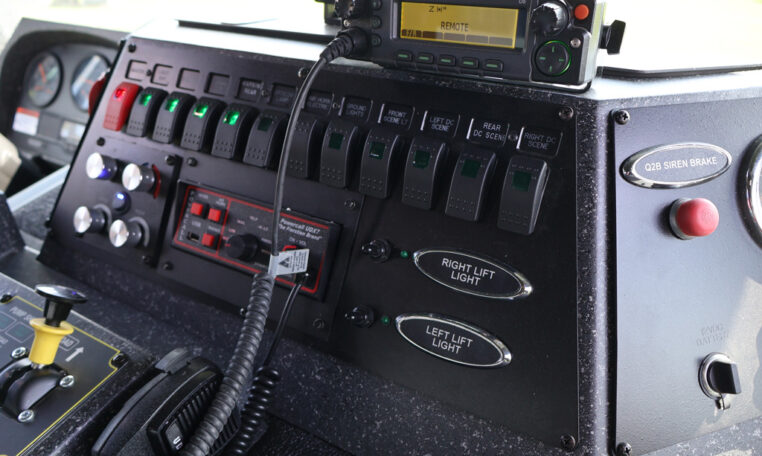

• Powercall UDX-7 Siren and Federal 100W Speaker
• One (1) Federal Q2B Siren
• Three (3) FireTech HiViz GESM LED Scene Lights, One (1) Each Side and One (1) Rear
• One (1) FireTech HiViz 72” LED Brow Light
• Two (2) FireTech HiViz GESM LED Scene Lights, One (1) Each Side of the Cab
• Two (2) Fire Research Spectra LED Telescopic Lights, One (1) Each Side of the Pump Module
• One (1) 10’ Attic Ladder, One (1) 14’ Roof Ladder with Double Hooks, One (1) 24’ 2-Section Ladder, and Four (4) 10’ Lengths of 6” Suction Hose
• 9’-10” Overall Height
• 31’-10” Overall Length
• 188” Wheelbase
• 128” Cab to Axle
• 20,000 FAWR
• 27.000 RAWR
• 47,0000 GVWR
