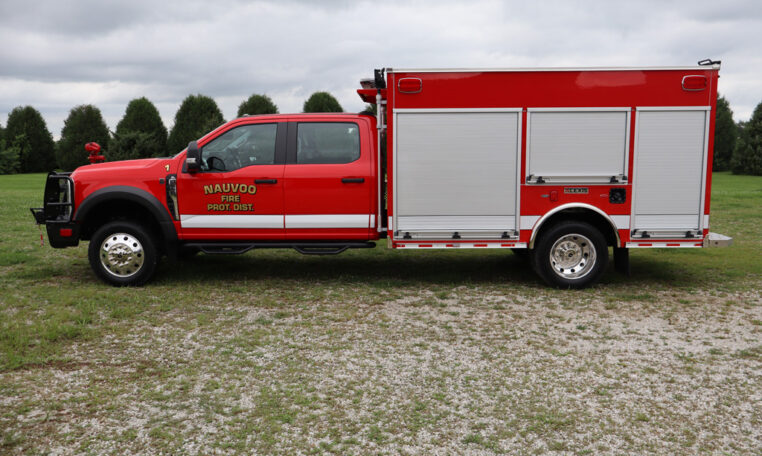

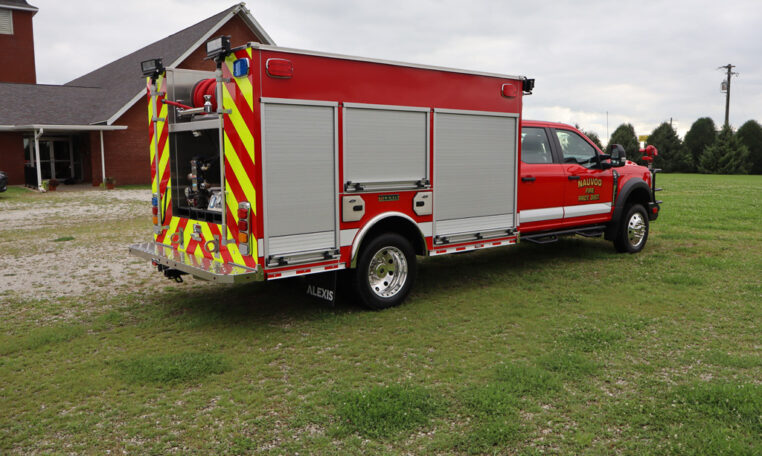

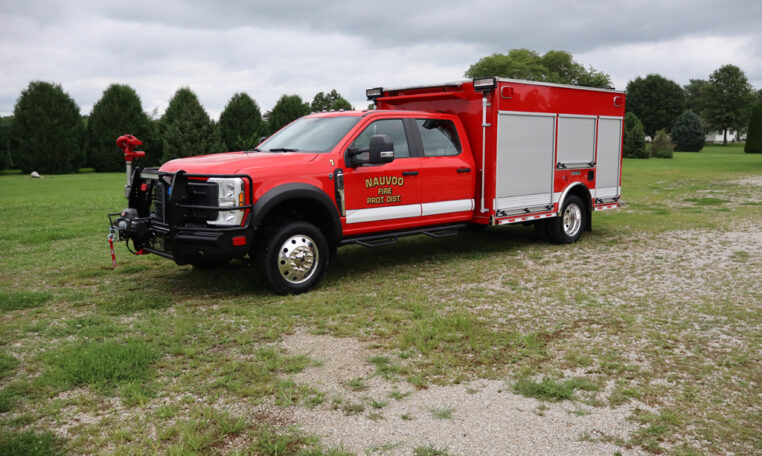

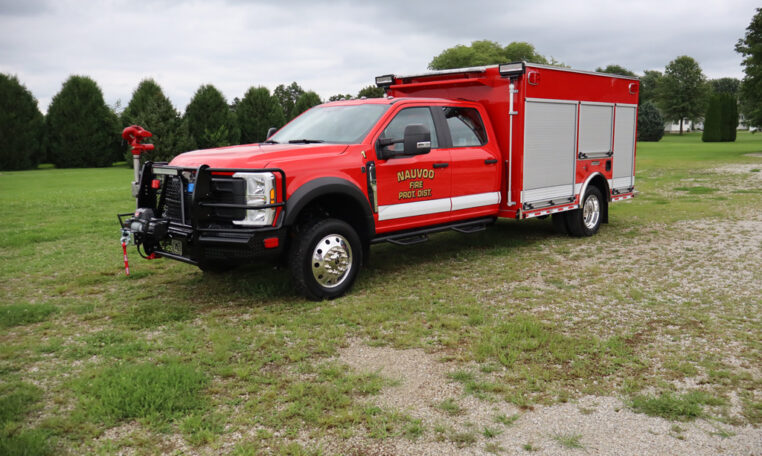

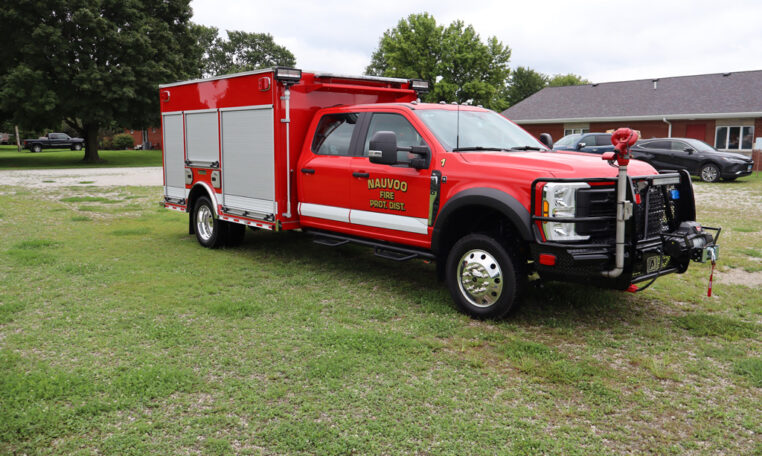

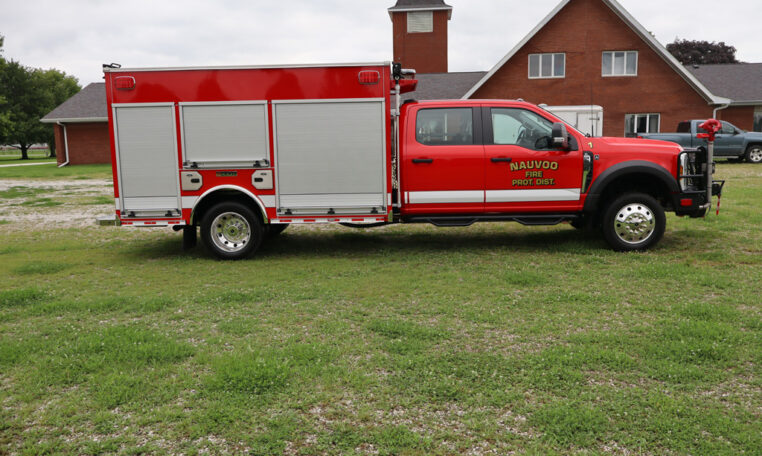

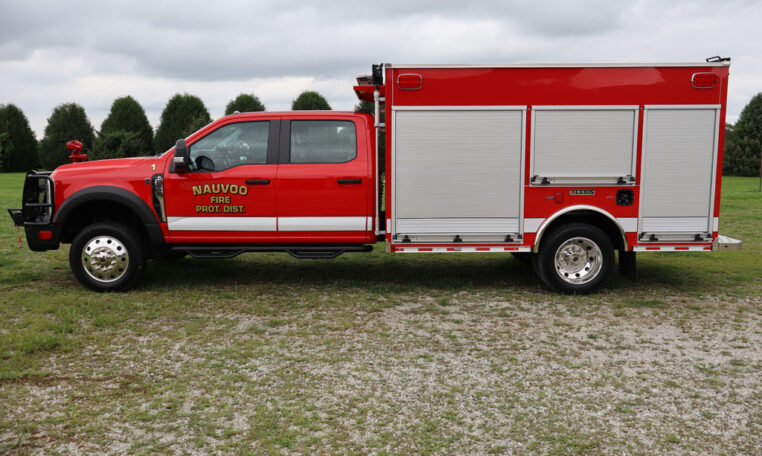

RESPONSE ONE BRUSH TRUCK #SK905

NAUVOO FIRE PROTECTION DISTRICT / NAUVOO, ILLINOIS
FEATURES:
  • Ford F550 4×4 Crew Cab Chassis
  • 7.3L V8 Gas Engine
  • TorqShift 10-Speed Automatic Transmission
  • Heavy Duty Stainless Steel Body and Stainless Steel Subframe
  • N-FAB Black Cab Steps on Each Side

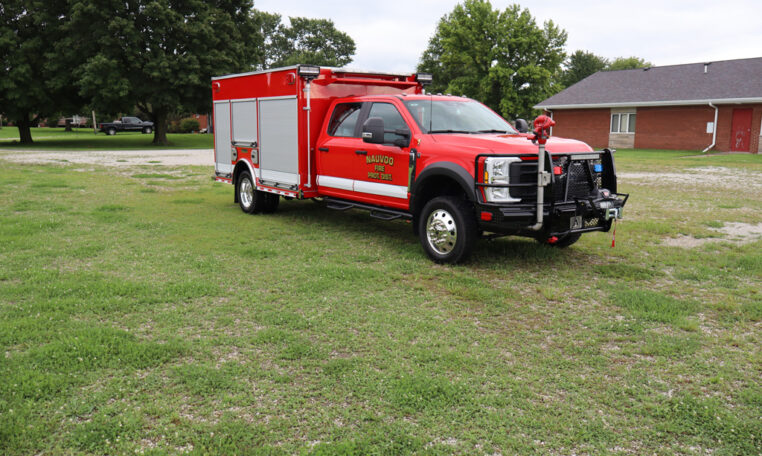

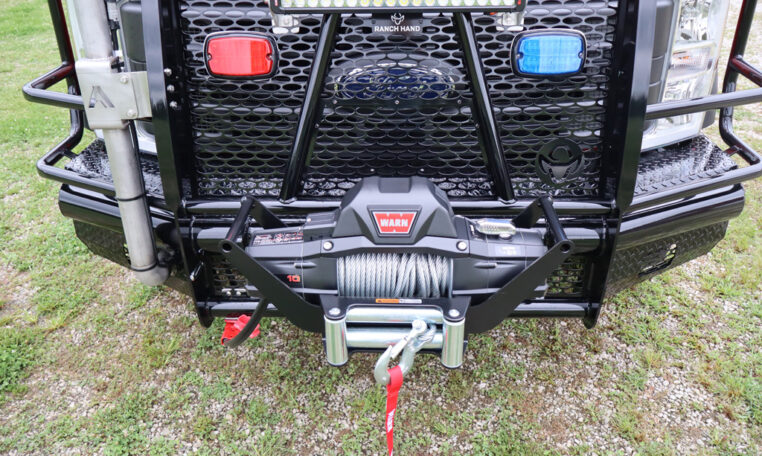

  • Ranch Hand Replacement Bumper with Brush Guard and Hitch with Winch Wiring
  • Rear Hitch with Winch Wiring
  • Warn Zeon 10 Multi-Mount Winch

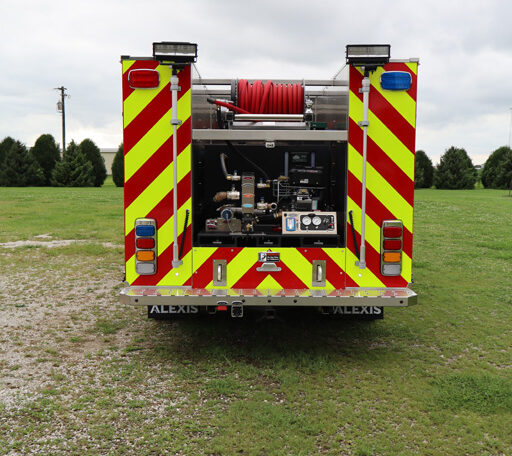

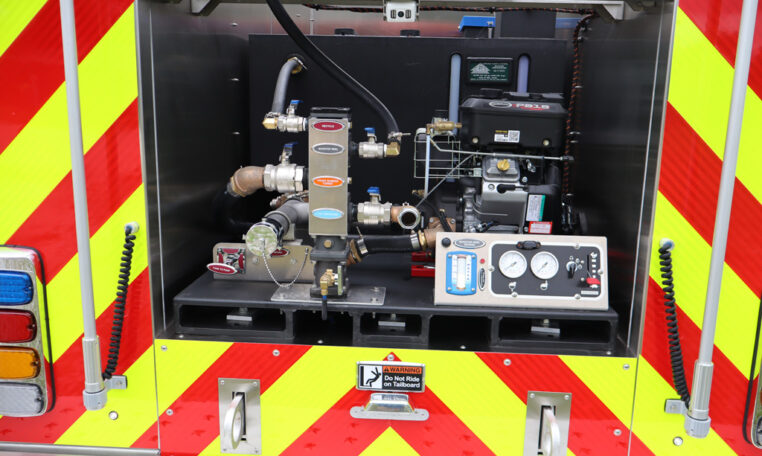

  • Waterous PB18-2515 Portable Pump
  • FRC TankVision Water Tank Level Gauge with FRC Mini Cab Display
  • One (1) 1½” Discharge, Rear

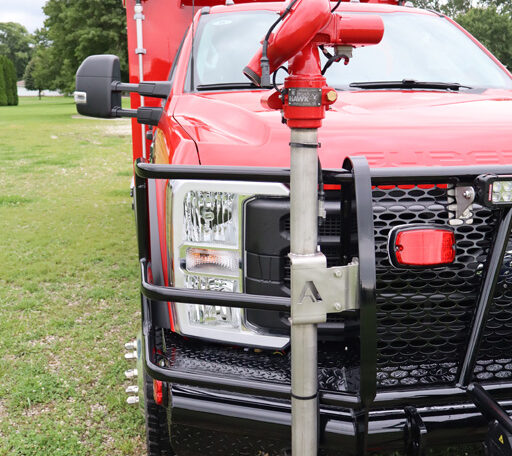

  • One (1) Elkhart BrushHawk Bumper Turret

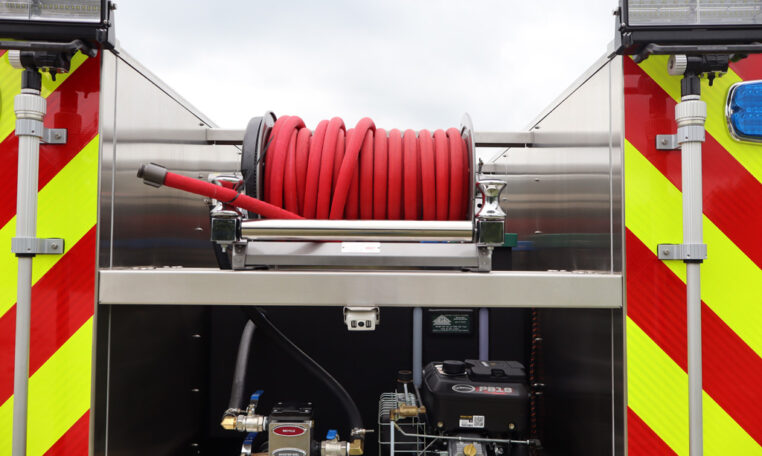

  • One (1) Booster Reel on Tank with 100’ of 1” Booster Hose
  • 300-Gallon Poly Skid Tank

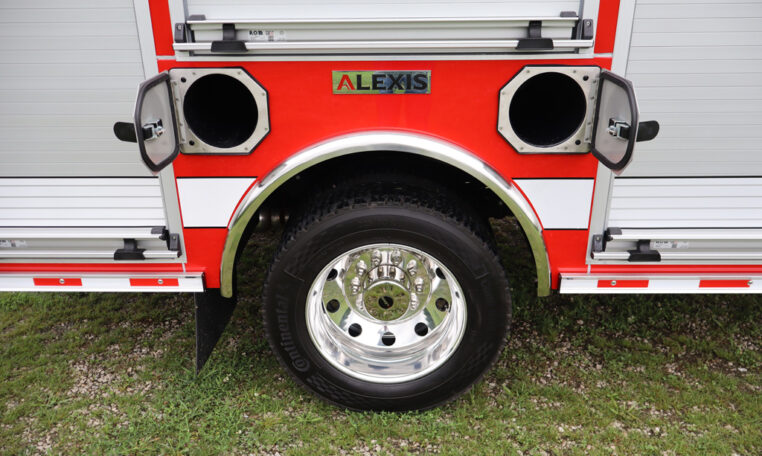

  • Two (2) Single Bottle Wheel Well Compartments
  • ROM Roll-Up Doors

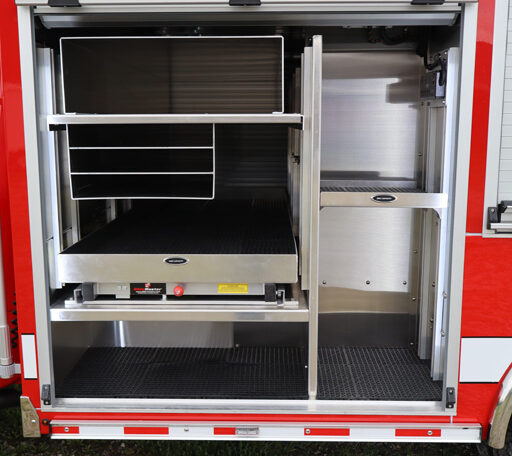

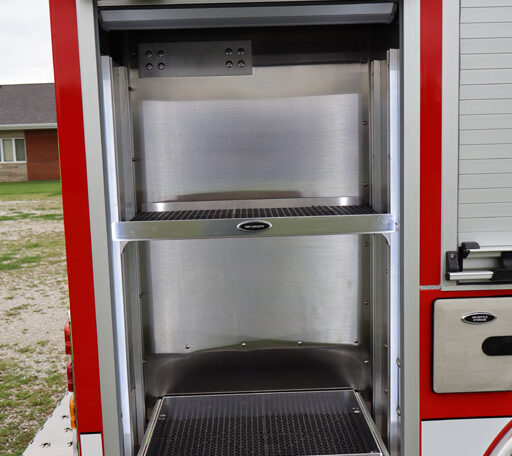

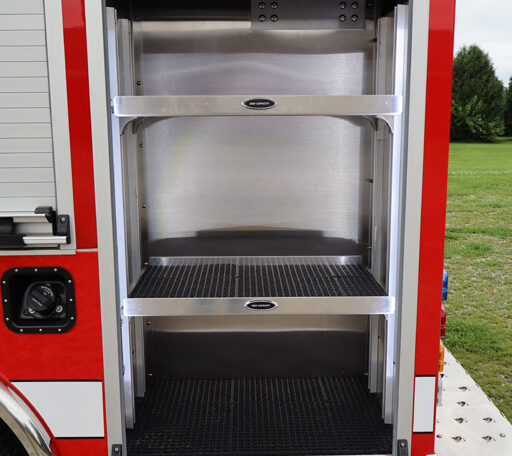

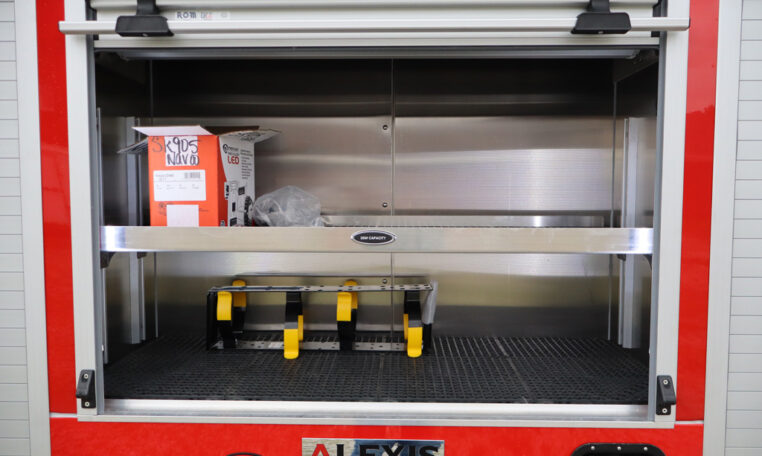

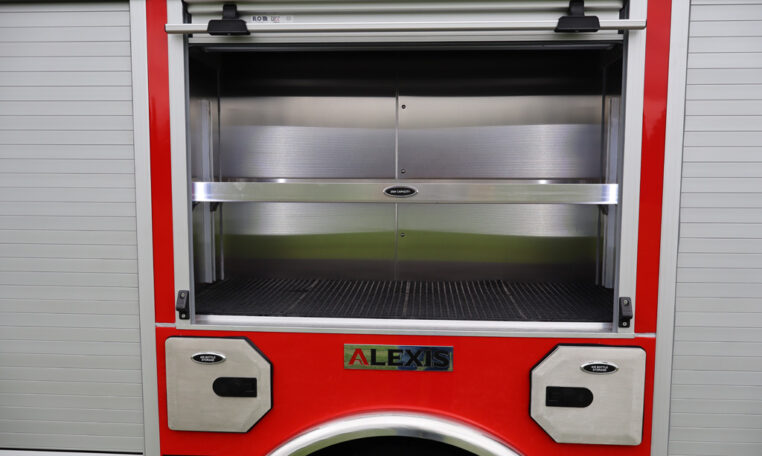

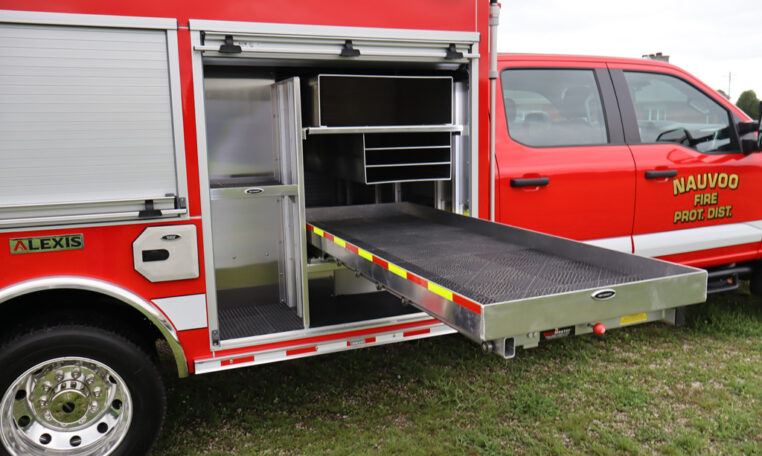

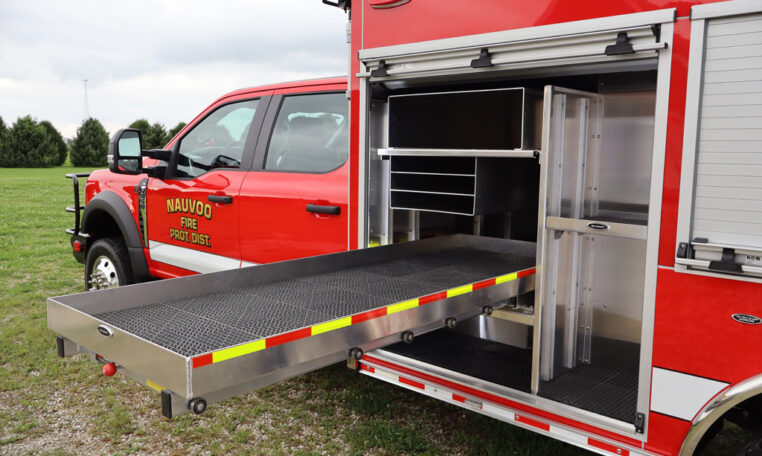

  • Three (3) Compartments Each Side Outfitted for Maximum Storage
  • 12 Volt Electrical System with NFPA Compliant Warning Light Package
  • Progressive Dynamics Charger
  • Kussmaul 120V 20A Super Auto Eject, Left Rear Wheel Well
  • Whelen LED Warning Light Package

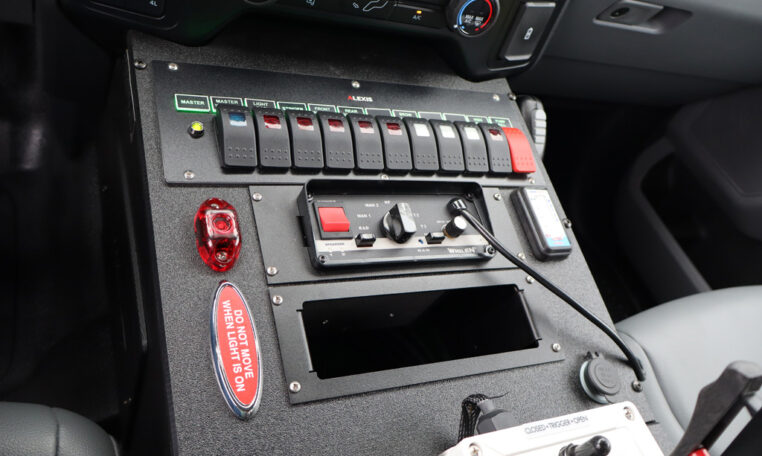

  • Whelen 200 Watt Siren & 100W Speaker
  • Four (4) Whelen PFH2 12 Volt LED Telescopic Lights, One (1) Each Side at the Front and One (1) Each Side at the Rear of the Body
  • One (1) Firetech HiViz 21” LED Bar Scene Light Bar, Brush Guard Mounted
  • 9’ 2” Overall Height
  • 26’ 10” Overall Length
  • 203.8” Wheelbase
  • 84” Cab to Axle
  • 7,500 FAWR
  • 14,700 RAWR
  • 19,500 GVWR
Year: 2026
Make: Alexis Fire Equipment
Model: Response One
Chassis: Ford F550 4x4
Body Style: Response One
Pump Size: Waterous PB18-2515-LE
Tank Size: 300
New Delivery: New Delivery
Program Vehicle: Response One
