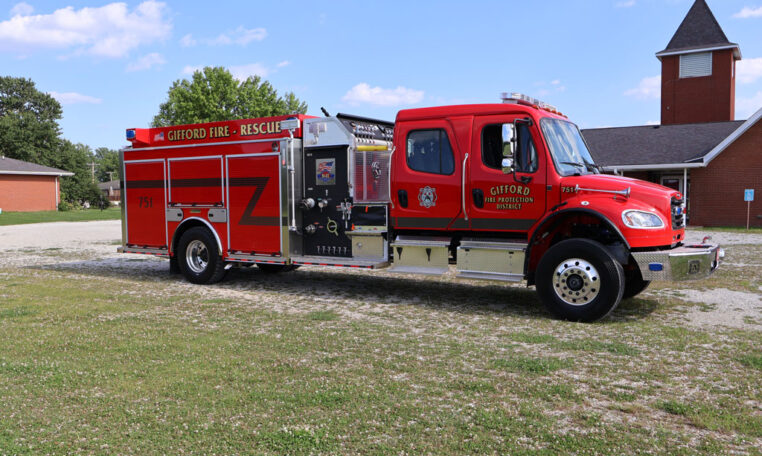

Delivered Apparatus

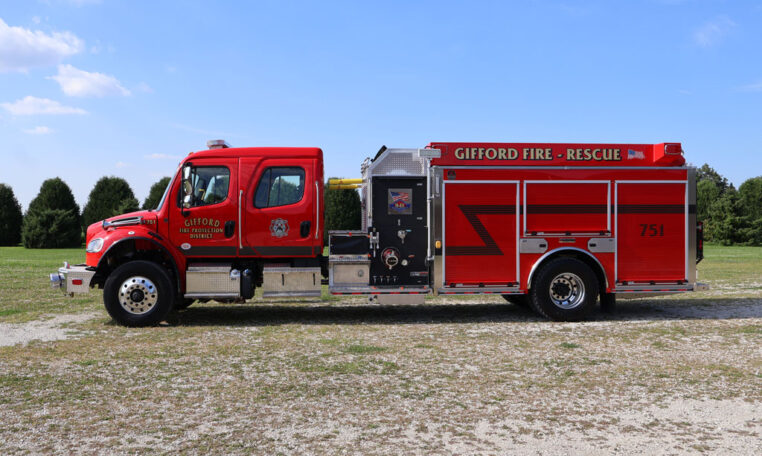

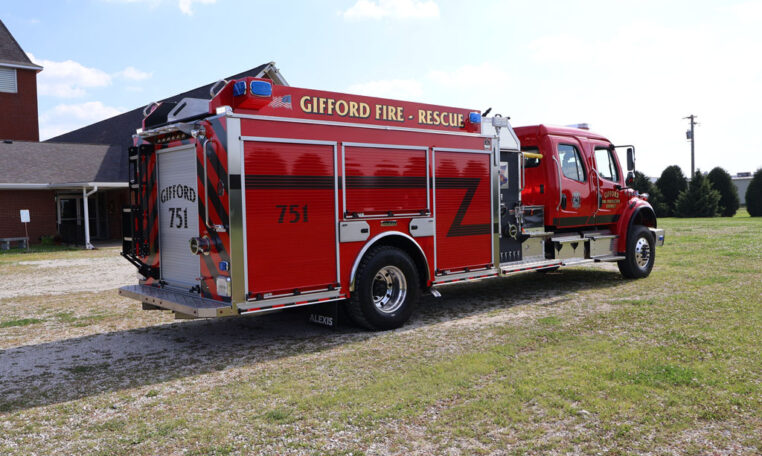

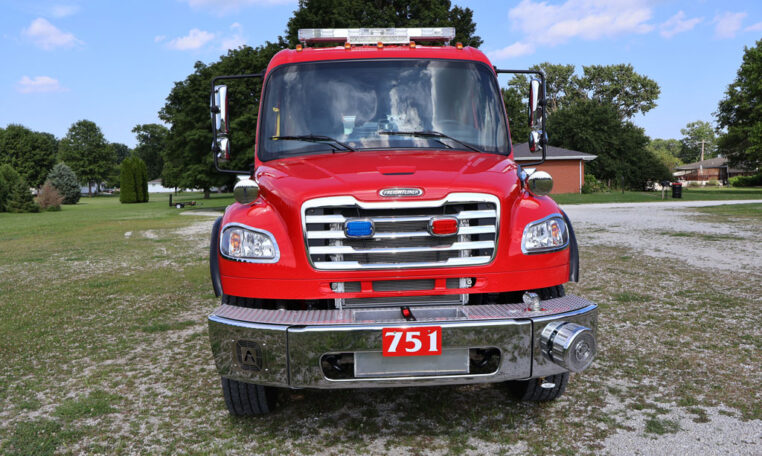

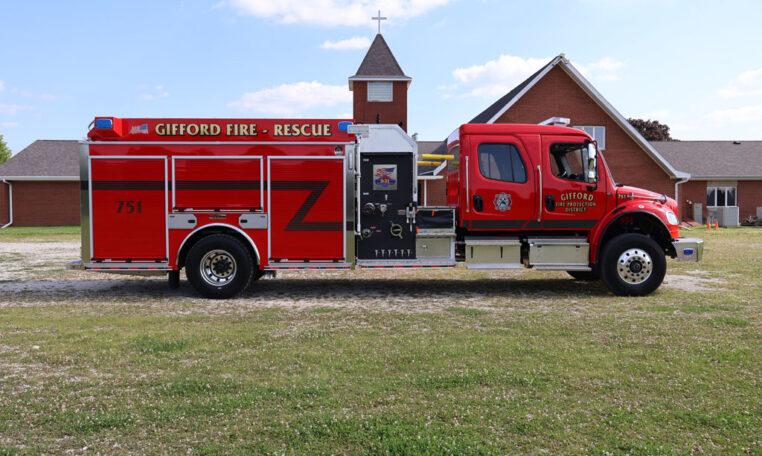

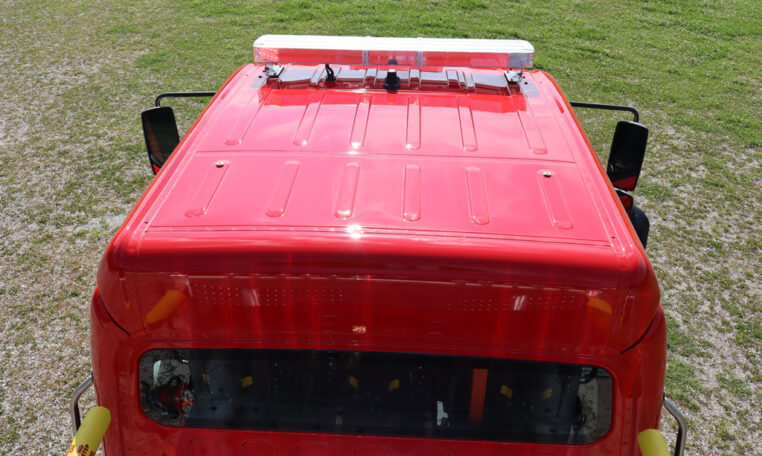

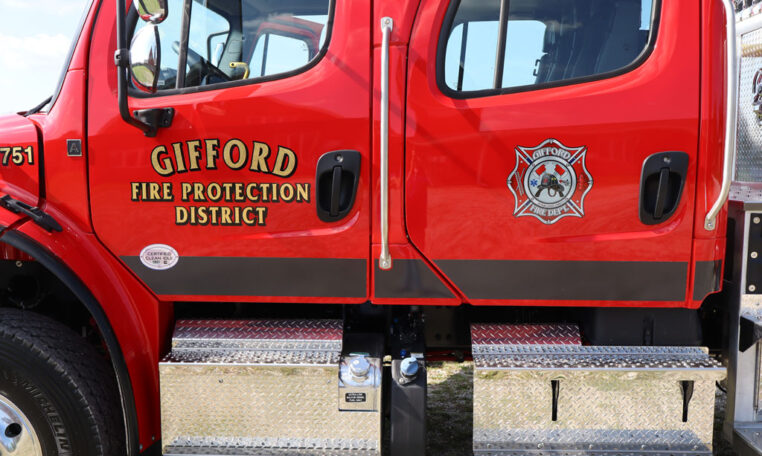

• Spartan FC-94 MFD Chassis with 10” Raised Roof
• Cummins L9 450 HP Diesel Engine
• Allison 3000 EVS Transmission
• Heavy Duty Aluminum Body and Subframe

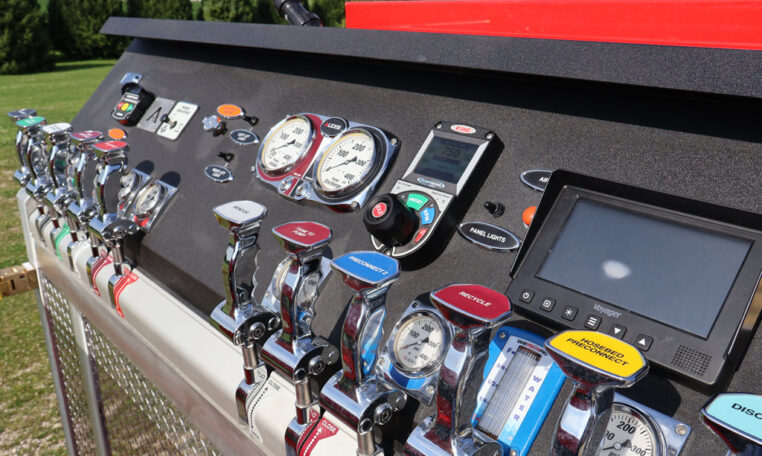

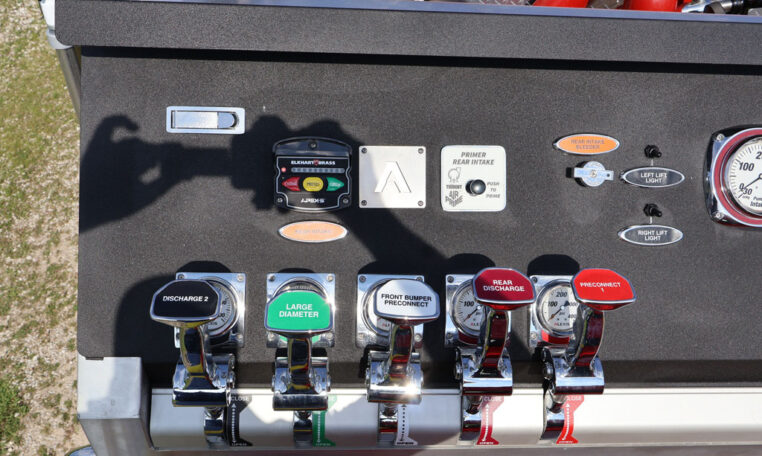

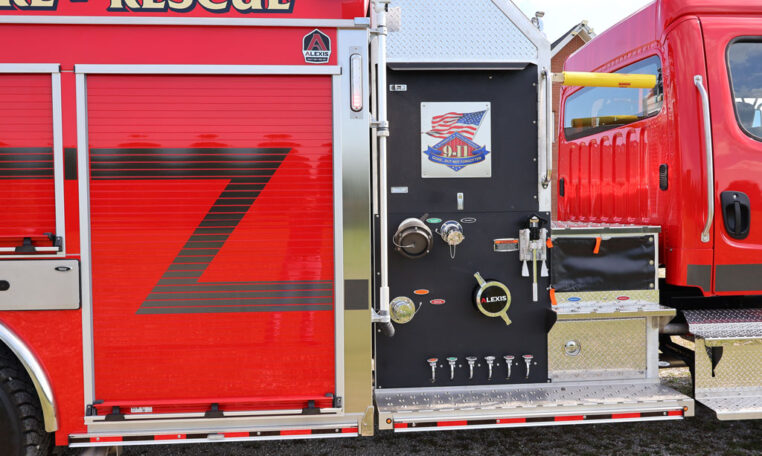

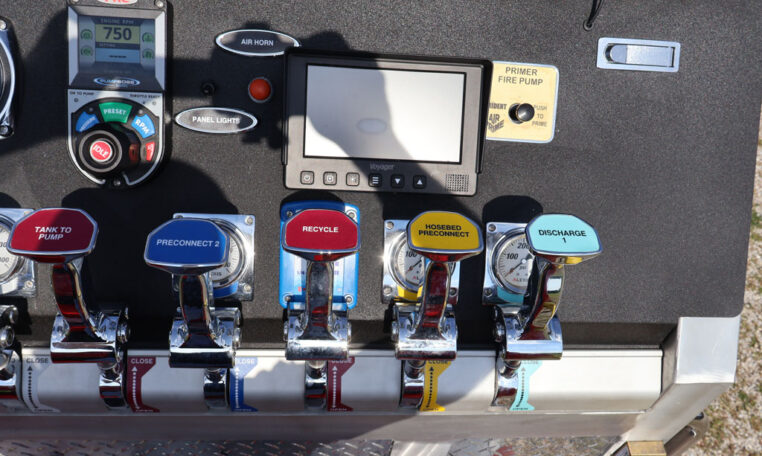

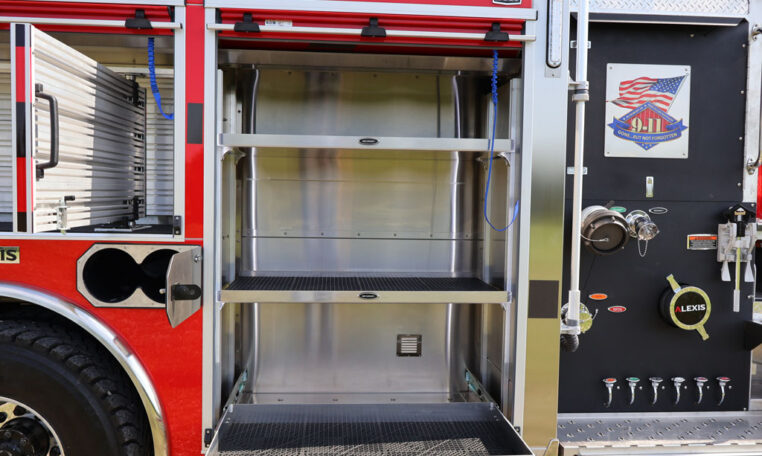

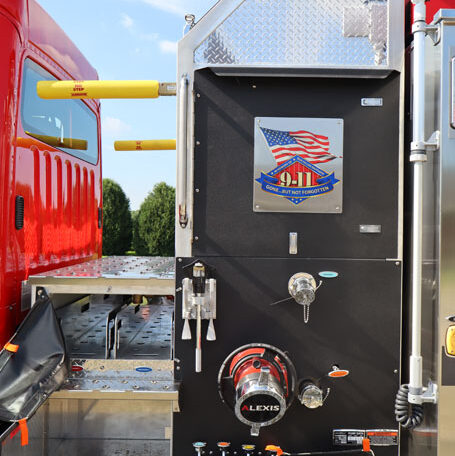

• Side Control Pump Module
• Hale DSD 1500 GPM Pump
• Trident 2-Location Air Primer

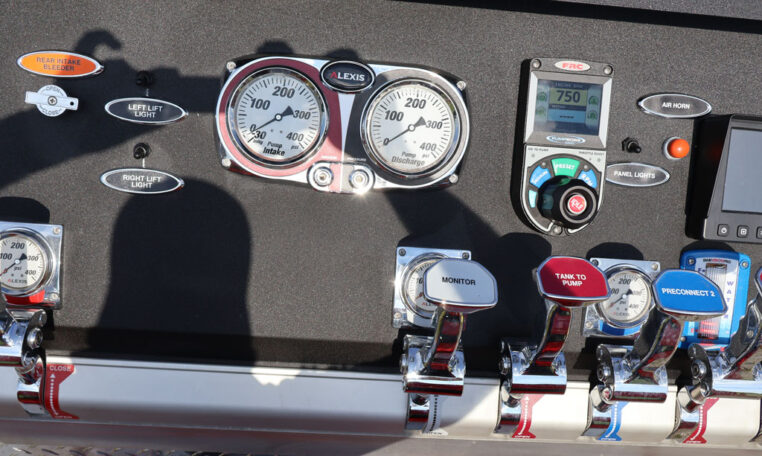

• FRC Pump Boss Max Pressure Governor Monitoring System
• FRC Tankvision Water Tank Level Gauge with Three (3) FRC MaxVision Strip Lites
• Two (2) 6” Intakes, One (1) Each Side
• One (1) 5” Front Intake with 6” Swivel Elbow
• One (1) 2½” Gated Intake, Left Side
• Two (2) 2½” Discharge, Left Side and One (1) 2½” Discharge, Right Side
• One (1) 3” Discharge Adapted to 5” Storz, Right Side
• One (1) 3” Discharge Adapted to 2½” MNST, Rear Right

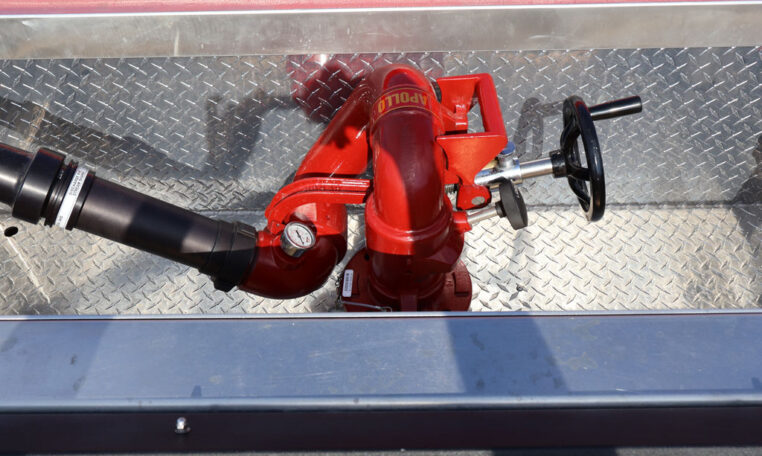

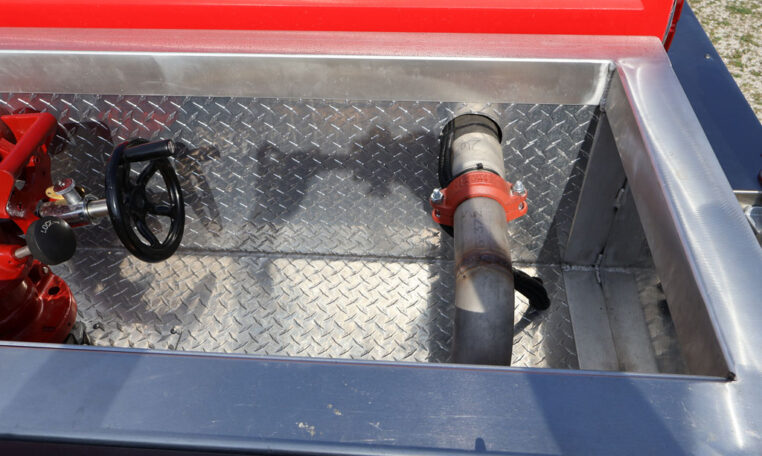

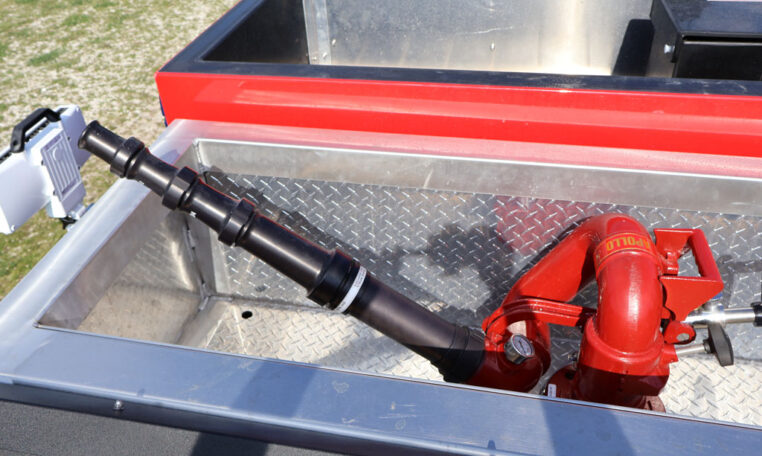

• One (1) 3” Deck Gun Discharge in Dunnage Area with Elkhart Extender

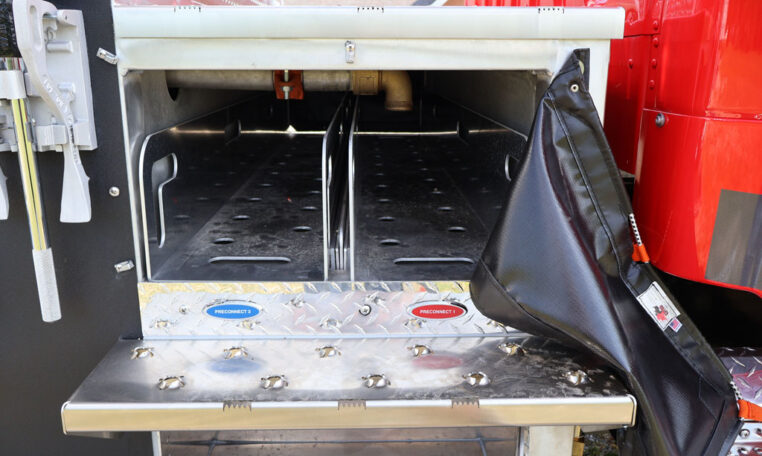

• Two (2) 1½” and One (1) 2½” Crosslay Preconnects

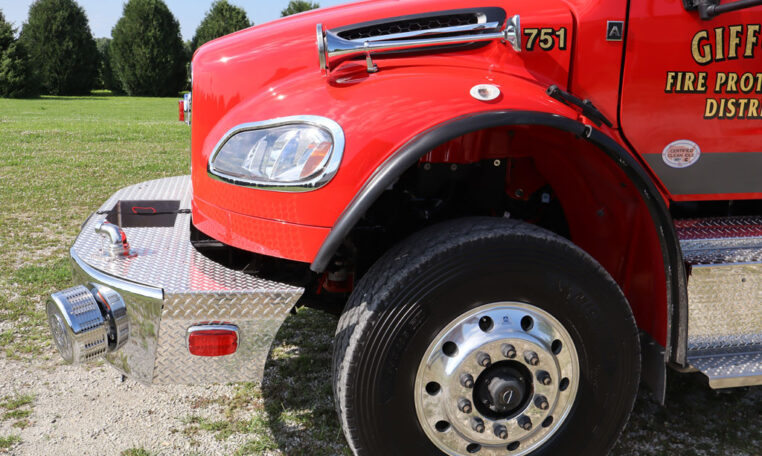

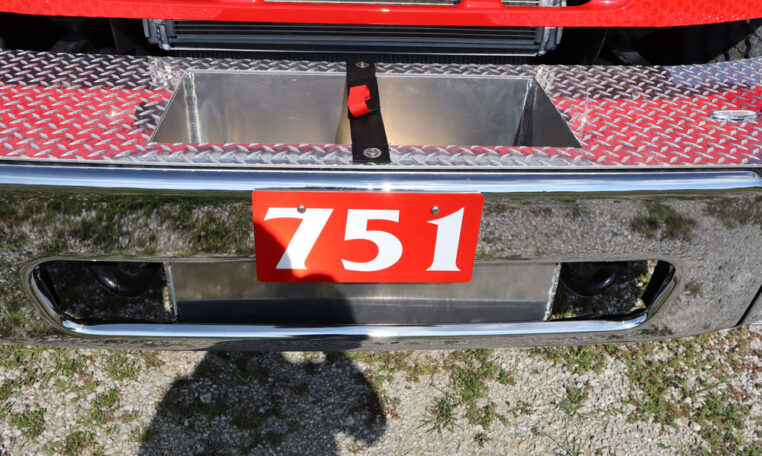

• One (1) 1½” Bumper Extension Preconnect

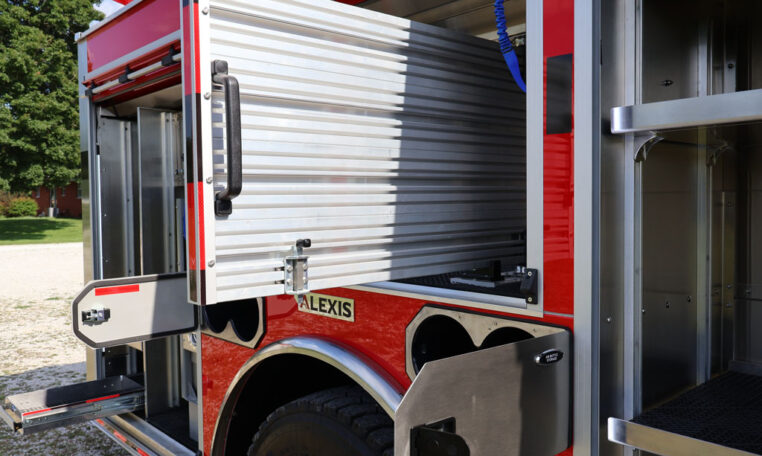

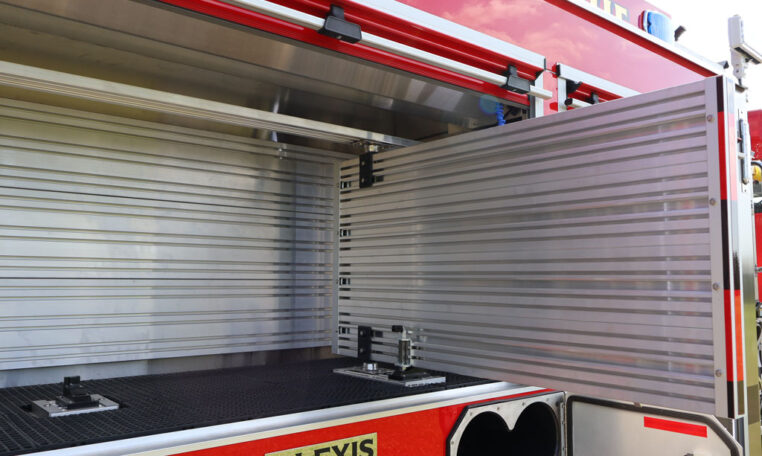

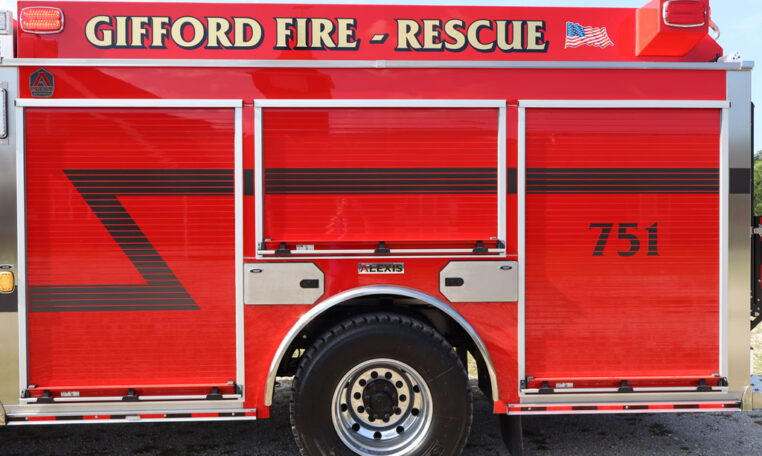

• ROM Painted Roll-Up Doors

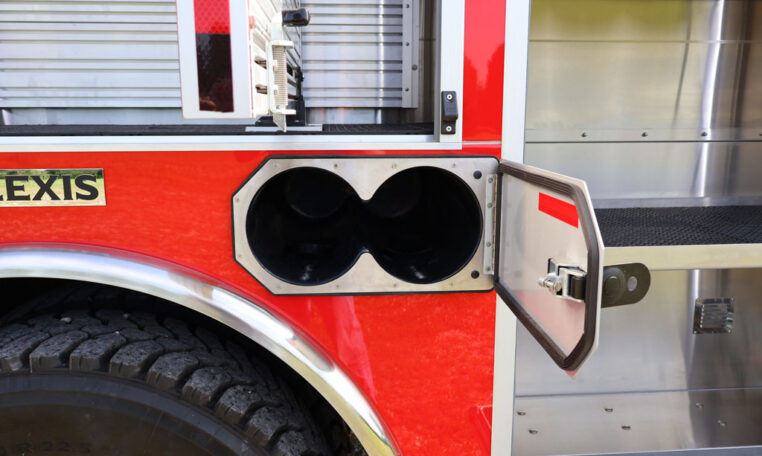

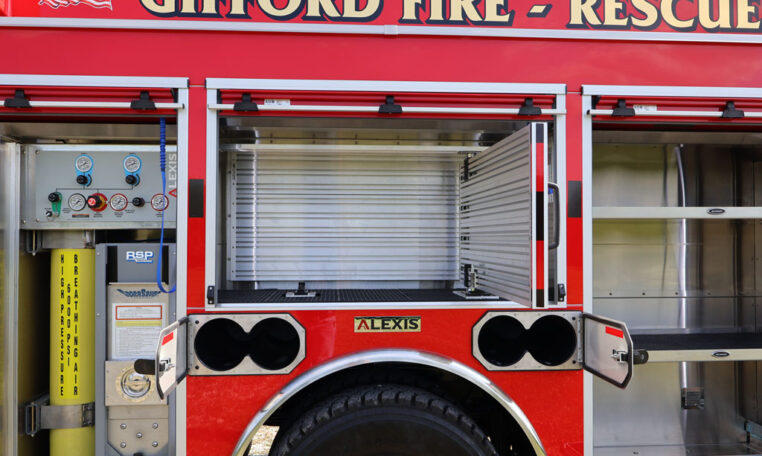

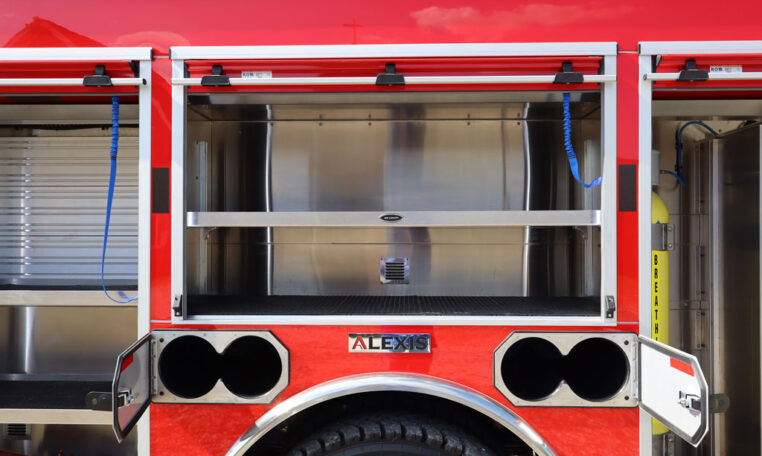

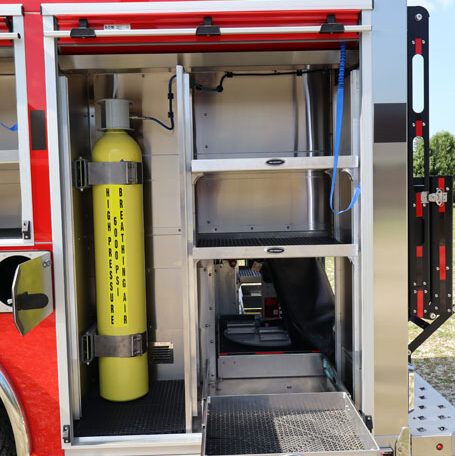

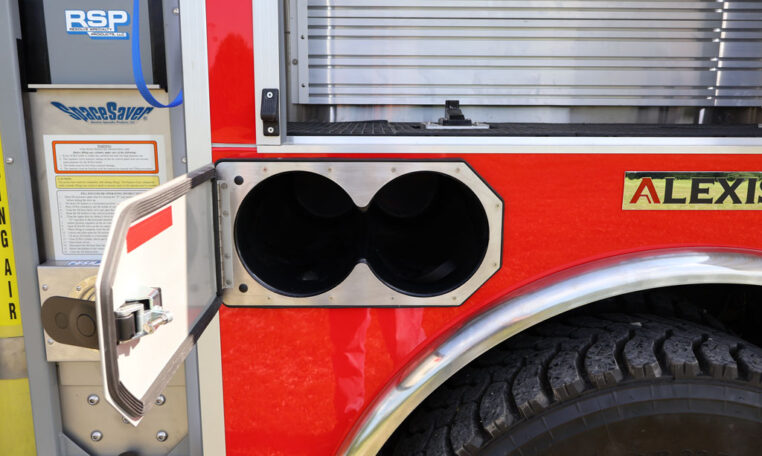

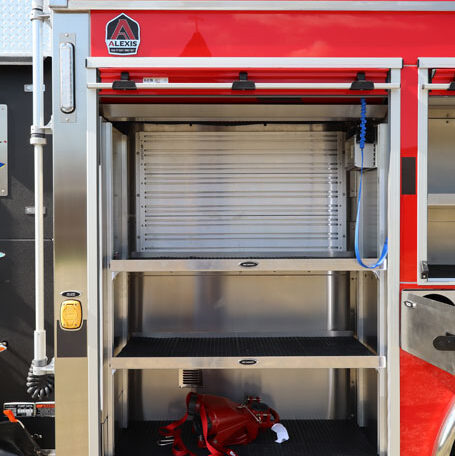

• Three (3) Dual Wheel Well Air Bottle Compartments

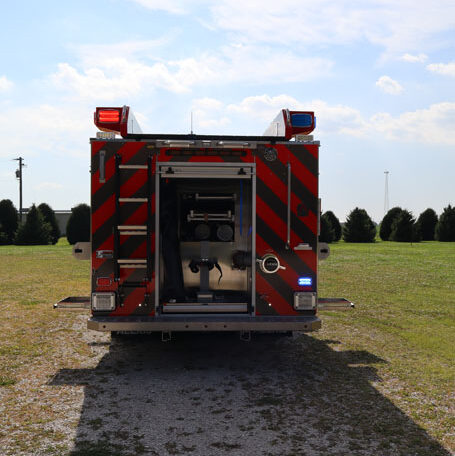

• Ladder Storage Horizontal in Rear Compartment with Two (2) Sections of Suction Hose

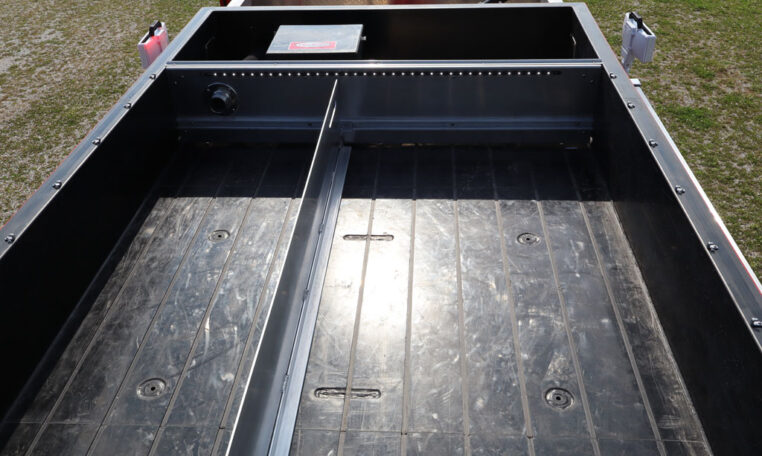

• 1000 Gallon Poly Tank with Hose Bed

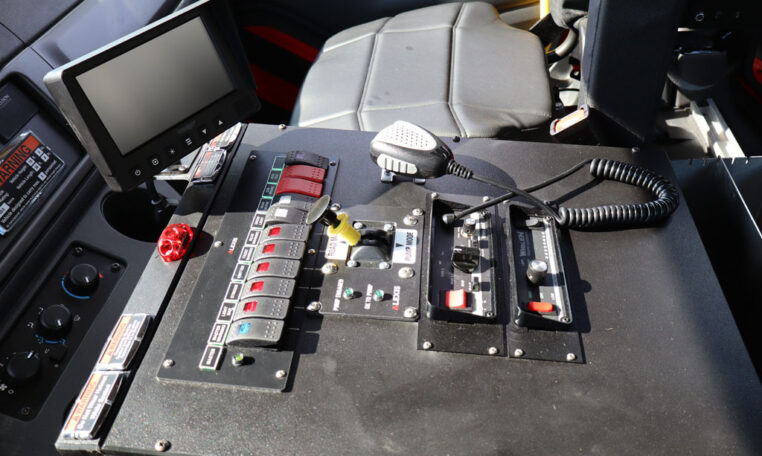

• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Whelen LED Warning Light Package with Rear Arrow Stick
• Kussmaul Chief 4012 Battery Charger
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side of Cab
• Whelen 200 Watt Siren and CPI 100 Watt Speaker
• Q2B Mechanical Siren

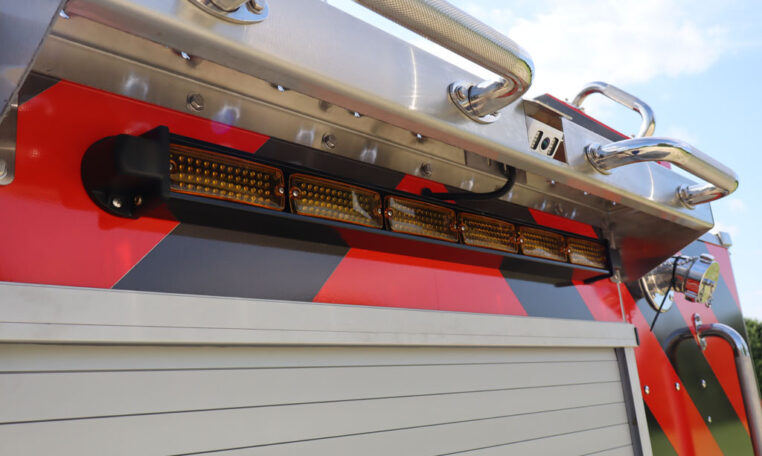

• Two (2) FireTech HiViz 8″ LED Scene Light Bars, Rear
• One (1) FireTech HiViz 72” LED Brow Light
• Two (2) Whelen 9S LED Scene Lights, One (1) Each Side of the Cab
• Two (2) Akron Revel LED Telescopic Lights, One (1) Each Side of the Pump Module
• One (1) 10’ Attic Ladder, One (1) 14’ Roof Ladder with Hooks, One (1) 24’ 2-Section Ladder, and Two (2) 10’ Lengths of 6” Suction Hose
• 10’-2” Overall Height
• 31’10” Overall Length
• 180” Wheelbase
• 126” Cab to Axle
• 21,500 FAWR
• 31,500 RAWR
• 53,000 GVWR
