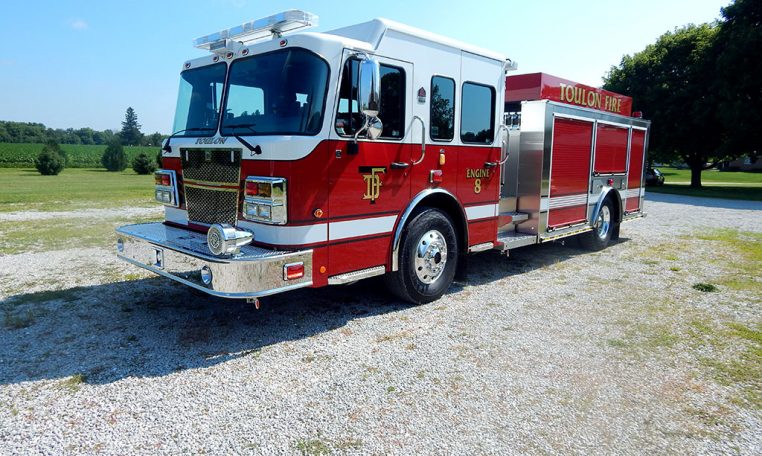

CUSTOM TOP MOUNT PUMPER #2335

TOULON COMMUNITY FIRE PROTECTION DISTRICT - TOULON, ILLINOIS

• Spartan Metro Star MFD 10” raised roof Chassis
• Cummins ISL9, 400-HP Diesel Engine
• Allison EVS 3000 Automatic Transmission
• Heavy Duty Stainless steel Body and Sub-Frame
• ROM Roll Up painted Doors

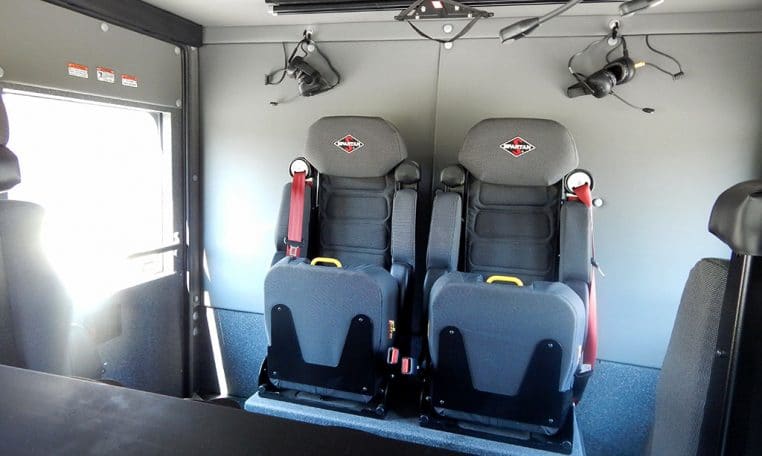

• Six (6) man cab seating with five (5) SCBA seats
• 21” Front bumper extension with 1 ½” Preconnect and hosewell
• 1000-Gallon Poly Tank with 10-Gallon Foam tank
• One (1) 2 ½” Fireman’s Friend Tank fill, rear
• Darley PSM, 1500-GPM Pump
• Two (2) 2 ½” Discharges, one (1) each side
• Two (2) 3” Discharges, one (1) rear and one (1) over pump for deck gun
• One (1) Akron Apollo Deck gun with stream shaper, stacked tips and mounts
• One (1) 2 ½” Preconnect, front of hosebed
• Two (2) 1 ½” Mattydale preconnects, directly behind chassis cab
• One (1) 2 ½” Gated Suction, left side
• Waterous Aquis 1.5 Foam System
• Swing out tool board, right side compartment
• Ladder storage through tank with rear access
• Sure-Grip Stainless steel top access ladder, rear mounted
• Three (3) Dual bottle Air bottle compartments, two (2) right and one (1) left side
• Audiovox back-up Camera system with side view camera and 7” color monitor
• FireCom Wireless Intercom system
• Kussmaul 1200 Pump Plus on-board battery charger
• Two (2) Air horns, front bumper
• Federal Q2B mechanical Siren, front bumper
• Whelen Electronic Siren with Whelen 100-watt speaker
• FRC LED Scene Light Package
• Whelen LED Warning Light Package
• Chevron pattern striping, rear
• 10’ 6” Overall height
• 32’ 9” Overall length
• 200” Wheelbase
• 146” Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR

Year: 2018
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Top Mount Pumper
Pump Size: 1500
Tank Size: 1000
Feature: Interior Mount Ladder
Exterior Color: Red with White
New Delivery: New Delivery
Program Vehicle: Equalizer
