Delivered Apparatus

FEATURES:

• Spartan FC-94 MFD 10” Raised Roof Chassis
• 450 HP Cummins L9 Diesel Engine
• Allison 3000 EVS Automatic Transmission
• EMS Compartment Center Rear Wall of Cab with ROM Door and 120V Power Strip
• 24” Extended Front Bumper with Center Hose Well
• Front Bumper 1½” Preconnect
• 5” Front Suction adapted to 6” NST with Low Level Strainer Preconnect
• Two (2) 1½” Mattydale Preconnects
• 1200-Gallon Poly Tank
• Heavy Duty Stainless-Steel Subframe & Body

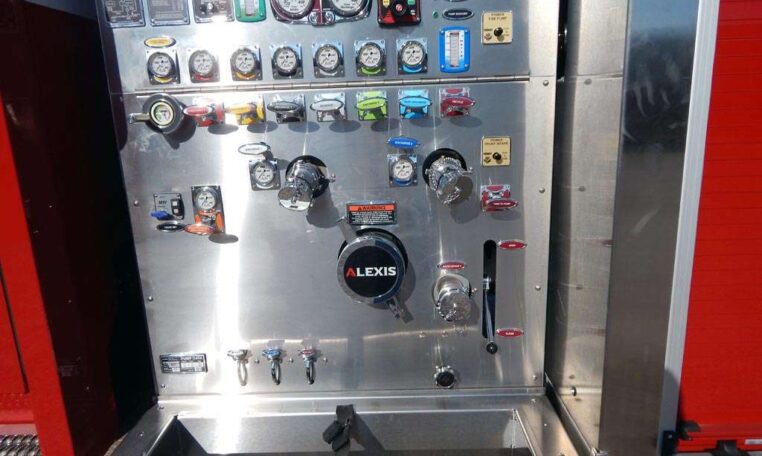

• Stainless Steel Side Control Pump Module
• Hale QMAX 2000 gpm Split-Shaft Pump
• One (1) 2½” Gated Intake Left Side
• Two (2) 6” Intakes, One (1) Each Side
• Two (2) 2½” Discharges Left Side
• Two (2) 2½” Discharges Right Side
• One (1) 4” Discharge Adapted to 5” Storz with Handwheel Control Right Side
• One (1) 2 ½” Discharge Rear
• Foam Pro 1600 Class A with 30 Gallon Tank
• ROM Painted Roll-Up Doors
• Three (3) Dual Bottle Wheel Well Compartments, One (1) Ahead Left Side, Two (2) Right Side
• One (1) 500# Roll Out Tray Each, L1/L3/R1/R3/Rear Compartments
• PacTrac Tool Mounting Board Upper Rear Wall of L1/L3/R1/R3 Compartments
• Hinged PacTrac Tool Board L2 Compartment
• Three (3) Walk-Away Air Pack Brackets R2 Compartment
• Zico Hydraulic Ladder Rack with One (1) Hard Suction Right Side
• One (1) Hard Suction Rear Access Storage Compartment
• One (1) Back-Up Camera with Cab Display
• Whelen Warning and Scene Light Package
• Two (2) Air Horns Recess Bumper Mounted
• Whelen Electric Siren with 100W Speaker
• Kussmaul Battery Conditioner and Air Compressor with a Kussmaul 20-Amp 120V Super Auto-Eject Shoreline Inlet Left Side
• 10’ 1” Overall Height
• 33’ 3” Overall Length
• 199” Wheelbase
• 145” Cab to Axle
• 21,500 FAWR
• 31,000 RAWR
• 52,500 GVWR
