Delivered Apparatus

FEATURES:

• Spartan Metro Star SMFD Flat Roof Chassis
• Cummins 450 HP L9 Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy-Duty Stainless Steel Body and Subframe

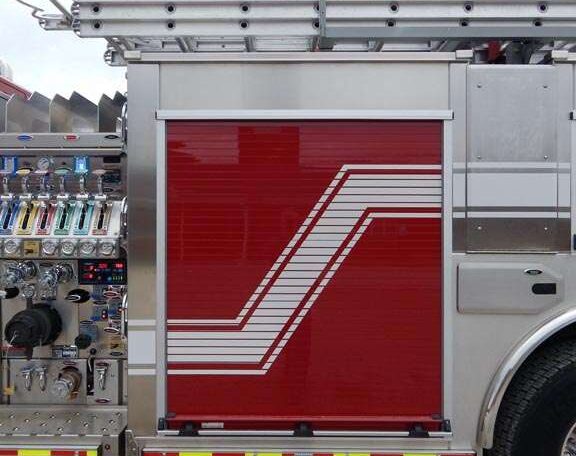

• Stainless Steel Side Control Pump Module
• Hale QMAX150 1500 gpm Pump
• Trident Air Prime System
• FRC InControl 400 Pressure Governor & Monitoring System
• Two (2) 6” Intakes, One (1) Each Side
• One (1) 2½” Gated Intake, Left Side
• One (1) 5” Front Intake Adapted to 6” NST
• Two (2) 2½” Discharges Left Side
• One (1) 2½” Discharge Right Side
• One (1) 3” Discharge Right Side Adapted to 4” Storz
• Two (2) 1½”, One (1) 2½” Preconnects with One (1) Deadlay
• Two (2) 2½” Hose Bed Preconnects, Front of Hose Bed
• FoamLogix 2.1A 30 Gallon Foam Tank, All Preconnects Foam Capable
• 1,250-Gallon Poly Tank

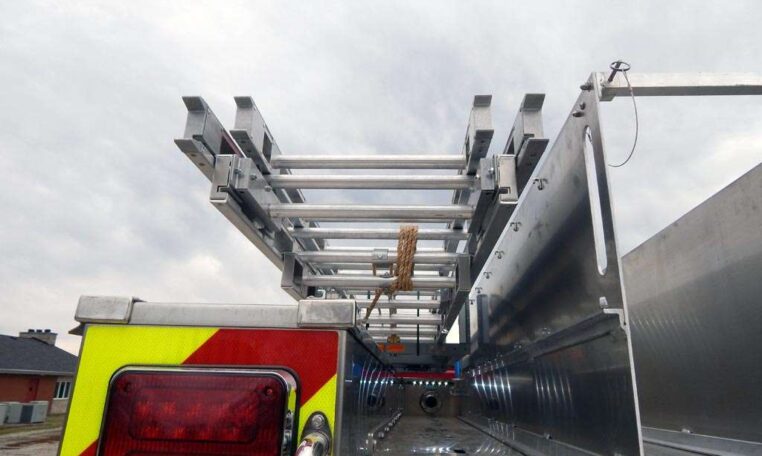

• One (1) Hydraulic Ladder Rack Left Side
• One (1) Hydraulic Ladder Rack Right Side with One (1) Hard Suction Storage
• Two (2) Hard Suction, Pike Poles, and Attic Ladder, Rear Compartment Through the Tank

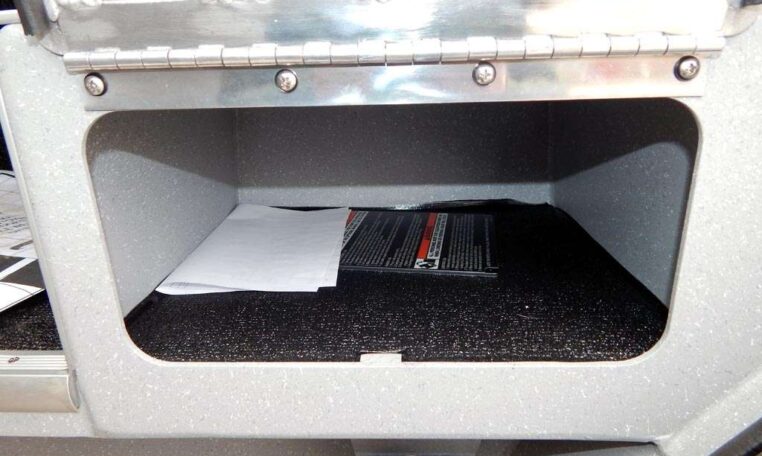

• EMS Compartment, Rear Wall of Cab
• Three (3) Dual Wheel Well Air Bottle Compartments, One (1) Ahead Left, Two (2) Right Side
• Three (3) 250# Roll Out Trays L1 Compartment
• One (1) 250# Roll Out Each L3, R1 Compartments
• ChanL PanL Upper Rear Wall of L1, L2, R2, R3 Compartments
• Whelen LED Warning Light Package
• Whelen Traffic Advisor
• FireTech and FRC Scene Lights
• Night Scan Chief NS1.8-500WB 12V 4-Head Light Tower
• Whelen PSTANK2 Strip Lite Tank Gauges
• Federal Siren & 100W Speaker
• 9’ 7” Overall height
• 29’ 11” Overall length
• 181” Wheelbase
• 20,000 FAWR
• 31,000 RAWR
• 51,000 GVWR
