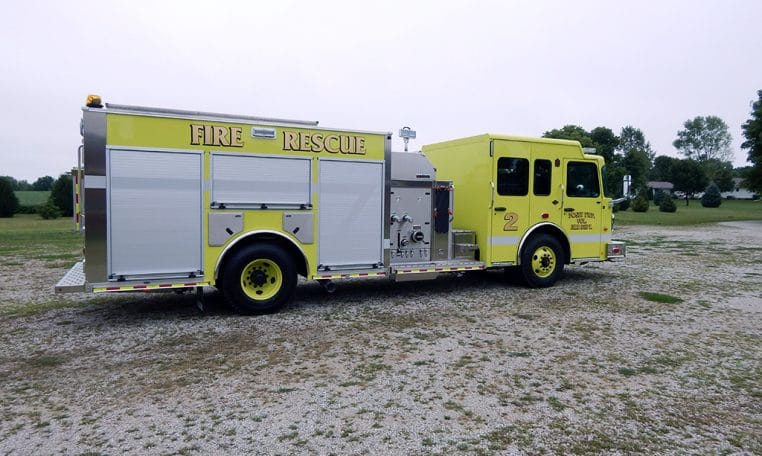

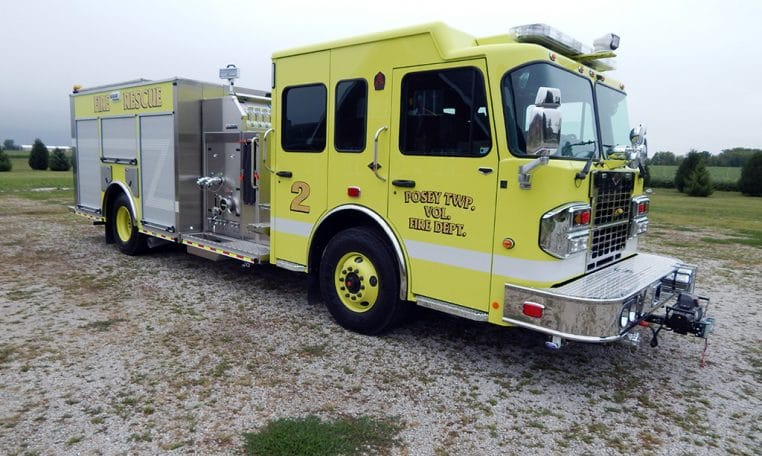

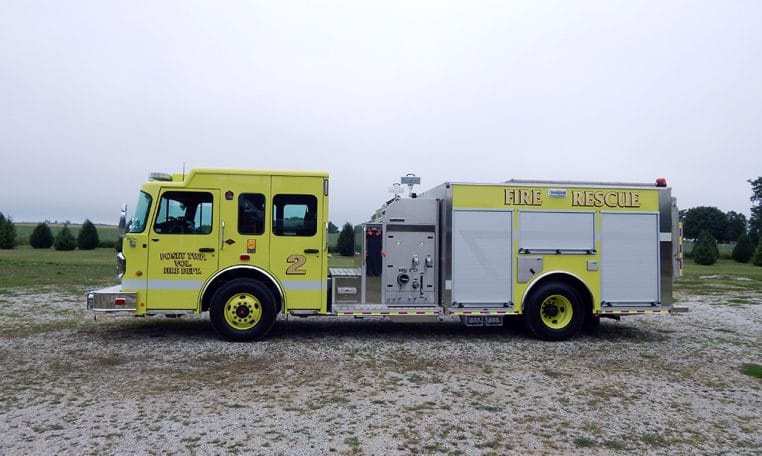

CUSTOM TOP MOUNT PUMPER #2403

POSEY TWP. CLAY CO. VOL. FIRE DEPARTMENT INC. - STAUNTON, INDIANA
FEATURES:
  • Spartan Metro Star MFD 10” Raised Roof Chassis
  • Cummins L9 450-HP Diesel Engine
  • Allison 3000 EVS Transmission
  • Heavy Duty Stainless-Steel Body and Sub-Frame
  • Eight (8) Person Cab Seating w/ Four (4) SCBA Seats
  • ROM Roll-up Doors
  • Warn Zeon 10 Multi-Mount Winch
  • Custom EMS Compartment
  • Darley PSM 1250-GPM Pump
  • 500-Gallon Poly Tank
  • Two (2) 6” Suctions, one (1) Each Side
  • Two (2) Running Board Hose Wells
  • Five (5) 2 ½” Discharges, two (2) Left, two (2) Right, one (1) Rear
  • One (1) 3” Discharge, front
  • Two (2) 2 ½” Gated Suction, one (1) Each Side
  • TFT Crossfire Monitor Kit w/ Extend-A-Gun and Portable Base
  • Two (2) 1 ½” Cartridge Lay Preconnects
  • One (1) 1 ½” Bumper Preconnect
  • Two (2) Triple Air Bottle Wheel Well Storage Compartments, one (1) Each Side
  • Fire Extinguisher Wheel Well Storage Compartment, Right Side
  • Two (2) Upper Storage Compartments
  • Fire Research 360 Camera System with Four (4) Cameras and Two (2) 7” Monitors
  • Ladder/Pike Pole Storage, Right Rear Compartment
  • Federal Q2B Siren
  • Whelen LED Traffic Advisor Arrow Stick
  • Roto-Ray Warning Light
  • Two (2) Fire Research Spectra Telescopic Flood Lights, one (1) Each Side
  • Whelen LED Warning Light Package
  • Fire Research LED Scene Light Package

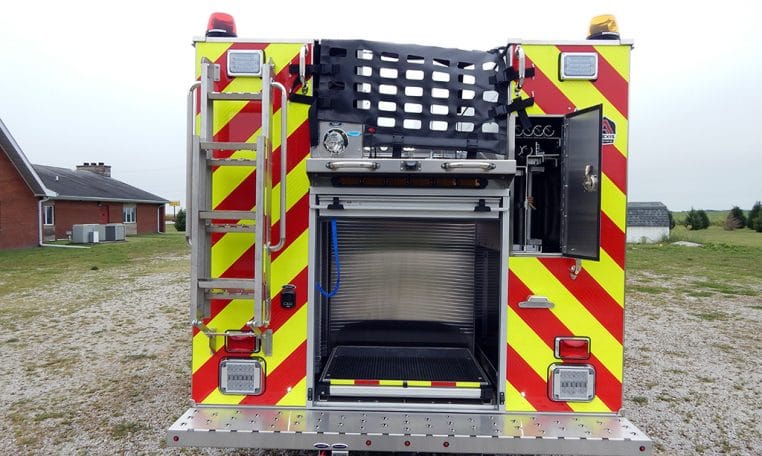

  • Diamond Grade Chevron Striping, Rear
  • 9’ 11” Overall Height
  • 33’ 11” Overall Length
  • 213” Wheelbase
  • 159” Cab to Axle
  • 20,000 FAWR
  • 27,000 RAWR
  • 47,000 GVWR
Year: 2020
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Top Mount Pumper
Pump Size: 1250
Tank Size: 500
Feature: 360 Camera System
Exterior Color: Yellow
New Delivery: New Delivery
