CUSTOM TOP MOUNT PUMPER #2315

VILLAGE OF TILTON FIRE DEPARTMENT - TILTON, ILLINOIS
  • HME 1871 W, MFDxL 12” raised roof Chassis
  • Cummins ISL9, 450-HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission

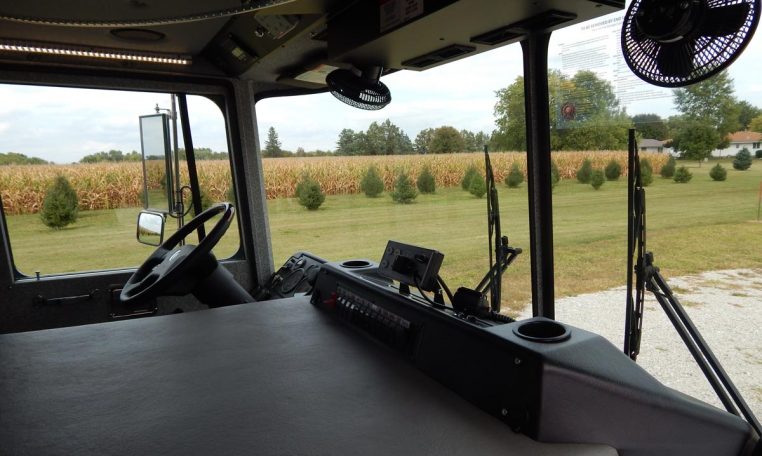

  • Six (6) man cab seating with five (5) SCBA seats
  • Heavy Duty 14 gauge 304, #4 finish stainless steel Body
  • Galvanized Steel Sub frame
  • ROM Roll Up Doors with right side R2 hemmed drop down door
  • 1000-Gallon Poly Tank
  • Darley PSM 1500-GPM Pump

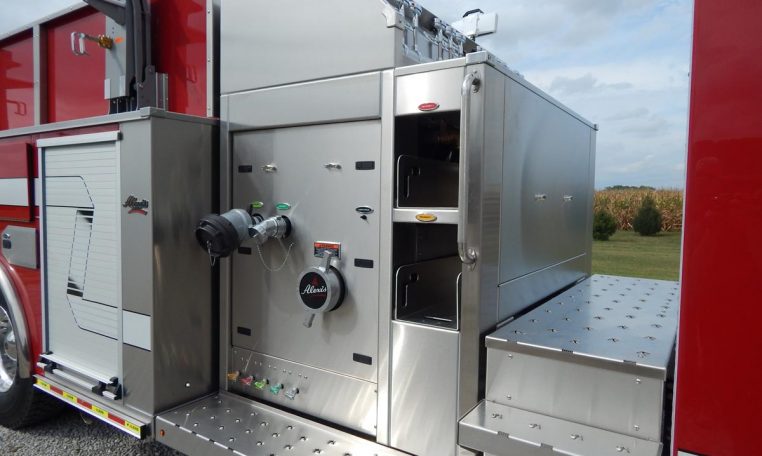

  • Pump operator’s panel across top of apparatus
  • Four (4) 2 ½” Discharges, two (2) left, one (1) right side and one (1) rear
  • Two (2) 3” Discharges, one (1) right side and one (1) over pump for deck gun
  • One (1) 2 ½” Gated Suction, left side
  • Two (2) 1 ½” Cartridge Lay Preconnects, front of pump module
  • 18” Front bumper extension with 1 ½” preconnect
  • Three (3) Dual bottle Air bottle compartments, two (2) right and one (1) left side
  • Ziamatic Electrically controlled ladder rack, right side
  • Suction hose compartment for two (2) hose with rear access, right side
  • Demo option provisions to accommodate rear suction and 2 ½” rear tank fill
  • Kussmaul 1200 Pump Plus on-board battery charger/air compressor
  • Kussmaul Super Auto Eject 120-volt shoreline connection
  • EQ2B Electronic Siren with 200-watt speaker, cab grill
  • Two (2) Air Horns, front bumper
  • Fire Research Spectra LED Scene Light Package
  • Whelen Upper LED Warning Light Package
  • Code 3 Lower LED Warning Light Package
  • Diamond Grade Chevron pattern striping, rear
  • 9’ 10” Overall height
  • 33’ 8” Overall length
  • 213” Wheelbase
  • 153” Cab to Axle
  • 18,740 FAWR
  • 27,000 RAWR
  • 45,740 GVWR



DEMO2315_MASTER
Year: 2017
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Top Mount Pumper
Pump Size: 1500
Tank Size: 1000
Feature: Exterior Mount Ladder
Exterior Color: Red with White
New Delivery: New Delivery
