ALEXIS CUSTOM TOP CONTROL PUMPER #2326

CITY OF BELVIDERE FIRE DEPARTMENT - BELVIDERE, ILLINOIS
  • HME 1871w LFD 12” raised roof Chassis
  • Cummins ISL9, 370-HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • Six (6) man cab seating with three (3) SCBA seats
  • Heavy Duty 3/16” Aluminum Body w/ Galvanized steel sub frame
  • ROM painted Roll Up Doors
  • 24” Front Bumper extension with 1 ½” Preconnect and center hose well

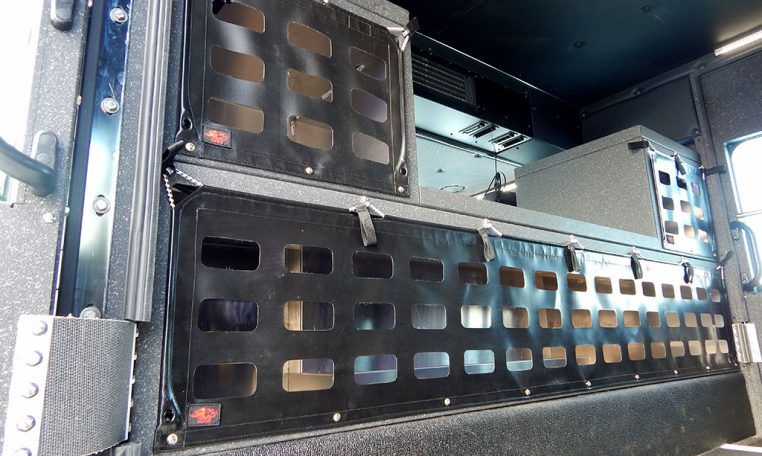

  • Custom cab EMS compartments and pump module walk-way compartments

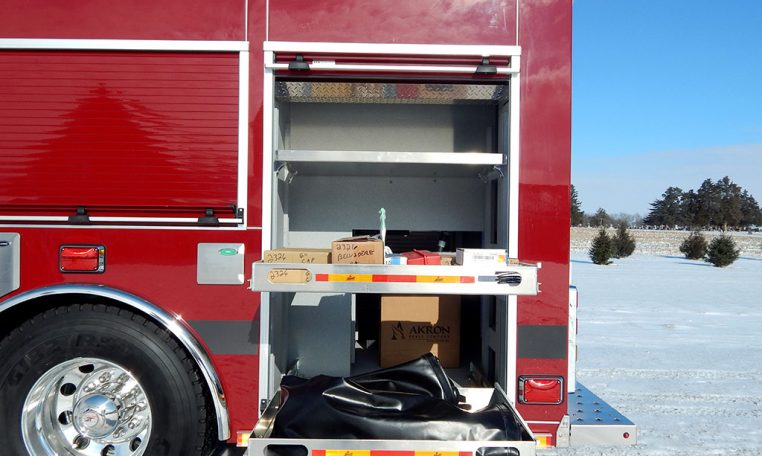

  • Two (2) Triple bottle Air bottle compartments, right side wheel well
  • One (1) General Storage compartment, left side rear wheel well
  • Ladder and Suction Hose Storage through the tank with rear access
  • Two (2) Free floating hose wells, one (1) each side running boards
  • 650-Gallon Poly Tank with 20-Gallon Foam Tank

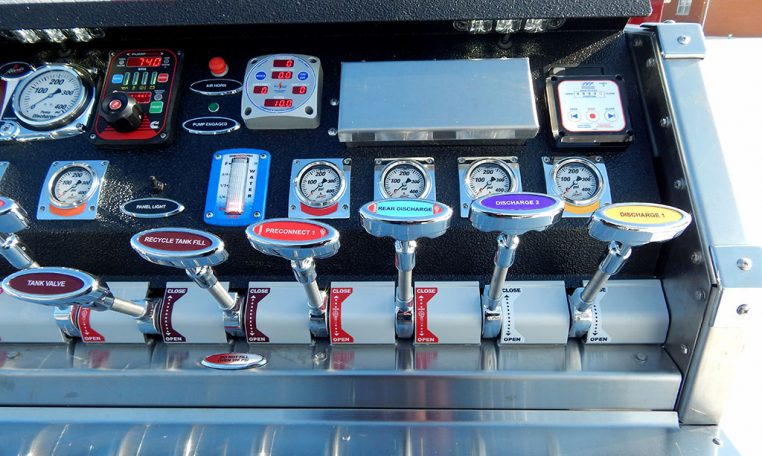

  • Waterous CXS 1500-GPM Pump with operator’s panel across top of apparatus
  • Four  (4) 2 ½” Discharges, two (2) left, one (1) right side and one (1) rear
  • Two (2) 3” discharges, one (1) right side and one (1) over pump for deck gun
  • One (1) Akron Apollo “Hi Riser” monitor w/ stream shaper, tips and mounts
  • One (1) 2 ½” Gated Suction, left side
  • Waterous Aquis 1.5 Foam System
  • Two (2) 1 ½” and one (1) 2 ½” Cartridge Lay Preconnects, front of body
  • Progressive Dynamics on-board battery charger with Auto Eject
  • Whelen Electronic Siren with 100-watt Whelen speaker
  • Federal Q2B mechanical Siren and Air horns, front bumper
  • One (1) Audiovox back-up Camera system with 7” color monitor
  • Smart Power 5500-watt hydraulically driven Generator with 120-volt system
  • One (1) Electric cord Reel with 150’ of 10/3 cord and junction box, rear
  • Command Light Knight Light Tower with Six (6) Whelen Pioneer LED lights
  • Whelen 12-volt Scene Light Package
  • Roto Ray LED Warning Light, front of cab
  • Whelen LED Warning Light Package
  • Diamond Grade Chevron pattern striping
  • 10’ Overall height
  • 36’ 6” Overall length
  • 241” Wheelbase
  • 173” Cab to Axle
  • 20,000 FAWR
  • 27,000 RAWR
  • 47,000 GVWR
Year: 2018
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Top Mount Pumper
Pump Size: 1500
Tank Size: 650
Feature: Interior Mount Ladder
Exterior Color: Maroon
New Delivery: New Delivery
