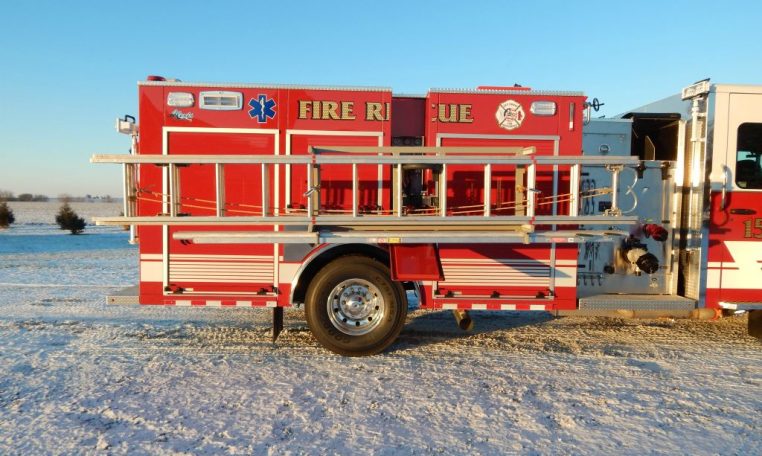

CUSTOM SIDE CONTROL RESCUE/PUMPER #2302

CRETE TOWNSHIP FIRE PROTECTION DISTRICT CRETE, ILLINOIS

• Spartan Metro Star EMFD 10″ raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Six (6) Man cab seating with three (3) SCBA seats
• Heavy Duty 304 Stainless Steel Body with ROM painted Roll Up Doors
• 21″ Front Bumper Extension with 5″ front suction and pre-connected hose
• 1000-Gallon Poly Tank with 30-Gallon Foam Tank
• Hale QMAX, 1500-GPM Pump with left side operator’s panel
• Four (4) 2 ½” Discharges, two (2) left, one (1) right and one (1) front of hose bed
• Three (3) 3″ Discharges, one (1) right side, one (1) rear and one (1) over pump
• One (1) Akron Apollo monitor with TFT Extend-a gun
• Two (2) 1 ½” Mattydale Preconnects, across top of body
• One (1) 2 ½” Gated Suction, left side
• Foam Eductor with 125-GPM capacity
• EMS Compartment and map Box, chassis cab
• Three (3) Vertical pull-out tool boards, left
• Air bag storage and Fire extinguisher rack, right side
• Three (3) Triple bottle Air bottle compartments, two (2) right and one (1) left side
• Zico Hydraulic Ladder Rack, right side
• Pike Pole storage compartment, left side with rear access
• Two (2) Hannay Dual Hydraulic hose reels, upper rear compartment
• Federal Q2B mechanical siren and two (2) Air horns, front bumper
• Firecom Intercom System and Rear Camera system
• Whelen electronic Siren with 100-watt Cast Products speaker
• Harrison 10-kW Hydraulically driven Generator with 120-volt system
• Two (2) Electric cord reels with 150-ft of cord, one (1) each side pump module
• Two (2) ROM Magnafire 750-watt 120-volt telescoping Tripod lights, rear
• Will-Burt Night Scan Chief with four (4) FRC Spectra LED lights
• Whelen LED Warning and Scene Light Packages
• Diamond Grade Chevron pattern striping, rear
• 10′ 7″ Overall height
• 33′ 7″ Overall length
• 205″ Wheelbase
• 145″ Cab to Axle
• 21,500 FAWR
• 31,000 RAWR
• 52,500 GVWR

Year: 2015
Make: Alexis Fire Equipment
Model: Pumper
Body Style: Side Control Pumper
Pump Size: 1500
Tank Size: 1000
Exterior Color: Red
