Apparatus Inventory

Custom Buillt Since 1947.

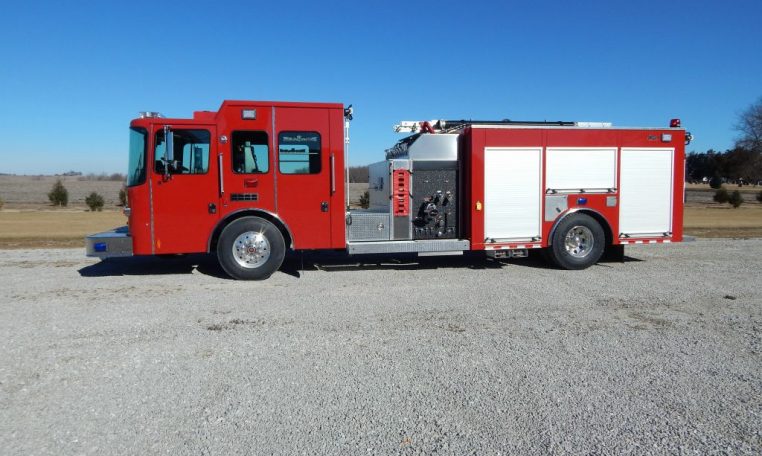

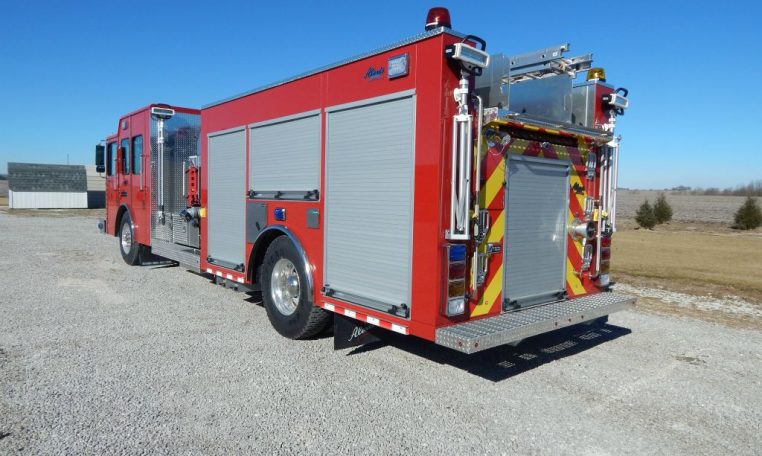

CUSTOM TOP CONTROL PUMPER #2305

HOMER FIRE PROTECTION DISTRICT HOMER, ILLINOIS

Technical Specs
• HME 1871W MFDxL 12″ raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Six (6) man cab seating with five (5) SCBA seats
• Heavy Duty 3/16″ Aluminum Body with ROM Roll Up Doors
• 24″ Front bumper extension with one (1) 1 ½” Preconnect and hosewell
• EMS compartment, cab
• 1000-Gallon Poly Tank with 20-Gallon Foam tank
• Waterous CX, 1500-GPM Pump with operator’s panel across top of body
• Four (4) 2 ½” Discharges, two (2) left, one (1) right side and one (1) rear
• Two (2) 3″ Discharges, one (1) right side and one (1) over pump for Deck Gun
• One (1) Akron Apollo Deck Gun with TFT Extend-A-Gun
• One (1) 2 ½” Gated Suction, left side and one (1) 5″ Suction, rear
• Two (2) 1 ½” Cartridge Lay Preconnects, front of pump module
• One (1) 2 ½” Preconnect, front of hosebed
• Waterous Aquis 1.5 Foam System
• Two (2) Free floating hose wells, one (1) each side running board
• Three (3) Triple bottle Air bottle compartments, two (2) right and one (1) left side
• One (1) Hinged swing-out Aluminum Tool board, left side
• Zico Hydraulic Ladder rack with suction hose and pike pole storage
• One (1) suction hose storage compartment with rear access, left side
• Turtle Tile on floors and/or shelves and trays of compartments
• Kussmaul 1200 Pump Plus battery charger/air compressor with Auto Eject
• Two (2) Air Horns, front bumper
• Whelen Electronic Siren with two (2) Cast Products speakers
• FRC Spectra 12-volt LED Scene Light Package
• One (1) Harrison 10-kW hydraulically driven Generator with 120-volt system
• One (1) Akron Electric Cord Reel with 150-ft of 10/3 cord and junction box, rear
• Akron 120-volt Telescopic Scene Light Package
• Whelen LED Warning Light Package
• Chevron pattern striping, rear
• 10′ 2″ Overall height
• 35′ 4″ Overall length
• 227″ Wheelbase
• 167″ Cab to Axle
• 18,740 FAWR

Year: 2015
Make: Alexis Fire Equipment
Model: Pumper
Body Style: Top Mount Pumper
Pump Size: 1500
Tank Size: 1000
Exterior Color: Red
