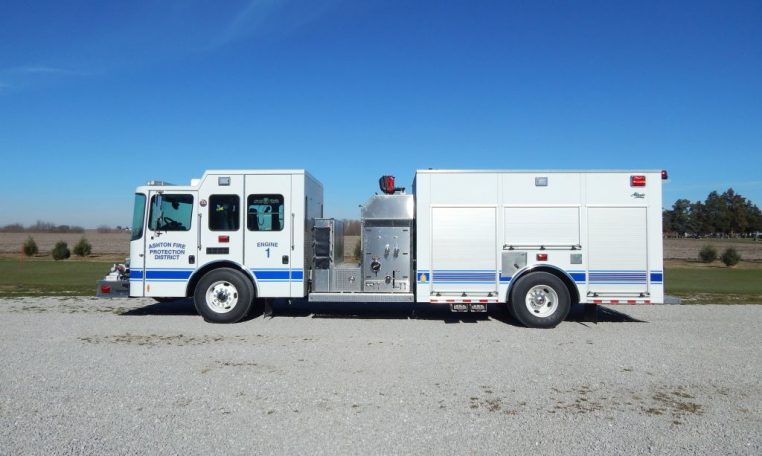

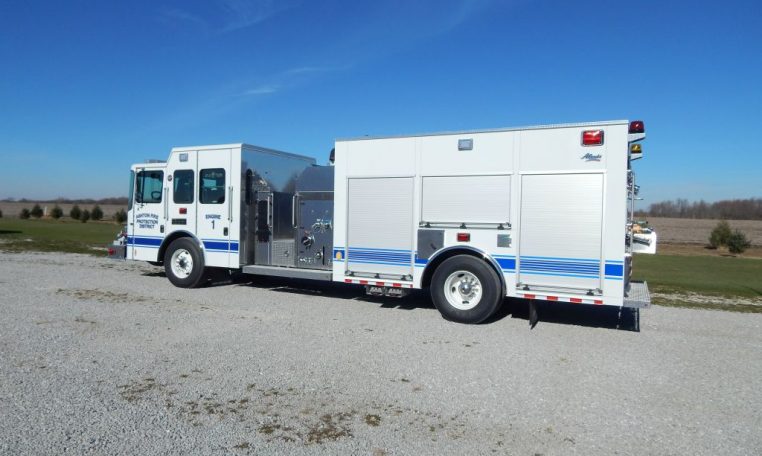

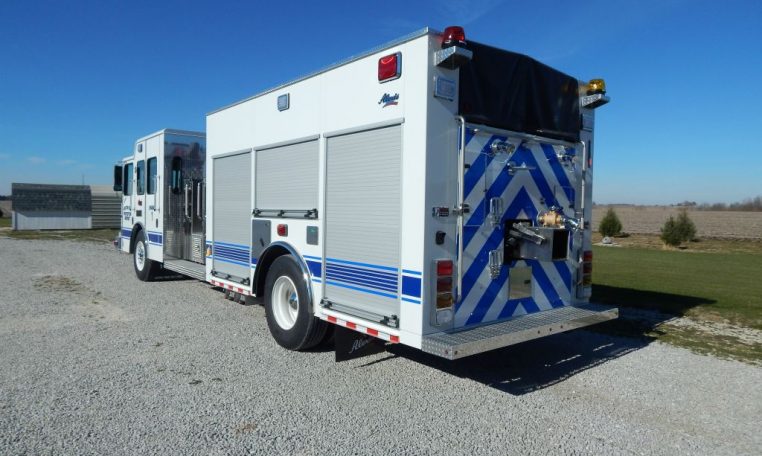

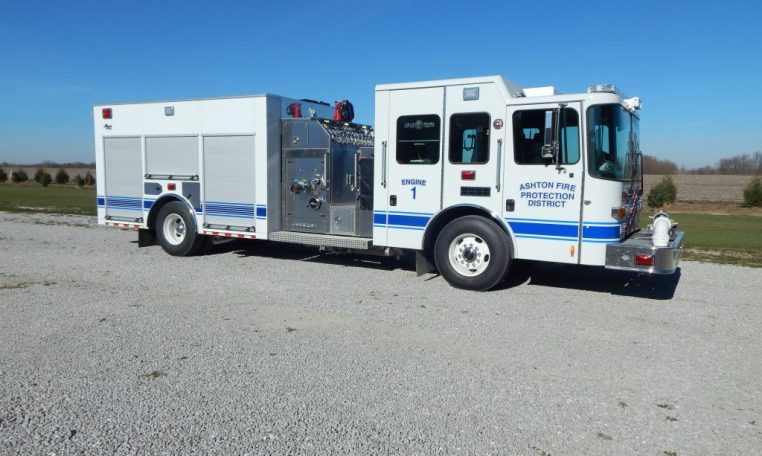

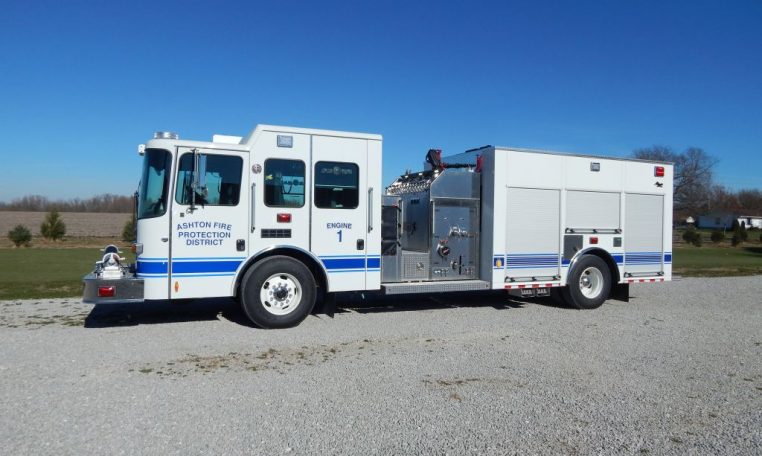

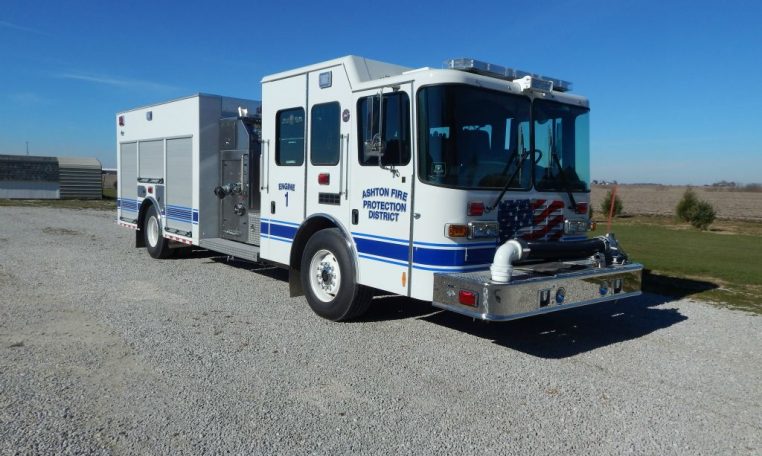

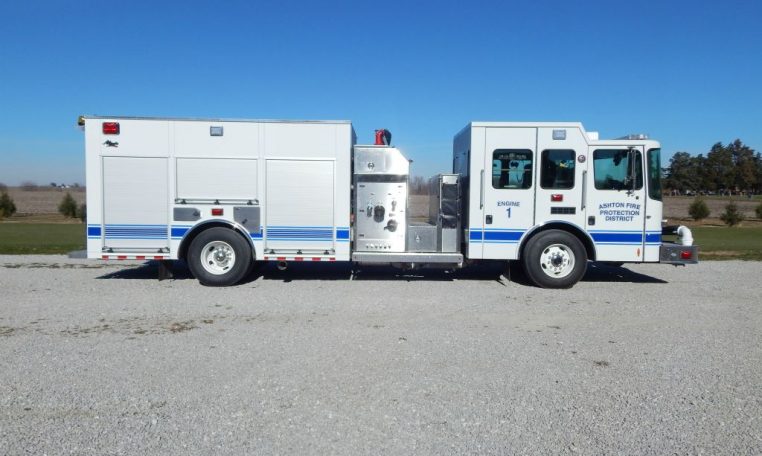

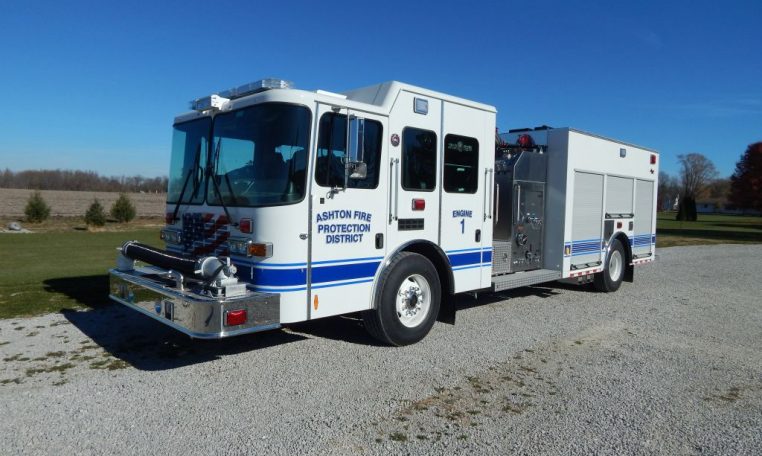

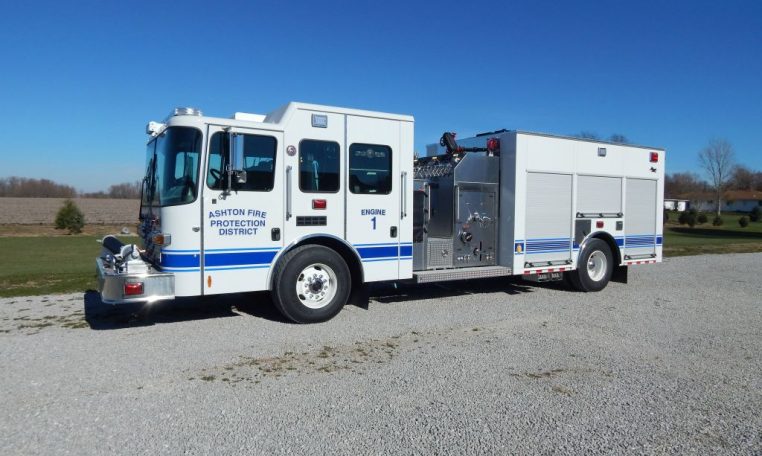

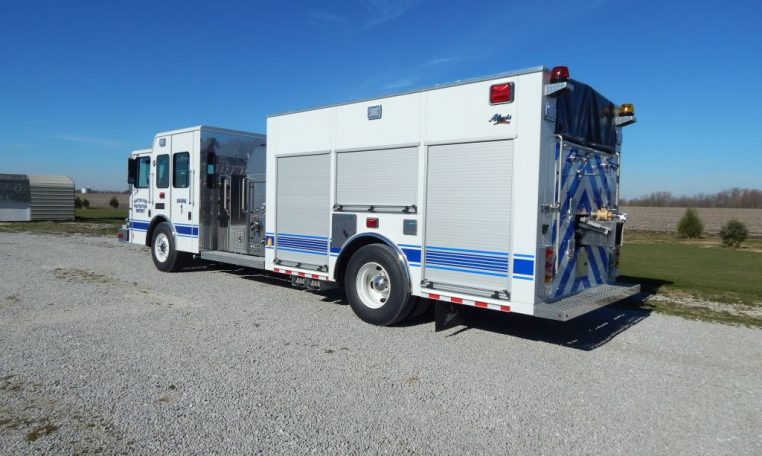

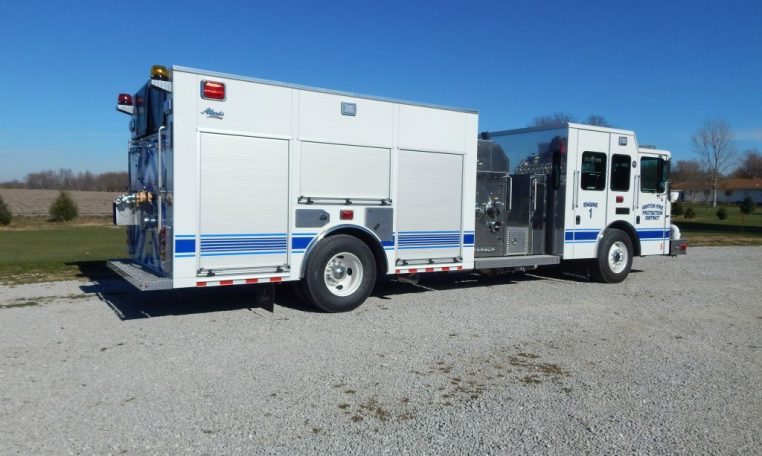

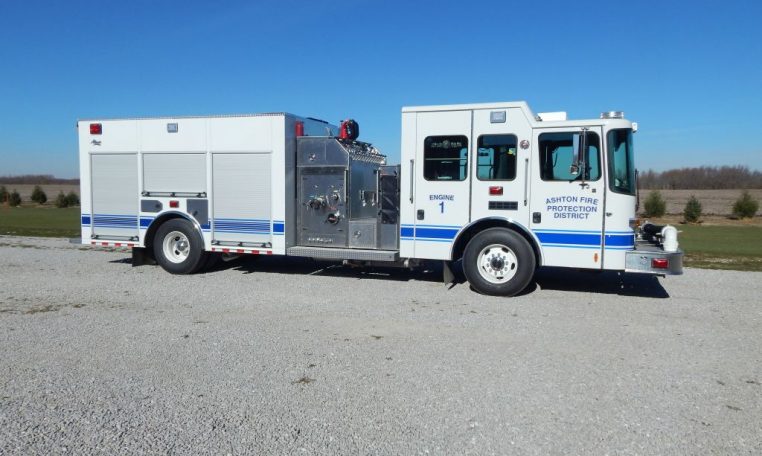

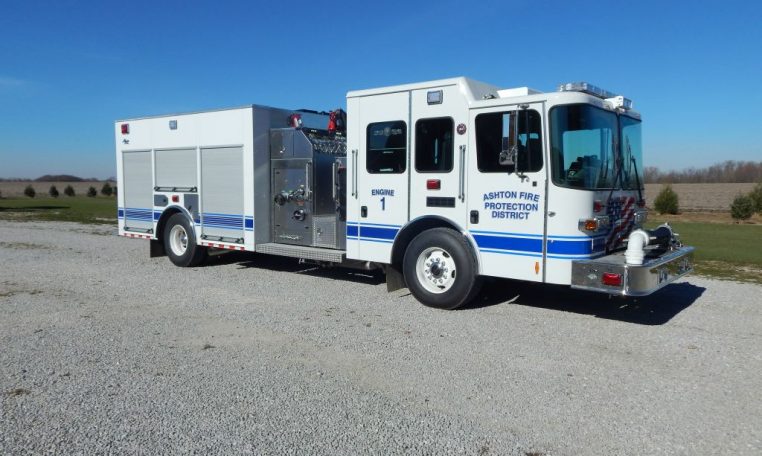

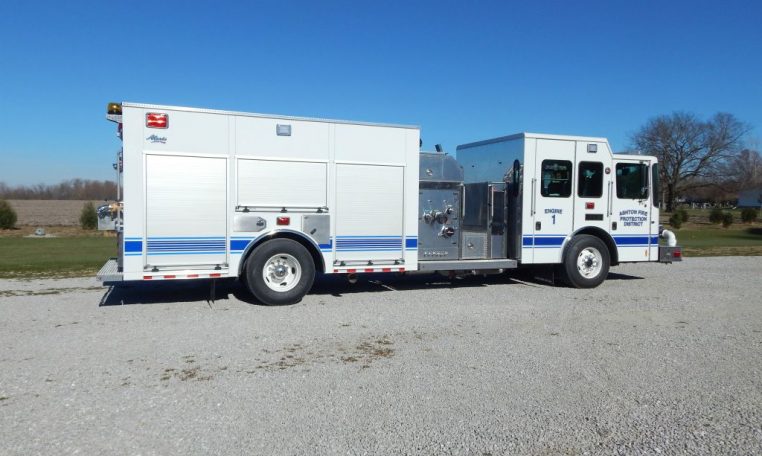

CUSTOM TOP CONTROL PUMPER ASHTON, ILLINOIS

ASHTON FIRE PROTECTION DISTRICT

• HME 1871W MFDxL 12″ raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Six (6) man cab seating with five (5) SCBA seats

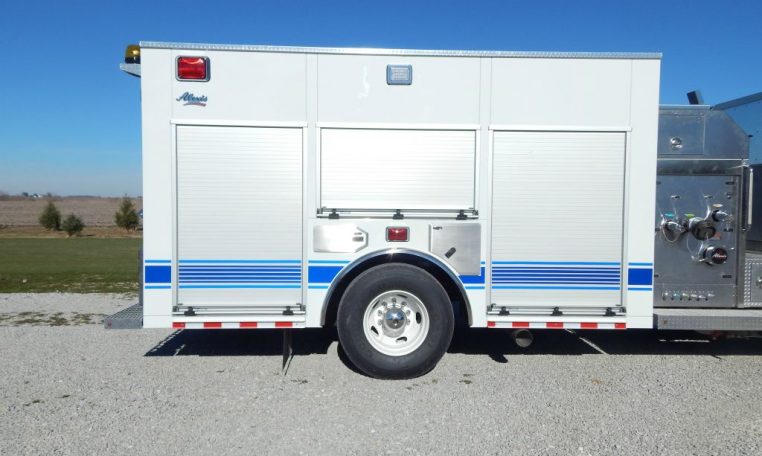

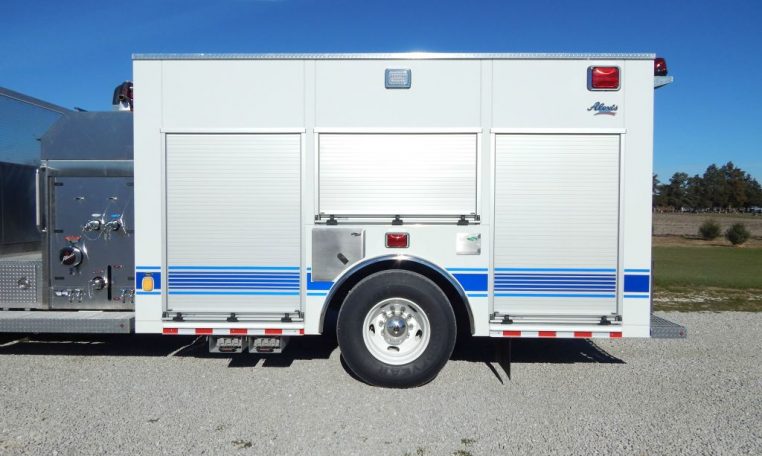

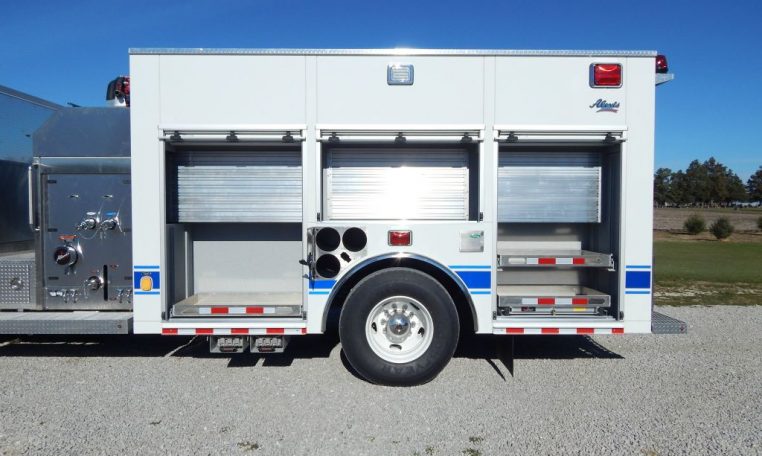

• Heavy Duty 3/16″ Aluminum Body with ROM Roll Up Doors
• 1500-Gallon Poly Tank with 20-Gallon Foam Tank
• One (1) 2 ½” Tank Fill, rear
• One (1) Newton 10″ square electric dump with 36″ manual extension

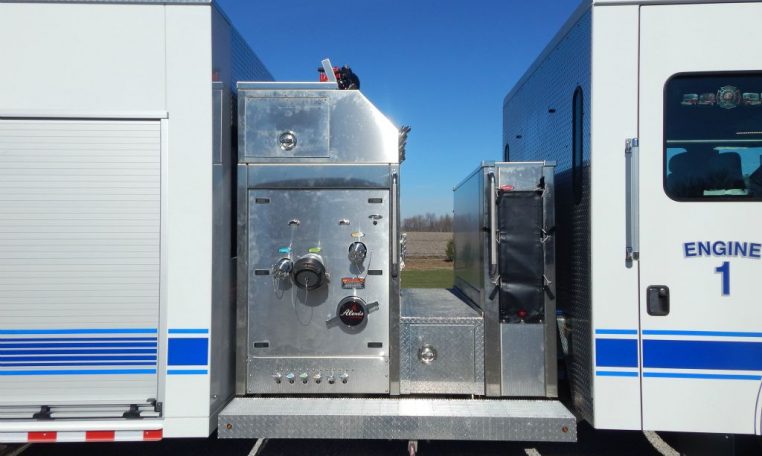

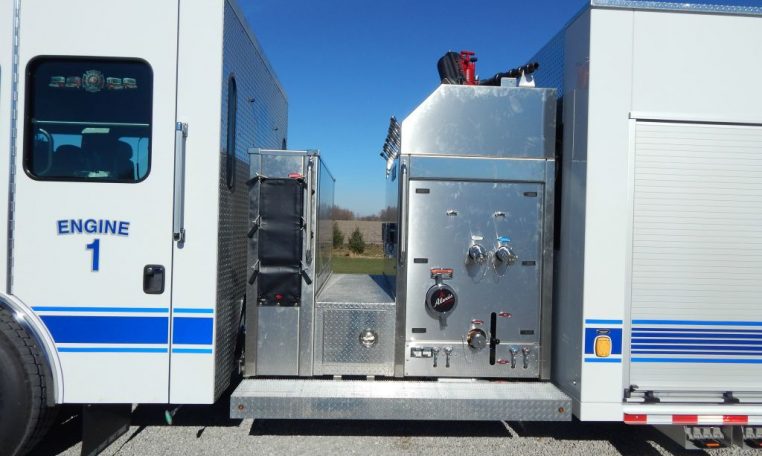

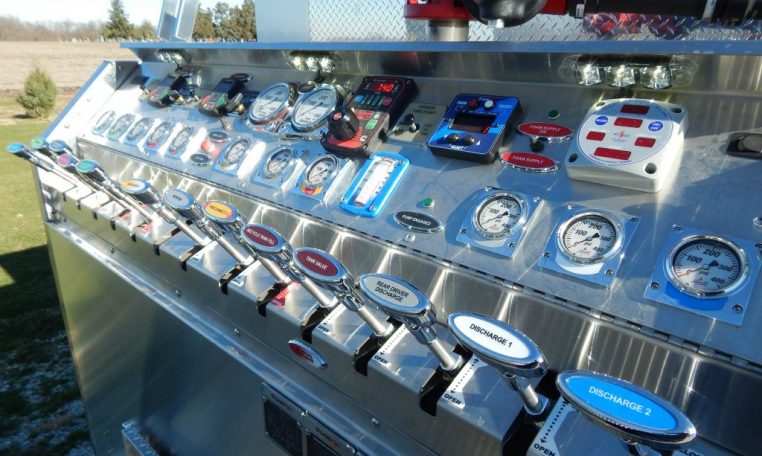

• Darley PSM, 1500-GPM Pump with operator’s panel across top of body
• Six (6) 2 ½: Discharges, two (2) each side and two (2) rear
• Two (2) 3″ Discharges, one (1) right side and one (1) over pump for Deck Gun
• One (1) Akron Apollo Hi Riser Deck Gun
• Two (2) 1 ½” Cartridge Lay Preconnects, behind cab
• One (1) 2 ½” Gated Suction, left side
• Foam Pro 2001 Single Tank Foam System

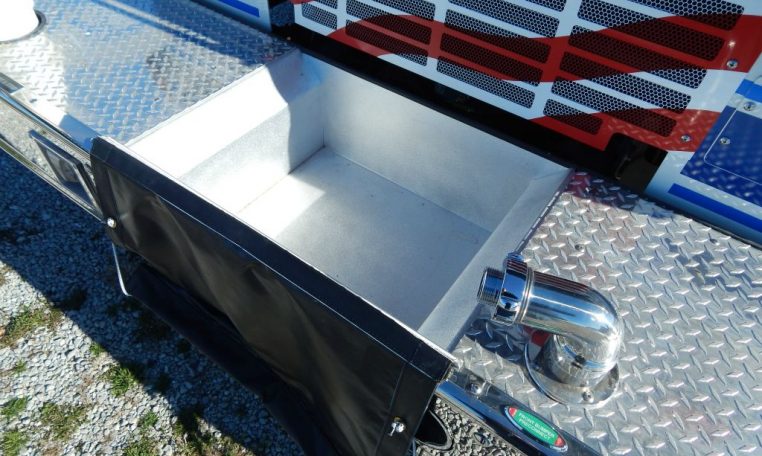

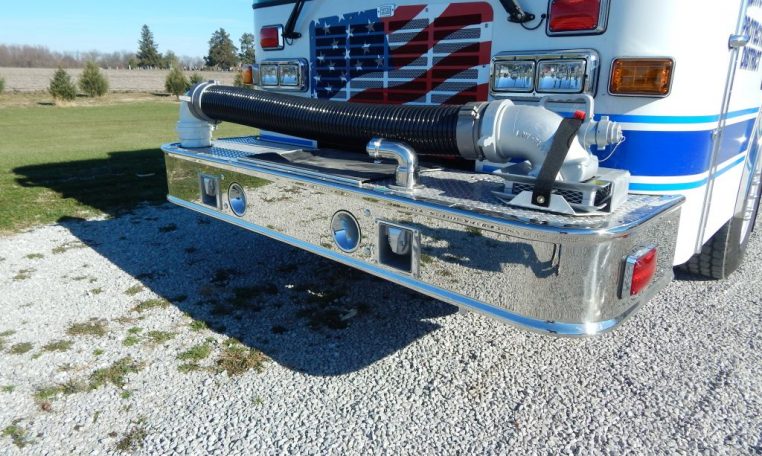

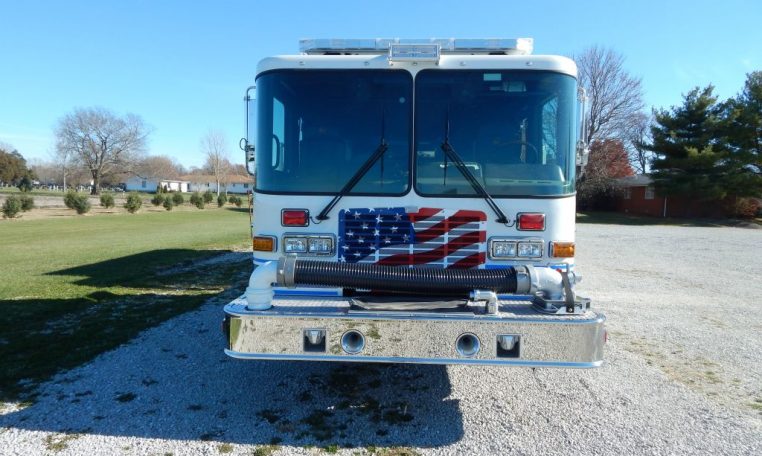

• 24″ Front Bumper extension with 2 ½” Preconnect and hosewell
• Front and rear 5″ Suctions with front preconnected hose and low level strainer
• One (1) Aluminum two-piece self supporting hosebed cover
• Ladder/Pike Pole storage left side with rear access
• One (1) Suction Hose storage compartment right side with rear access

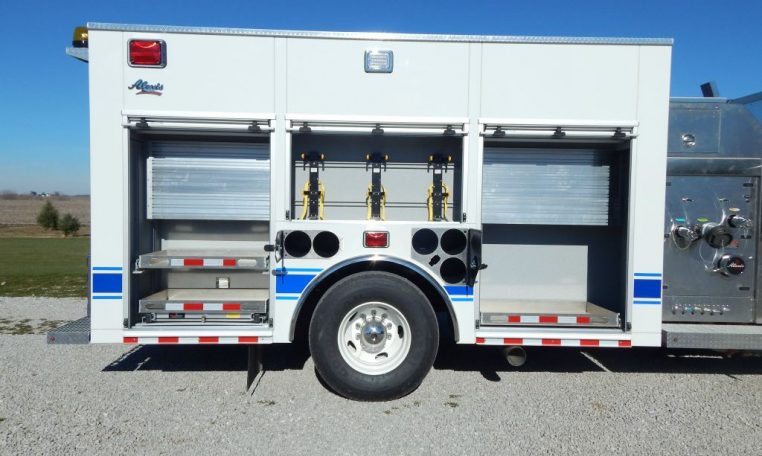

• Two (2) Triple and one (1) Dual Air bottle compartments, wheel wells
• Two (2) Under walk-way compartments, one (1) each side
• Three (3) walk-away air pack brackets, right side compartment
• Progressive Dynamics on-board charger/ Viair Air compressor with Auto Eject
• Audiovox back-up camera system with 7″ color monitor and side view cameras
• Federal Electronic Siren with two (2) Cast Products speakers
• Whelen Brow and FRC Spectra LED Scene Light Packages
• One (1) Smart Power 6-kW Hydraulically driven Generator with 120-volt system

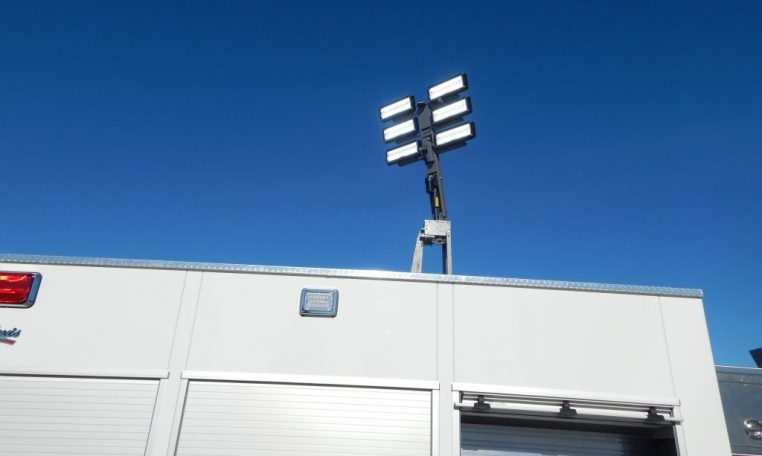

• One (1) Command Knight Light Tower with six (6) FRC LED AC lights
• One (1) Akron Electric cord reel with 150-ft of 12/3 cord and junction box
• Whelen LED Warning Light Package

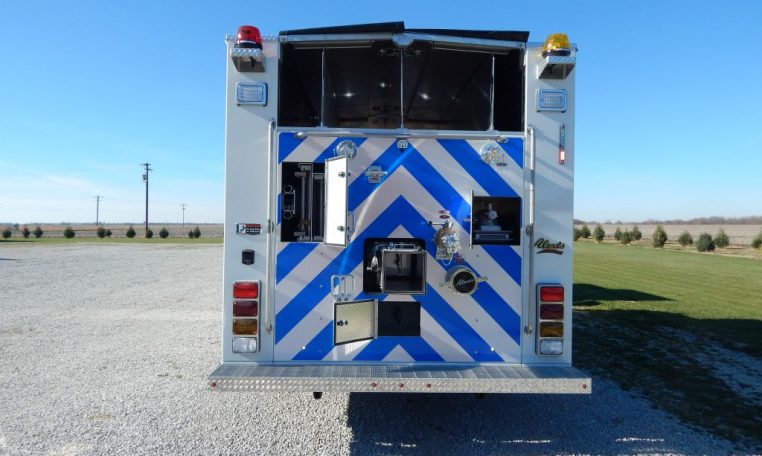

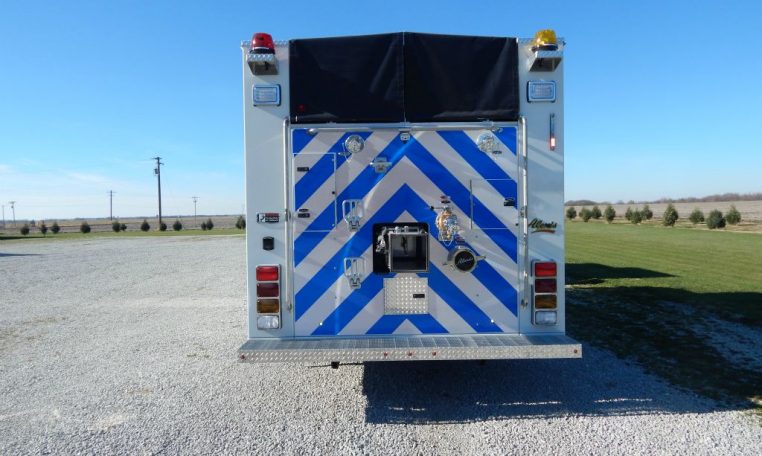

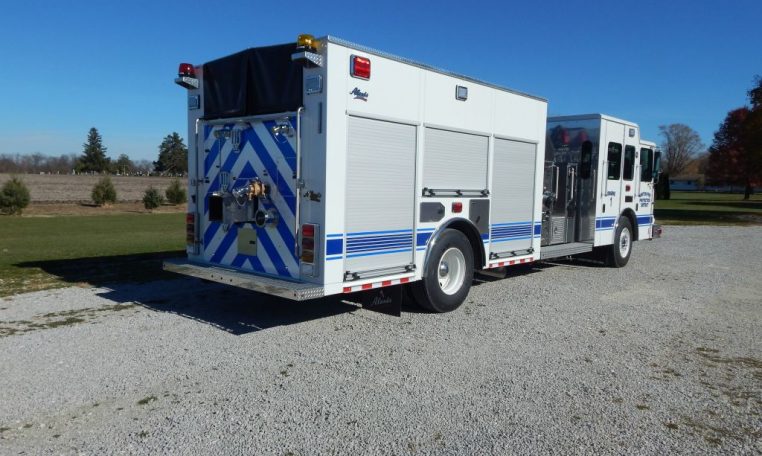

• Diamond Grade Chevron pattern striping, rear
• 10′ 0″ Overall height
• 35′ 10″ Overall length
• 233″ Wheelbase
• 173″ Cab to Axle
• 20,000 FAWR
• 31,000 RAWR
• 51,000 GVWR

Year: 2016
Make: Alexis Fire Equipment
Model: Pumper
Body Style: Top Mount Pumper
Pump Size: 1500
Tank Size: 1000
Exterior Color: White
