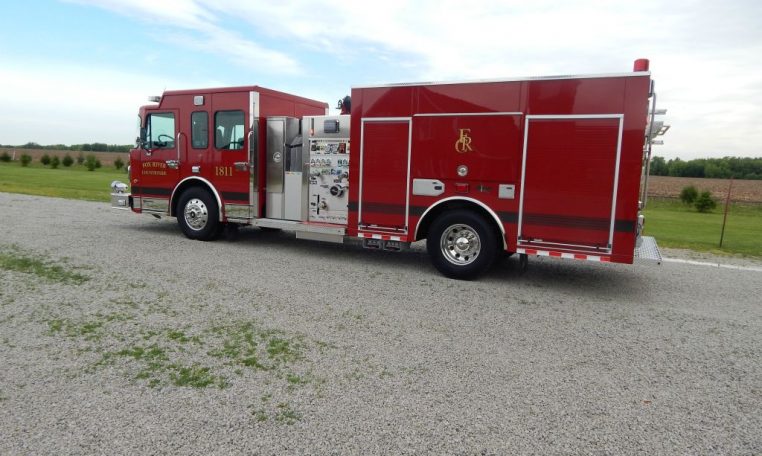

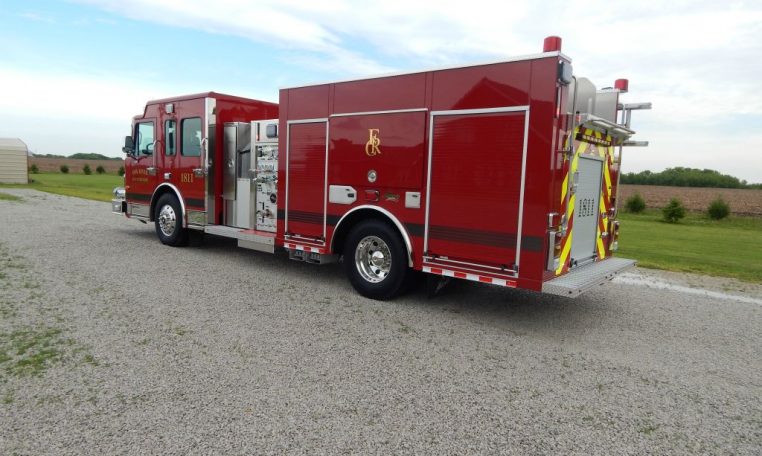

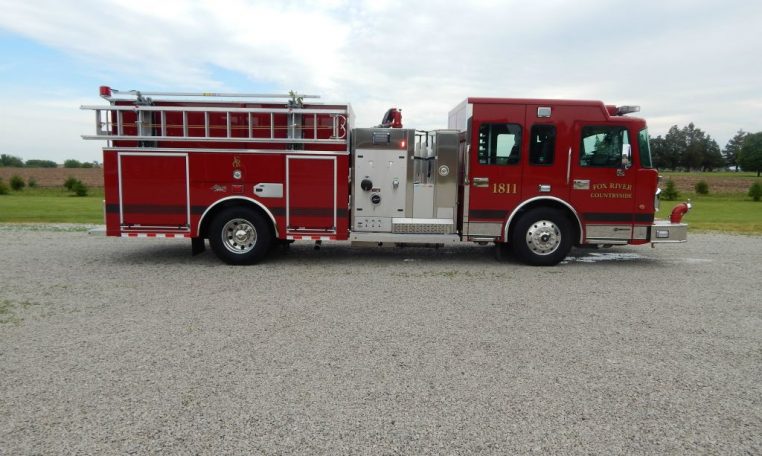

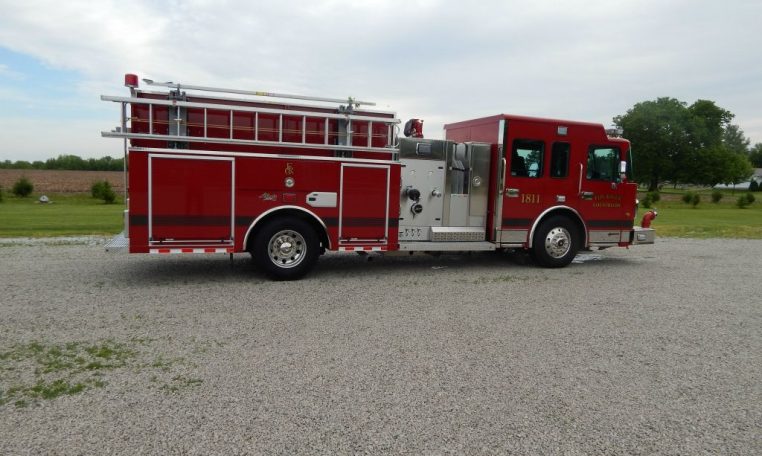

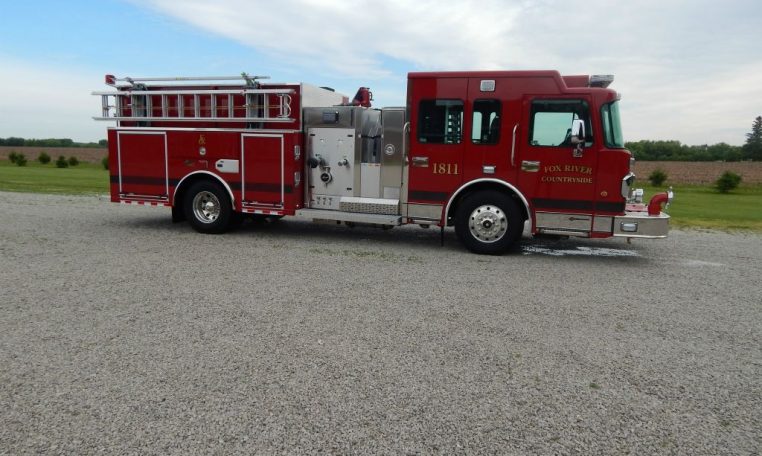

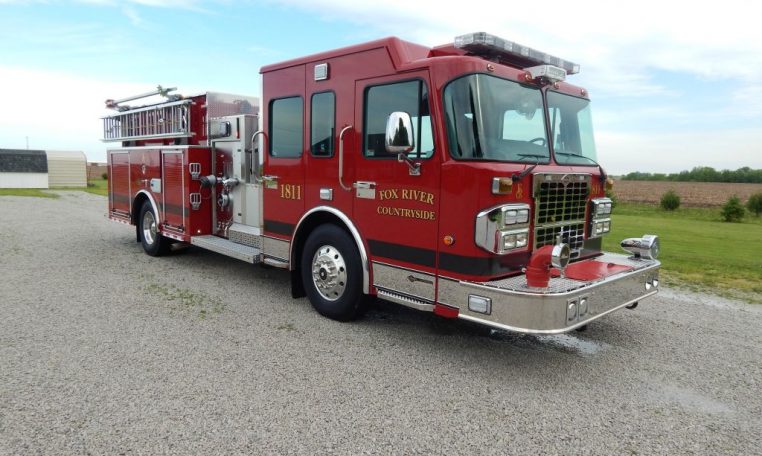

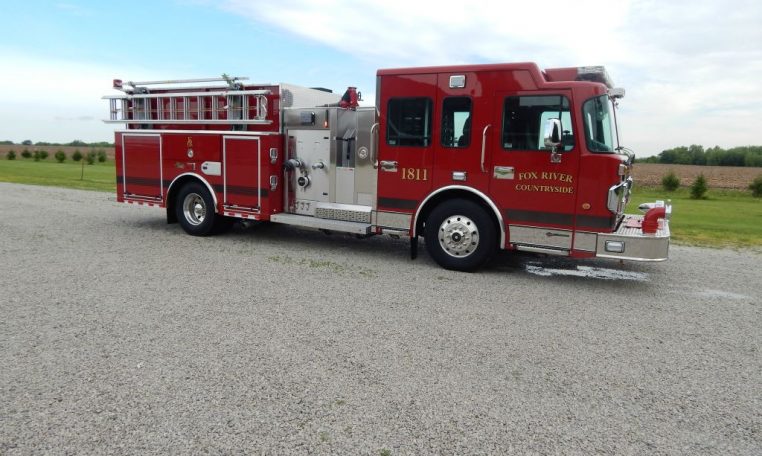

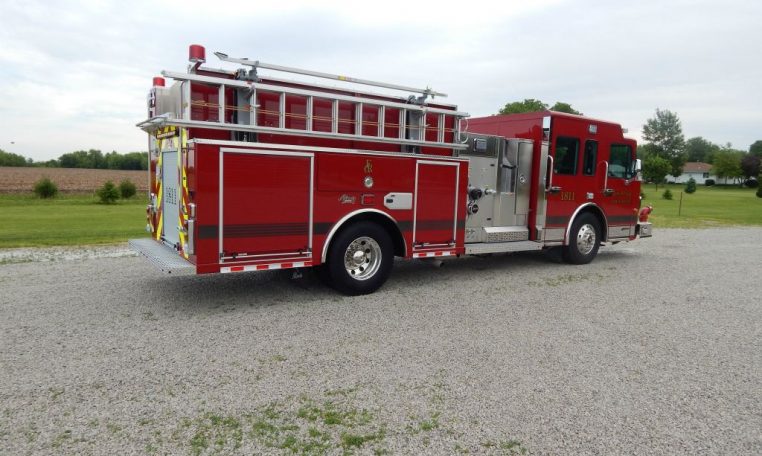

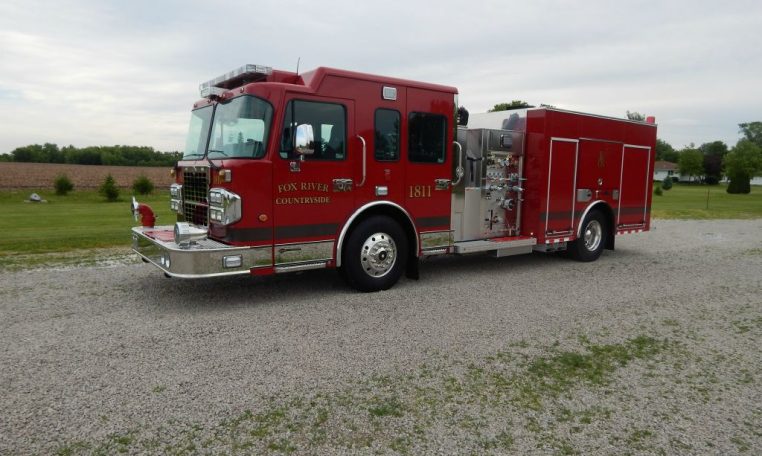

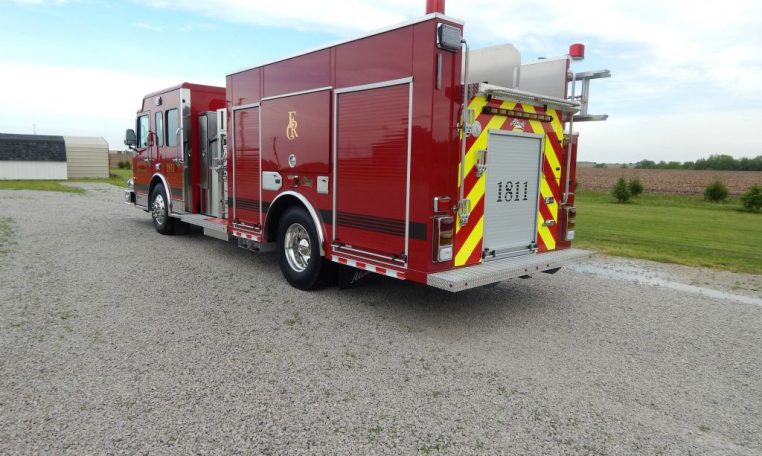

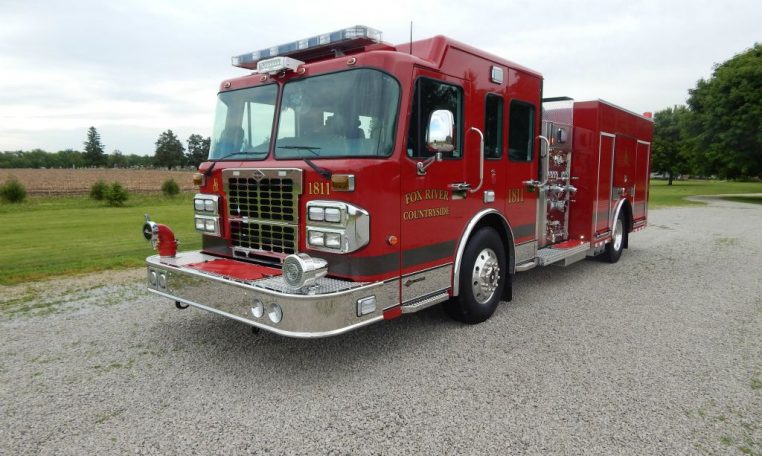

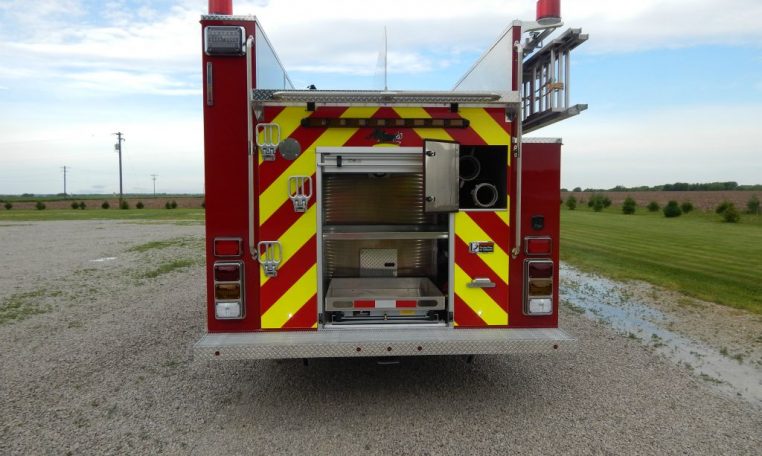

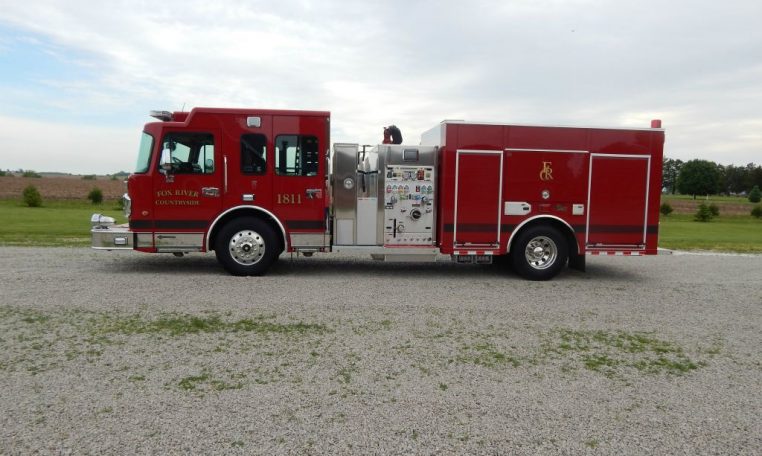

CUSTOM SIDE CONTROL PUMPER #2277

FOX RIVER & COUNTRYSIDE FIRE PROTECTION DISTRICT ST. CHARLES, ILLINOIS

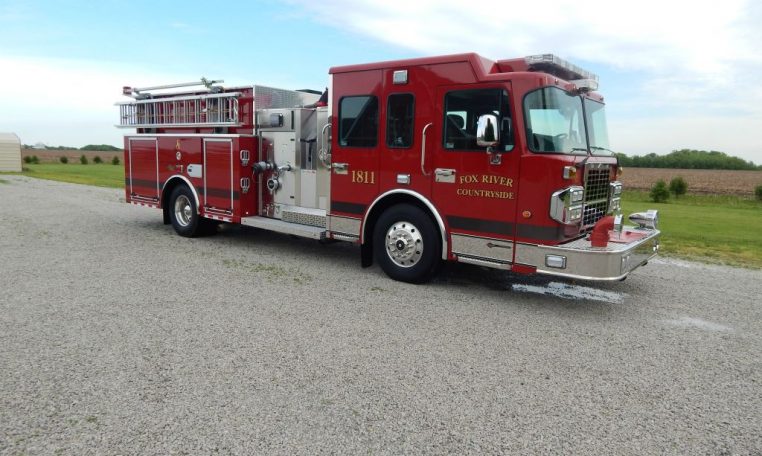

• Spartan Metro Star MFD 10″ raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Four (4) man cab seating with three (3) SCBA seats
• Heavy Duty 3/16″ Aluminum Body with ROM Painted Roll Up Doors
• 1000-Gallon Poly Tank

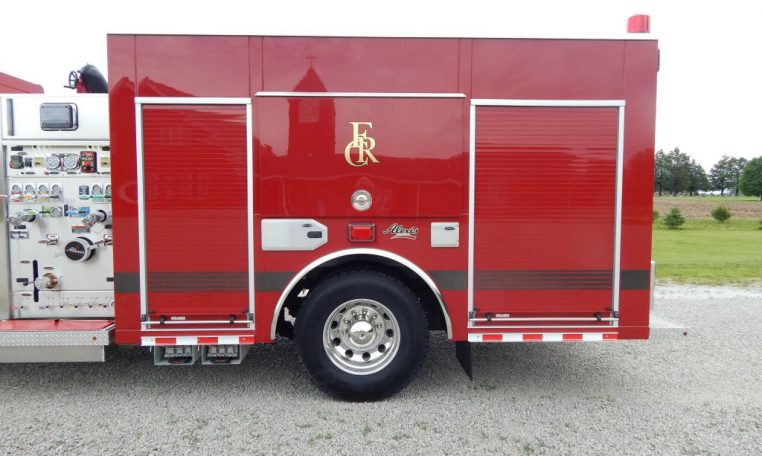

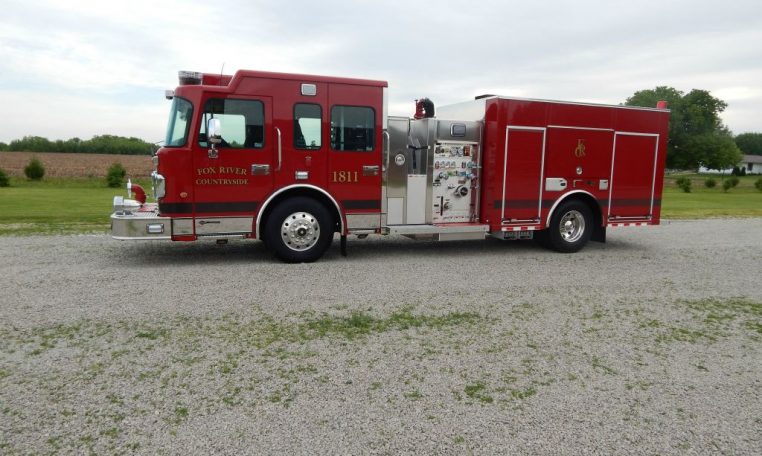

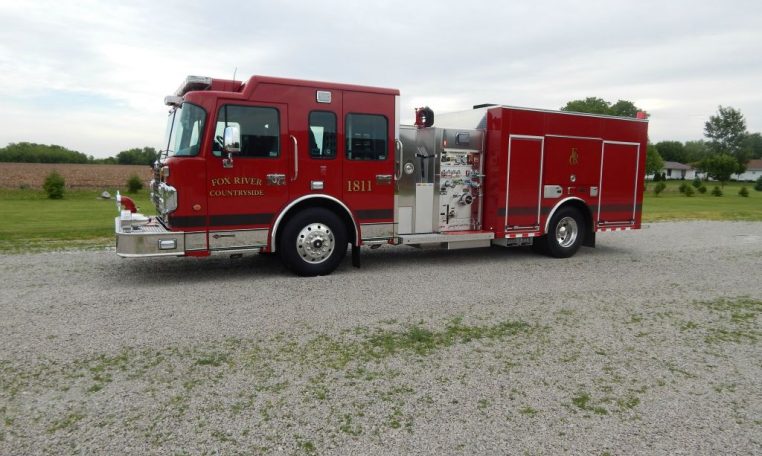

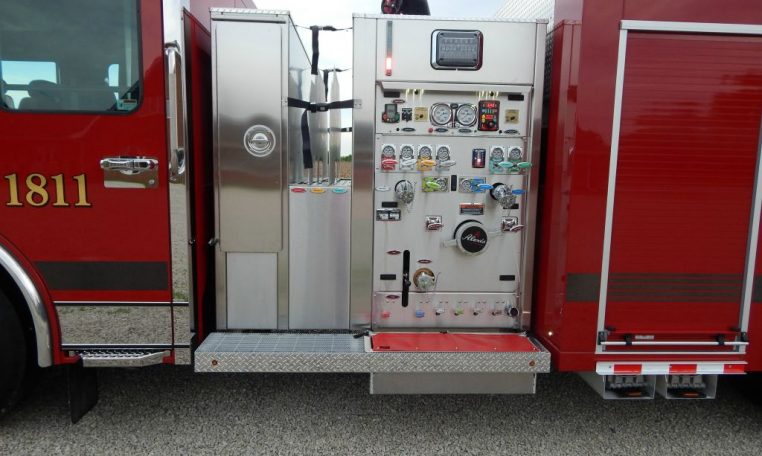

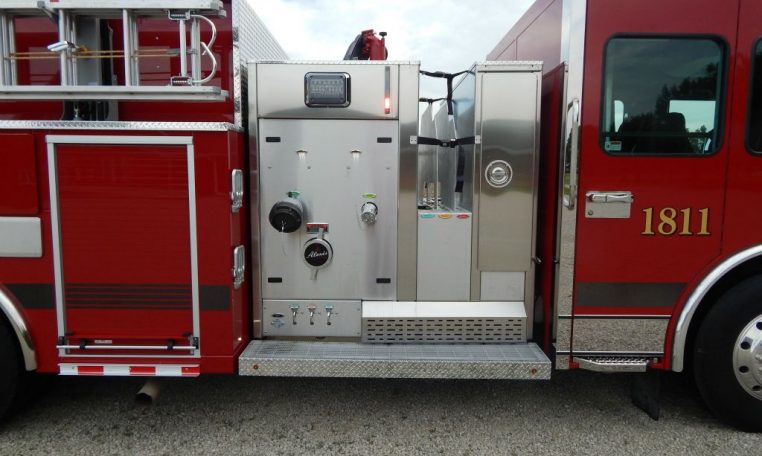

• Darley PSM 1500-GPM Pump with left side operator’s panel
• Three (3) 2 ½” Discharges, two (2) left and one (1) right side
• Two (2) 3″ Discharges, one (1) right side and one (1) over pump for deck gun
• One (1) Akron Deck Gun with stream shaper, stacked tips and mounts
• One (1) 2 ½” Gated Suction, left side

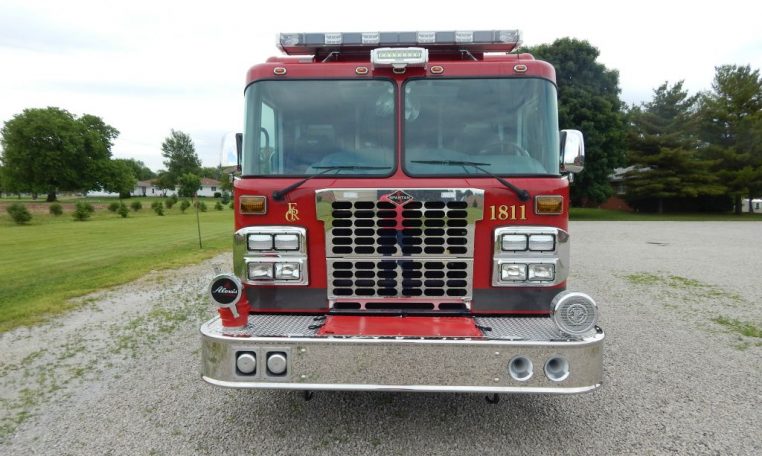

• 24″ Front bumper extension with 5″ suction and hose well storage

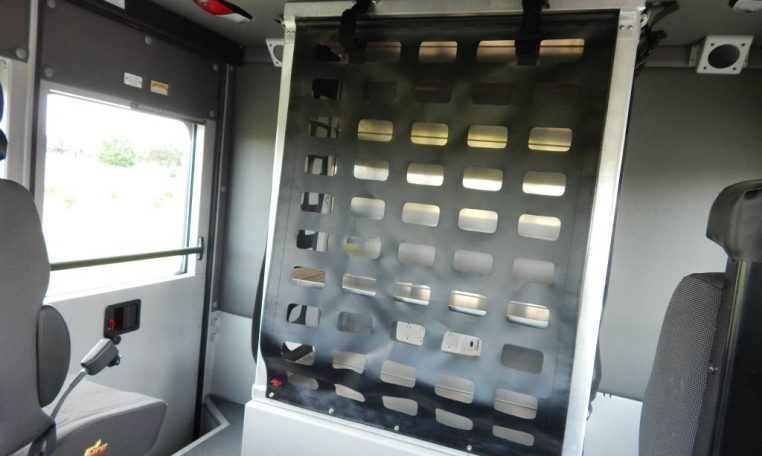

• EMS cabinet, chassis cab rear wall
• Free floating Running board hose well, left side
• Two (2) 1 ½” and one (1) 2 ½” Mattydale Preconnects, ahead of pump module

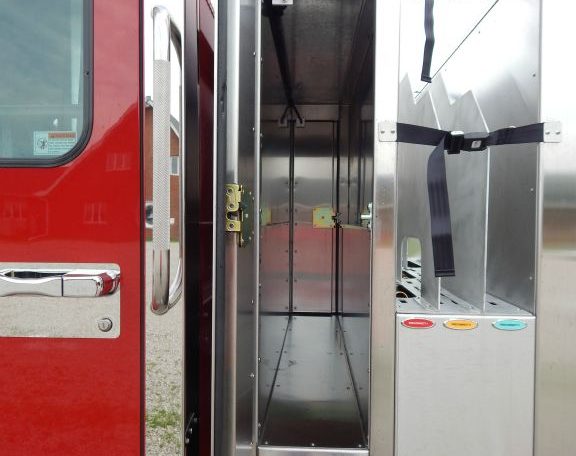

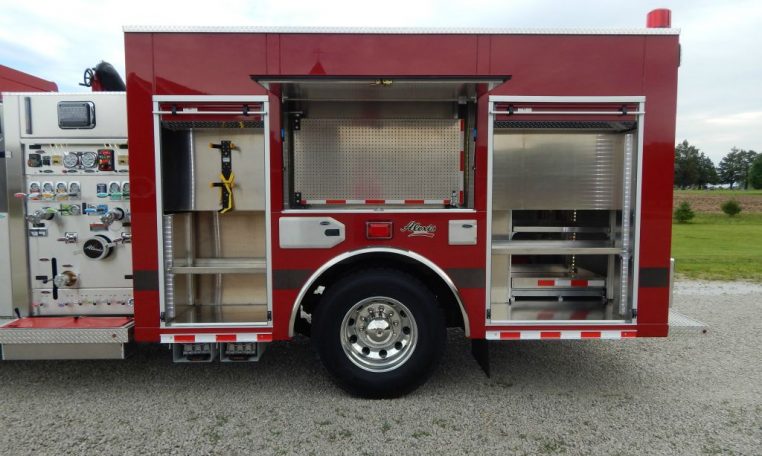

• Custom Transverse compartment with doors on each side, behind cab
• Two (2) Dual Bottle Air bottle compartments, one (1) each side
• One (1) Hinged swing out Tool board, left side

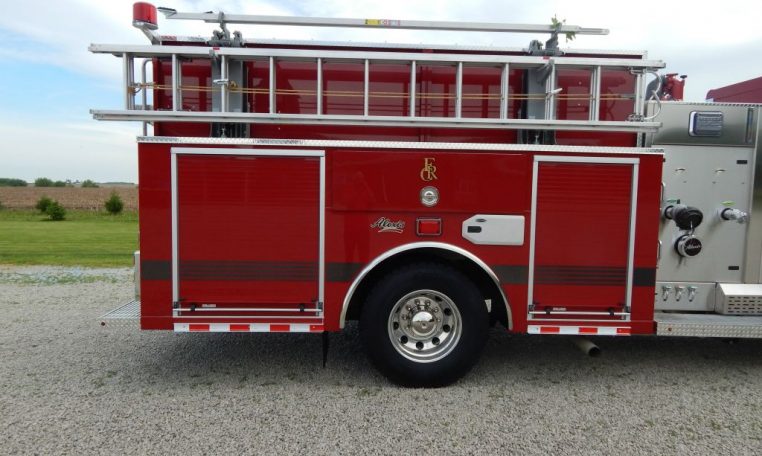

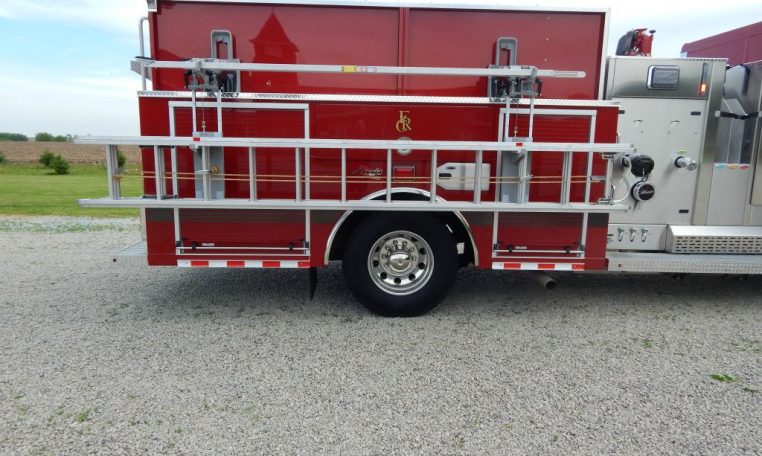

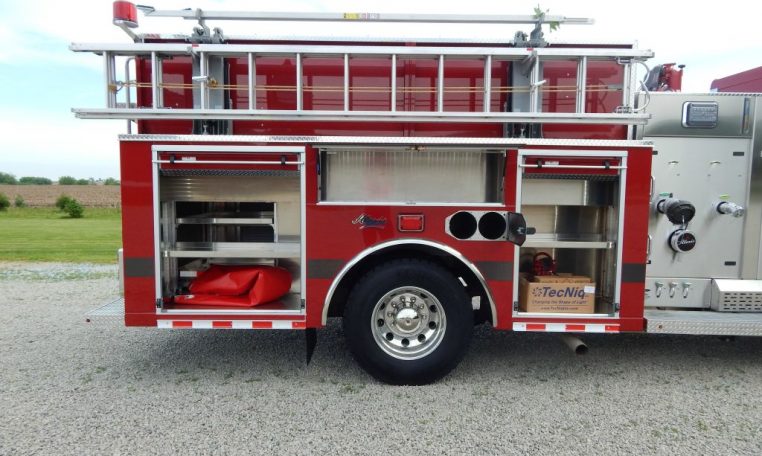

• Ziamatic Electric Ladder Rack, right side
• Suction hose storage compartment for two (2) hose, right side with rear access
• Kussmaul 1200 on-board battery charger/air compressor
• Kussmaul Super Auto Eject 120-volt shoreline connection
• Whelen Electronic Siren with two (2) Cast products 100-watt speakers
• Federal Q2B mechanical Siren, front bumper
• Two (2) Air Horns, front bumper
• Three (3) Akron 12-volt LED Scene lights, one (1) each side and one (1) rear
• One (1) Akron 12-volt LED Brow light. cab roof
• Whelen LED Warning Light Package
• Code 3 LED Warning Light Package

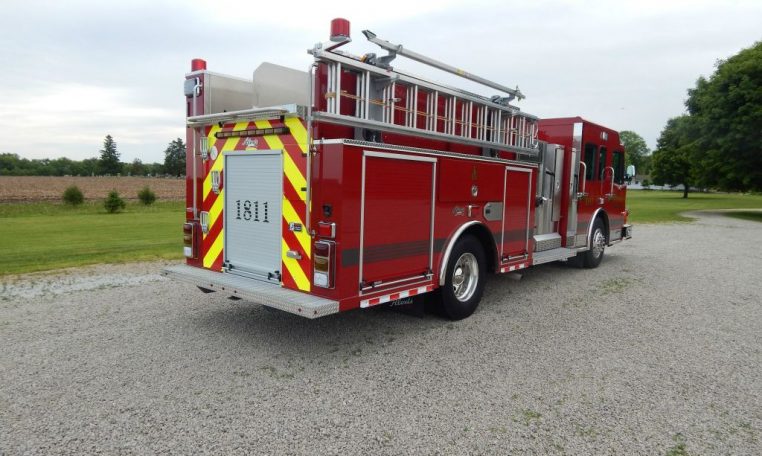

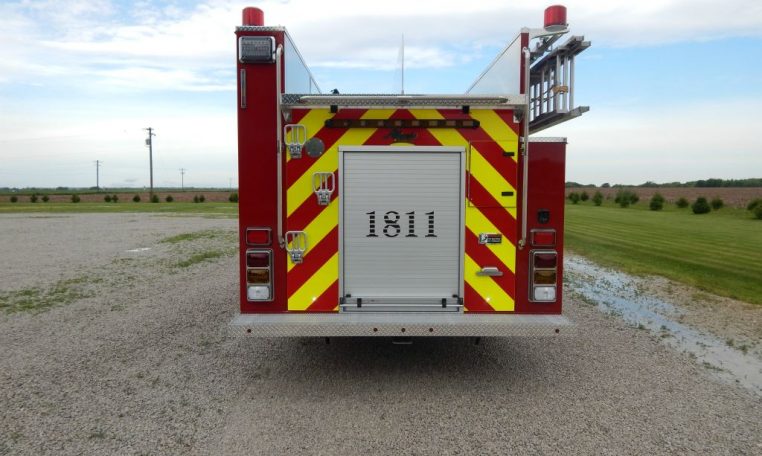

• Diamond Grade Chevron pattern striping, rear
• 10′ Overall height
• 33′ 6″ Overall length
• 209″ Wheelbase
• 155″ Cab to Axle
• 18,000 FAWR
• 24,000 RAWR
• 42,000 GVWR

Year: 2016
Make: Alexis Fire Equipment
Model: Pumper
Body Style: Side Control Pumper
Pump Size: 1500
Tank Size: 1000
Exterior Color: Red
