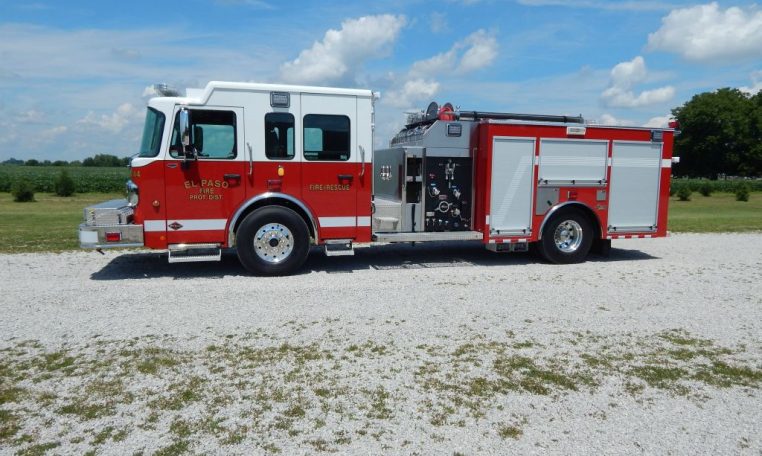

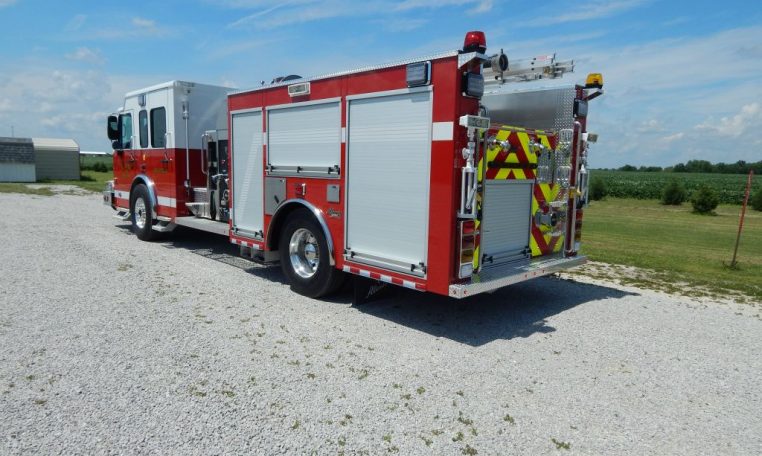

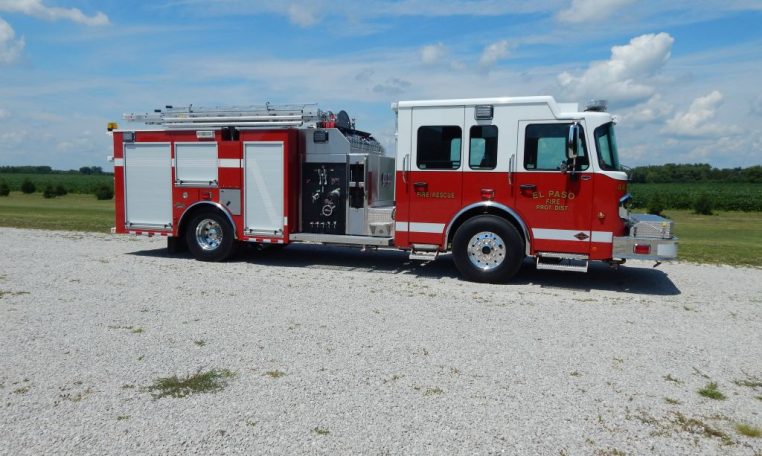

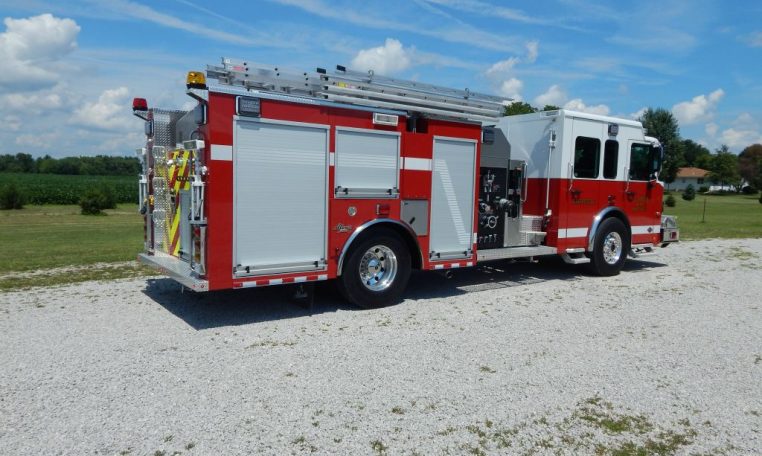

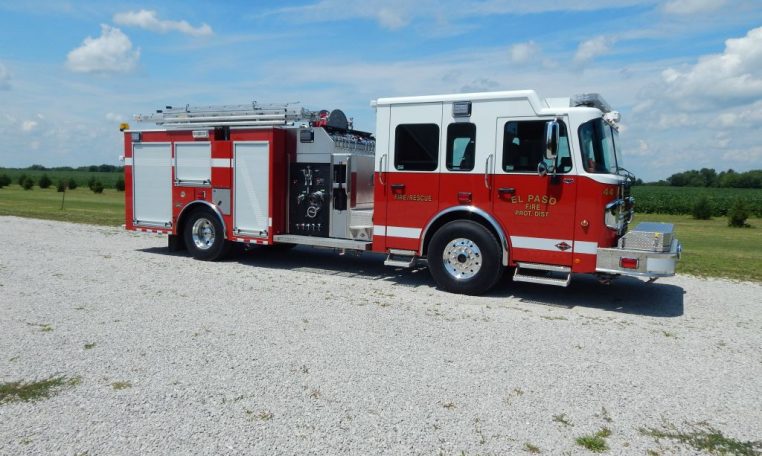

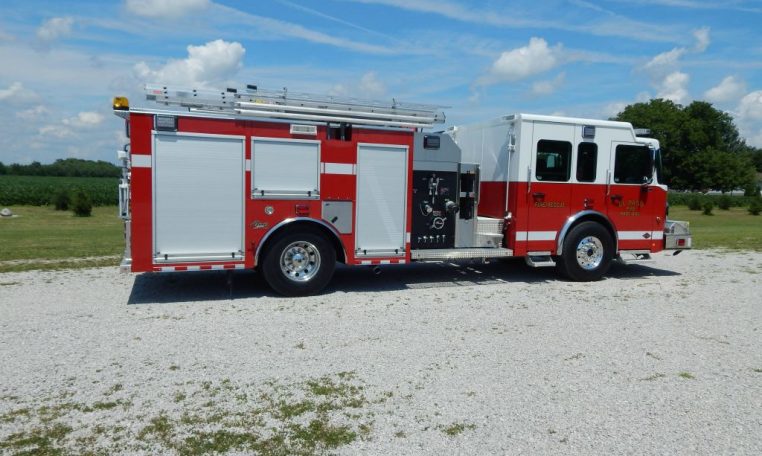

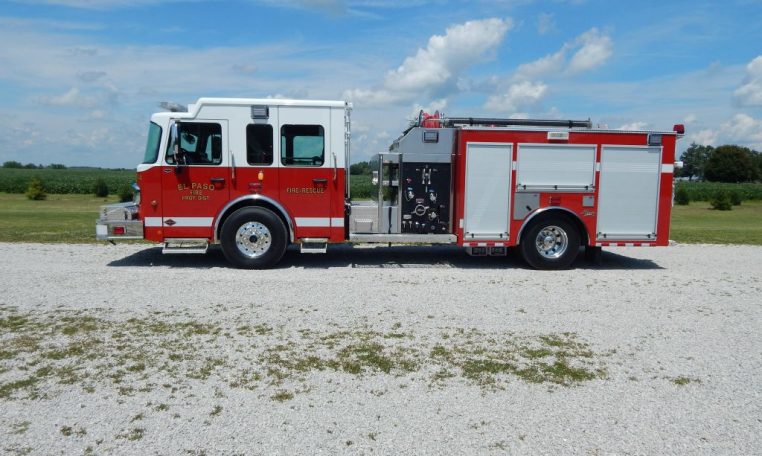

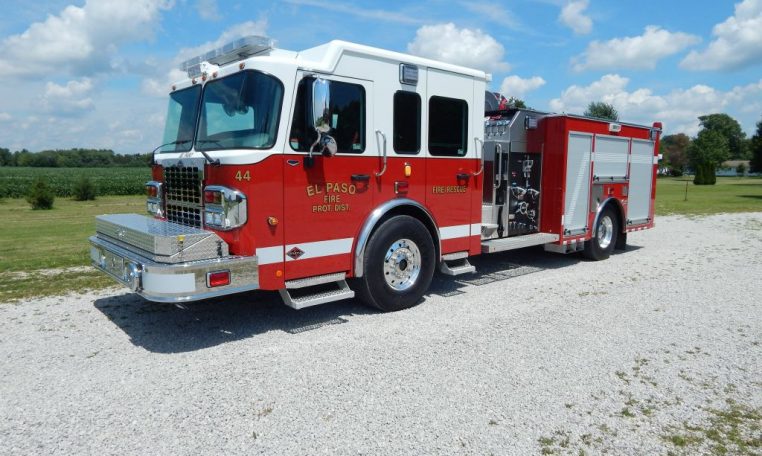

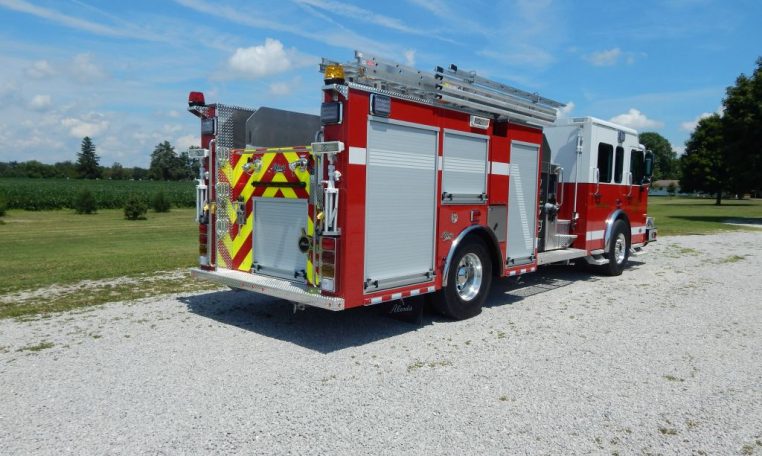

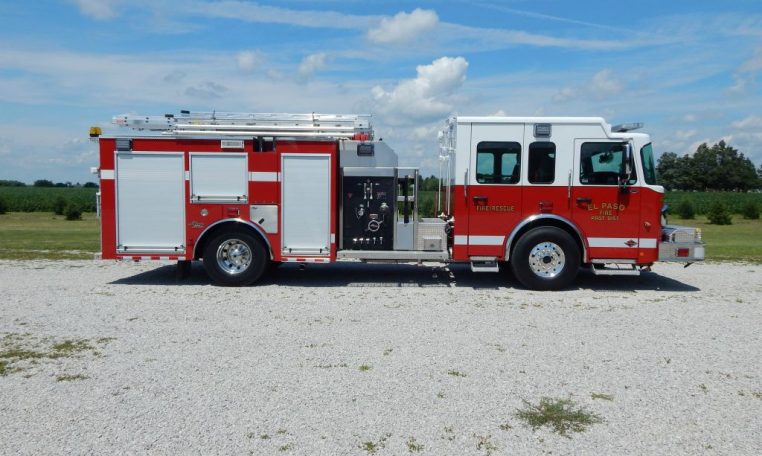

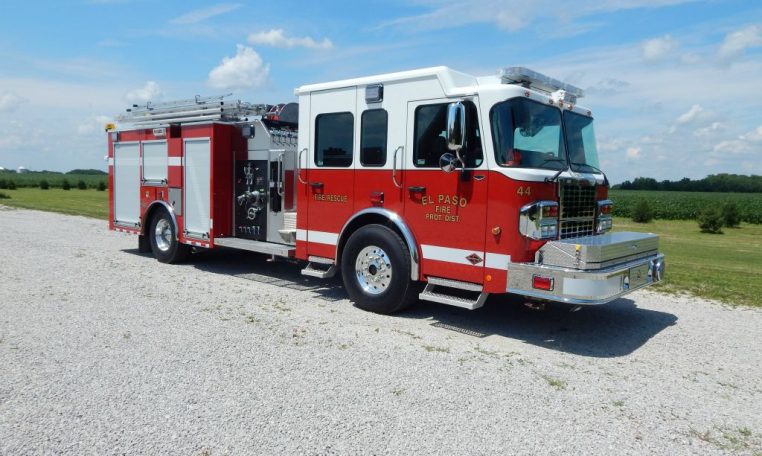

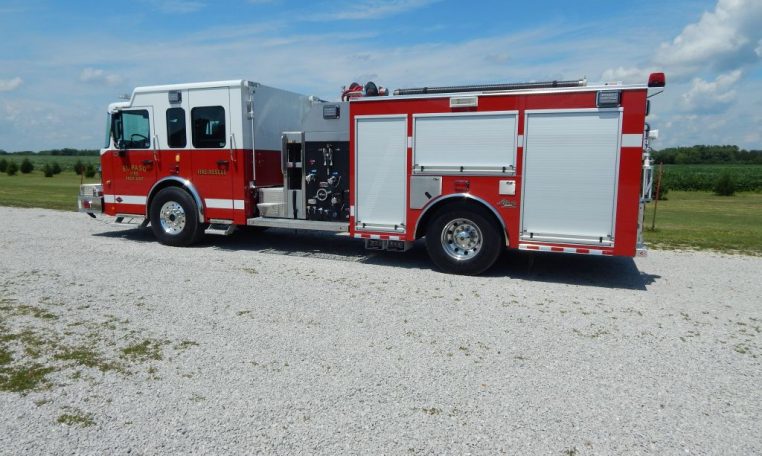

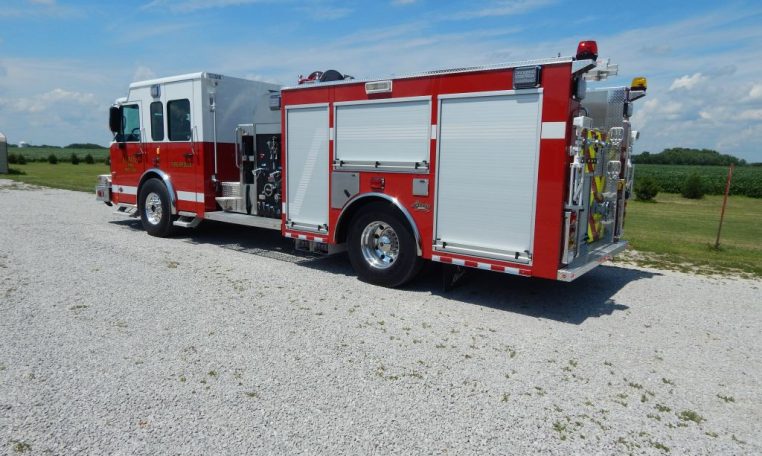

CUSTOM TOP CONTROL PUMPER #2276

EL PASO FIRE PROTECTION DISTRICT EL PASO, ILLINOIS

• Spartan Metro Star EMFD 10″ raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Eight (8) man cab seating with five (5) SCBA seats

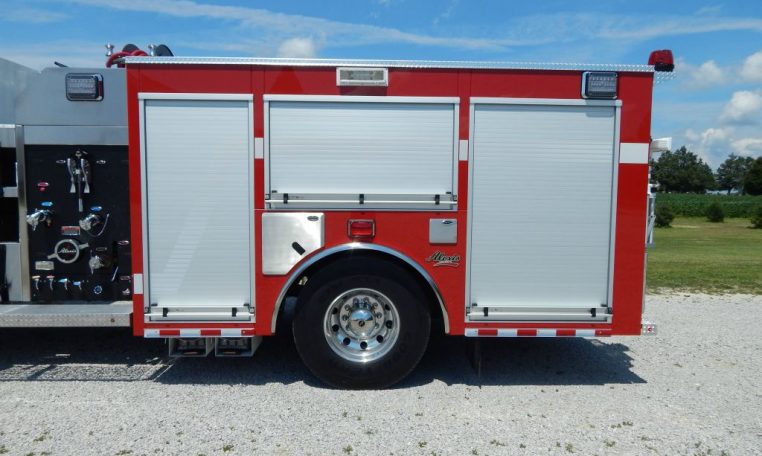

• Heavy Duty 3/16″ Aluminum Body with ROM Roll Up Doors
• 500-Gallon Poly Tank with 20-gallon foam tank
• One (1) 2 ½” Tank fill, rear

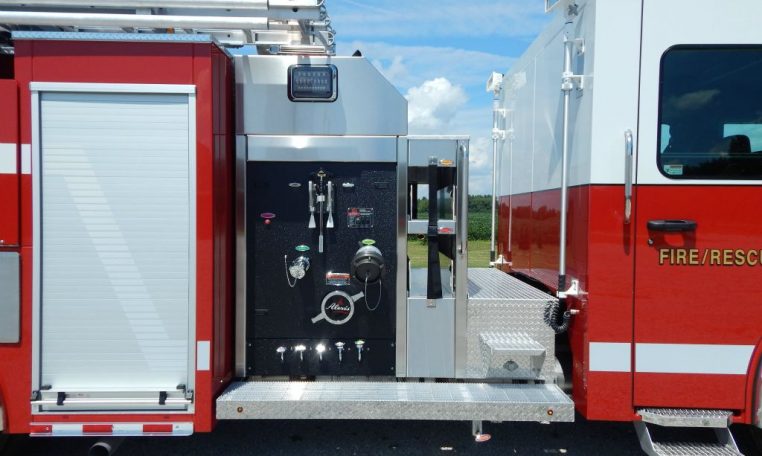

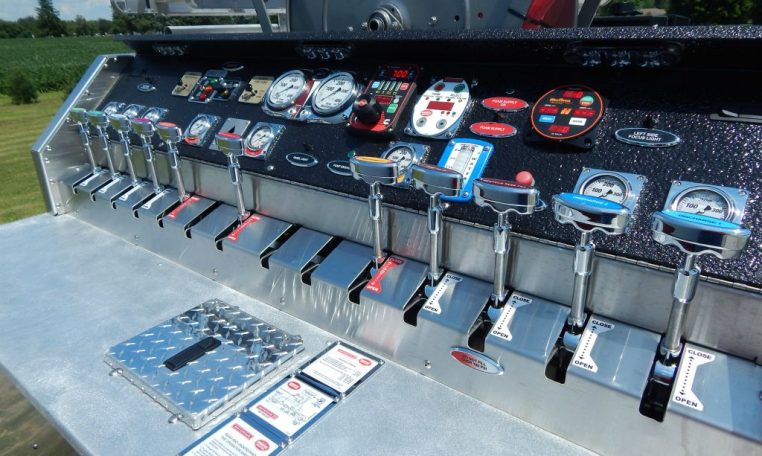

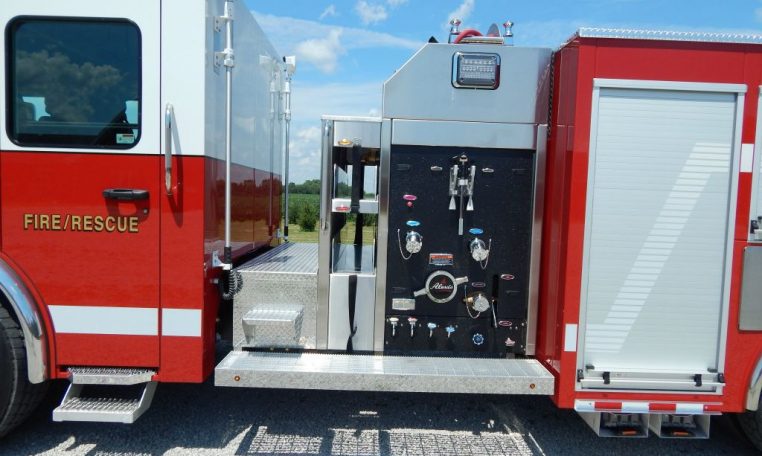

• Hale QMAX125, 1250-GPM Pump with top pump operator’s panel
• Four (4) 2 ½” Discharges, two (2) left, one (1) right side and one (1) rear
• One (1) 3″ Discharge, right side
• One (1) 2 ½” Gated Suction, left side
• Two (2) 1 ½” Cartridge Lay Preconnects, front of body
• One (1) Hannay electric booster reel with 150-ft of 1″ hose
• Waterous Aquis 2.5 foam system

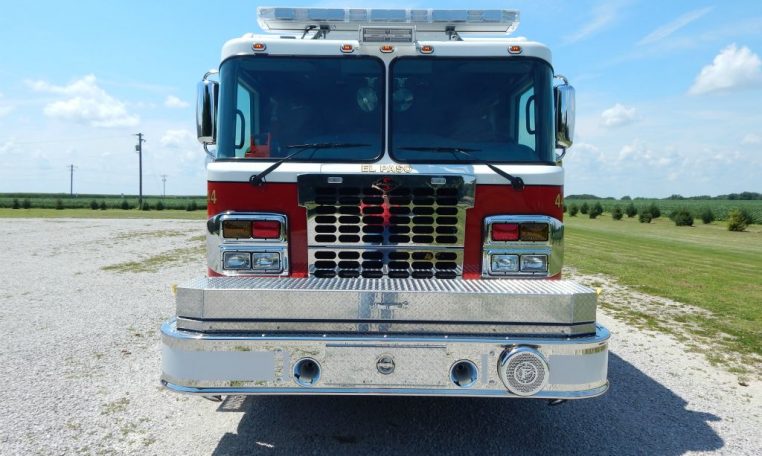

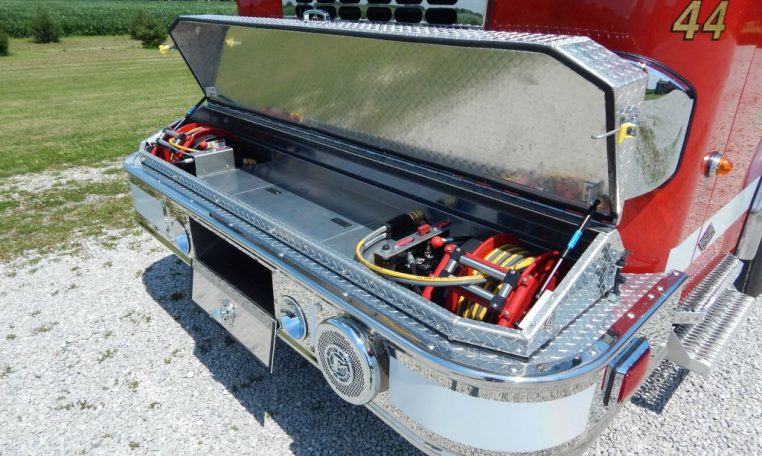

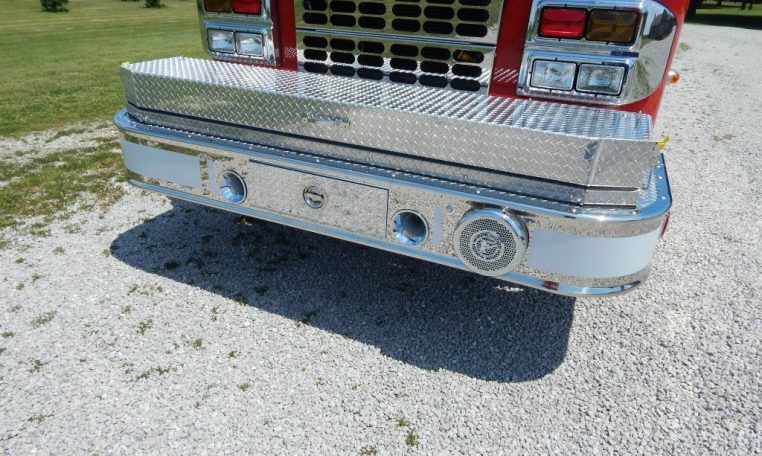

• 28″ Front bumper extension with hydraulic reels, rescue tools and preconnect

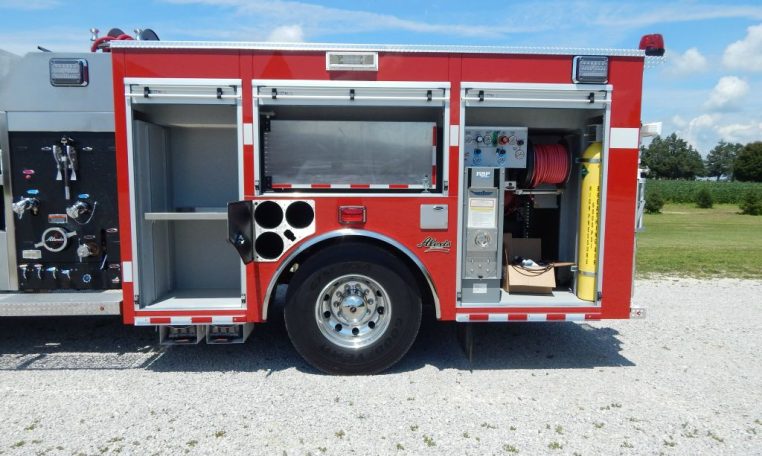

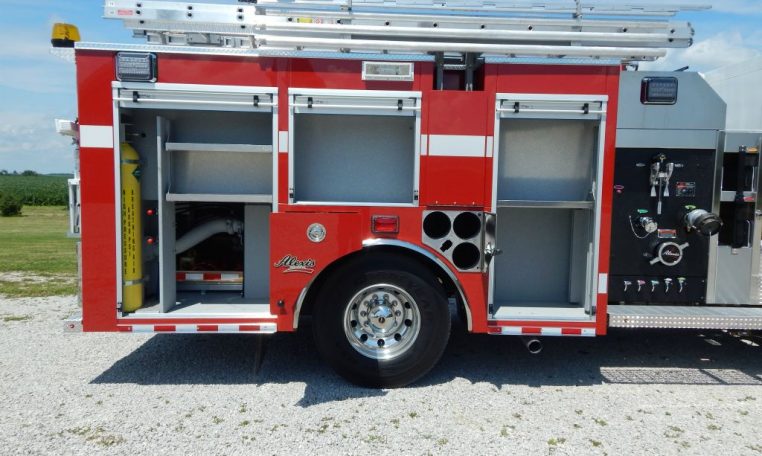

• Two (2) Triple bottle Air bottle compartments, one (1) each side
• One (1) Hinged swing out tool board, left side

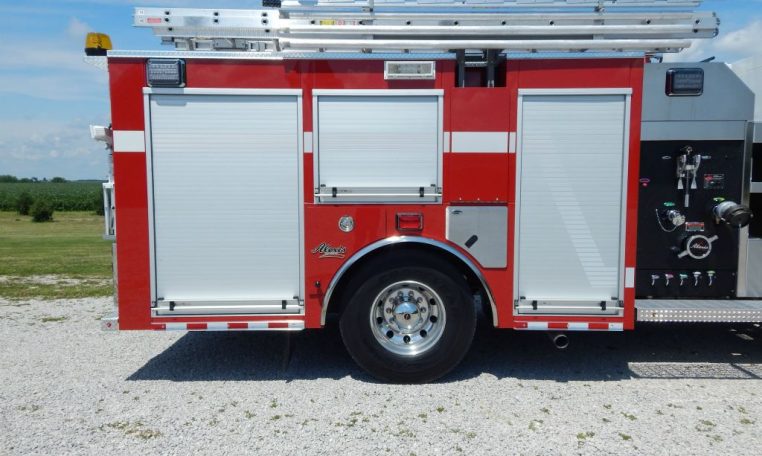

• Zico Hydraulic ladder rack with pike pole and suction hose storage, right side
• Suction hose storage compartment for one (1) hose, right side with rear access
• Oil Dry hopper, left side wheel well
• Two (2) bottle 6000-PSI Cascade system with control panel and fill enclosure
• Progressive Dynamics on-board battery conditioner with Viair air compressor
• Kussmaul Auto Eject 120-volt shoreline connection
• Harrison MAS 10-kW hydraulically driven Generator with 120-volt system
• One (1) Akron electric Cord reel with 150-ft of 10/3 cord and junction box
• Akron 120-volt Scene Light Package with telescopic lights
• Federal EQ2B electronic Siren with 200-watt speaker
• Whelen LED 12-volt Scene Light Package
• Whelen LED Warning Light Package

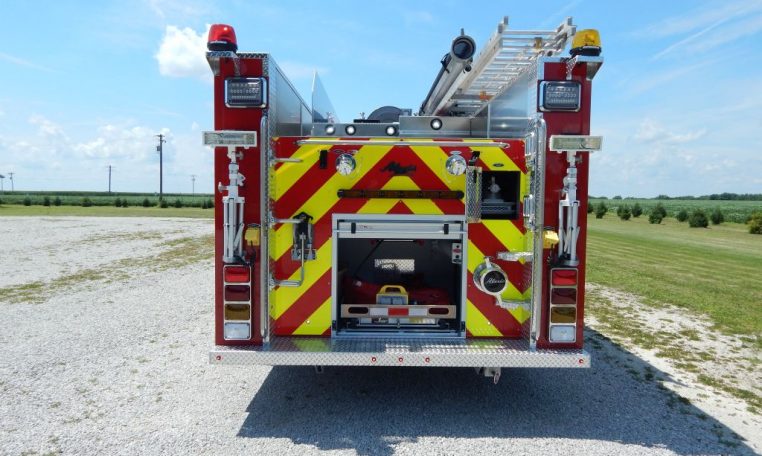

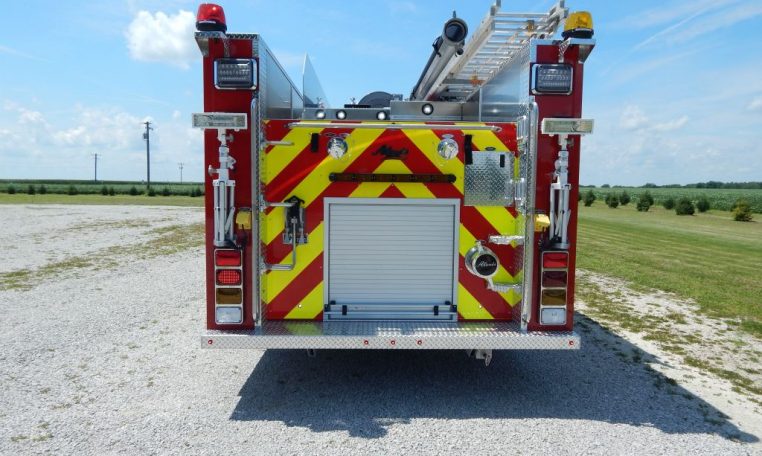

• Diamond Grade Chevron pattern striping, rear
• 9′ 9″ Overall height
• 33′ 8″ Overall length
• 207″ Wheelbase
• 147″ Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR

Year: 2016
Make: Alexis Fire Equipment
Model: Pumper
Body Style: Top Mount Pumper
Pump Size: 1250
Tank Size: 500
Exterior Color: Red
