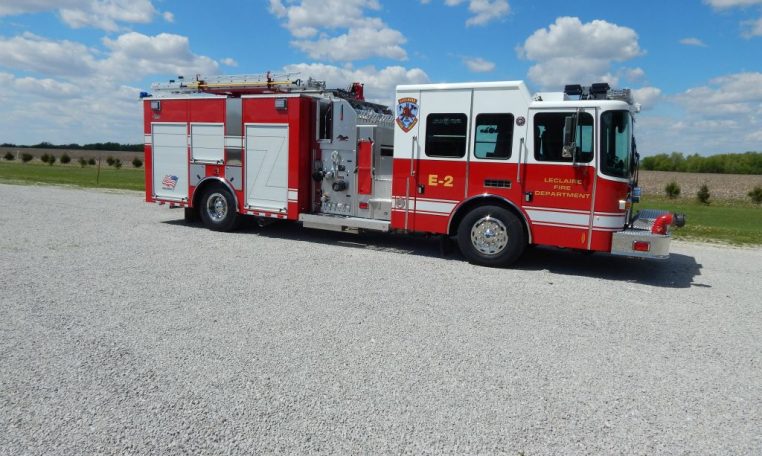

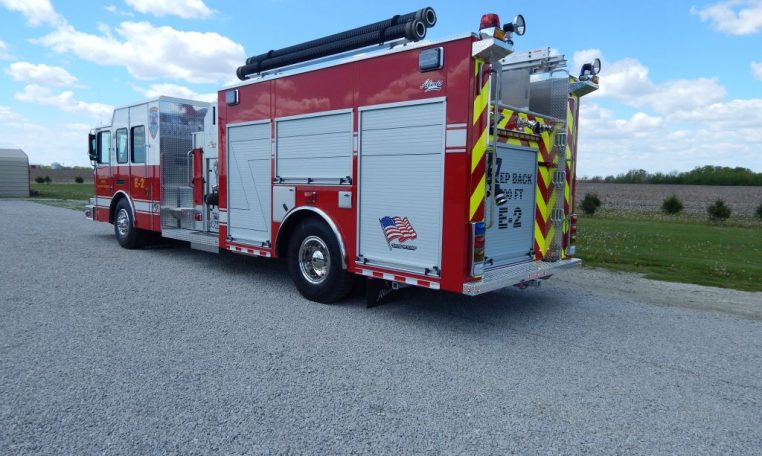

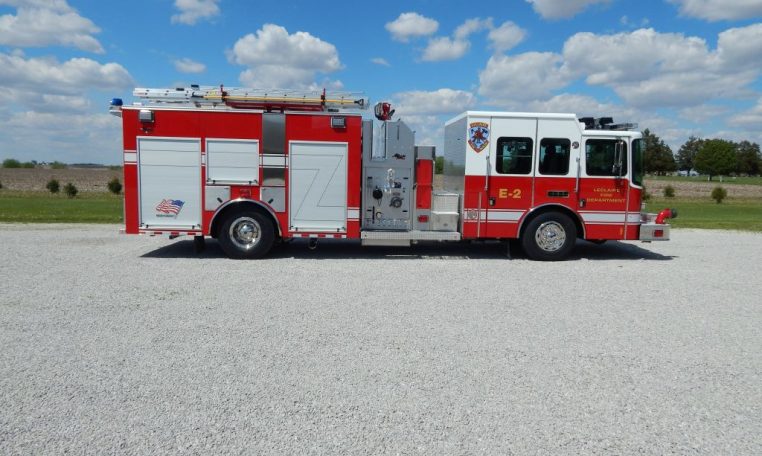

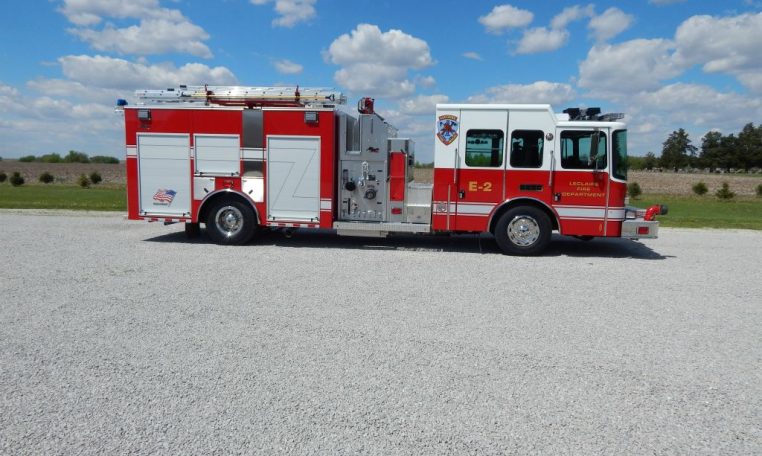

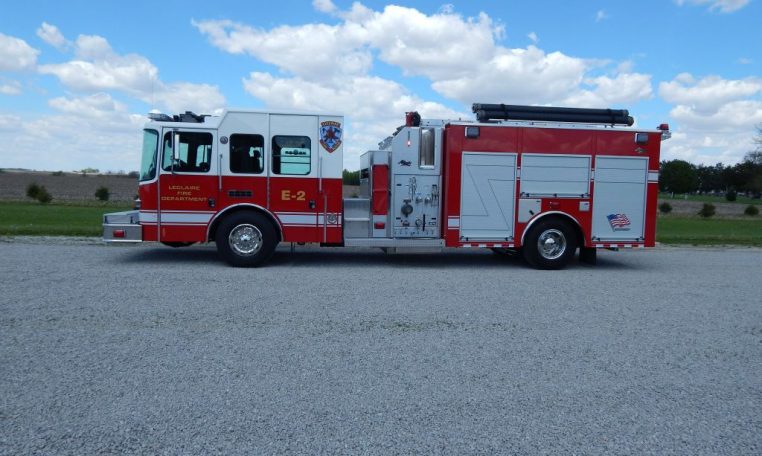

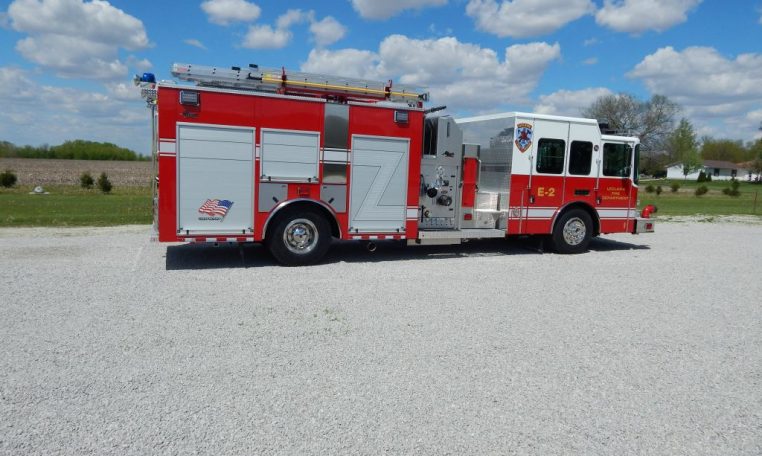

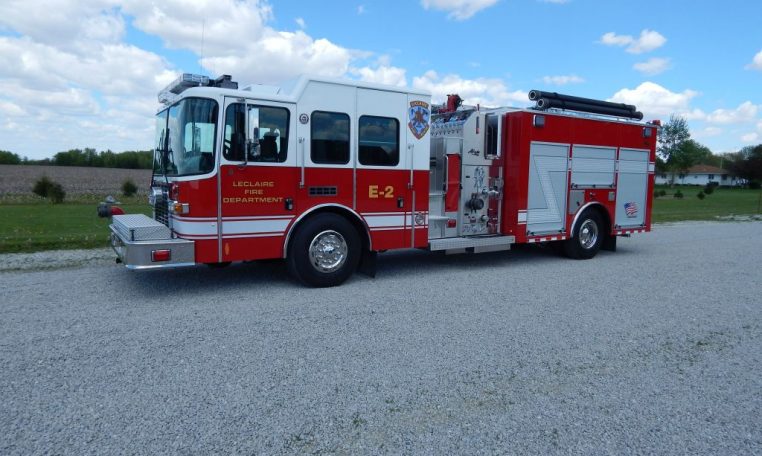

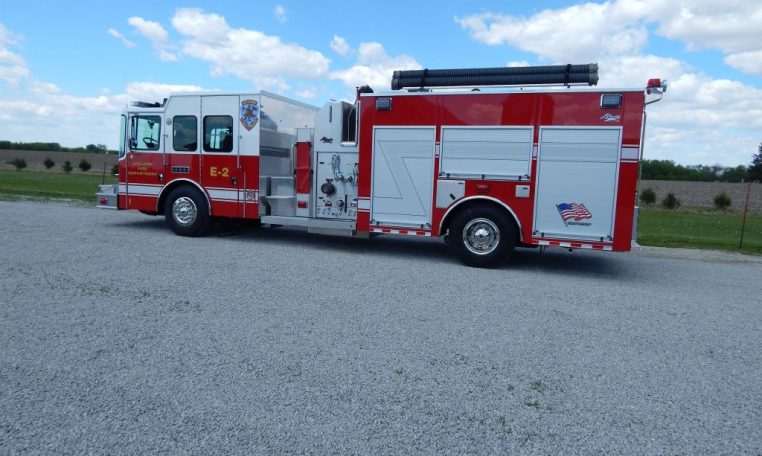

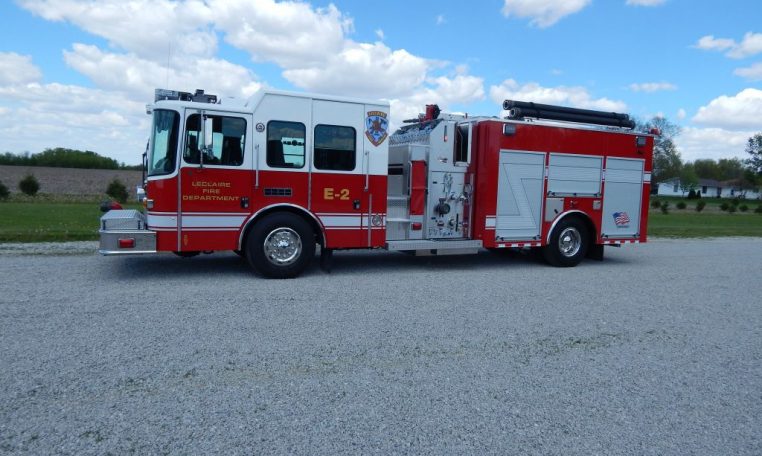

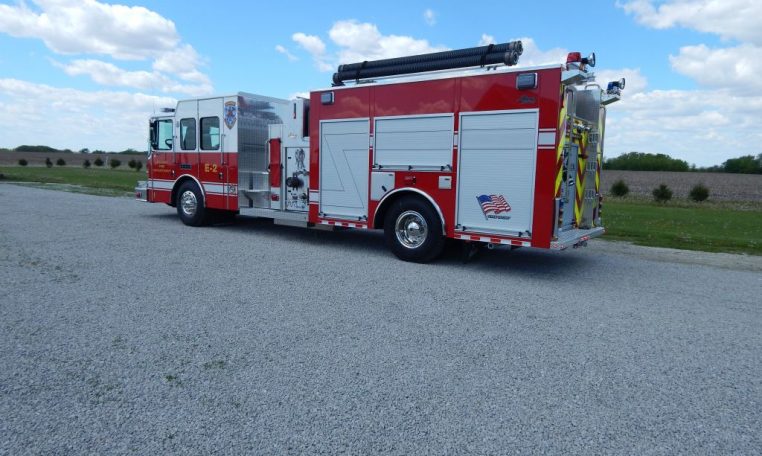

CUSTOM TOP MOUNT PUMPER #2271

CITY OF LECLAIRE FIRE DEPARTMENT LECLAIRE, IOWA

• HME 1871-W LFD 12″ raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison EVS Automatic Transmission
• Six (6) man cab seating with five (5) SCBA seats

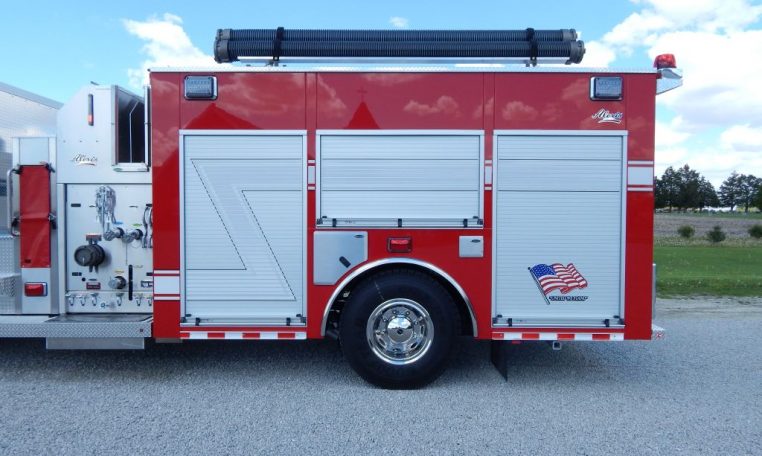

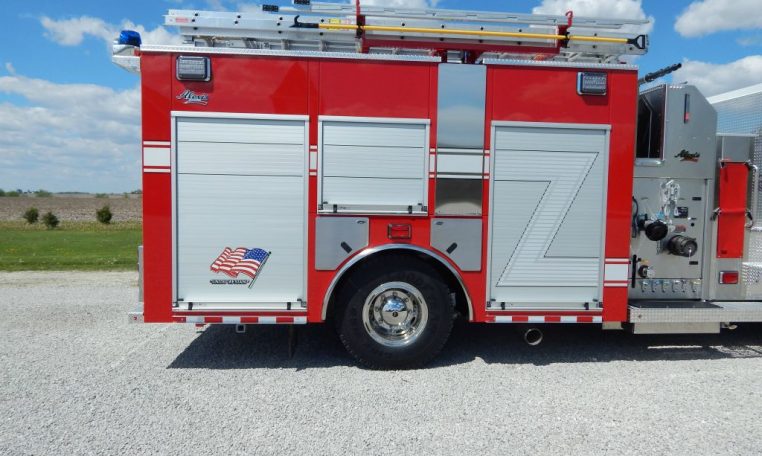

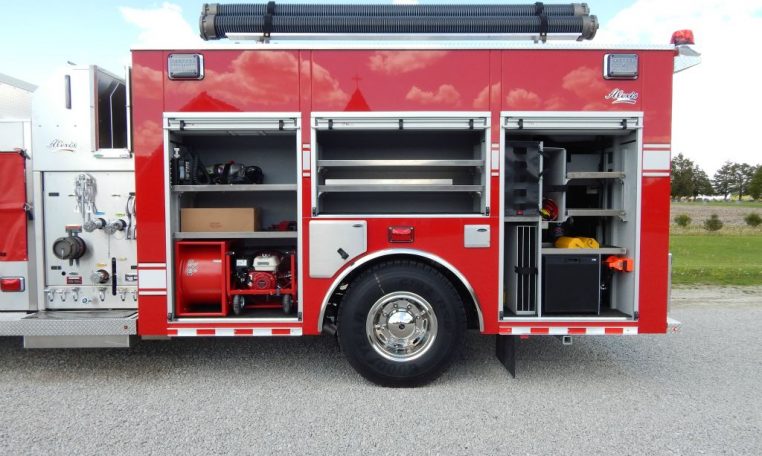

• Heavy Duty 3/16″ Aluminum Body with ROM Roll Up Doors
• EMS compartment and EMS box, cab

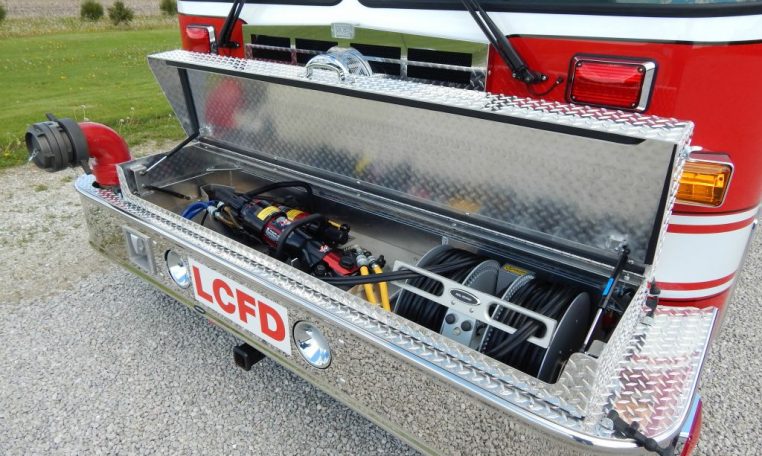

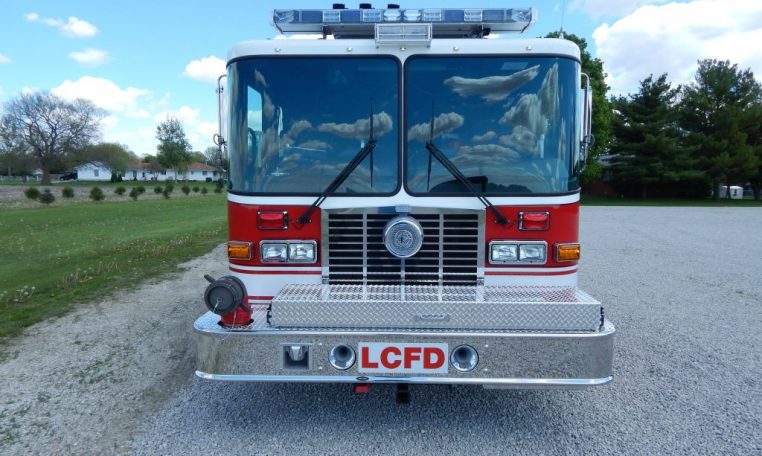

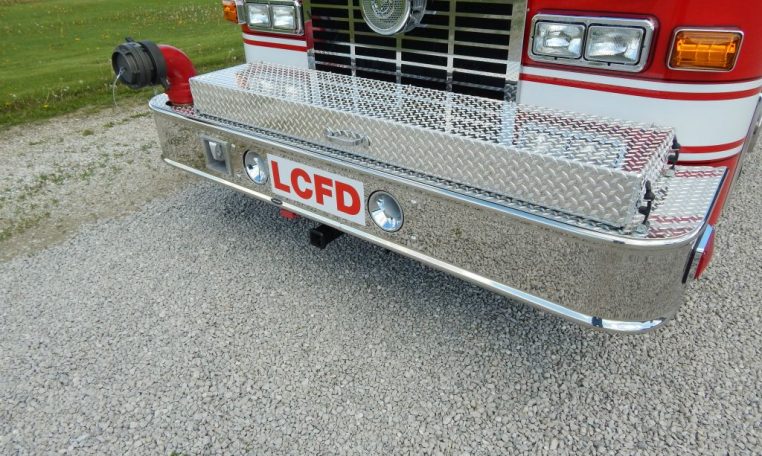

• 24″ Front bumper extension with Preconnected extrication tools and 5″ suction
• Front, rear and side Winch type hitch points with electrical connections
• On Spot Automatic tire chains
• 900-Gallon Poly Tank with 20-Gallon Foam tank
• One (1) 2 ½” Fireman’s Friend Tank Fill, rear

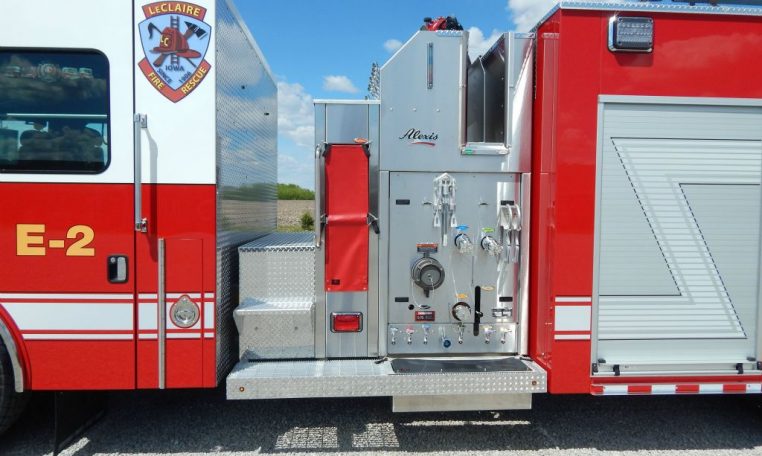

• Waterous CXS 1500-GPM Pump with top operator’s panel

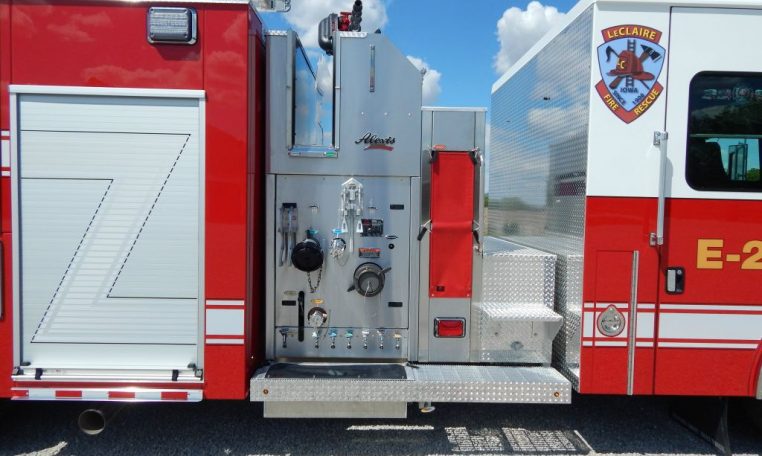

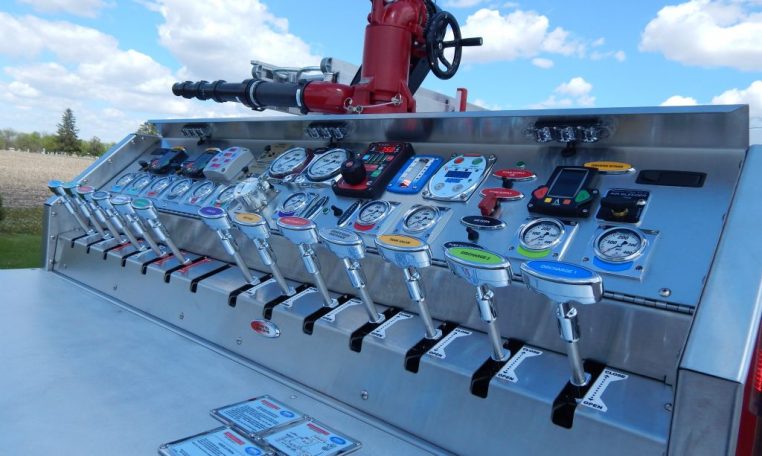

• Pump operator’s panel across top of apparatus
• Five (5) 2 ½” Discharges, two (2) left, one (1) right side and two (2) rear
• Two (2) 3″ Discharges, one (1) right side and one (1) over pump for Deck gun
• Two (2) 2 ½” Gated Suctions, one (1) each side
• One (1) 1 ½” and one (1) 2 ½” Mattydale Preconnect, across top of pump module
• Two (2) 1 ½” Cartridge Lay Preconnects, front of body
• Waterous Aquis 2.5 Foam System

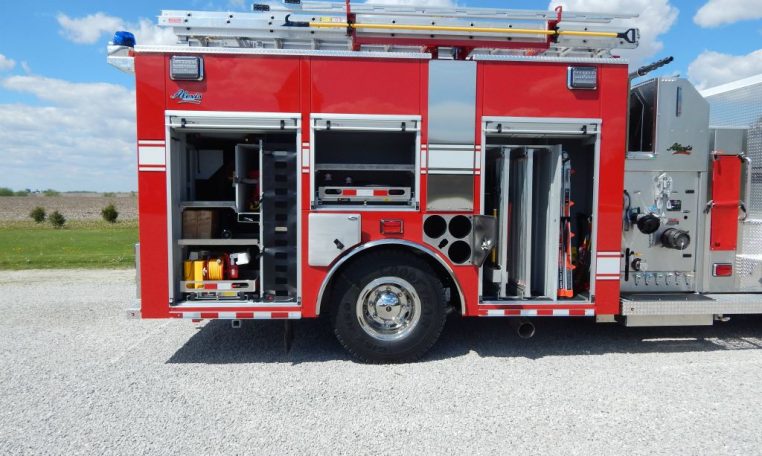

• Little Giant ladder storage and two vertical pull-out tool boards, right side
• Norcold built-in Refrigerator and stokes basket storage, left side
• Two (2) Triple bottle Air bottle and one (1) Fire Extinguisher compartment

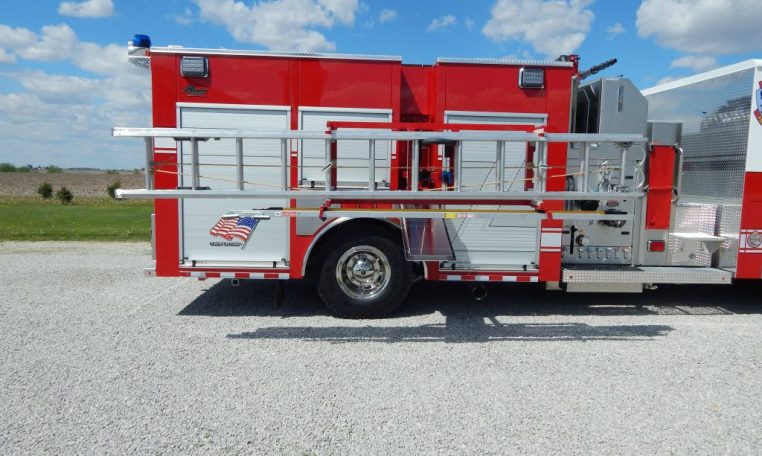

• Zico Hydraulic Ladder rack, right side
• Two (2) Suction hose storage gutters, left side compartment top
• Kussmaul 1200 on-board battery charger/air compressor
• Federal Q2B Mechanical Siren and Whelen Electronic Siren with speaker
• Smart Power 10-kW Generator/5-kW Rescue Tools /120-volt electrical system

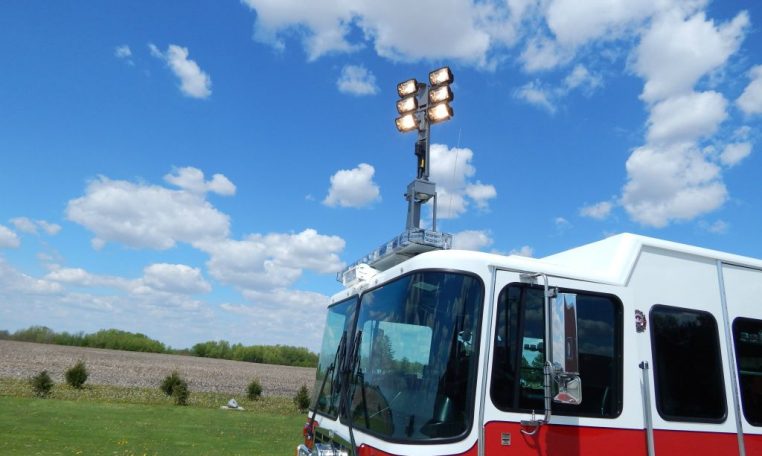

• Command Light Knight Light Tower with Six (6) 500-watt Halogen lights
• Whelen and FRC Collins 12-volt Scene Light Packages

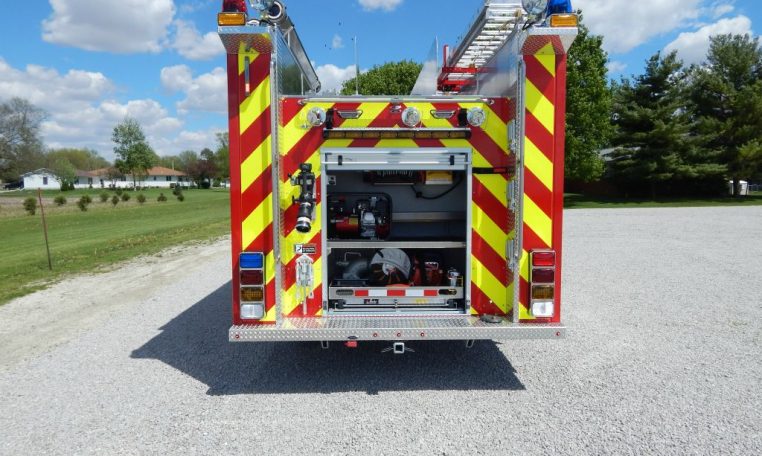

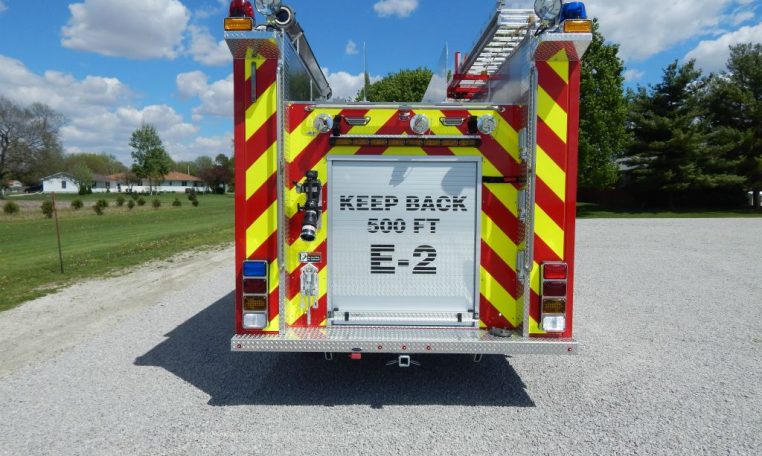

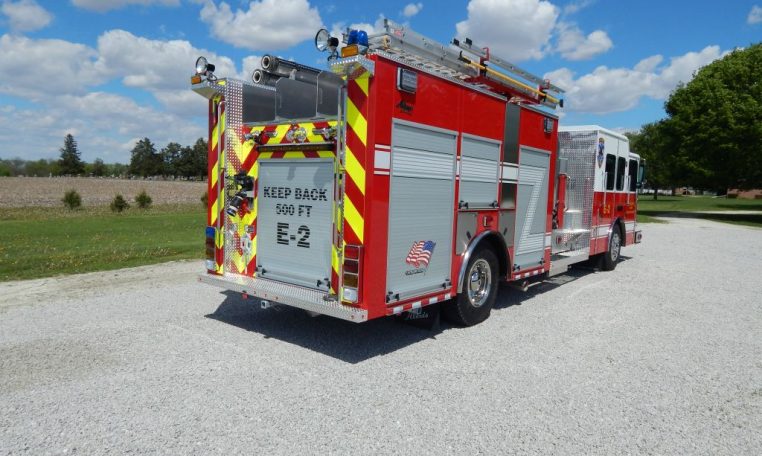

• Whelen LED Warning Light package and Chevron pattern striping
• 10′ 10″ Overall height
• 35′ 2″ Overall length
• 231″ Wheelbase
• 163″ Cab to Axle
• 18,740 FAWR
• 27,000 RAWR
• 45,740 GVWR

Year: 2016
Make: Alexis Fire Equipment
Model: Pumper
Body Style: Top Mount Pumper
Pump Size: 1500
Tank Size: 900
Exterior Color: Red
