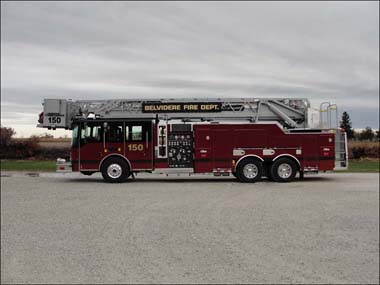

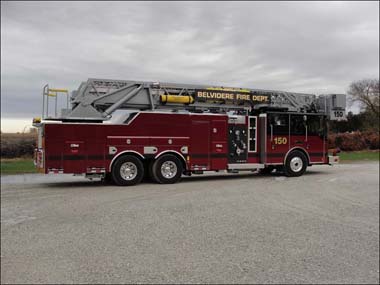

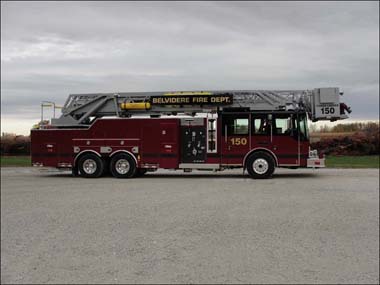

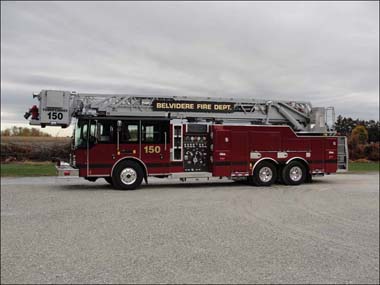

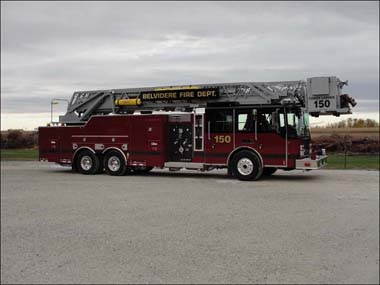

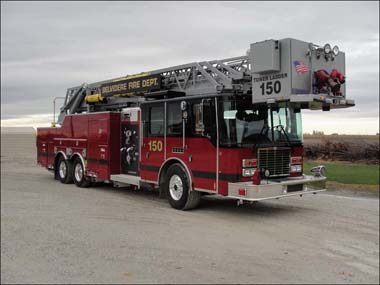

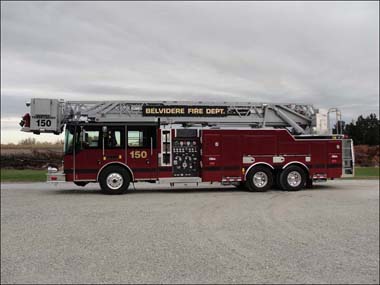

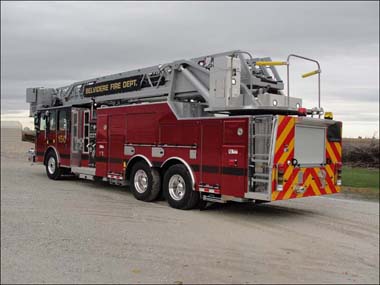

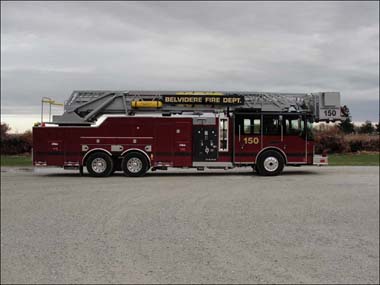

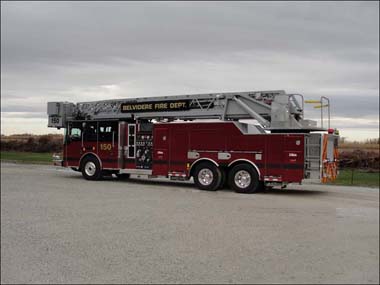

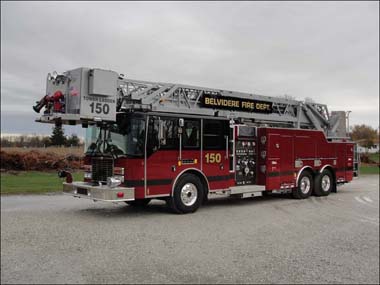

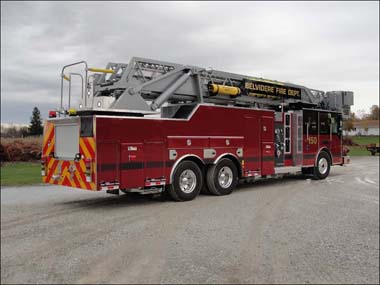

CUSTOM 104-FT AERIAL PLATFORM #2130

CITY OF BELVIDERE FIRE DEPARTMENT - BELVIDERE, ILLINOIS

• HME Spectr MFD xL Chassis
• Cummins ISM, 500-HP Diesel Engine
• Allison 4000EVS Automatic Transmission
• Heavy Duty 3/16” Aluminum Body with ROM roll up and box style doors
• 300-Gallon Poly Tank

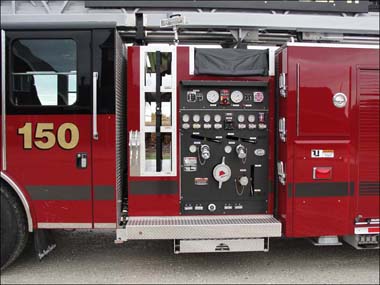

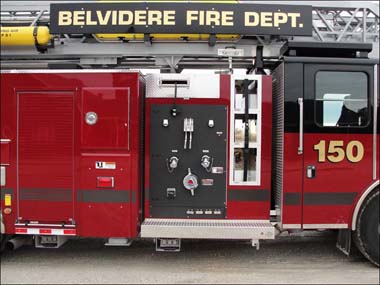

• Hale QMAX150, 1500-GPM Pump with left side pump operator’s panel
• Four (4) 2 ½” Discharges, two (2) each side
• One (1) 4” Discharge feeding waterway
• One (1) 2 ½” Gated Suction, left side
• Two (2) 1 ½” and one (1) 2 ½” Cartridge Lay Preconnects, front of body
• Mattydale Dead Lay hose bed, top of body

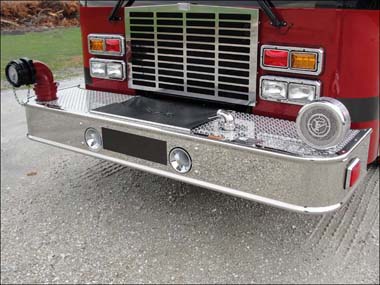

• 24” Front Bumper Extension with 1 ½” Preconnect and center hose well
• One (1) 5” Front Suction with electric control at pump panel

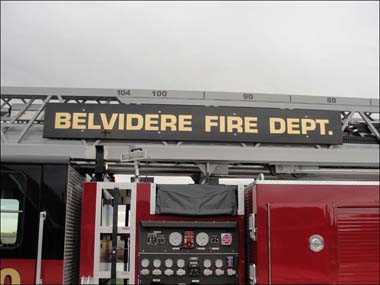

• 104-Foot, Four Section Rear-Mount Platform

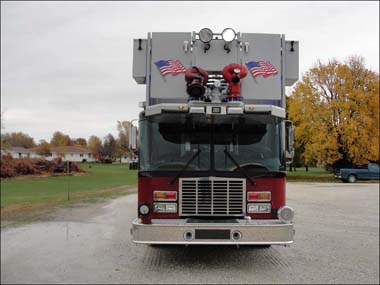

• Akron Remote controlled Electric Monitors at end of platform
• Breathing Air system to end of platform

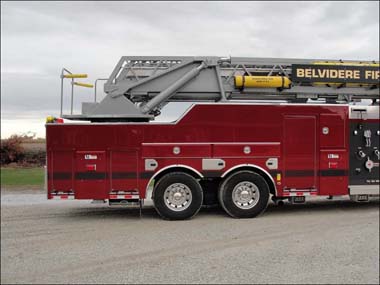

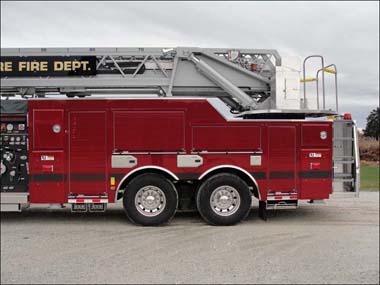

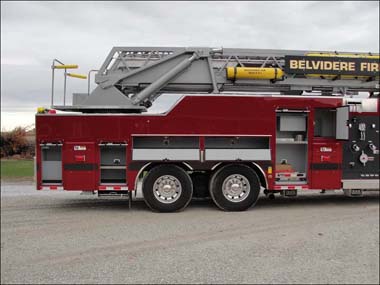

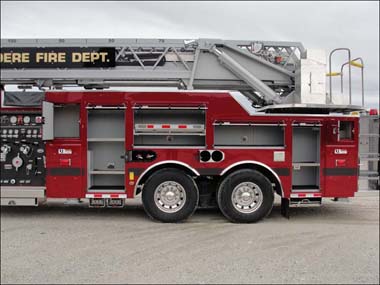

• Five (5) Wheel well compartments, three (3) right side and two (2) left side

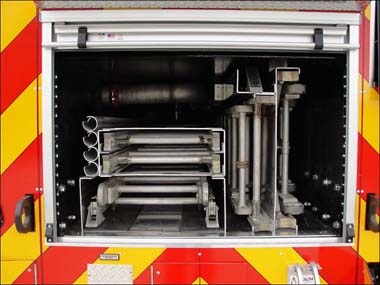

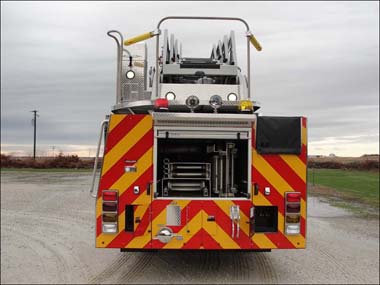

• Ladder and Pike pole storage within torque box with rear access
• Kussmaul 1200 Battery charger/conditioner
• Kussmaul Super Auto Eject 120-volt shoreline and Auto Air Eject
• Class 1 Total System Manager for electrical load management
• Dual stutter tone Air horns, front bumper

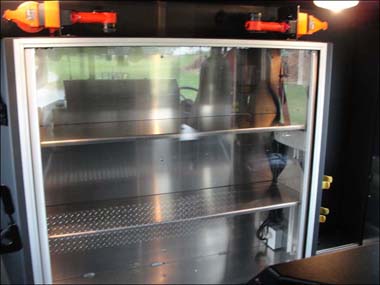

• EMS Compartment with sliding doors and shelves, cab rear wall
• Federal Q2B mechanical Siren, front bumper
• Two (2) Federal GHSCENE lights, one (1) each side of cab
• Two (2) Unity Deck lights, rear
• Smart Power 8000 watt hydraulically driven Generator with 120-volt system
• Two (2) FRC Focus 120-volt 500-watt telescopic lights, rear of platform
• Whelen LED Warning Light Package

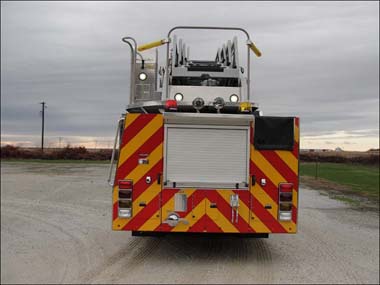

• Chevron pattern striping, rear
• 11’ 10” Overall height
• 43’ 9” Overall length
• 248” Wheelbase
• 188” Cab to Axle
• 22,500 FAWR
• 58,000 RAWR
• 80,500 GVWR

Year: 2016
Make: Alexis Fire Equipment
Model: Aerial
Body Style: Platform Aerial
Pump Size: 1500
Tank Size: 300
Exterior Color: Red
