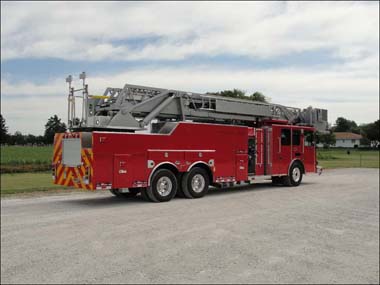

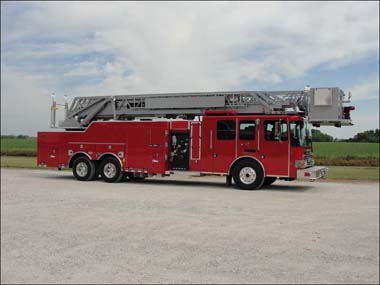

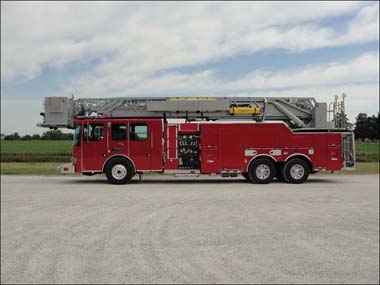

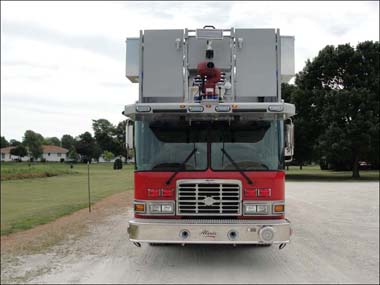

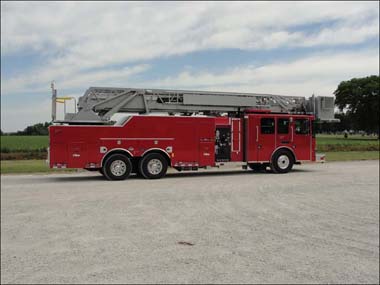

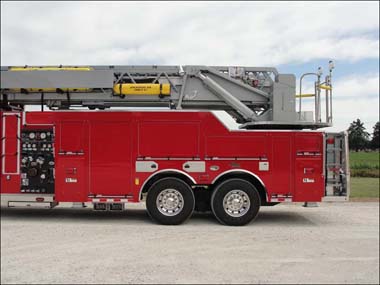

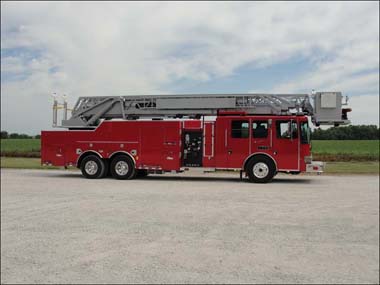

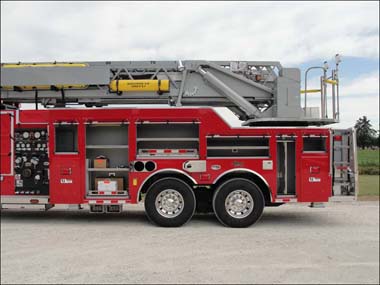

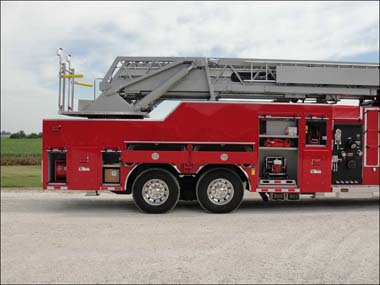

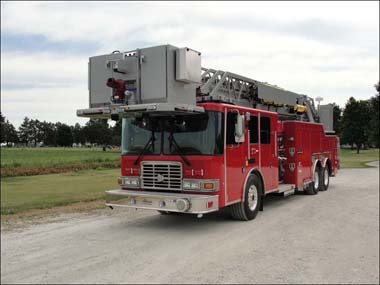

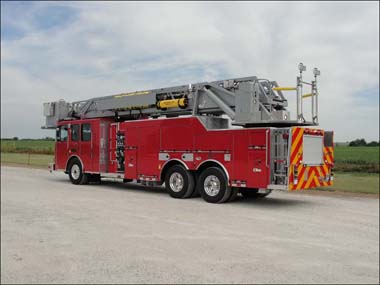

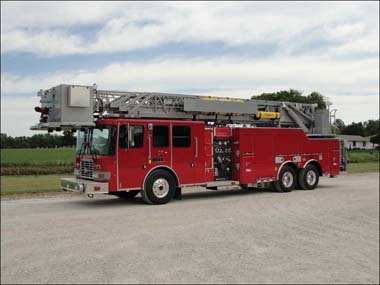

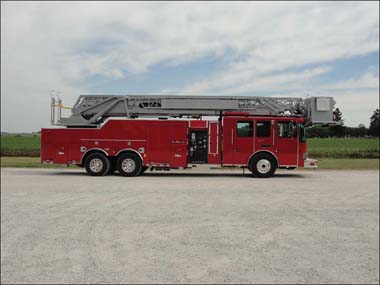

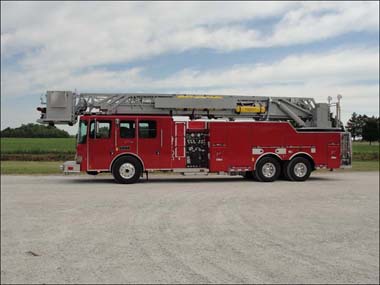

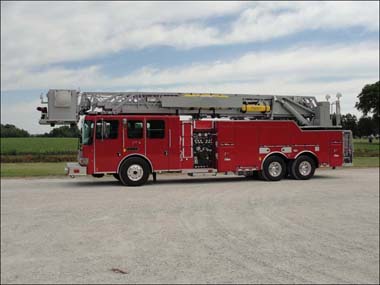

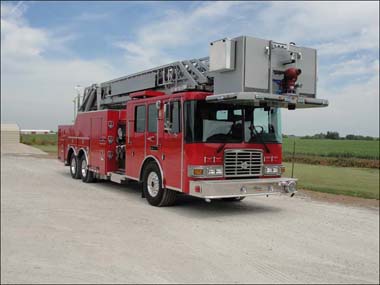

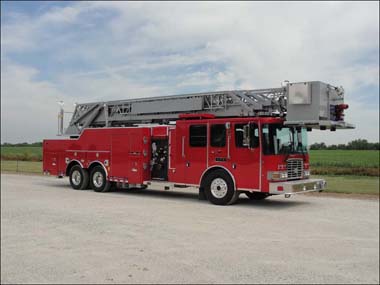

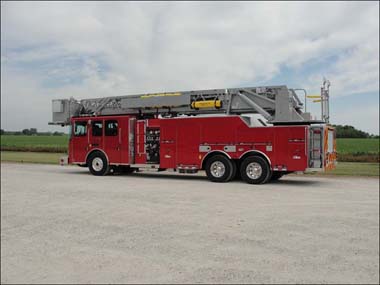

104-FT FOUR-SECTION REAR-MOUNT AERIAL PLATFORM #2149

CITY OF DIXON FIRE DEPARTMENT - DIXON, ILLINOIS

• HME Spectr LFD Chassis
• Cummins ISM500, 500-HP Diesel Engine
• Allison 4000EVS Automatic Transmission

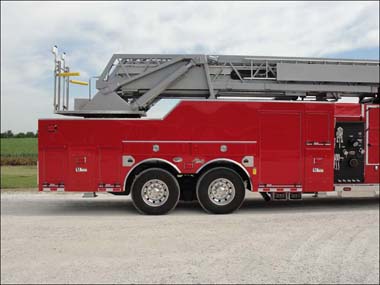

• Heavy Duty 3/16” Aluminum Body with ROM Roll Up Doors
• 300-Gallon Poly Tank

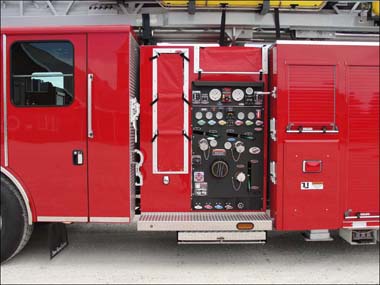

• Hale QMAX200, 2000-GPM Pump with Left side Pump operator’s controls
• Four (4) 2 ½” Discharges, two (2) each side
• Two (2) 4” Discharges, one (1) right side and one (1) feeding waterway

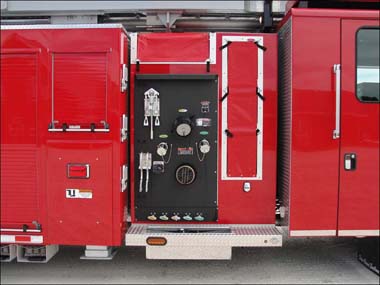

• One (1) 2 ½” Gated Suction, left side
• Two (2) 1 ½” and one (1) 2 ½” Cartridge Lay Preconnects, front of body

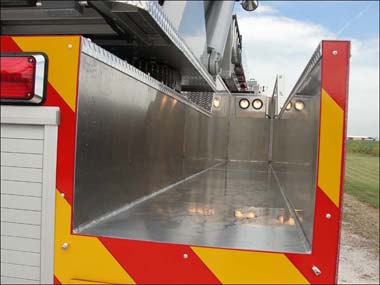

• One (1) 2 ½” Preconnect at platform and one (1) Deadlay Hosebed over pump
• Akron Remote controlled Electric monitor at end of platform

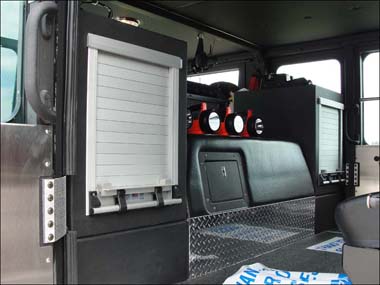

• Two (2) EMS compartments with roll up door and two (2) shelves each, cab

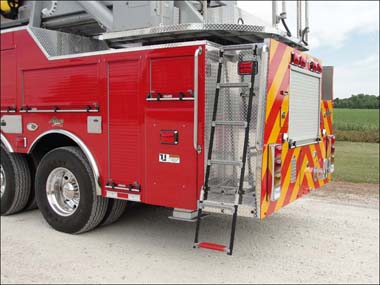

• Zico Quik Ladder for turntable access
• Two (2) Single bottle Air bottle compartments, right side wheel well
• Two (2) Dual bottle Air bottle compartments, left side wheel well
• One (1) Pull out tool board, left side
• SetCom Intercom System

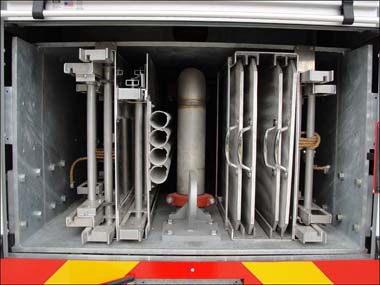

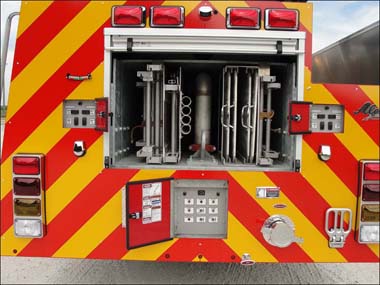

• Ladder and Pike pole storage within torque box with rear access
• Breathing Air system to end of platform
• Audiovox Color Back-Up Camera with 7” Color Monitor and side view camera
• Kussmaul Pump Plus on-board battery charger/air compressor with Auto Eject
• Federal Q2B Mechanical Siren
• Two (2) Federal GHSCENE Scene lights, one (1) each side
• Two (2) FRC Focus LED 12-volt Telescopic lights
• Smart Power 10,000-watt hydraulically driven Generator with 120-volt system
• Three (3) FRC Spectra 120-volt LED telescopic lights
• One (1) Electric cord reel with 150-ft of 10/3 cord and junction box, right side
• Whelen LED Warning Light Package

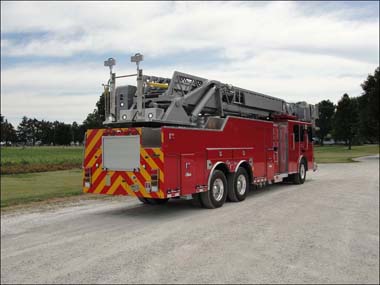

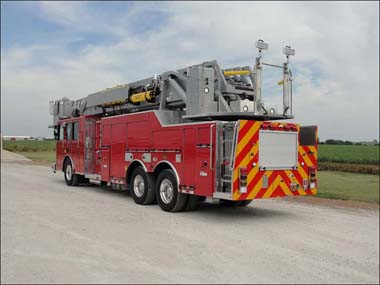

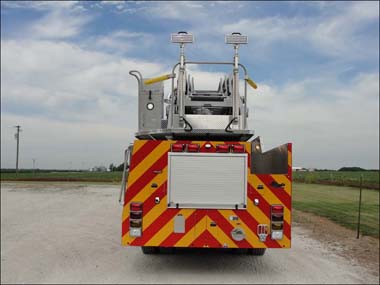

• Chevron pattern striping, rear
• 11’ 11” Overall height
• 43’ 4” Overall length
• 256” Wheelbase
• 188” Cab to Axle
• 21,500 FAWR
• 58,000 RAWR
• 79,500 GVWR

Year: 2016
Make: Alexis Fire Equipment
Model: Aerial
Body Style: Platform Aerial
Pump Size: 2000
Tank Size: 300
Exterior Color: Red
