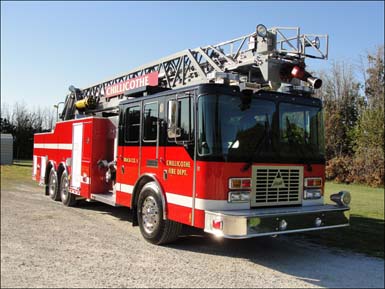

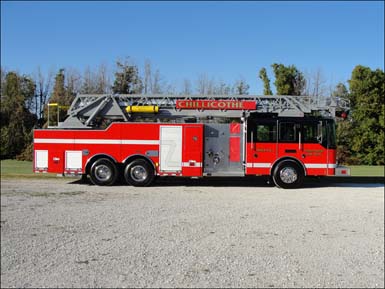

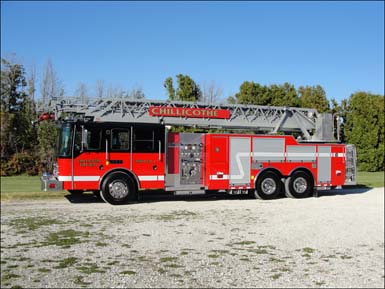

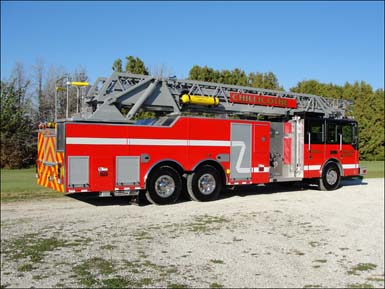

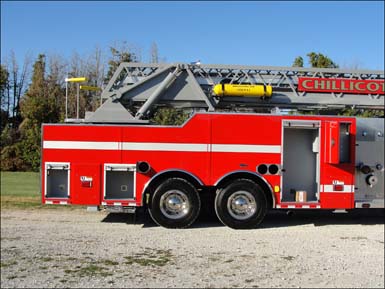

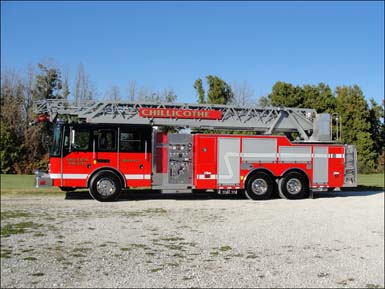

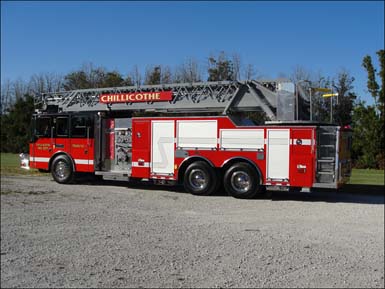

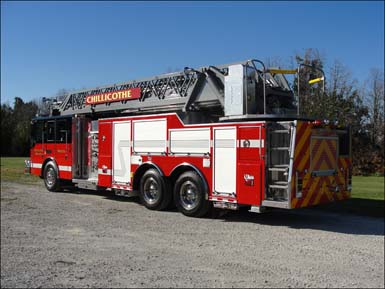

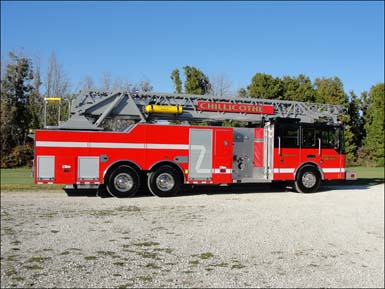

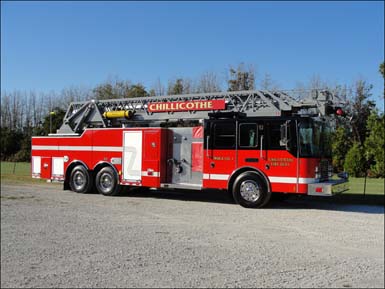

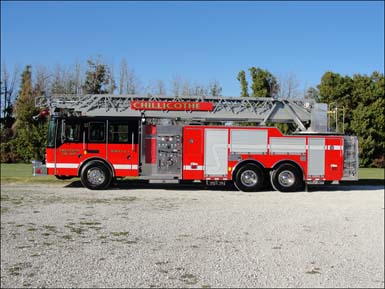

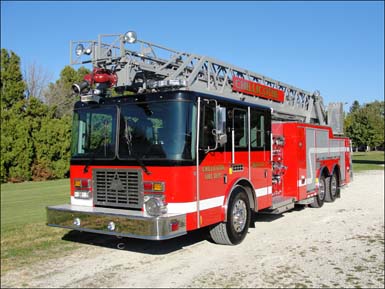

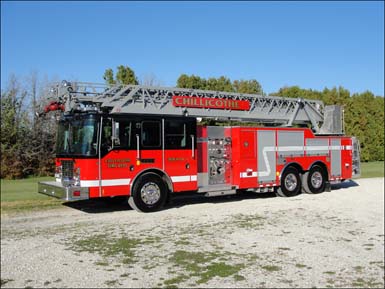

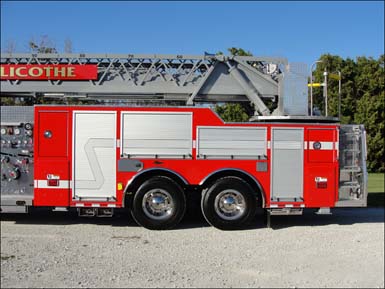

CUSTOM 100-FOOT AERIAL LADDER #2109

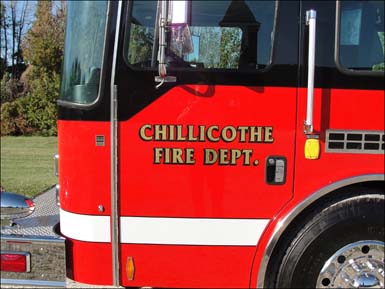

CITY OF CHILICOTHE FIRE DEPARTMENT - CHILLICOTHE, ILLINOIS

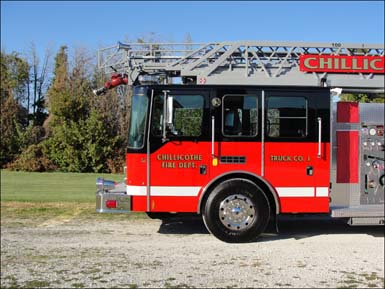

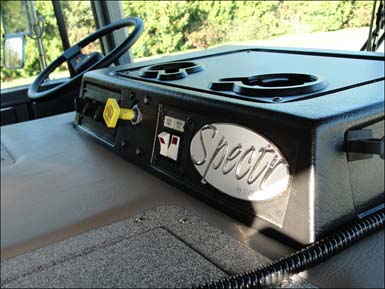

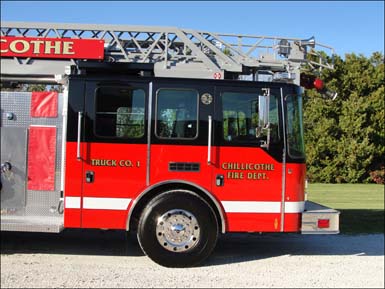

• HME Spectr MFDxL Tandem Chassis
• Cummins ISM 500, 500-HP Diesel Engine
• Allison 4000 EVS Automatic Transmission

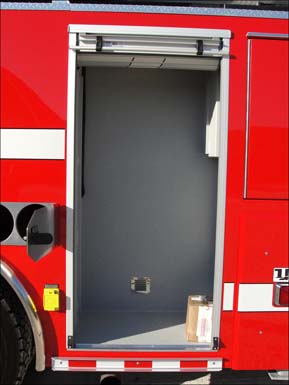

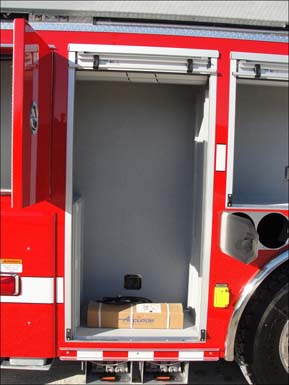

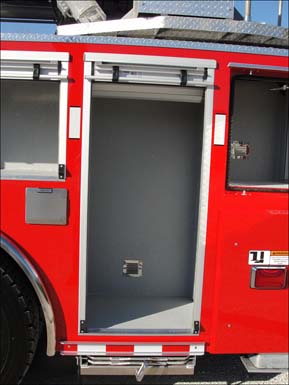

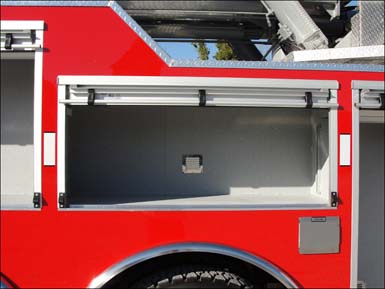

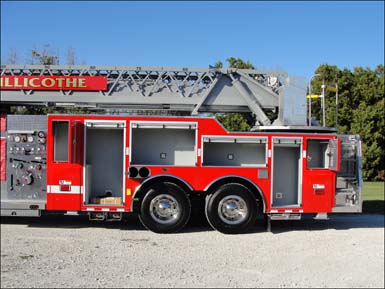

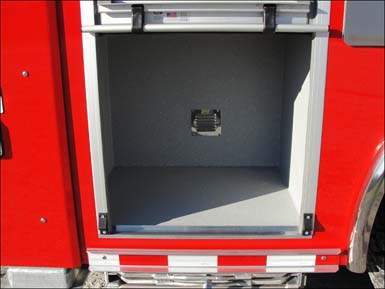

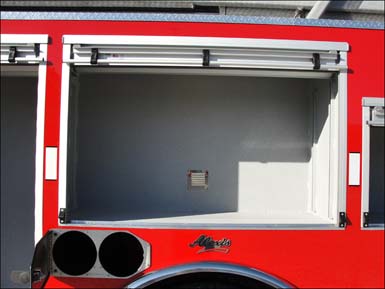

• Heavy Duty 3/16” Aluminum Body with box style and ROM roll up doors

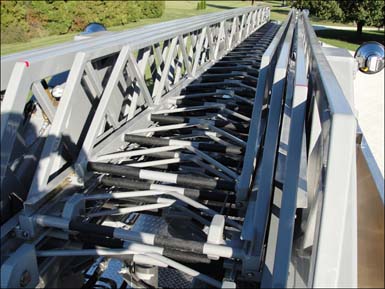

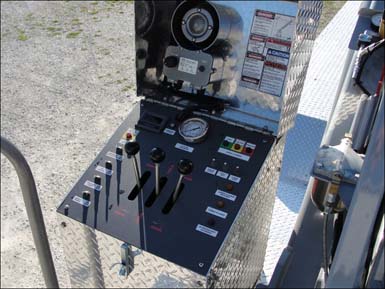

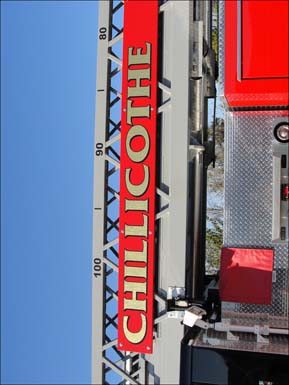

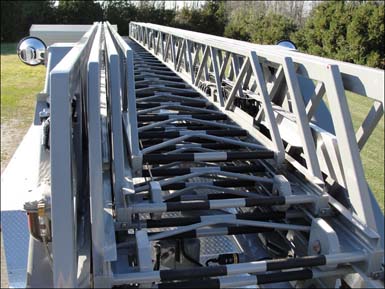

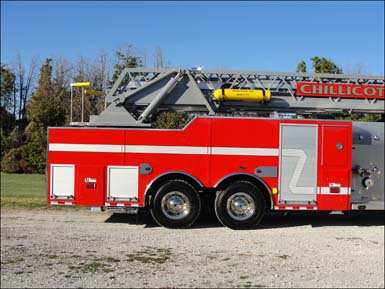

• 100-ft Four Section Rear Mount Ladder

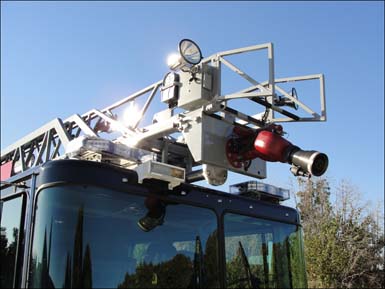

• Akron Remote controlled Electric Monitor at end of the ladder

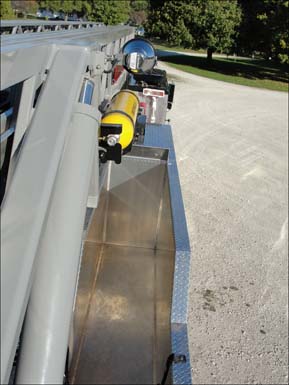

• Breathing Air System to end of ladder
• 300-Gallon Poly Tank

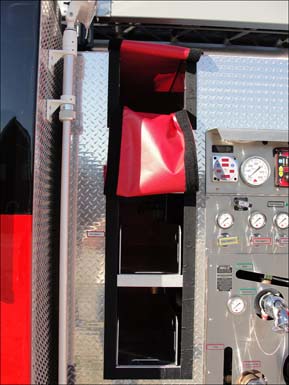

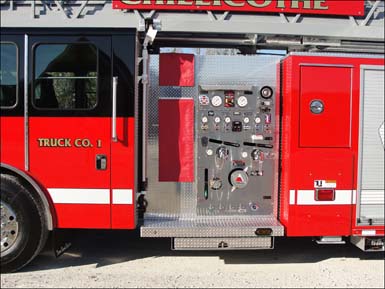

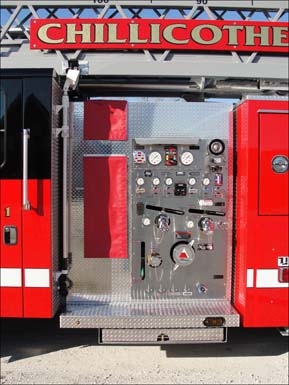

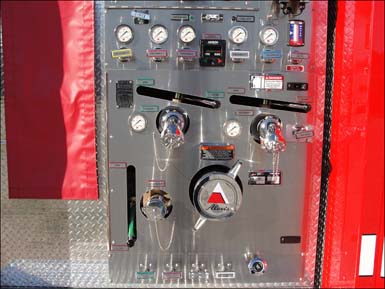

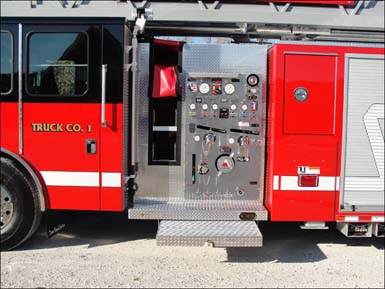

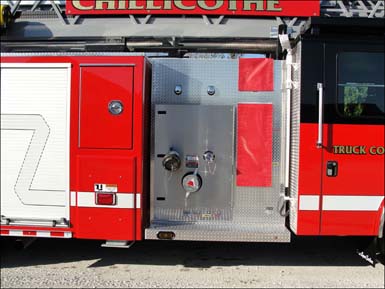

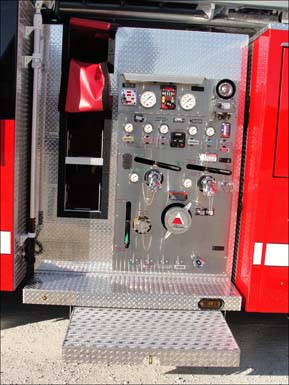

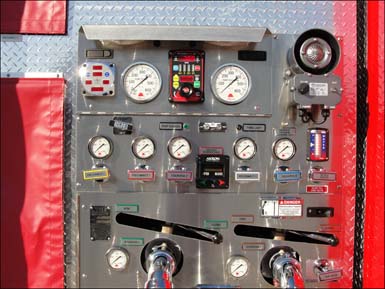

• Hale QMAX 150, 1500-GPM Pump with left side operator’s panel
• Three (3) 2 ½” Discharges, Two (2) left side and one (1) right side

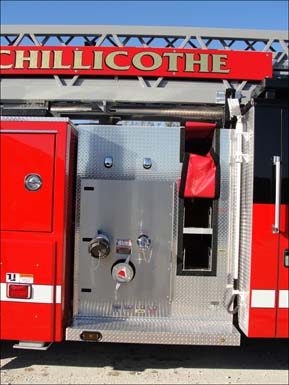

• One (1) 3” Discharge, right side and one (1) 4” Discharge feeding waterway

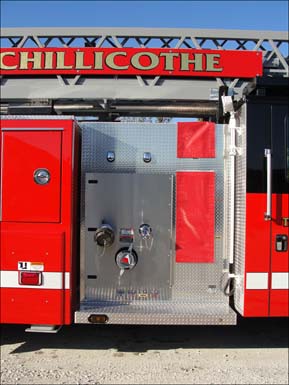

• One (1) 2 ½” Gated Suction, left side
• One (1) 2 ½” Mattydale Preconnect and two (2) 1 ½” Cartridge Lay Preconnects

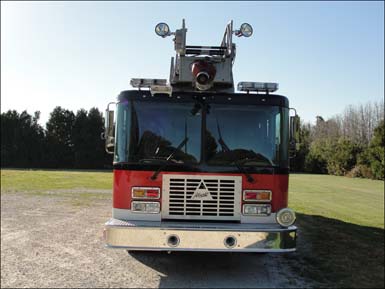

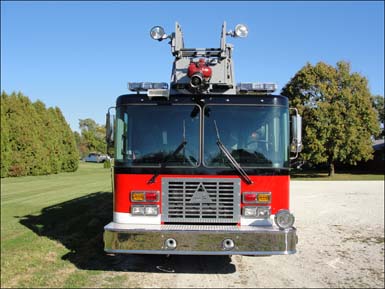

• 21” Front bumper extension

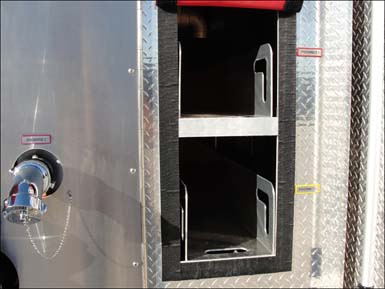

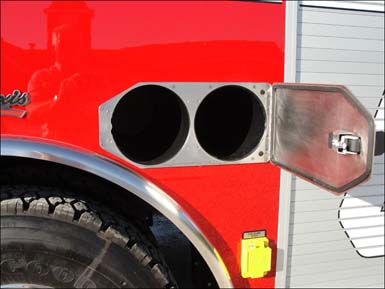

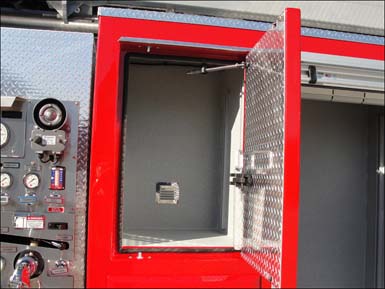

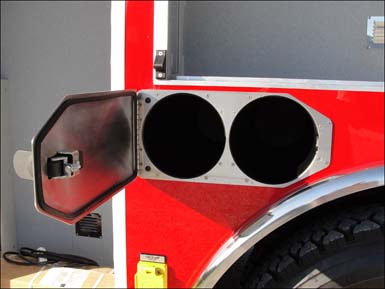

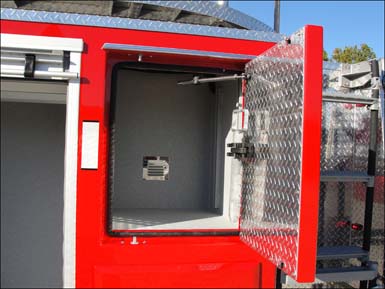

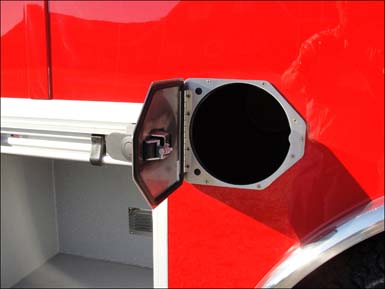

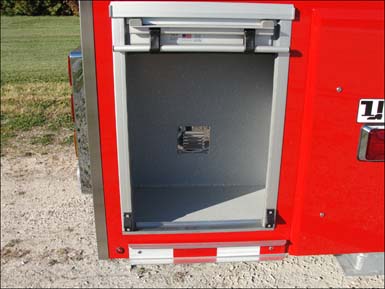

• Three (3) Air bottle compartments, one (1) single and two (2) dual

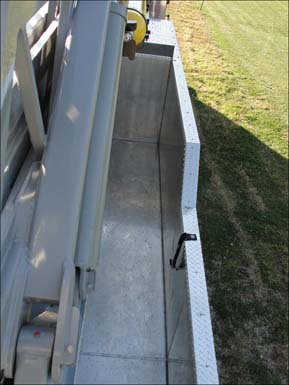

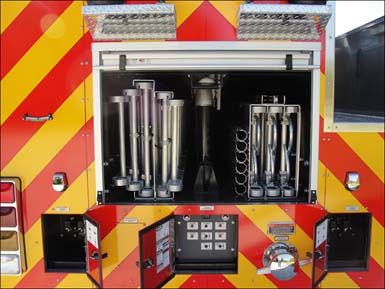

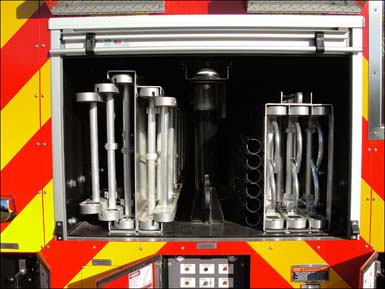

• Ladder and pike pole storage within torque with rear access
• One (1) Kussmaul Pump Plus battery charger/air compressor
• One (1) Kussmaul Super Auto Eject 120-volt shoreline
• Class 1 Total System Manager for electrical load management
• Two (2) Unity Deck Lights, rear
• Smart Power Hydraulically driven 8000-watt Generator with 120-volt system
• Three 120-volt exterior outlets, one (1) in the cab and one (1) each side
• One (1) Fire Research 120-volt 750-watt Brow light, cab roof
• Two (2) Akron Extenda-Lite 120-volt 750-watt telescopic lights, one (1) each side
• Dual stutter tone Air horns, front bumper
• Federal Q2B mechanical Siren, front bumper
• Whelen Warning Light Package

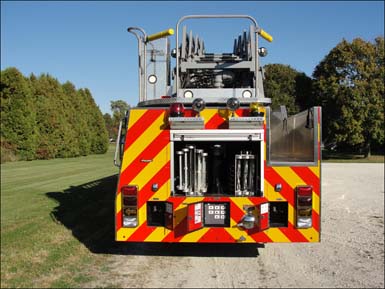

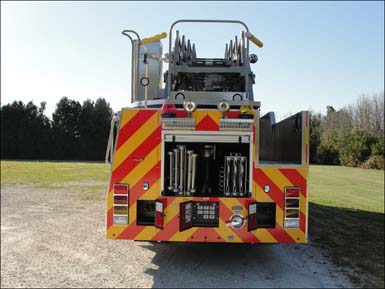

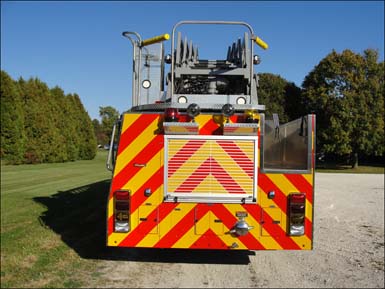

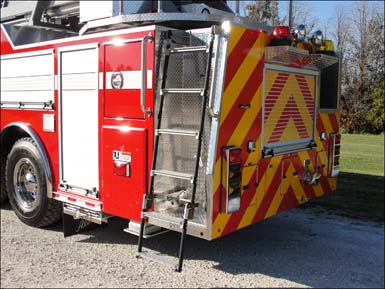

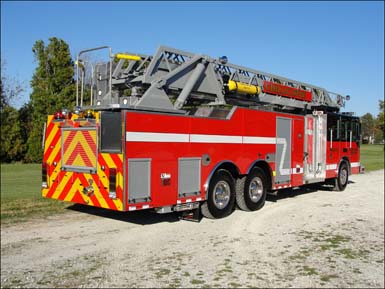

• Chevron pattern striping, rear
• 11’ 9” Overall height
• 39’ 11” Overall length
• 245” Wheelbase
• 185” Cab to Axle
• 21,500 FAWR
• 52,000 RAWR
• 73,500 GVWR

Year: 2016
Make: Alexis Fire Equipment
Model: Aerial
Body Style: Platform Aerial
Pump Size: 1500
Tank Size: 300
Exterior Color: Red
