Delivered Apparatus

Anderson Fire Department 18-Foot Heavy Rescue Specifications:

• HME 1871W MFDxL 12” raised roof Chassis
• Cummins ISL9. 400-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Six (6) man cab seating with three (3) SCBA seats
• Heavy Duty Stainless Steel Body with ROM Roll Up Doors
• 24” front bumper extension with center compartment
• EMS compartment cab
• Two (2) Reese type hitches with electrical connections, one (1) front and rear
• Two (2) Winch points, one (1) each side behind rear wheels
• Three (3) Triple bottle Air bottle compartments, two (2) right and one (1) left side
• Two (2) Vertical pull-out tool boards, right side
• One (1) Air bag rack for multiple size air bags, right side
• Custom Stokes basket, back board and ice sled storage, transverse area
• Two (2) Upper storage compartments, left side apparatus roof
• One (1) Top access ladder, rear mounted
• One (1) Oil dry hopper, upper left side
• Two (2) Dual Hydraulic hose reels, rear
• Ladder storage, right side upper roof area
• Sigtronics Intercom System
• One (1) Audiovox back-up camera system with 7” color monitor
• Pro Mariner on-board battery charger with Viair air compressor
• Kussmaul Super Auto Eject 120-volt shoreline connection
• Two (2) Air Horns, front bumper
• Whelen electronic Siren with two (2) Cast Products speakers
• Federal Q2B mechanical Siren, cab grill
• FRC LED Scene Light Package
• Onan 25,000 watt PTO driven Generator with 120-volt system
• Change Over Relay system shoreline to generator
• Two (2) Akron Electric Cord reels with 150-ft of 10/3 cord and junction boxes
• Command Light Knight light tower with Six (6) FRC LED Spectra lights
• Whelen LED Warning Light Package

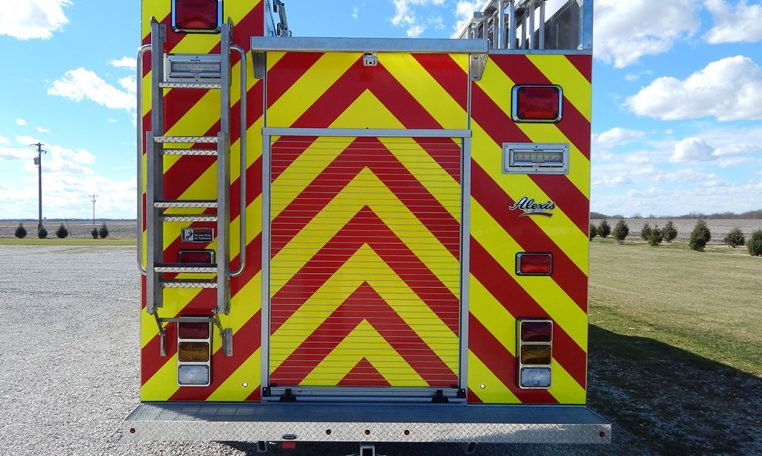

• Diamond Grade Chevron pattern striping, rear
• 10’ 3” Overall height
• 33’ 3” Overall length
• 204” Wheelbase
• 144” Cab to Axle
• 18,740 FAWR
• 27,000 RAWR
• 45,740 GVWR
