Delivered Apparatus

FEATURES:

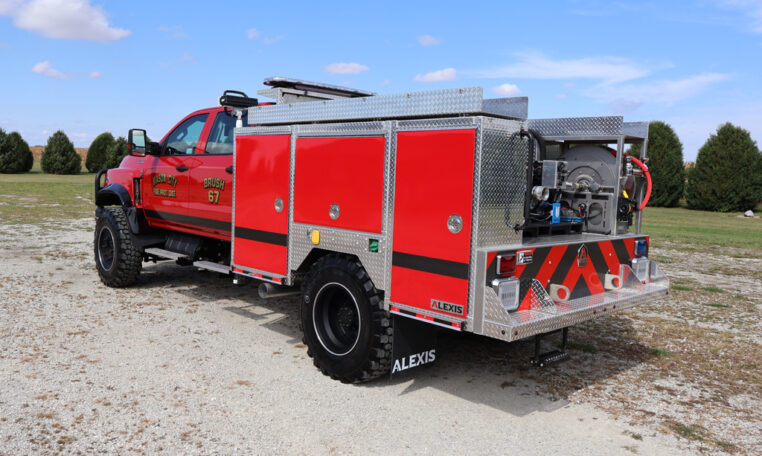

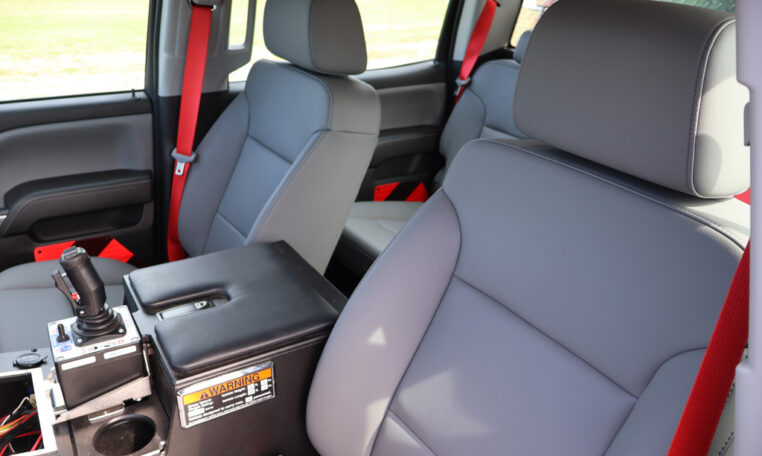

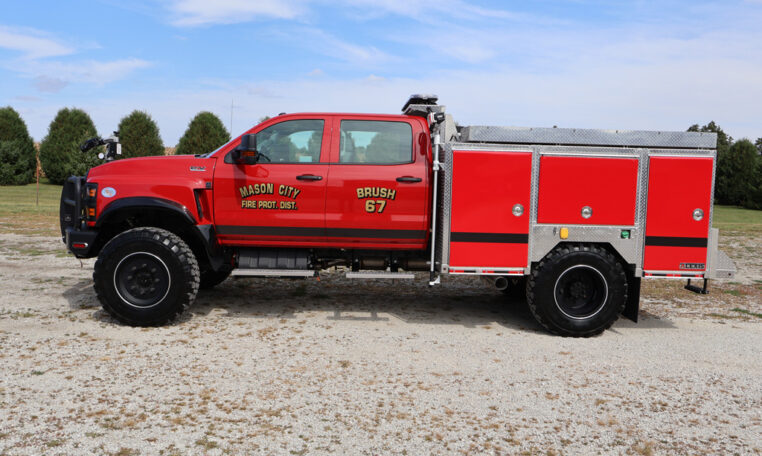

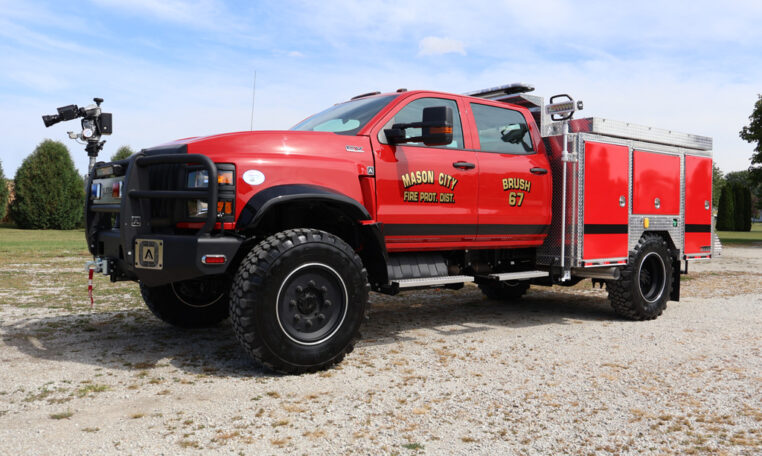

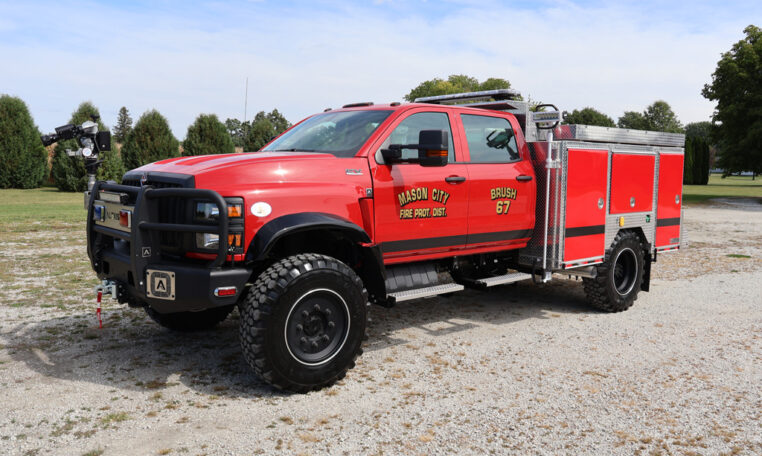

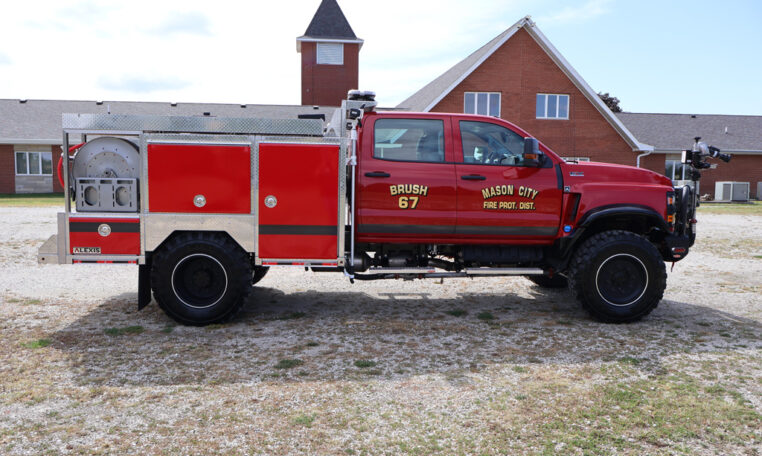

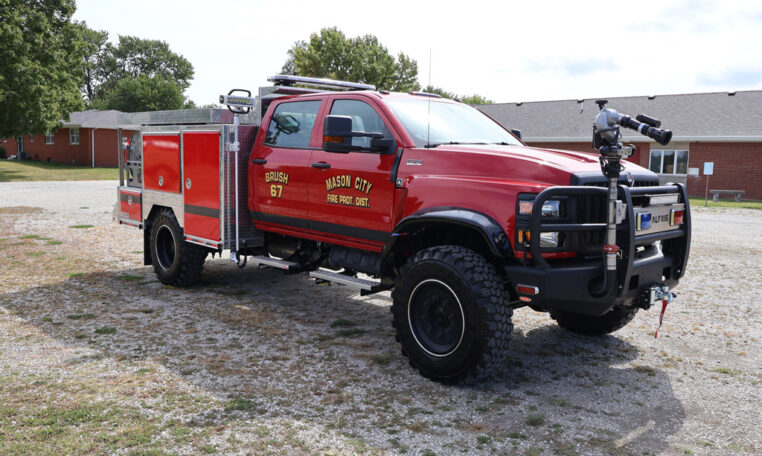

• International CV515 4×4 Crew Cab Chassis
• International 6.6 350 HP Diesel Engine
• Allison 2700 EVS Automatic Transmission
• Heavy Duty Aluminum Body and Subframe
• Super Single Wheels and Tires

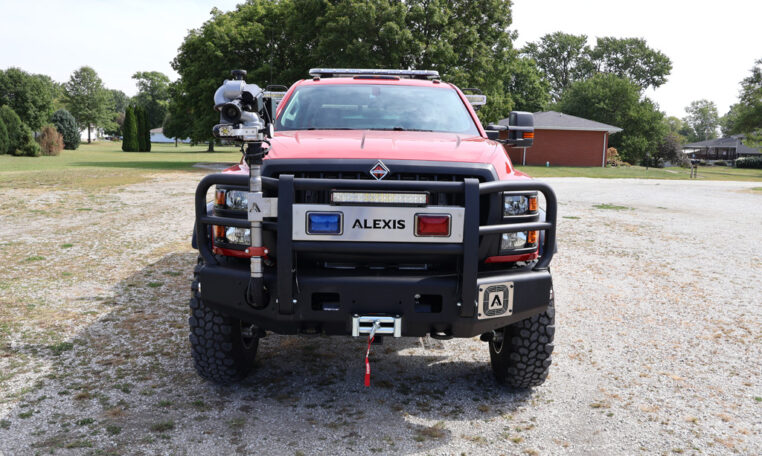

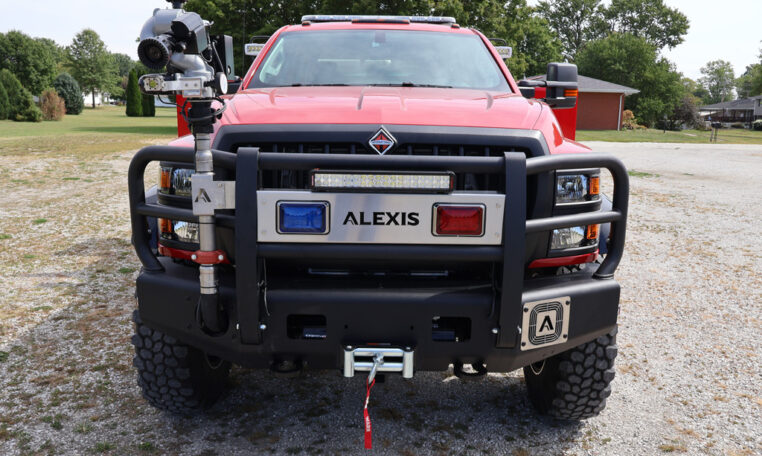

• Buckstop Replacement Bumper with Brush Guard and Hitch

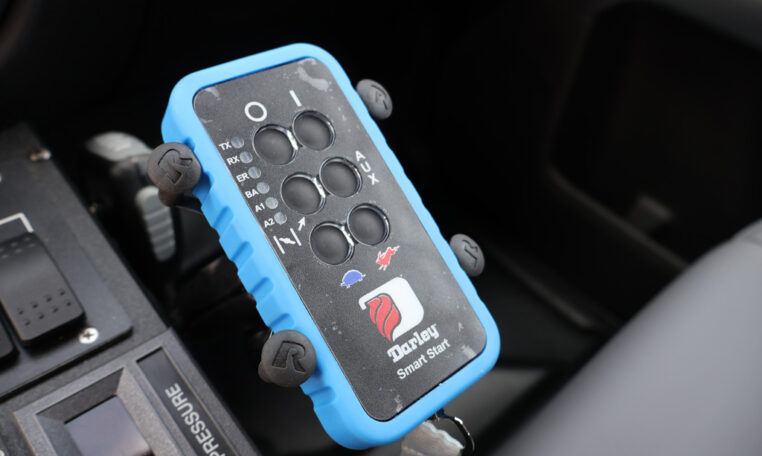

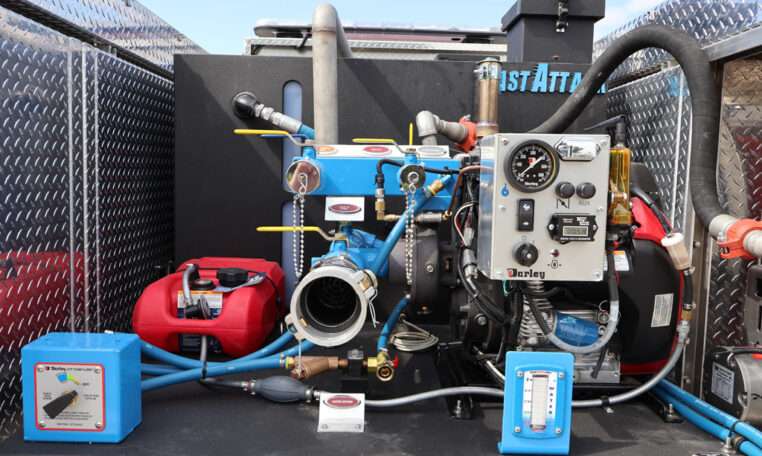

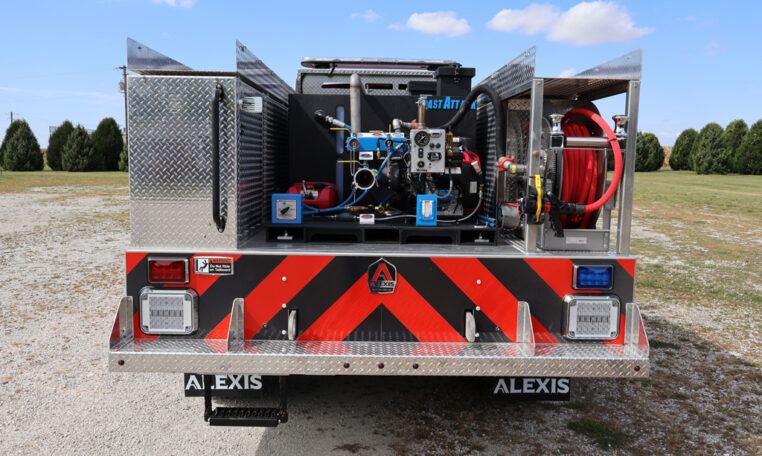

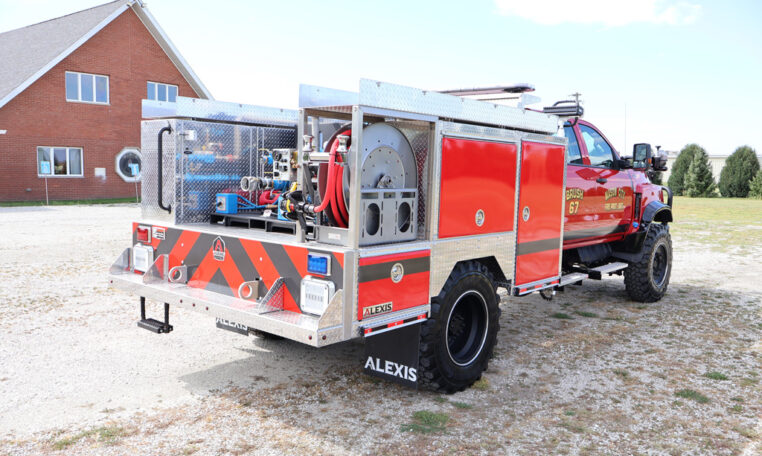

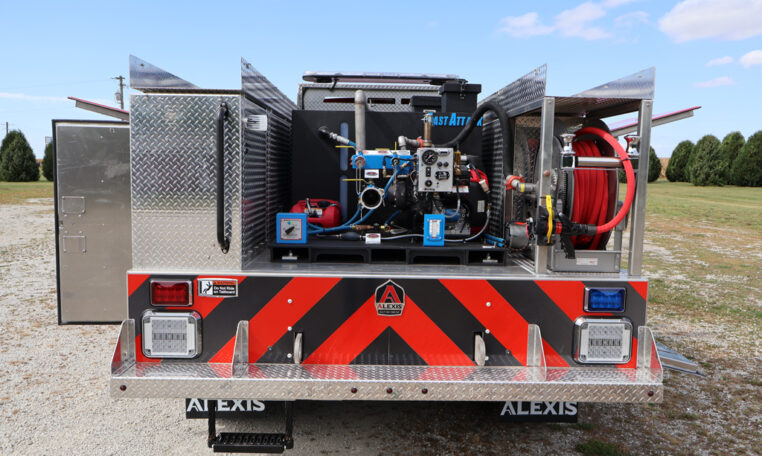

• Darley 1½AGE 21H Skid Mounted Pump
• Honda 20 HP Gas Engine
• One (1) 2½” Gated Intake, Rear
• One (1) 1½” Discharge, Rear
• One (1) 1” Discharge, Rear
• Around the Pump Foam Inductor

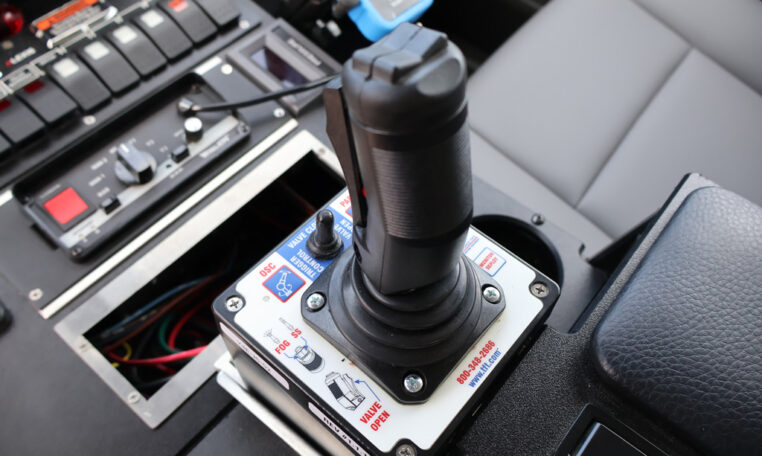

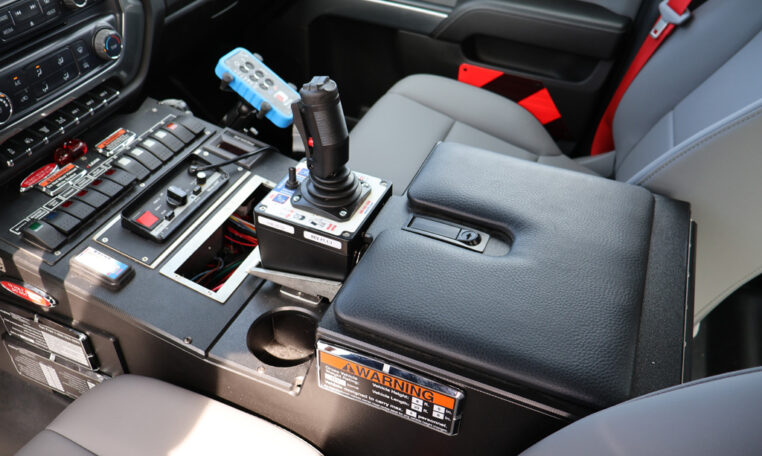

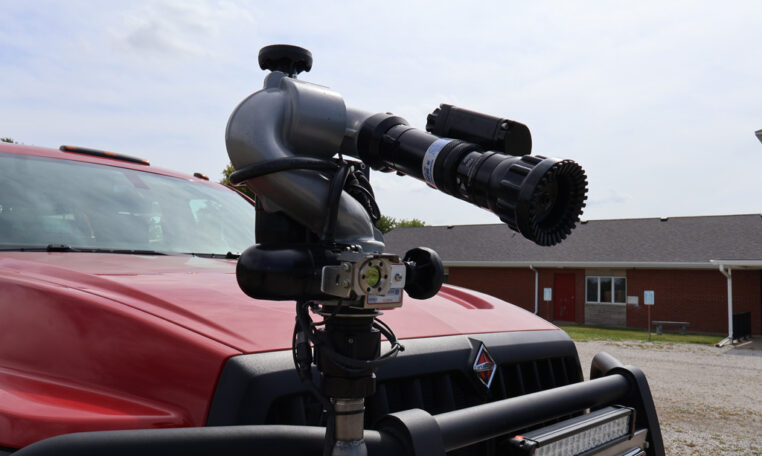

• TFT Tornado Bumper Turret with Hypersight Thermal Imaging Camera and in cab 7” Monitor

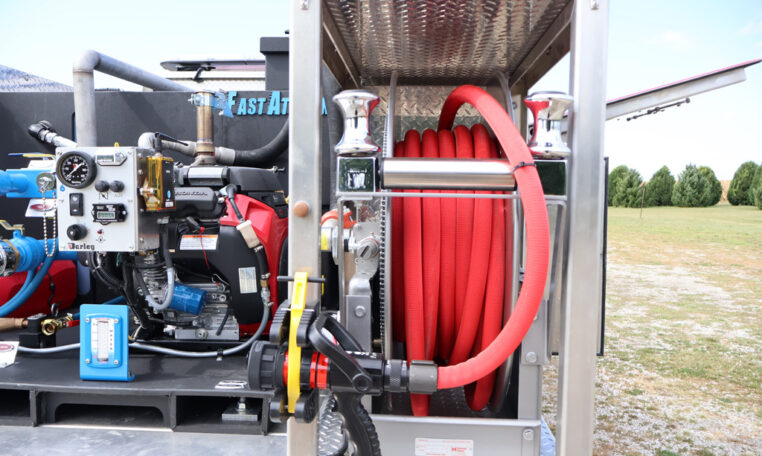

• Booster Reel with 100’ of 1” Booster Hose, Rear Right

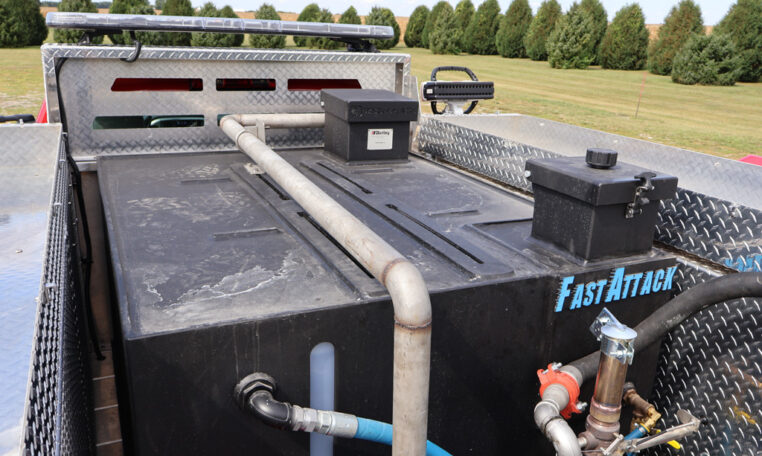

• 300 Gallon Poly Skid Tank with 10 Gallon Integral Foam Tank
• FRC Water Tank Level Gauge with In-Cab Mini Display

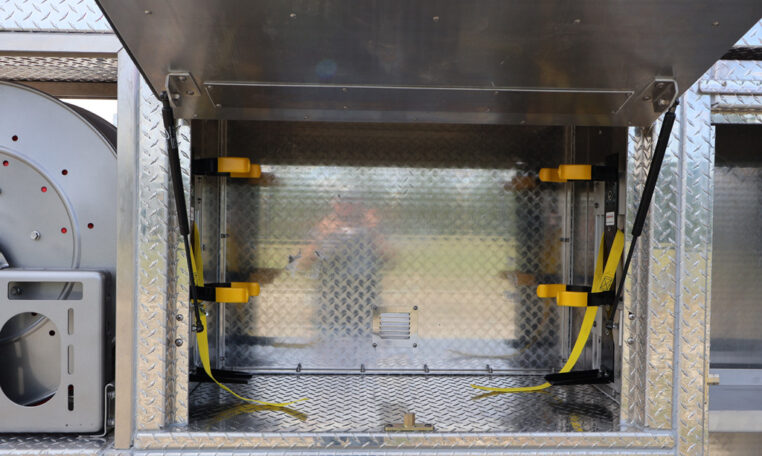

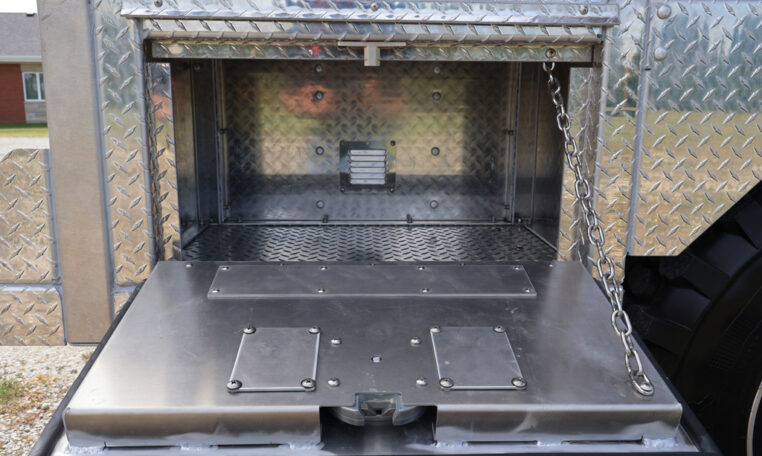

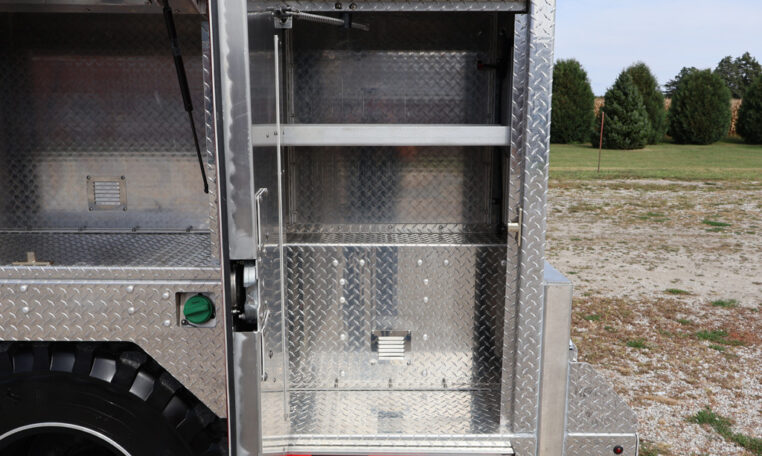

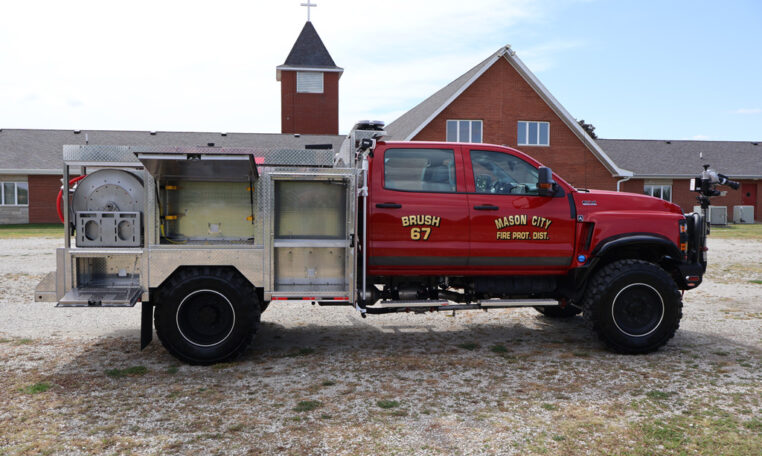

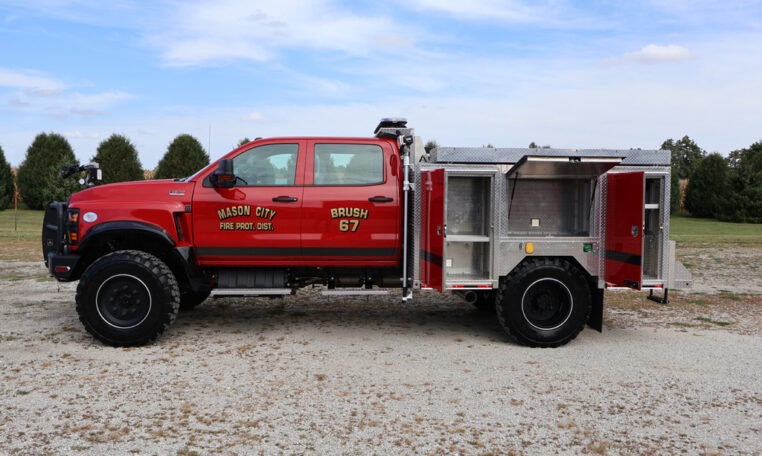

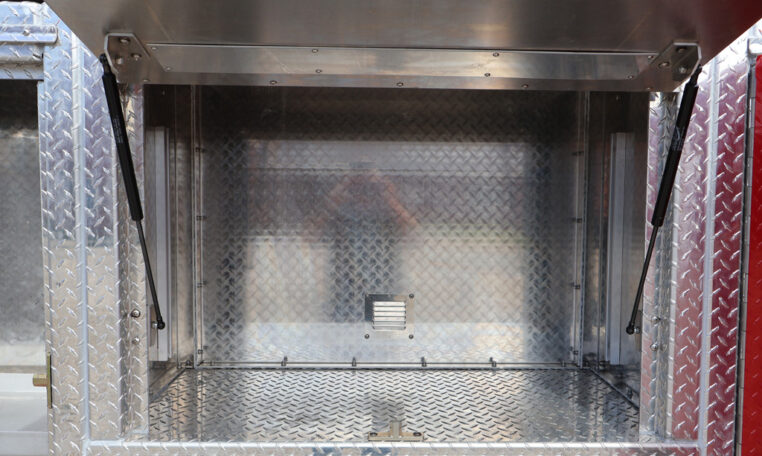

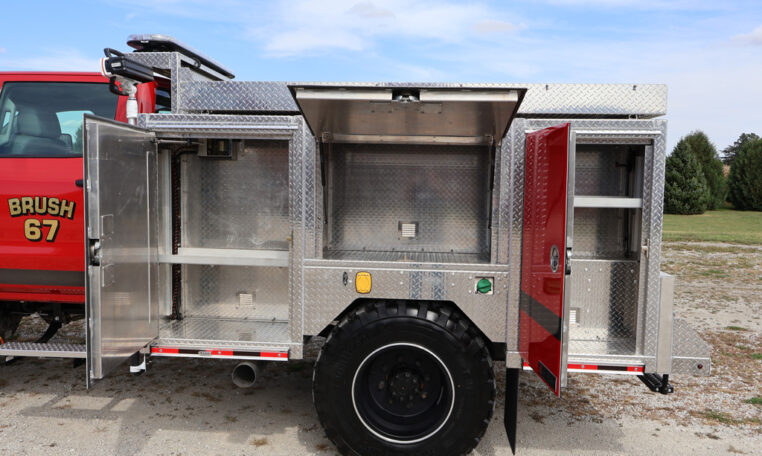

• Three (3) Compartments Each Side with Vinyl Covered Aluminum Pan Doors

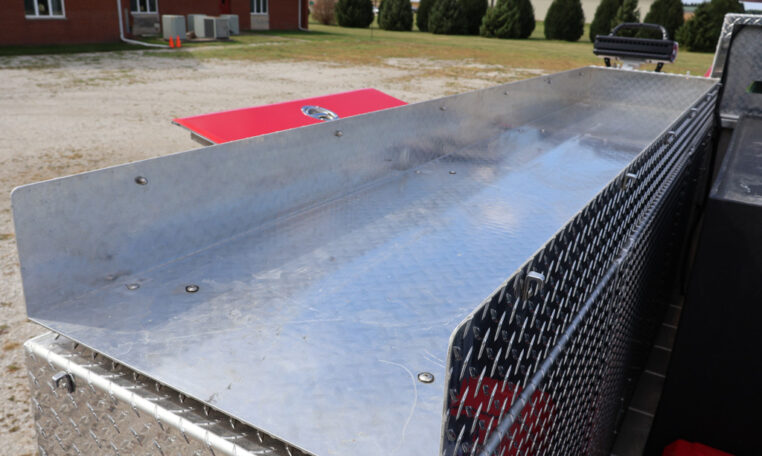

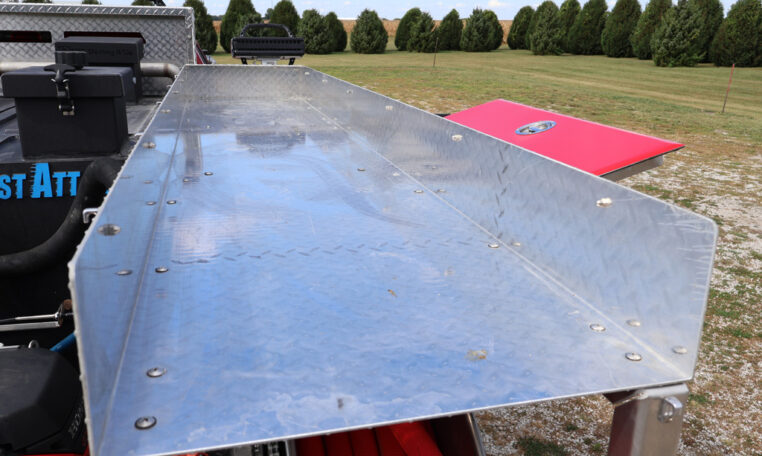

• Two (2) Aluminum Treadplate Hose Trays One (1) Each Side Above the Compartments

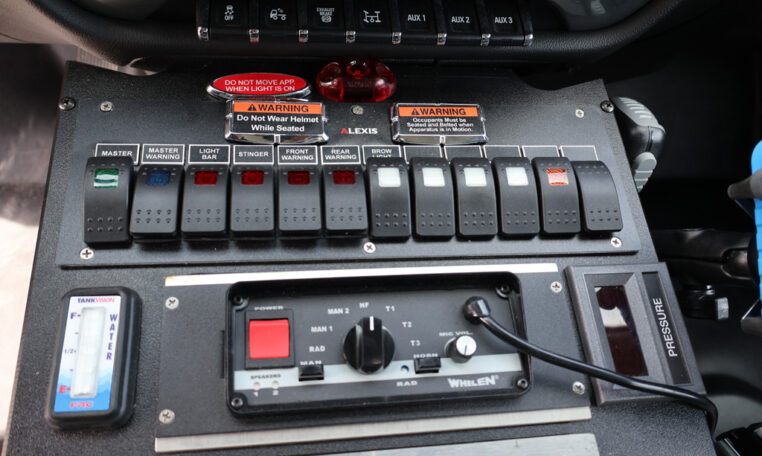

• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Progressive Dynamics Battery Charger
• Kussmaul 120V 20A Super Auto Eject, Left Side Above Rear Wheel
• Tecniq LED Warning Light Package
• Whelen 200W Siren and 100W Speaker

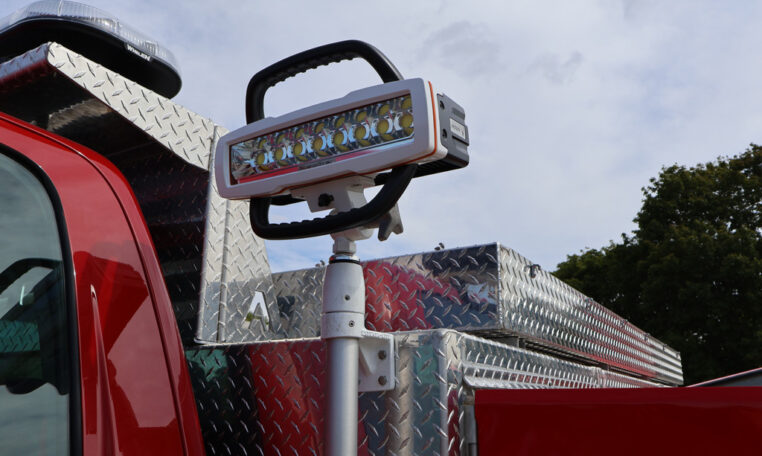

• Two (2) Akron Scenestar LED Telescopic Lights – One (1) Each Side at the Front of Body
• One (1) Firetech HiViz 21” LED Brow Light, Brush Guard Mounted
• 8’-5” Overall height
• 23’-7” Overall length
• 175” Wheelbase
• 59.8” Cab to Axle
• 7,500 FAWR
• 13,558 RAWR
• 19,500 GVWR
