Delivered Apparatus

Custom Built Since 1947.

TOP MOUNT PUMPER 1500 GPM #2456

CLINTON TWP FIRE DEPARTMENT - CLYMERS, INDIANA
FEATURES:
  • Freightliner M2 106 Crew Cab Chassis
  • Cummins L9 360EV HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • Heavy Duty Stainless-Steel Body and Subframe
  • Hale DSD 150 SS, 1500-GPM Split-Shaft Pump

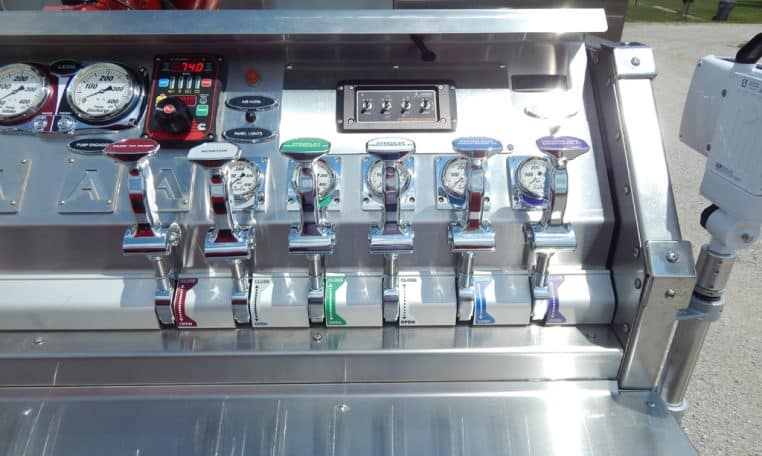

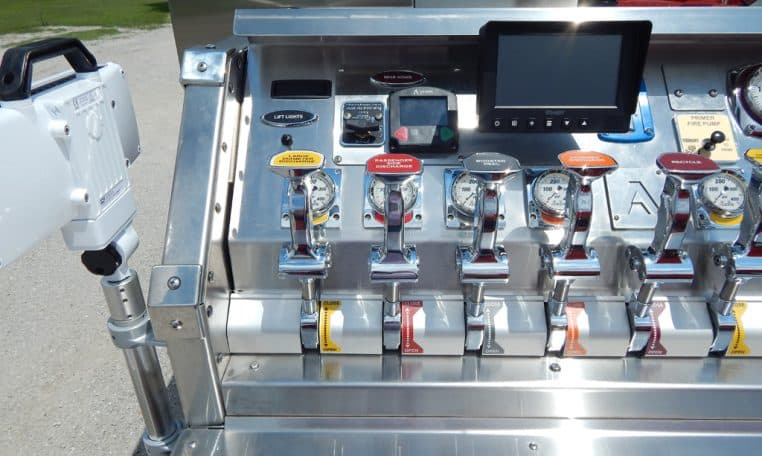

  • Top Mount Control Pump Module

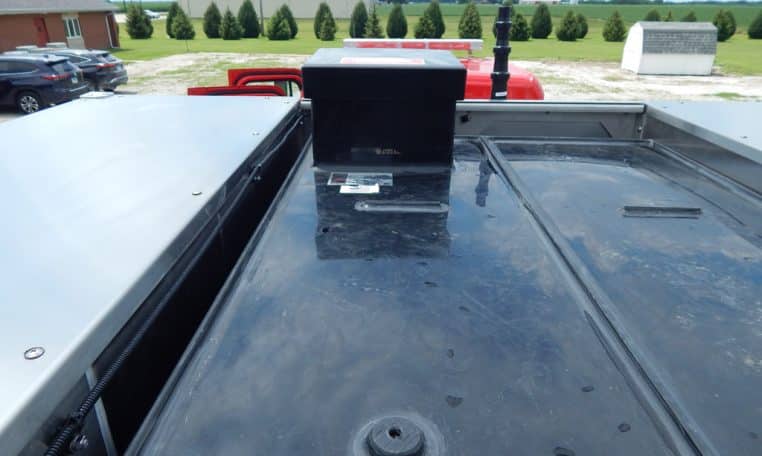

  • 900-Gallon Poly Tank
  • Two (2) 6” Intakes, One (1) Each Side
  • One (1) 2 ½” Gated Suction Left Side
  • One (1) 5” Intake Rear, Adapted to 6”
  • Cartridge Lay Preconnects, Two (2) 1 ½”, One (1) 2 ½”
  • Three (3) 2 ½” Discharges, Two (2) Left Side, One (1) Right Side
  • One (1) 3” Discharge with 5” Storz Adaptor, Right Side
  • Akron 3440 Deckmaster Deck Gun with Akron 3406 Extend-A-Gun
  • One (1) 100’ 1” Booster Reel Rear Compartment
  • ROM Painted Roll-Up Doors with Pull Straps
  • Four (4) Dual Wheel Well Air Bottle Compartments, Two (2) Each Side
  • Two (2) 250# Roll Out Trays, L1 and R1 Compartments
  • One (1) 500# Roll Out Tray, Rear
  • Ladder Storage Compartment Rear in Hosebed
  • Suction Hose Storage Two (2) 6”x10’ Through Rear Compartment
  • Grain Bin Rescue Tunnel Panel Storage L3/R3 Compartments
  • One (1) Hinged PACTRAC Tool Board with PACTRAC on Rear Wall L2 Compartment
  • Six (6) Folding Steps Rear, Two (2) Folding Steps at Pump Controls
  • Progressive Dynamics 40-Amp Charger with Air Compressor
  • Kussmaul 20-Amp 120V Super Auto-Eject Shoreline Connection Left Side
  • Two (2) Air Horns Hood Mounted
  • Whelen LED Warning Light Package
  • Four (4) FRC Telescopic LED Floodlights, One (1) Each Side of Pump Panel, Two (2) Rear
  • Aluminum Rub Rails with LED Ground Lights and LED Warning Lights
  • Whelen LED Tank Gauge Rear
  • LED Bulkhead Hose Bed Lighting
  • 10’ 9” Overall height
  • 34’ 8” Overall length
  • 276” Wheelbase
  • 163.54” Cab to Axle
  • 16,000 FAWR
  • 30,000 RAWR
  • 46,000 GVWR
Year: 2022
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Commercial
Body Style: Top Mount Pumper
Pump Size: 1500
Tank Size: 900
New Delivery: New Delivery
