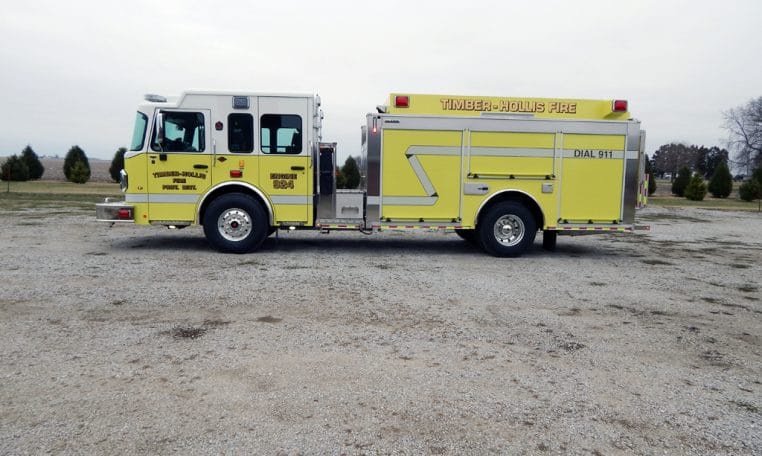

TOP CONTROL EQUALIZER PUMPER #2425

TIMBER HOLLIS FIRE PROTECTION DISTRICT - GLASFORD, ILLINOIS
FEATURES:
  • Spartan Metro Star MFD 10” Raised Roof Chassis
  • Cummins L9 450 HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • Heavy Duty Stainless-Steel Body & Subframe

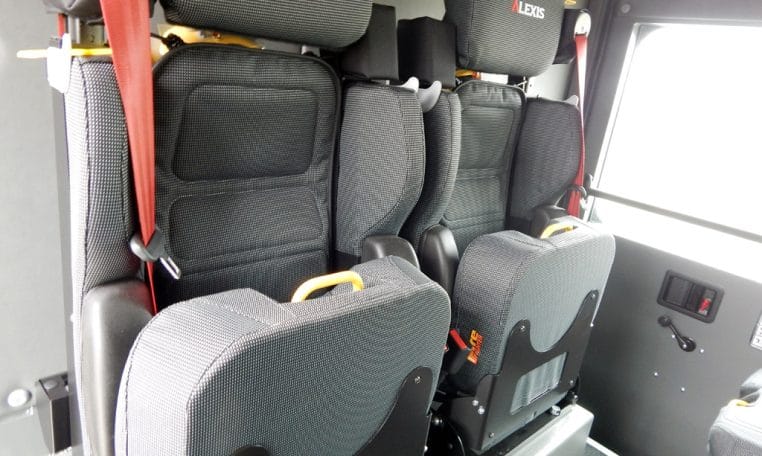

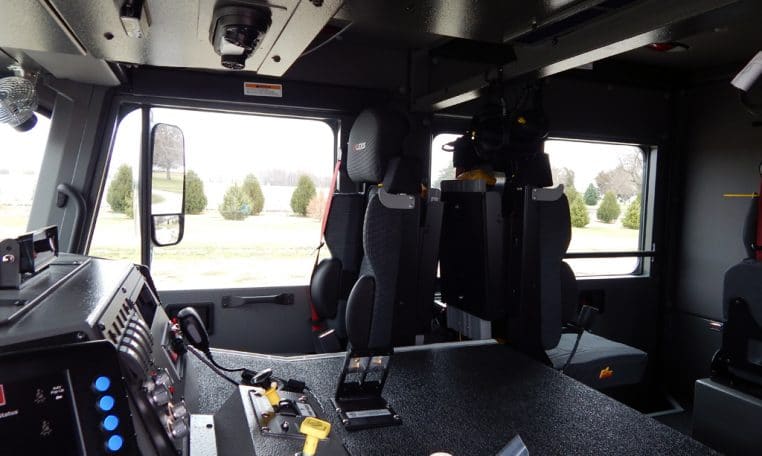

  • Six (6) Person Cab Seating w/ Five (5) SCBA Seats

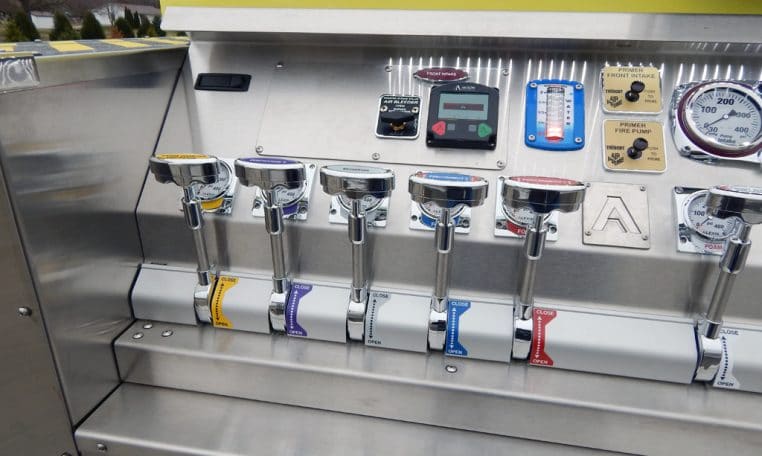

  • Waterous CXVC20 1500-GPM Split Shaft Pump
  • 1000-Gallon Poly Tank w/ 20-Gallon Foam Tank
  • ROM Painted Roll-up Doors
  • Two (2) 6” Suctions w/ TFT Ball Intake Valves
  • Three (3) 2 ½” Discharges, Two (2) Left and One (1) Right
  • Three (3) 3” Discharges, One (1) Right, One (1) Rear, One (1) Deck Gun

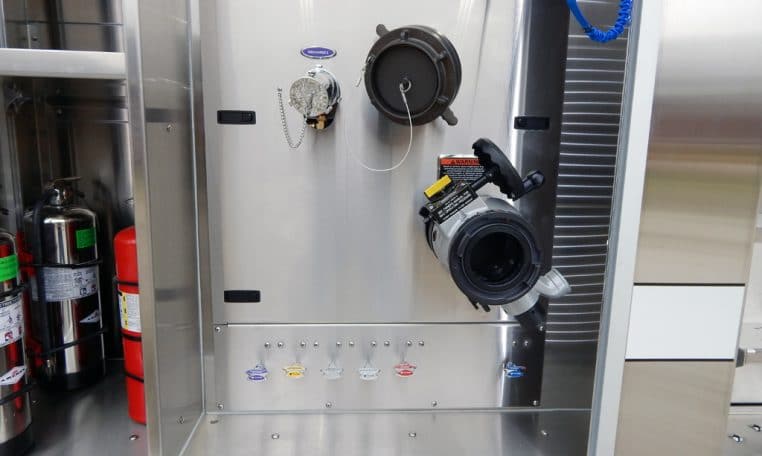

  • One (1) 2 ½” Gated Suction, Left Side
  • 5” Front Suction
  • Waterous Aquis 1.5 Foam System
  • Akron Apollo Monitor w/ TFT Manual Extend-a-Gun
  • Two (2) 1 ½” Mattydale Preconnects
  • One (1) 1 ½” Front Bumper Preconnect
  • Three (3) Dual Air Bottle Wheel Well Compartments, One (1) Left and Two (2) Right
  • Ladder/Suction Hose Storage, Through the Tank
  • One (1) 2 ½” Tank Fill, Rear
  • Whelen LED Warning Light Package
  • Whelen LED Traffic Advisor Arrow Stick
  • Whelen Electronic Siren w/ Cast Products 100-watt Speaker
  • FireTech LED Scene Light Package
  • Two (2) Fire Research Telescopic LED Flood Lights, Back of Cab
  • FRC inView 360° Camera System w/ Pump Panel Monitor
  • FireCom Wireless Intercom System
  • Diamond Grade Chevron Striping, Rear
  • 10’ 1” Overall Height
  • 33’ 10” Overall Length
  • 199” Wheelbase
  • 145” Cab to Axle
  • 21,500 FAWR
  • 31,000 RAWR
  • 52,500 GVWR
Year: 2021
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Top Mount Pumper
Pump Size: 1500
Tank Size: 1000
Feature: 20-Gallon Foam Tank
Exterior Color: Yellow
New Delivery: New Delivery
