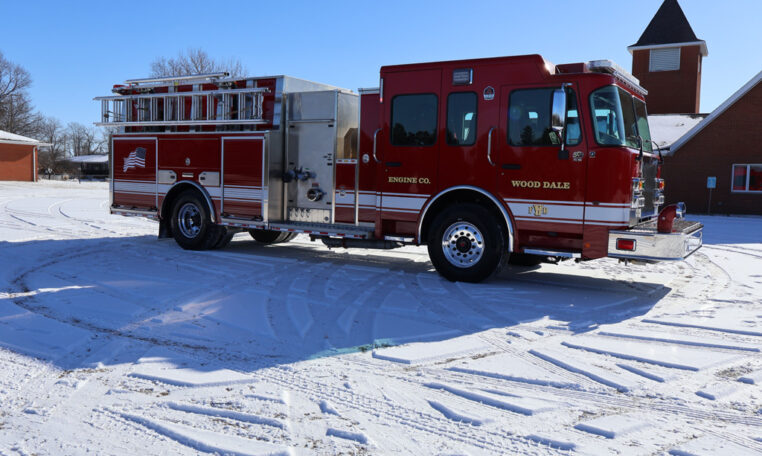

Delivered Apparatus

FEATURES:

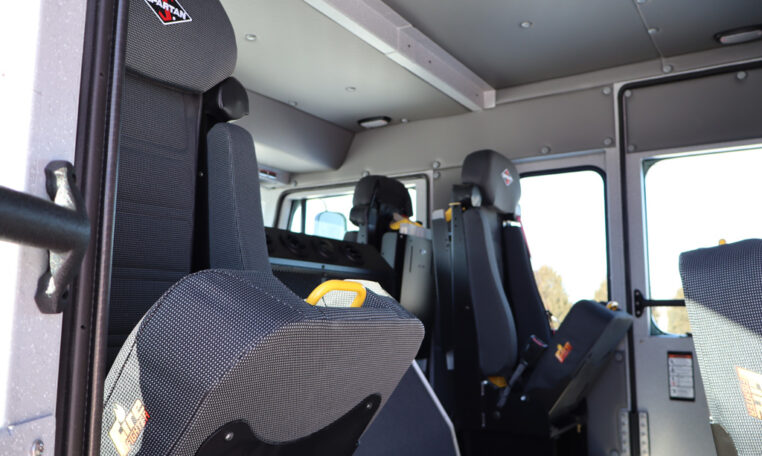

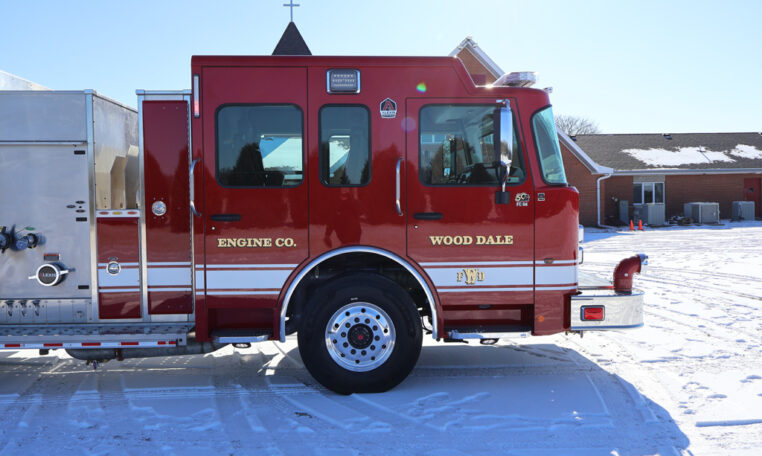

• Spartan FC-94 MFD Chassis with 10” Raised Roof
• Cummins L9 450 HP Diesel Engine
• Allison 3000 EVS Transmission

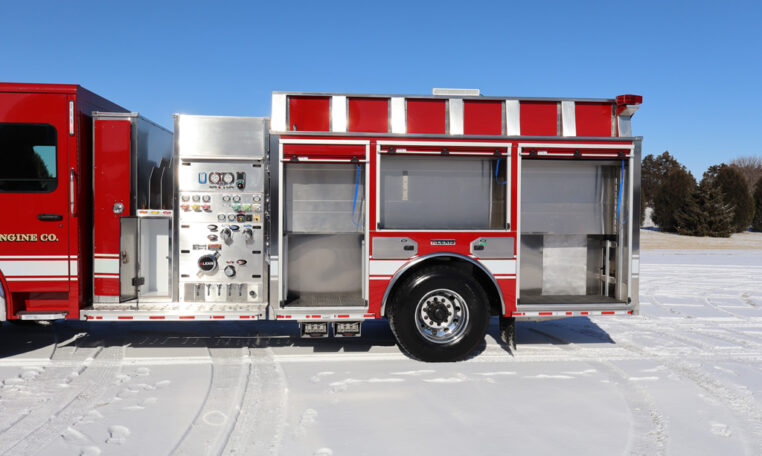

• Heavy Duty Stainless Steel Body with Stainless Steel Subframe

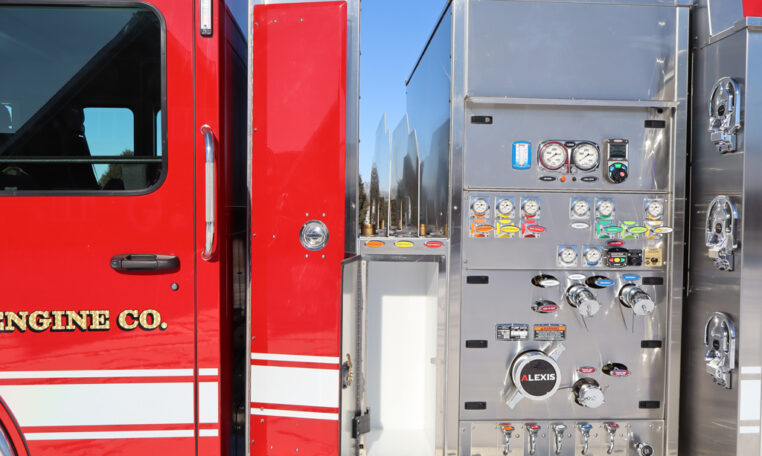

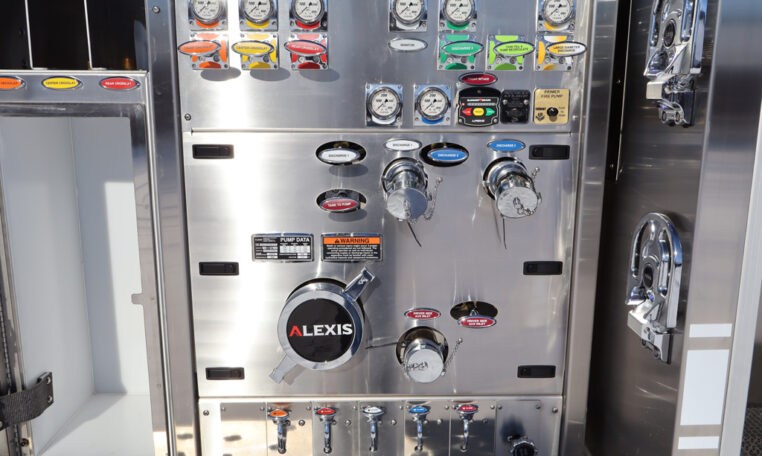

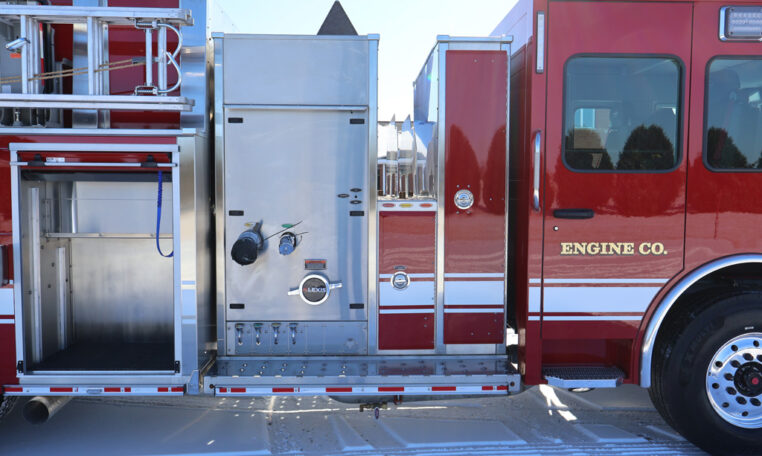

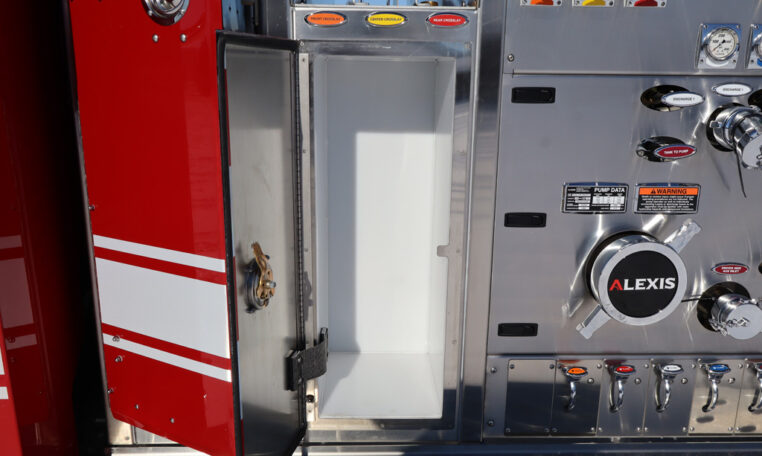

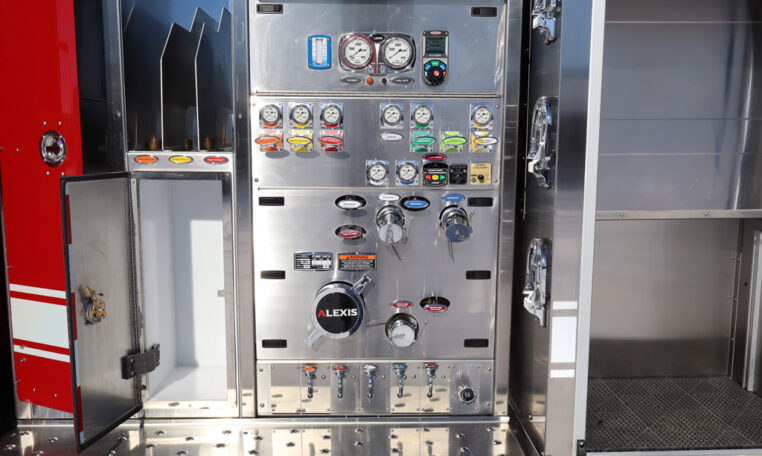

• Stainless Steel Side Control Pump Module with Stainless Steel Subframe

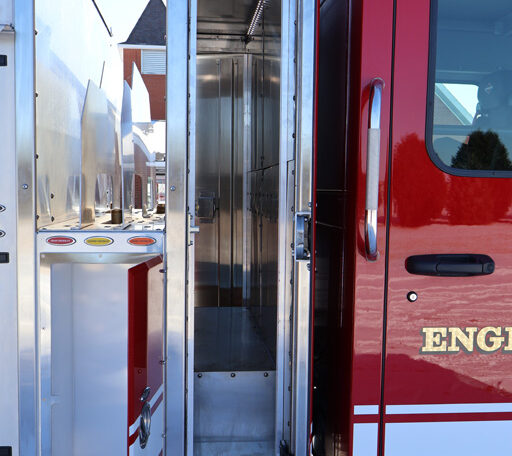

• Transverse Storage Module Ahead of the Pump with Access on Each Side
• Darley PSM 1500 GPM Pump
• Trident Air Primer
• FRC Pump Boss Pressure Governor Monitoring System
• FRC TankVision Water Tank Level with Three (3) FRC MaxVision Strip Lites
• Two (2) 6” Intakes, One (1) Each Side

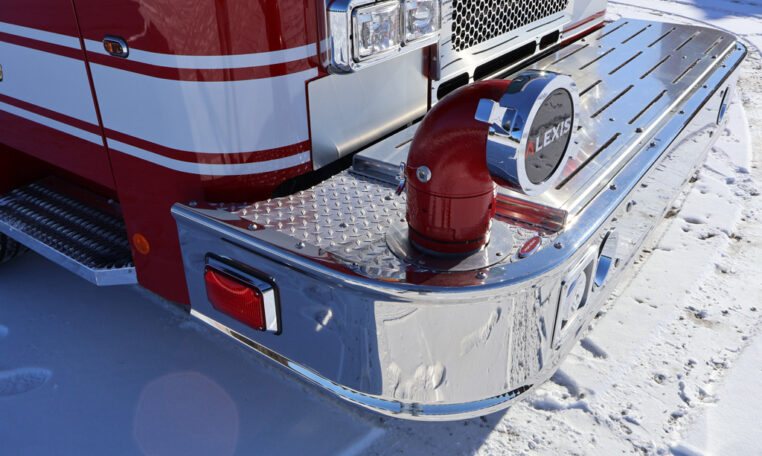

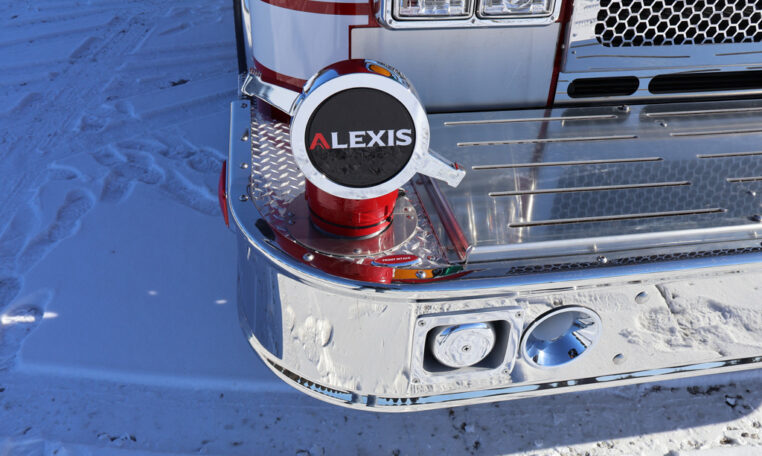

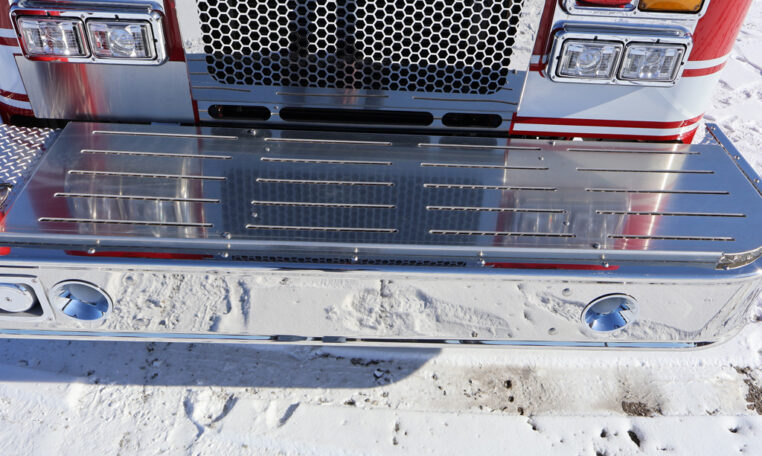

• One (1) 5” Front Intake with 6” Swivel Elbow, Right Side Bumper Extension
• One (1) 2½” Gated Intake, Left Side
• Two (2) 2½” Discharges, Left Side and One (1) 2½” Discharge, Right Side
• One (1) 3” Discharge with 4” Storz Elbow, Right Side
• One (1) 3” Deck Gun Discharge Dunnage Area

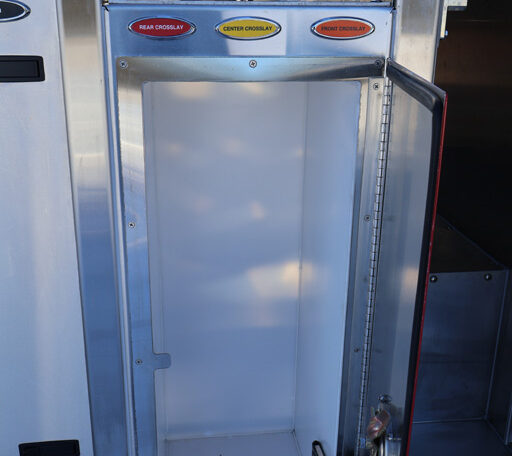

• Two (2) 1½” and One (1) 2½ Deep Cut Crosslay Preconnects

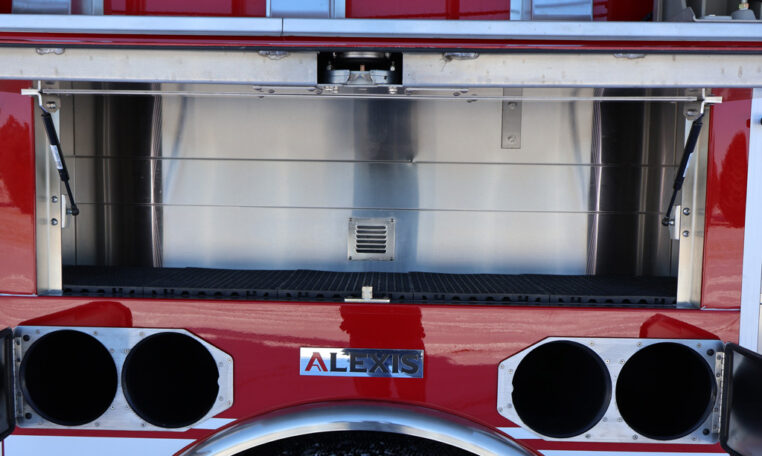

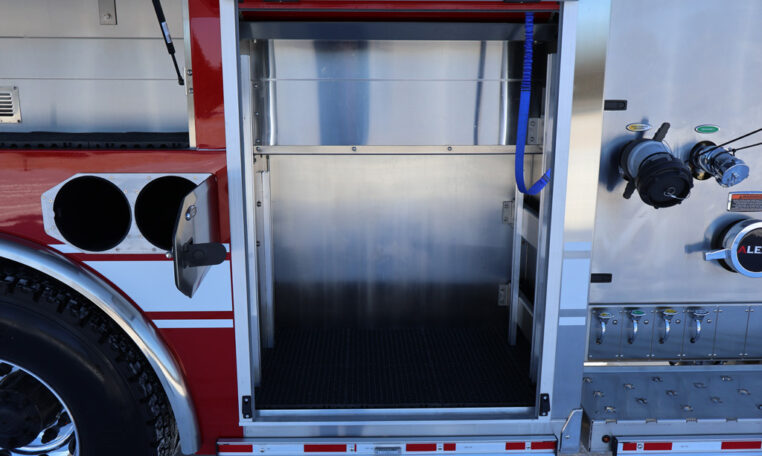

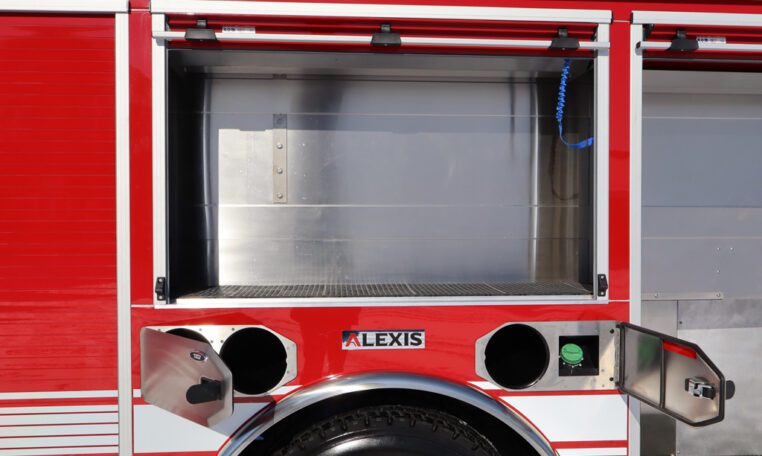

• Three (3) Dual Air Bottle Wheel Well Compartments

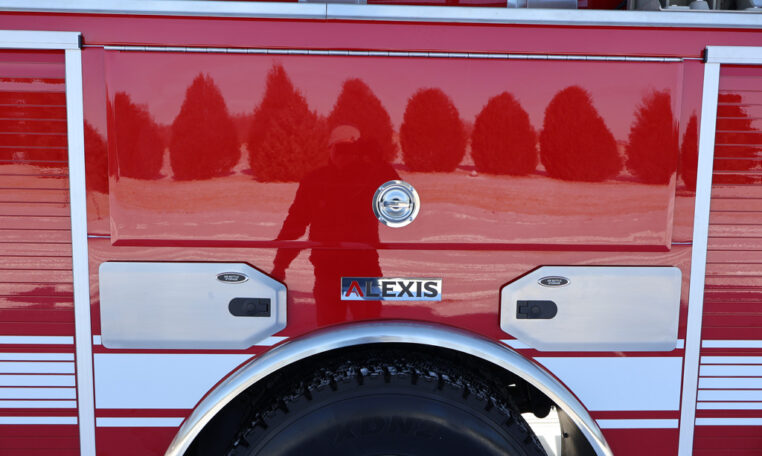

• One (1) Single Air Bottle Wheel Well Compartment

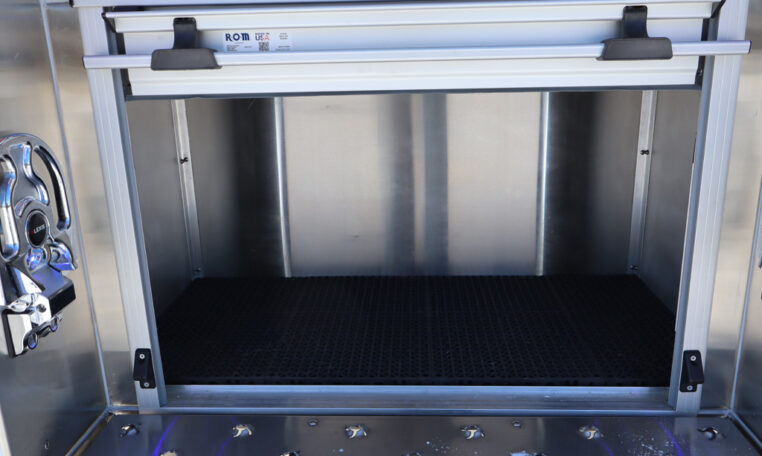

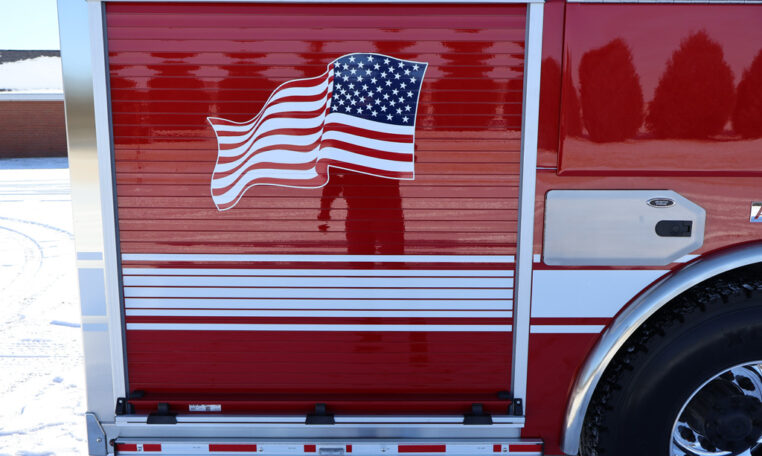

• ROM Painted Roll Up Doors

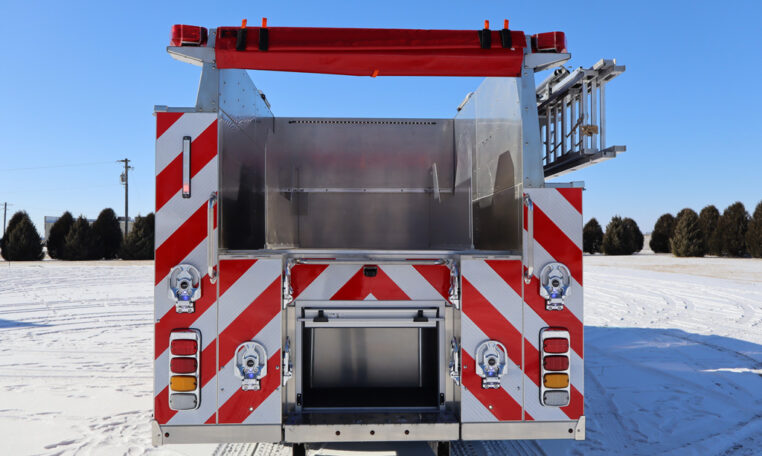

• Low Hose Bed and Midship Preconnects, 66’ From Ground Level

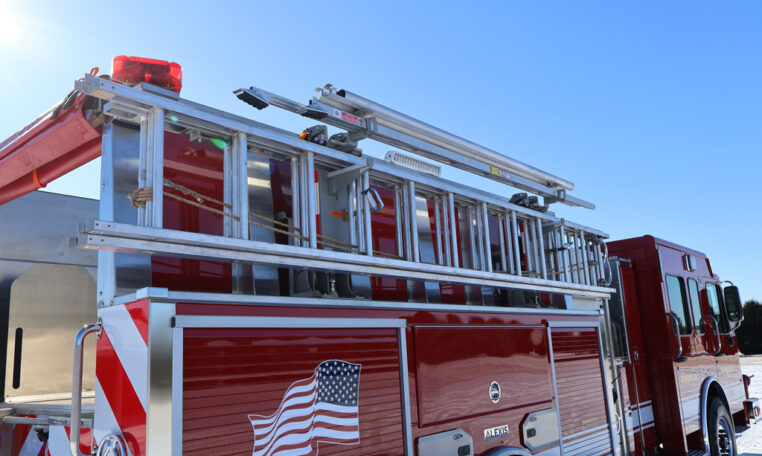

• Zico Electric Drop Down Ladder Bracket, Right Side
• 750 Gallon Poly Tank, Inverted “L” for Low Hose Bed
• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Kussmaul Chief 4012 Battery Charger
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side of Cab

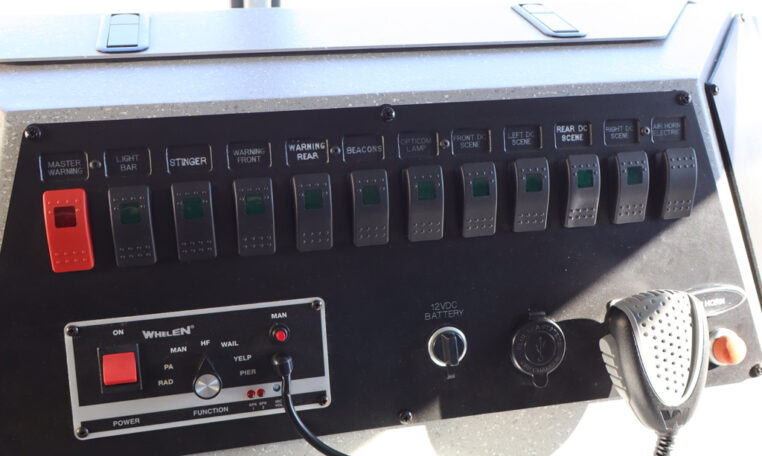

• Whelen LED Warning Light Package
• Whelen 200W Siren and CPI 100W Speaker
• Two (2) FireTech HiViz 21” LED Scene Light Bars, One (1) Each Side
• Two (2) FireTech HiViz 8” LED Scene Light Bars, Rear
• One (1) FireTech HiViz 72” LED Brow Light
• Two (2) Whelen 9S LED Scene Lights, One (1) Each Side of the Cab
• One (1) 10’ Attic Ladder, One (1) 14’ Roof Ladder with Hooks, and One (1) 24’ 2-Section Ladder
• 10’-8” Overall Height
• 32’-5” Overall Length
• 205” Wheelbase
• 151” Cab to Axle
• 21,500 FAWR
• 27,000 RAWR
• 48,500 GVWR
