SIDE CONTROL 4x4 PUMPER #2356

REYNOLDS FIRE PROTECTION DISTRICT - REYNOLDS, ILLINOIS

FEATURES:
• Kenworth T880 2 Door Chassis with 4×4 Conversion
• Cummins X15, 505-HP Diesel Engine
• Eaton FO-18E318B, 18 Speed Ultrashift Automatic Transmission
• Heavy Duty Stainless Steel Body and Sub-Frame
• ROM Roll Up Doors with one (1) right side hemmed pan door over rear wheel
• 1250-Gallon Poly Tank with 20-Gallon Foam Tank

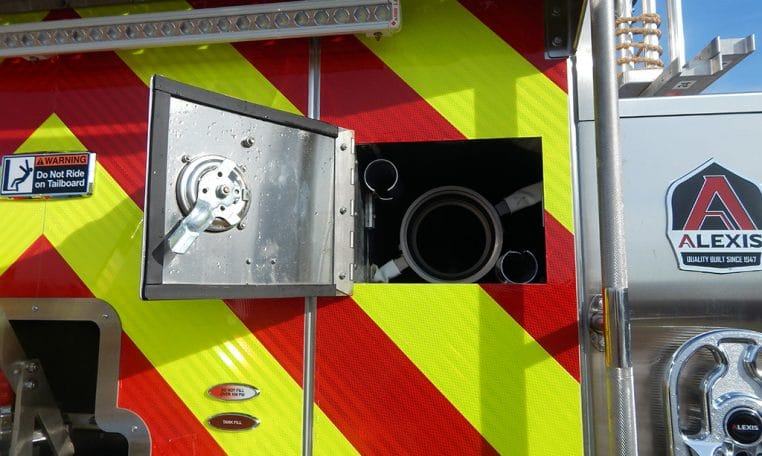

• One (1) 4” Fire Programs Tank fills, rear
• One (1) Newton 10” square manual swivel dump with 36” extension
• Waterous CXSD 1500 GPM and CLVK 500-GPM PTO Pump, left side controls
• Four (4) 2 ½” Discharges, two (2) left side, one (1) right side, one (1) rear
• Two (2) 3” Discharges, one (1) right side and one (1) over pump for Deck Gun
• Elkhart Vulcan RF monitor and Akron front bumper Turret
• Two (2) 2 ½” Gated Suction, one (1) on each side
• Two (2) 1 ½” Mattydale Preconnects, across top of body
• Two (2) Electric Booster Reels with 150’ of 1” hose, one (1) each side
• Waterous Aquis 6 Foam System
• Custom AFE Stainless Steel Brush Guard
• Four (4) Dual bottle Air bottle compartments, two (2) each side wheel well
• Two (2) Suction hose/Pike pole storage compartments with rear access
• Electric Ladder Rack, right side compartment top
• Two (2) bottle 6000-PSI Cascade system with control panel
• One (1) Hinged Tool board, left side
• Zico Quick Index SCBA bracket for four (4) complete SCBA packs
• Floor mounted console for emergency switches with map/binder storage, cab
• Progressive Dynamics on -board battery charger with Kussmaul Super Auto Eject
• Whelen Electronic Siren with 100-watt speaker
• Two (2) Hadley Air Horns, one (1) each side of the hood
• Firetech and Akron LED Scene Light Packages
• Whelen LED Warning Light Package
• Diamond Grade Chevron pattern striping, rear
• 11’ 5” Overall height
• 30’ Overall length
• 220” Wheelbase
• 152” Cab to Axle
• 18,180 FAWR
• 30,000 RAWR
• 48,180 GVWR

  • There are no features available
Year: 2019
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Commercial
Body Style: Side Control Pumper
Pump Size: 1500
Tank Size: 1250
Feature: Electric Ladder Rack
Exterior Color: Red
New Delivery: New Delivery
