Delivered Apparatus

• DOWNLOAD DRAWINGS AND SPECIFICATIONS

• Spartan Metro Star MFD 10” raised roof Chassis
• Cummins L9, 400-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless steel Body and Sub-Frame
• ROM painted Roll Up Doors with right side hem door over rear wheel

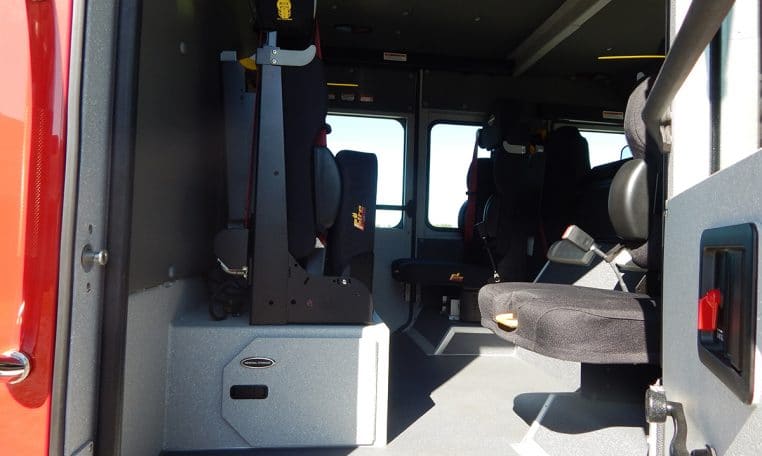

• Six (6) person cab seating with five (5) SCBA seats
• 18” Front bumper Extension with 1 ½” Preconnect and center hosewell
• 1000-Gallon Poly Tank
• Waterous CX, 1500-GPM Pump with left side control operator’s panel
• Four (4) 2 ½” Discharges, two (2) left, one (1) right side and one (1) rear
• Two (2) 3” Discharges, one (1) right side and one (1) over pump for deck gun
• Two (2) 1 ½” Mattydale Preconnects, across top of body
• One (1) 2 ½” Gated Suction, left side
• Three (3) Dual bottle Air bottle compartments, one (1) left and two (2) right side
• Ziamatic Electrically controlled ladder rack, right side
• Suction hose, attic ladder and pike pole storage, hose bed compartment
• Turtle tile on floors of the compartments
• Whelen 100-watt speaker
• Two (2) Air Horns, front bumper
• Kussmaul Auto charger 40 on-board battery charger
• Kussmaul Super Auto Eject 120-volt shoreline connection
• Whelen and FRC LED Scene Light Packages
• Whelen LED Warning Light Package
• Diamond Grade Chevron pattern striping, rear
• 10’ 2” Overall height
• 31’ 11” Overall length
• 189” Wheelbase
• 135” Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR
