Delivered Apparatus

FEATURES:

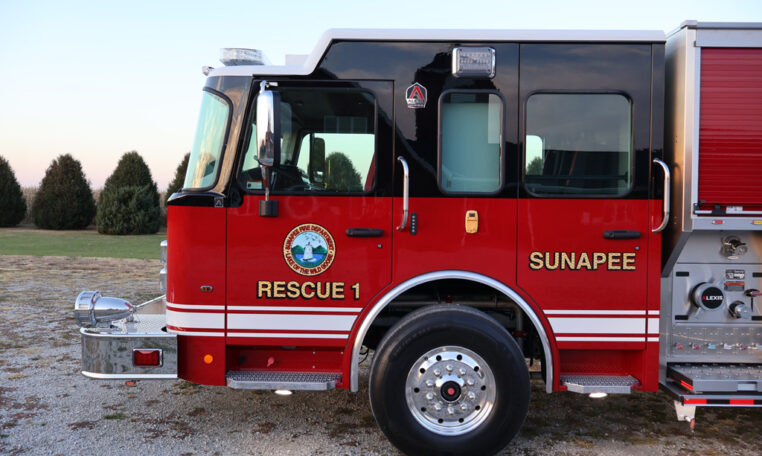

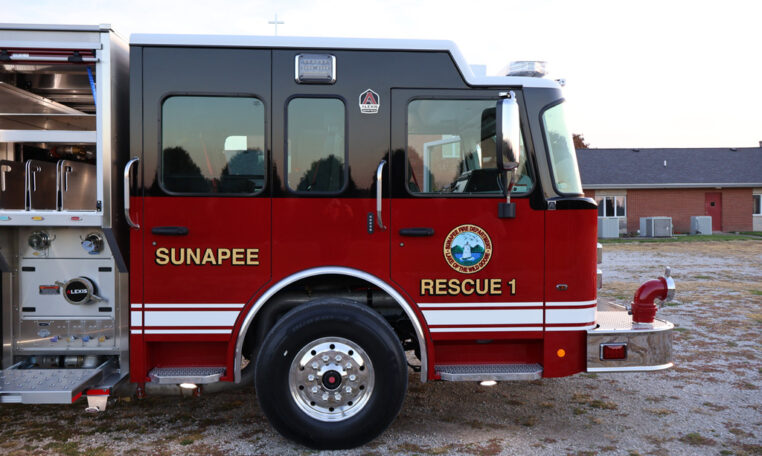

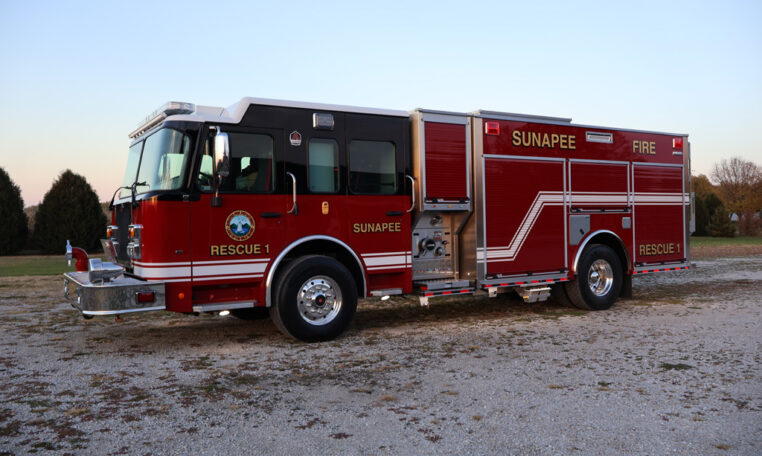

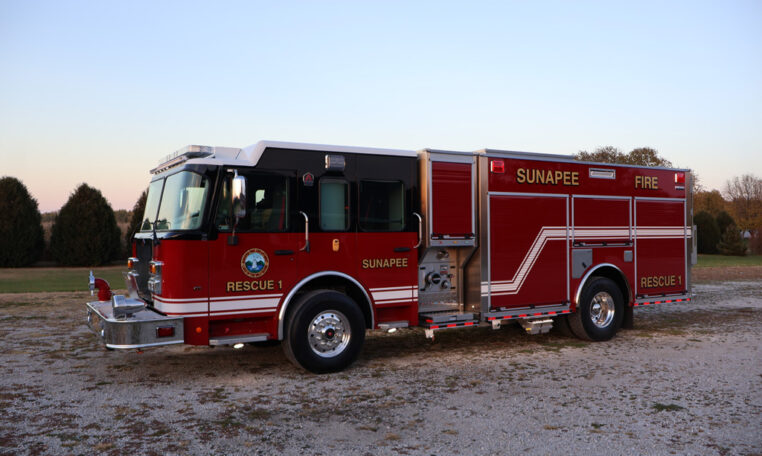

• Spartan FC-94 MFD 10” Raised Roof Cab
• Cummins 450 HP L9 Engine
• Allison 3000 EVS Automatic Transmission

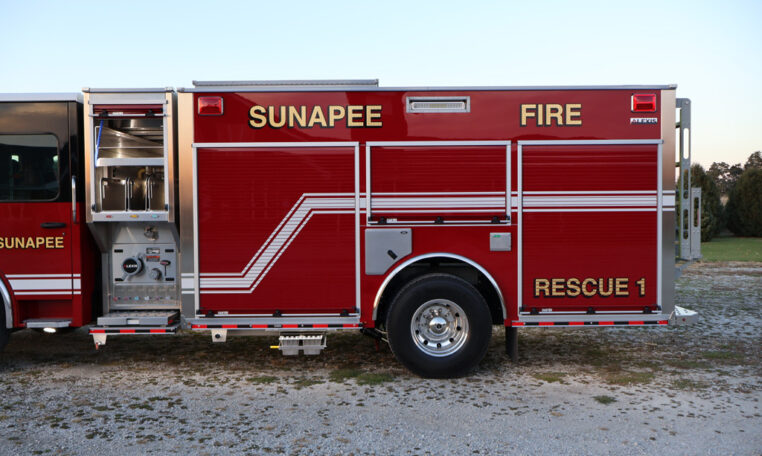

• Heavy Duty Stainless Steel Body with Stainless Steel Subframe

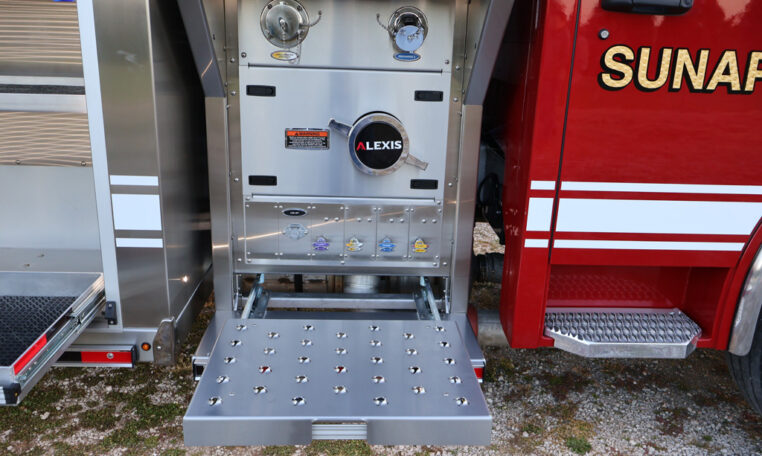

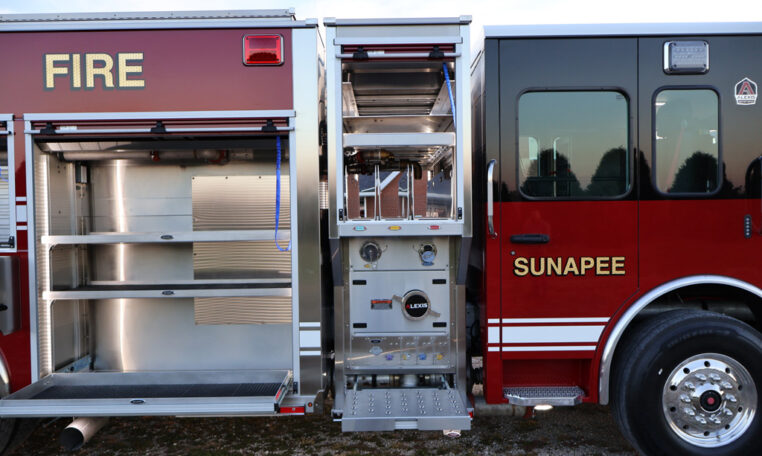

• Stainless Steel Side Control Pump Module with Stainless Steel Subframe
• Transverse Storage Compartment Above the Pump Accessible Each Side with Stokes Basket Storage

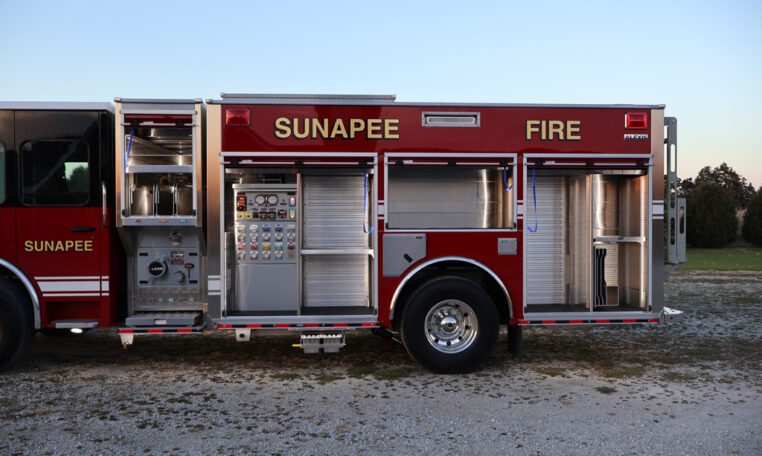

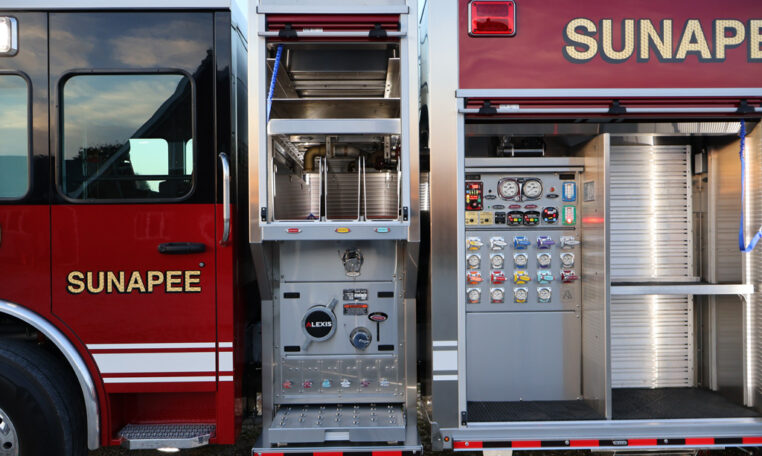

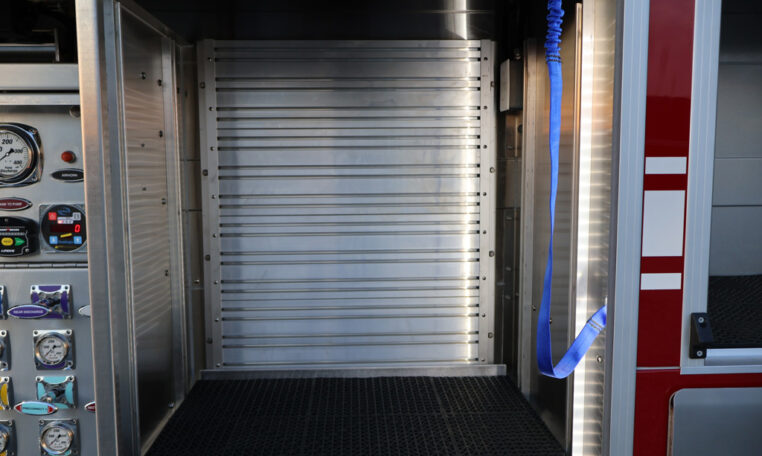

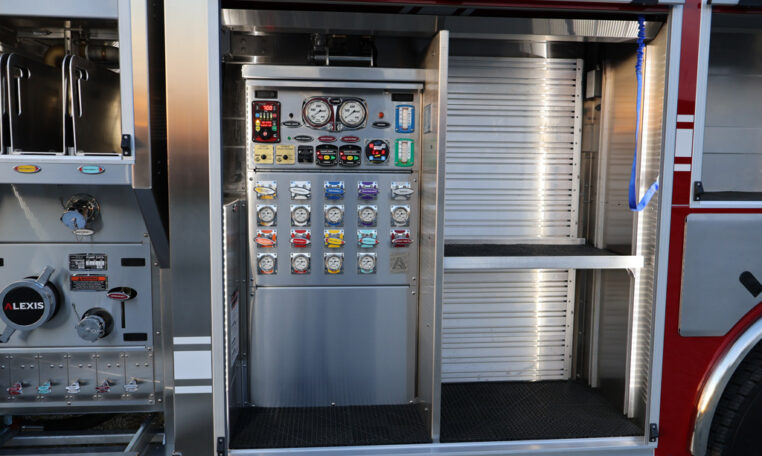

• Pump Operator’s panel located in L1 compartment
• Waterous CXVC20 1500 GPM Split-Shaft Pump
• Trident 2 Location Air Prime System
• FRC Pump Boss Pressure Governor
• FRC TankVision Water Tank Level Gauge and FRC Foam Tank Level Gauge
• Two (2) 6” Intakes, One (1) Each Side
• One (1) 5” Front Intake – Right Side
• One (1) 2½” Gated Intake, Left Side
• One (1) 2½” Discharge Left Side and One (1) 2½” Discharge Right Side
• One (1) 2½” Discharge Rear Right
• One (1) 3” Discharge Adapted to 4” Storz, Right Side

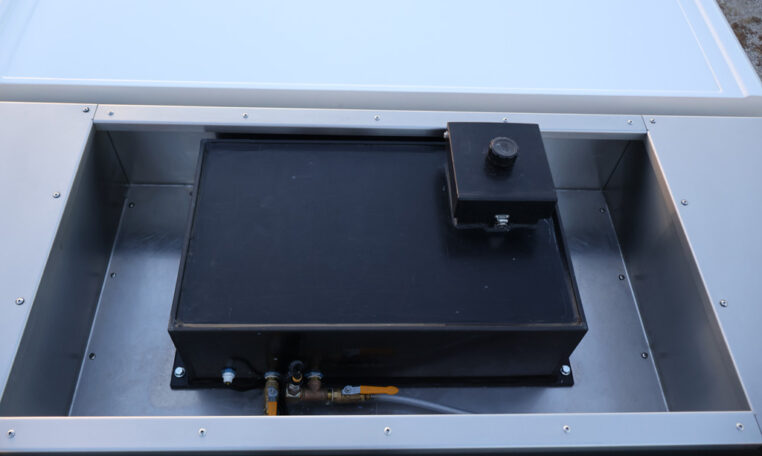

• FoamLogix 2.1A Foam System with 30 Gallon Foam Tank

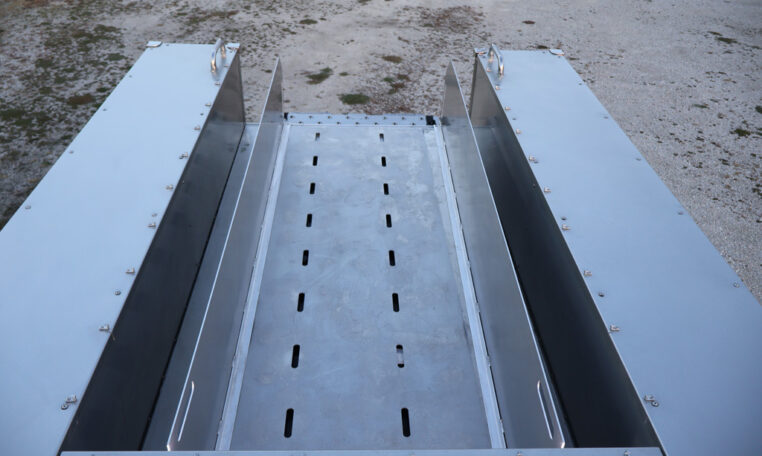

• One (1) 3” Discharge Dunnage Area for Deck Gun

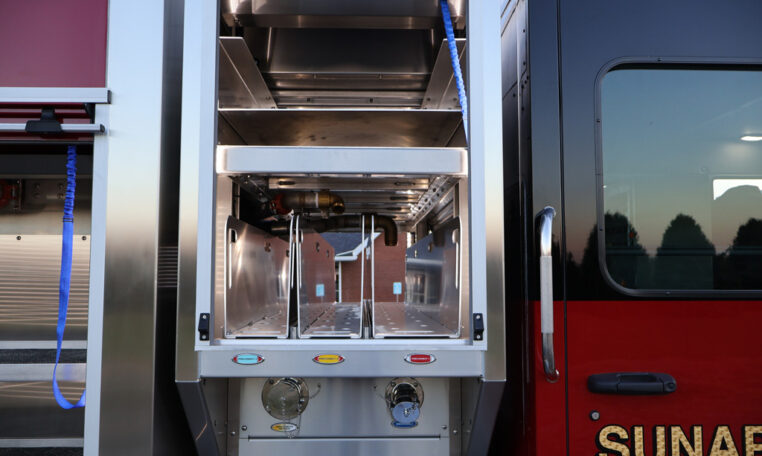

• Two (2) 1½” and One (1) 2½” Speedlay Preconnects with Trays–Transverse Area Above Pump

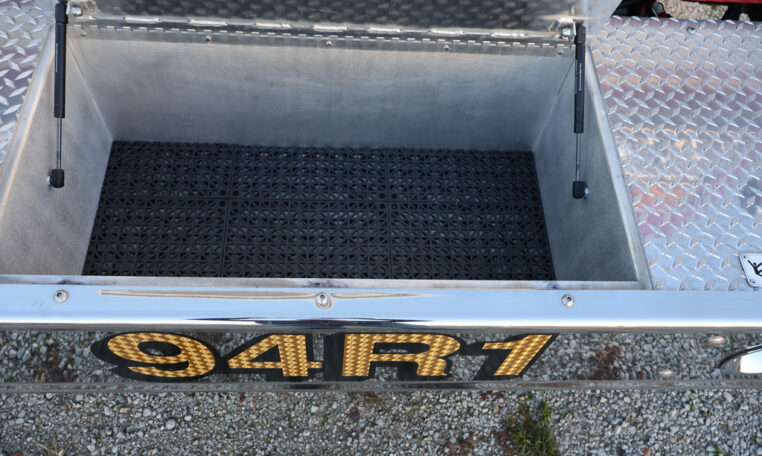

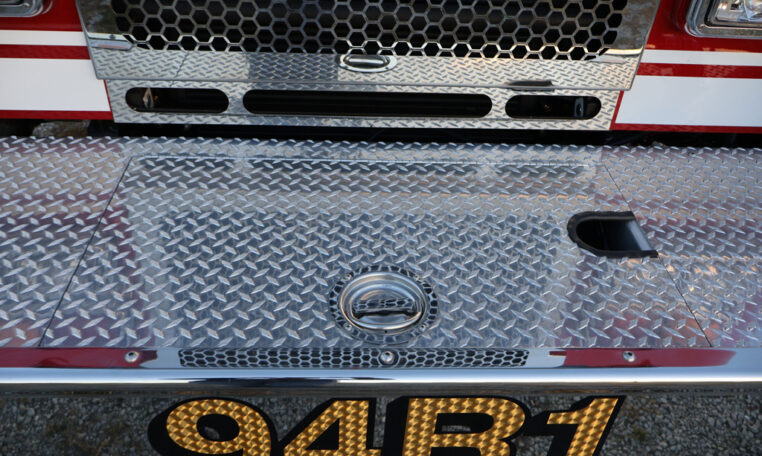

• One (1) 1½” Bumper Extension Preconnect

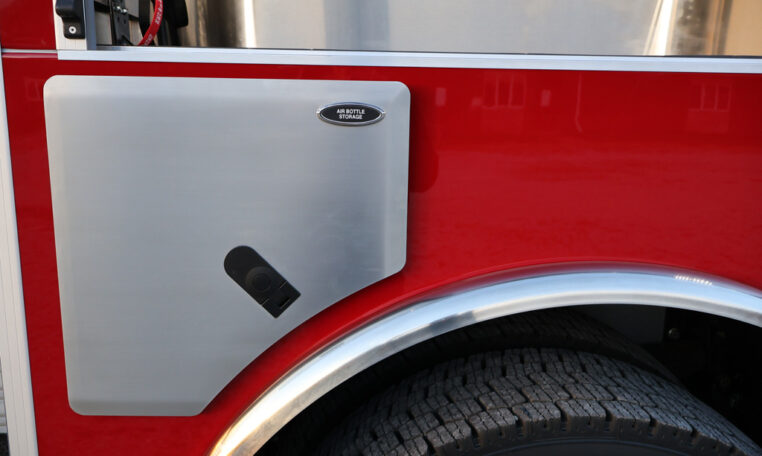

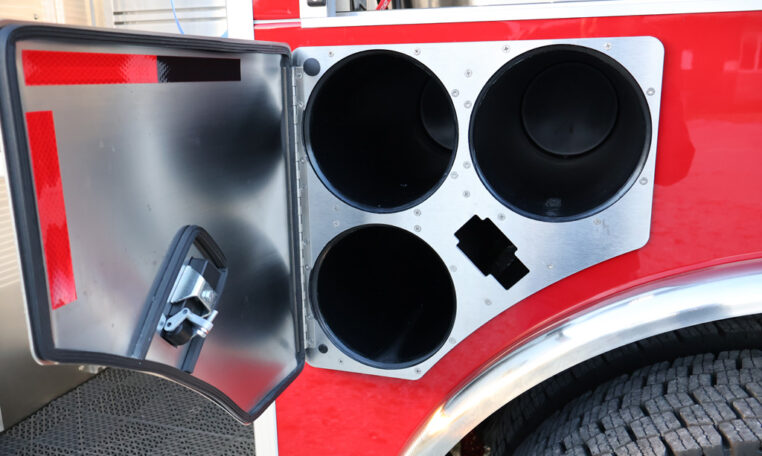

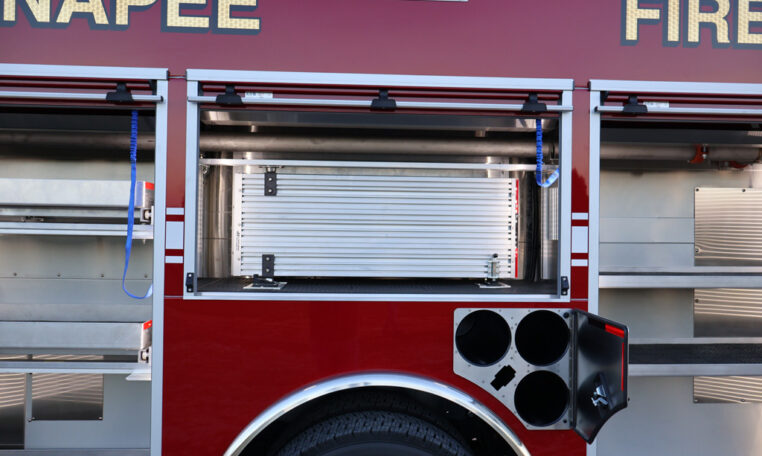

• Two (2) Triple Bottle Wheel Well Air Bottle Compartments

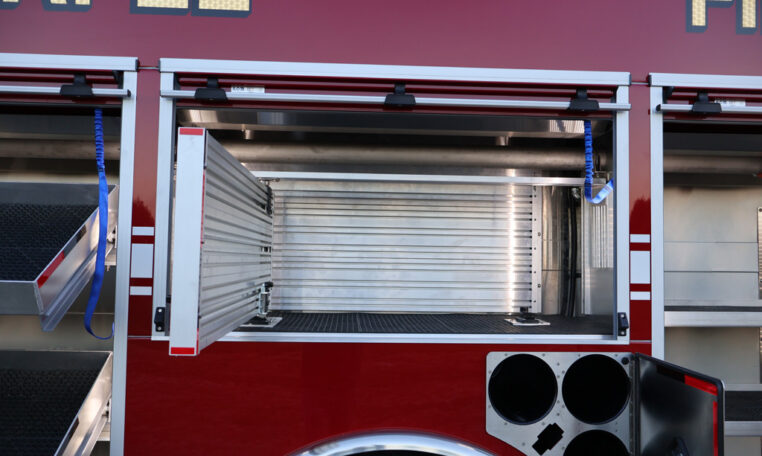

• ROM Painted Roll-Up Doors

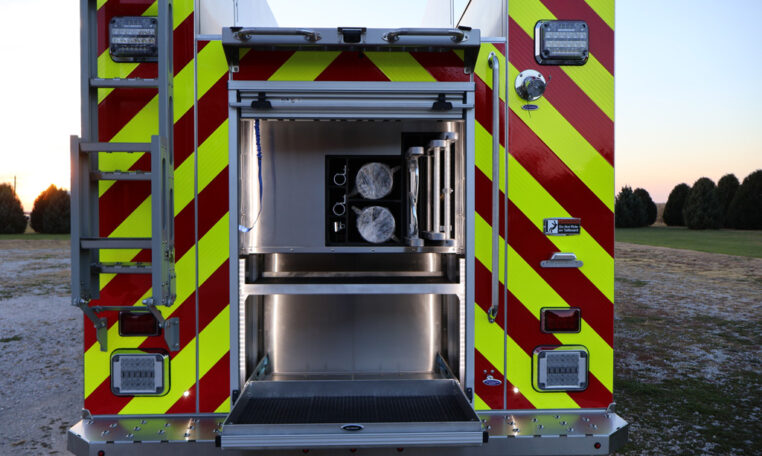

• Ladder Storage Horizontal Through the Tank, Accessible from the Rear Compartment
• Suction Hose Storage with the Ladders

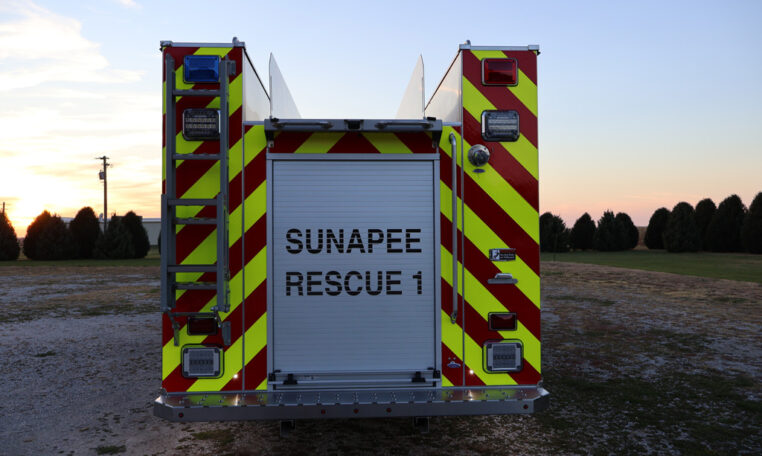

• Stainless Steel Rear Access Ladder with Flip Down Step, Rear Left Side

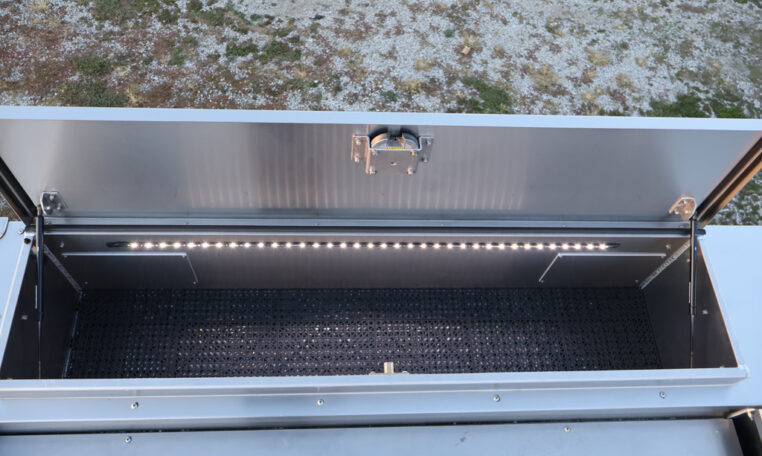

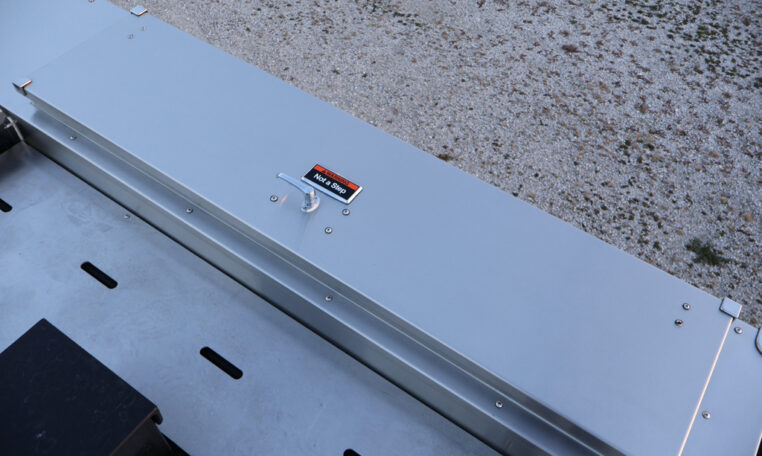

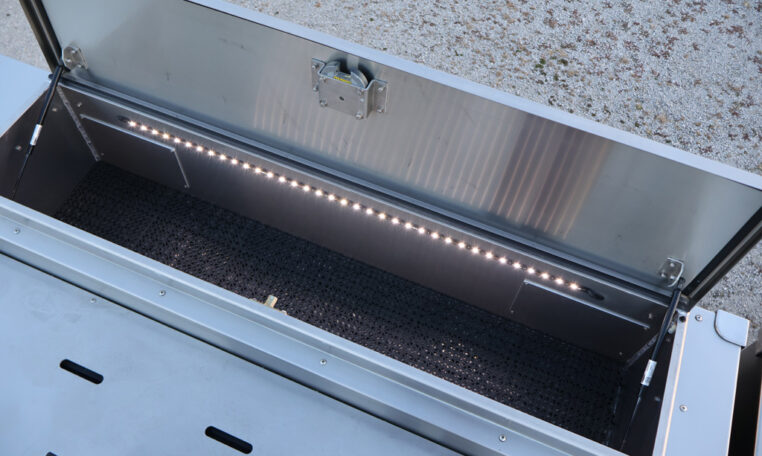

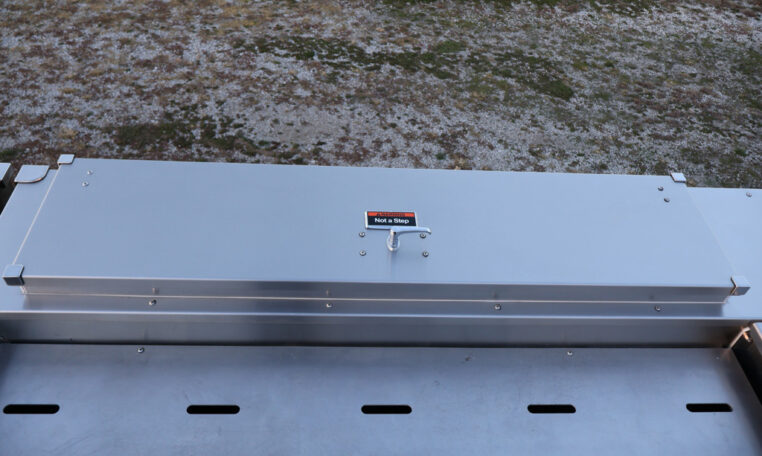

• Two (2) Upper Storage Compartments
• 1000 Gallon Poly Tank
• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Kussmaul AutoCharge 40LPC Battery Charger with Viair Compressor
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Side of Cab
• Tecniq LED Warning Light Package
• Whelen 200W Siren and CPI 100W Speaker
• Two (2) FireTech HiViz 21″ LED Scene Light Bars, One (1) Each Side
• Two (2) FireTech HiViz Guardian Elite GESM LED Scene Lights, Rear
• Two (2) Whelen 9S LED Scene Lights, One (1) Each Side of Cab
• One (1) FireTech HiViz 72” LED Brow Light
• One (1) 10’ Attic Ladder, One (1) 14’ Roof Ladder with Hooks, One (1) 24’ 2-Section Ladder, and Two (2) 10’ Lengths of 6” Hard Suction Hose
• 10’-2” Overall Height
• 33’-10” Overall Length
• 198” Wheelbase
• 144” Cab to Axle
• 21,500 FAWR
• 31,500 RAWR
• 53,000 GVWR
