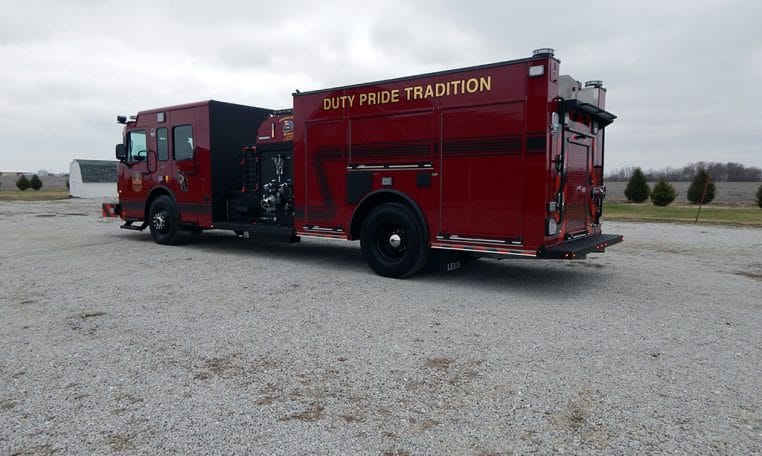

CUSTOM TOP MOUNT PUMPER #2349

DALTON TOWNSHIP FIRE DEPARTMENT - MUSKEGON, MICHIGAN

FEATURES:
• Spartan Metro Star LFD 10” raised roof Chassis
• Cummins L9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless-steel Body and Sub-Frame

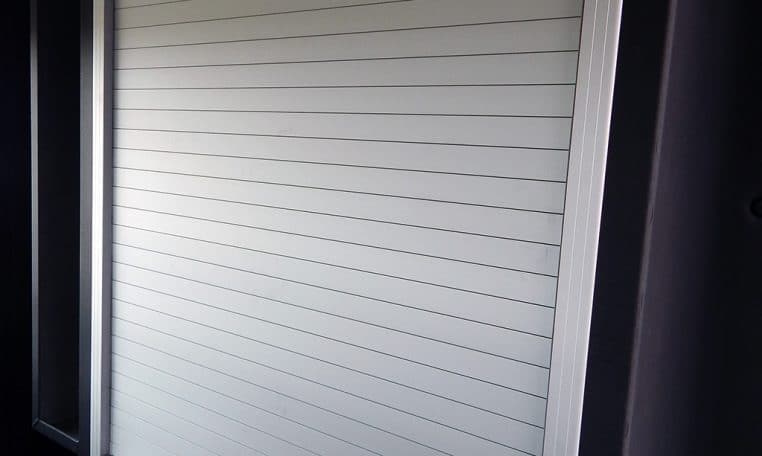

• ROM painted Roll Up Doors with right side hemmed door over rear wheel
• 28” Front bumper extension with Booster Reel for 75-ft of 1” hose

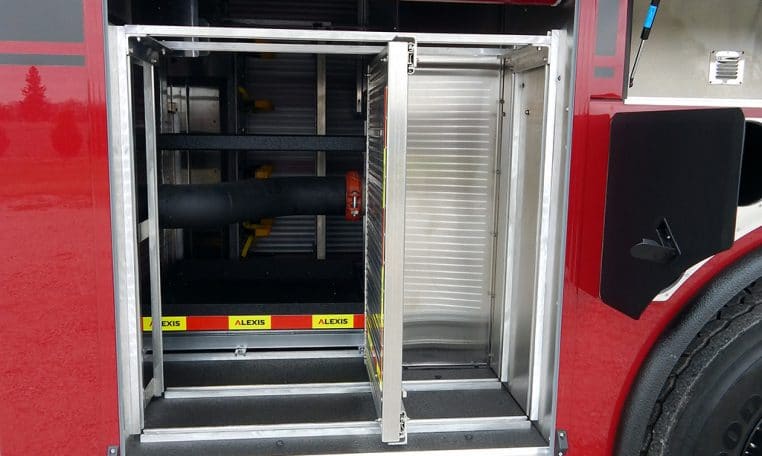

• EMS compartment with shelves and roll up door, cab rear wall

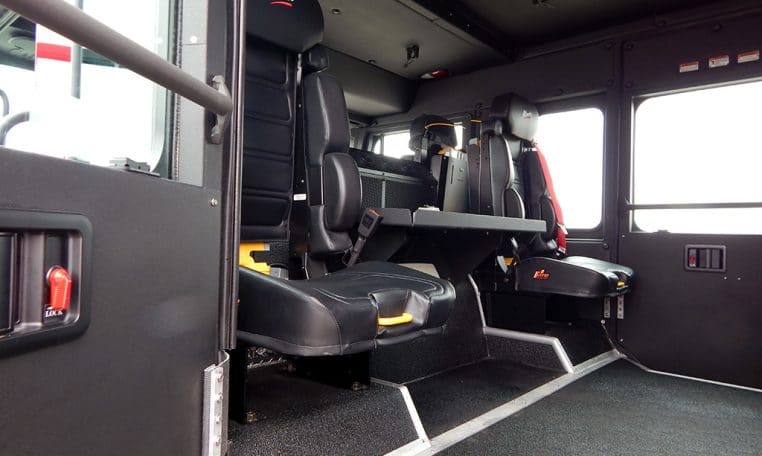

• Six (6) Person Cab seating with five (5) SCBA seats
• 1000-Gallon Poly Tank with 20-Gallon Foam Tank
• One (1) 2 ½” FirePrograms Tank fill, right side pump panel

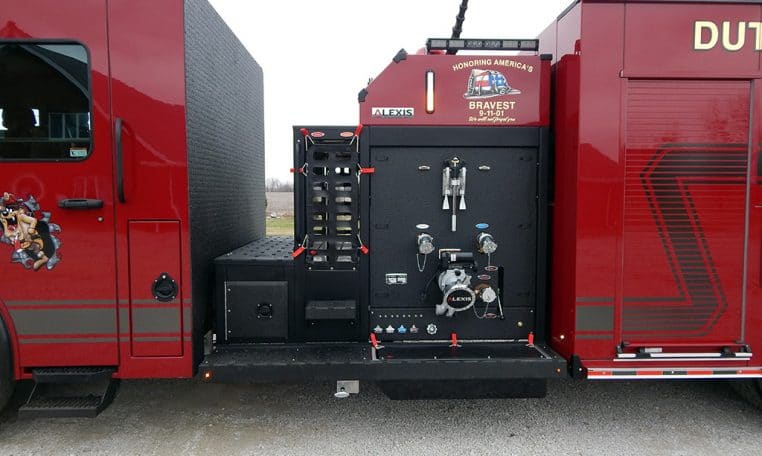

• Hale QMAX150, 1500-GPM Pump with operator’s panel across top
• Three (3) 2 ½” Discharges, two (2) left and one (1) right side
• Two (2) 1 ½” Cartridge Lay Preconnects, front of pump module
• One (1) 2 ½” Preconnect, front of hosebed
• Two (2) 3” Discharges, one (1) right side and one (1) over pump for deck gun
• One (1) Electric Booster Reel with 100-ft of 1” hose, front bumper
• Task Force Tips Crossfire monitor with stacked tips, stream straightener and base
• One (1) 2 ½” Gated Suction, left side and one (1) 5” Suction, rear
• Foam Pro 1600 Foam System
• Two (2) Free floating running board hose wells, one (1) each side pump module
• Three (3) Triple bottle Air bottle compartments, one (1) left and two (2) right side
• Ziamatic electrically controlled Ladder Rack with Suction hose storage, right side
• One (1) Suction hose and Pike pole compartment, left side upper
• Three (3) Vertical Pull out tool boards, two (2) left side and one (1) right side
• Whelen Electronic Siren with Two (2) Cast products 100-watt speakers
• Federal Rumbler Siren
• Federal Q2B mechanical Siren, recess mount front bumper
• David Clark Wireless Intercom System
• Audiovox back-up Camera system with two (2) 7” color monitors
• Tomar, Fire Research and Whelen LED Scene Light Packages
• Tomar LED Warning Light Package
• Diamond Grade Chevron Pattern striping, front bumper and rear
• 9’ 10” Overall height
• 36’ 5” Overall length
• 239” Wheelbase
• 165” Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR

Year: 2019
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Commercial
Body Style: Top Mount Pumper
Pump Size: 1500
Tank Size: 1000
Feature: Exterior Mount Ladder
Exterior Color: Red with Black
New Delivery: New Delivery
