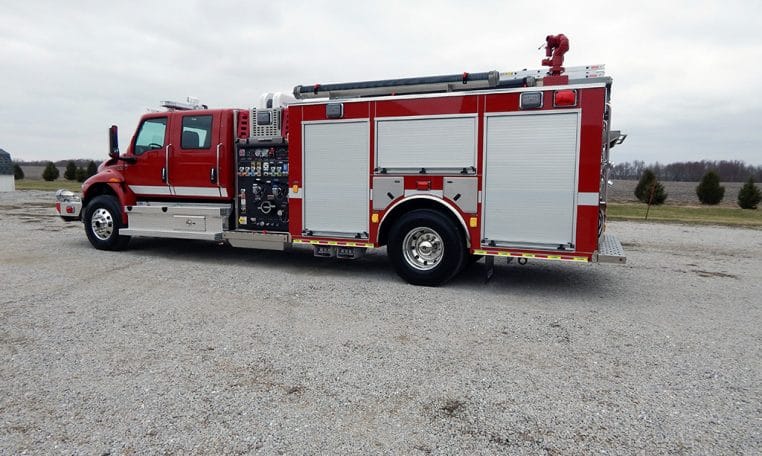

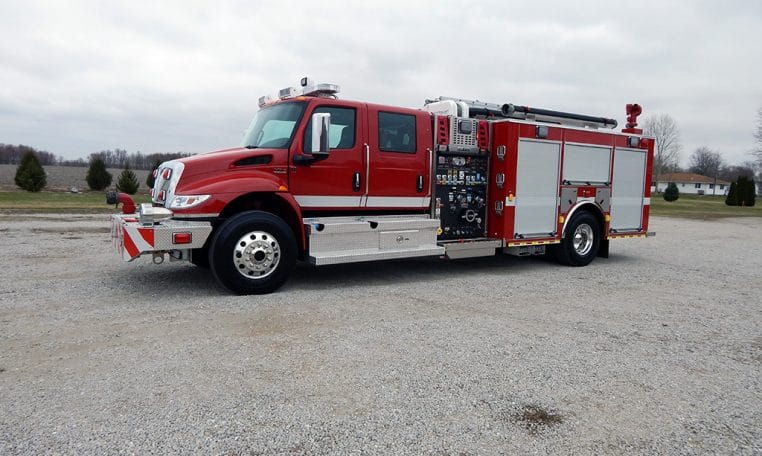

CUSTOM SIDE CONTROL PUMPER #2368

OTTO TOWNSHIP FIRE PROTECTION DISTRICT - CHEBANSE, ILLINOIS

FEATURES:

  • International MV607 4-Door Chassis
  • Cummins L9, 350-HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • Heavy Duty Aluminum Body with Galvanized steel Sub-Frame
  • ROM Roll Up Doors
  • Two (2) Storage compartments, one (1) each side under rear chassis door
  • 18” Front bumper extension with hose well for 25’ of 5” and 100’ of 1 ¾” hose
  • Two (2) Free floating hose wells, one (1) each side pump module running board
  • 1000-Gallon Poly Tank with 30-gallon Foam Tank
  • One (1) 2 ½” FirePrograms Tank Fill, rear
  • Hale QMAX, 1500-GPM Pump with left side operator’s control panel
  • Four (4) 2 ½” Discharges, two (2) left, one (1) right side and one (1) rear
  • Three (3) 3” Discharges, one (1) right side, one (1) rear and one (1) over pump
  • Elkhart Cobra EXM monitor with panel mount and handheld controls
  • Two (2) 1 ½” Mattydale Preconnects, across top of body
  • One (1) 1 ½” Preconnect, front bumper extension
  • One (1) 5” Front suction, bumper extension and one (1) 2 ½” Gated suction, left
  • Waterous Aquis 6 Foam System with Waterous Foam Tank Refill
  • Two (2) Triple bottle Air bottle compartments, one (1) each side wheel well
  • Two (2) General Storage wheel well compartments, one (1) each side
  • Zico Hydraulic Ladder/Suction hose and pike pole Rack
  • Progressive Dynamics on-board battery charger with Viair air compressor
  • Kussmaul Super Auto Eject 120-volt shoreline connection
  • Floor mounted console for emergency switches with map/binder storage, cab
  • Federal Q2B mechanical and Electronic Siren with Whelen 100-watt speaker
  • Smart Power 10,000-watt Hydraulic Generator with 120-volt system
  • One (1) Akron Electric cord reel with 150-ft of 10/3 cord and junction box
  • Wilburt Night Scan PowerLite light tower with six (6) Whelen LED lights
  • Whelen LED Warning and Scene Light Packages
  • Chevron pattern striping, rear
  • 10’ 8” Overall height
  • 33’ 10” Overall length
  • 250” Wheelbase
  • 139” Cab to Axle
  • 14,000 FAWR
  • 30,000 RAWR
  • 44,000 GVWR
Year: 2019
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Commercial
Body Style: Side Control Pumper
Pump Size: 1500
Tank Size: 1000
Feature: Exterior Mount Ladder
Exterior Color: Red with White
New Delivery: New Delivery
