CUSTOM TOP CONTROL PUMPER #2312

WILLIAMSFIELD FIRE PROTECTION DISTRICT - WILLIAMSFIELD, ILLINOIS
Williamsfield Custom Top Control Pumper Specifications:
  • Spartan Metro X MFD 10” raised roof Chassis
  • Cummins ISL9, 450-HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • Six (6) man cab seating with five (5) SCBA seats
  • Heavy Duty Stainless Steel Body with ROM Roll Up Doors
  • 24” Front Bumper Extension, 5” Suction with pre-connected hose
  • 1250-Gallon Poly Tank with 20-Gallon Foam tank
  • One (1) 2 ½” Fireman’s Friend Tank Fill, rear
  • One (1) 10” square Newton electrically controlled tank dump with 36” extension
  • Darley PSM, 1500-GPM Pump with pump operator’s controls across top of body
  • Four (4) 2 ½” Discharges, two (2) left, one (1) right side and one (1) rear
  • Two (2) 3” Discharges, one (1) right side and one (1) over pump for Deck Gun
  • One (1) Task Force Tips Crossfire Deck Gun with portable base and top
  • One (1) 2 ½” Gated Suction, left side
  • One (1) 1 ½” Preconnect with hosewell, front bumper
  • Two (2) 1 ½” Cartridge Lay preconnects, front of body
  • Waterous Aquis 2.5 Foam System
  • Three (3) Triple bottle Air bottle compartments, one (1) left and two (2) right side
  • One (1) Hinged swing out tool board, left side
  • One (1) Ziamatic Hydraulic folding tank rack for 2100-Gallon tank, right side
  • One (1) Suction hose storage compartment with rear access, right side
  • Ladder and Pike pole storage compartment with rear access, left side
  • Two (2) Air Horns, front bumper
  • Progressive Dynamics on-board battery charger with Kussmaul Auto Eject
  • Audiovox back-up Camera system with 7” color monitor
  • Kussmaul Air Eject
  • Federal Q2B mechanical Siren, front bumper
  • Whelen Electronic Siren with 100-watt Cast Products speaker
  • Whelen and Akron LED Scene Light Packages
  • Whelen LED Warning Light Package

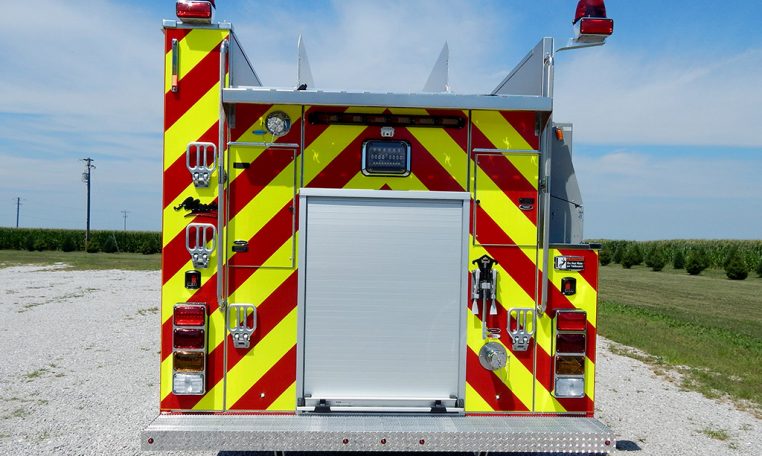

  • Diamond Grade Chevron pattern striping, rear
  • 10’ 1” Overall height
  • 35’ 8” Overall length
  • 227” Wheelbase
  • 173” Cab to Axle
  • 20,000 FAWR
  • 33,000 RAWR
  • 53,000 GVWR
Year: 2017
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Top Mount Pumper
Pump Size: 1500
Tank Size: 1250
Feature: Interior Mount Ladder
Exterior Color: Red with White
New Delivery: New Delivery
