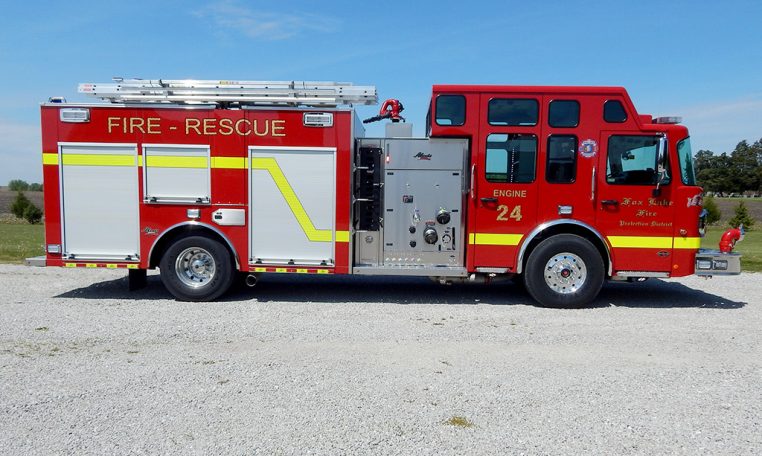

Fox Lake Custom Enclosed Top Mount Pumper Specifications:

• Spartan Metro Star MFD with 20” raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Four (4) man cab seating with three (3) SCBA seats
• Heavy Duty Stainless Steel Body with ROM Roll Up Doors
• 1000-Gallon Poly Tank
• Hale QMAX 150, 1500-GPM Pump with enclosed top operator’s panel
• Four (4) 2 ½” Discharges, one (1) each side and two (2) rear
• Three (3) 3” Discharges, one (1) each side and one (1) over pump for deck gun
• One (1) Akron Apollo Deck Gun with electric riser
• Two (2) 2 ½” Gated Suction, one (1) each side
• Two (2) 1 ½” and one (1) 2 ½” Cartridge Lay Preconnects, behind pump module
• One (1) Hannay Electric Booster Reel with 100-ft of 1” hose, right side
• EMS compartment and map box, cab
• 24” Front bumper extension with 5” suction and center hose well
• One (1) Swing out tool board, left side
• Cribbing containment door and Horizontal Fire Extinguisher rack, right side
• Two (2) Dual bottle Air bottle compartments, one (1) each side wheel well
• Zico Hydraulic Ladder rack with pike pole and suction hose storage, right side
• Four (4) bottle 4500-PSI Cascade System with control panel and fill enclosure
• Two (2) Hannay Air hose reels with 200-ft of 3/8” hose, one (1) each side
• Turtle Tile on floors and/or shelves and trays of compartments
• Audiovox back-Up camera system with 7” color monitor
• Federal Q2B mechanical Siren and two (2) Air Horns, front bumper
• Whelen Electronic Siren with two (2) Cast products speakers
• One (1) Chrome 12” Fire Bell, front of chassis
• Smart Power HR-10,10,000 watt Hydraulic Generator with 120-volt system
• Night Scan Vertical Light Tower with three (3) Whelen PFP2 LED lights
• Two (2) Akron electric cord reels with 150-ft of 10/3 cord and junction boxes
• Whelen LED Warning and Scene Light Package
• Diamond Grade Chevron pattern striping, rear
• 10’ 10” Overall height
• 34’ 5” Overall length
• 212” Wheelbase
• 158” Cab to Axle
• 20,000 FAWR
• 31,000 RAWR
• 51,000 GVWR
