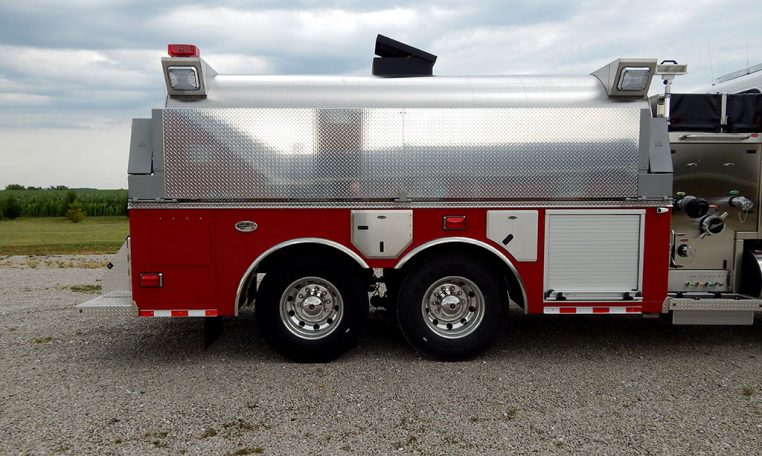

3000-GALLON ELLIPTICAL TANKER #2307

BAHAMA VOLUNTEER FIRE RESCUE, EMS COMPANY INC - BAHAMA, NORTH CAROLINA
Bahama 3000-GALLON ELLIPTICAL TANKER Specifications:
  • Peterbilt 367 2-Door  Chassis
  • Cummins ISX12, 425-HP Diesel Engine
  • Allison 4000 EVS Automatic Transmission
  • On Spot Automatic Tire chains
  • Heavy Duty 3/16” Aluminum Body with ROM Roll Up Doors
  • 3000-Gallon Poly Elliptical Tank with stainless steel jacket
  • Three (3) Newton 10” square Electric dumps with 18” Air operated extensions
  • Custom Painted Side Dump Doors
  • Two (2) 4” Fireman’s Friend Tank Fills, rear
  • Waterous CXS, 1000-GPM Pump with left side operator’s panel
  • Three (3) 2 ½” Discharges, two (2) left and one (1) right side
  • One (1) 3” Discharge, right side
  • Two (2) 1 ½” Mattydale Preconnects and one (1) Mattydale Deadlay,  across top
  • Two (2) 2 ½” Gated Suction, one (1) each side
  • Two (2) Custom rear step hose trays, rear tailboard
  • One (1) Custom Traffic Cone storage rack, rear
  • Two (2) SCBA pack compartments, one (1) each side between tandem wheels
  • Two (2) Triple bottle Air bottle compartments, one (1) each side wheel well
  • One (1) Vertical Pull out tool board, right side
  • Two (2) Flamefighter walk-away air pack brackets, right side
  • One (1) Ziamatic Electric Folding Tank bracket for 3500-gallon tank, right side
  • Two (2) Suction Hose storage gutters, left side
  • Progressive Dynamics on-board battery charger with Viair Air compressor
  • One (1) Kussmaul Super Auto Eject 120-volt shoreline connection
  • Floor mounted console for emergency switches, cab
  • One (1) Audiovox back-up Camera system with additional right side camera
  • Whelen Electronic Siren with 100-watt Federal speaker
  • Federal Q2B mechanical Siren, front bumper
  • Six (6) Code-3 LED Scene lights, two (2) each side and two (2) rear
  • Two (2) FRC Focus 12-volt 150-watt Telescopic lights,
  • Whelen LED Warning Light Package and Chevron pattern striping, rear
  • 11’ 6” Overall height
  • 32’ 3” Overall length
  • 230” Wheelbase
  • 153” Cab to Axle
  • 16,000 FAWR
  • 44,000 RAWR
  • 60,000 GVWR
Year: 2017
Make: Alexis Fire Equipment
Model: Tanker
Chassis: Commercial
Body Style: Elliptical Tanker
Pump Size: 1000
Tank Size: 3000
Exterior Color: Red
New Delivery: New Delivery
