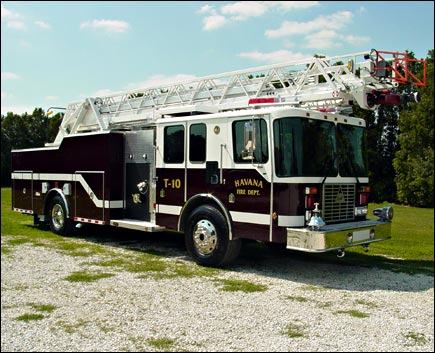

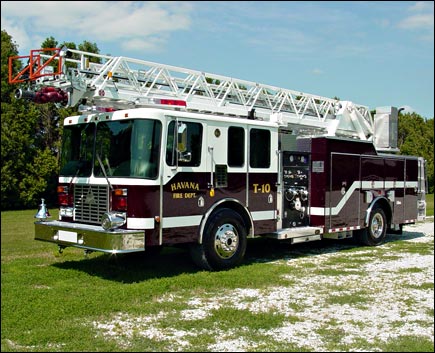

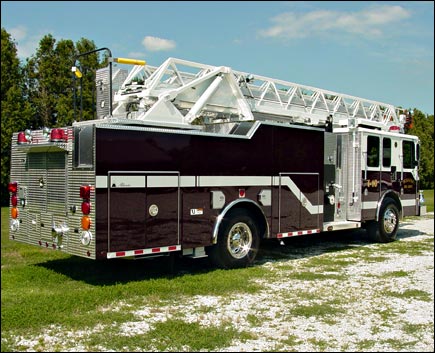

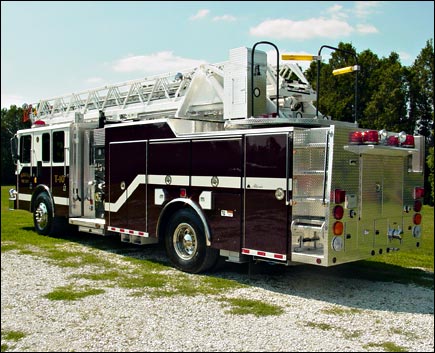

CUSTOM 75-FOOT AERIAL #1972

Havana Fire Department - Havana, Illinois

• HME 1871-P2 MFD Chassis
• Cummins ISL370, 370-HP Diesel Engine
• Allison 3000-EV Automatic Transmission
• Heavy Duty 3/16″ Aluminum Body
• UPF 300-Gallon Rectangular Poly Tank
• Hale QMID125, 1250-GPM Pump

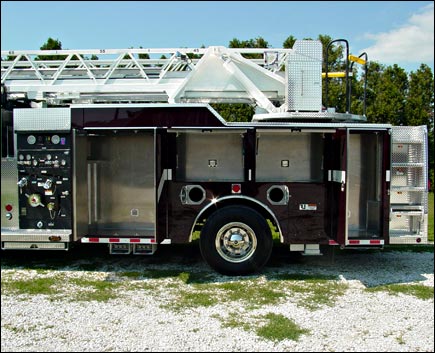

• Side control pump panel

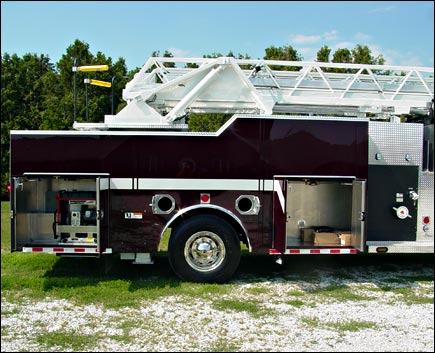

• Lap style compartment doors, side compartments

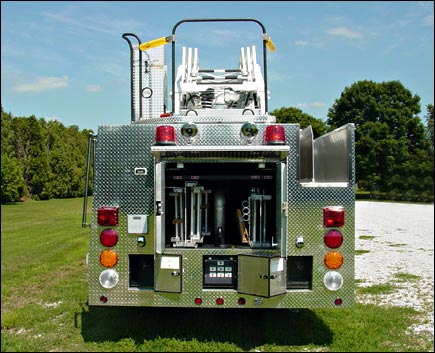

• ROM Roll Up Door, rear compartment
• Three (3) Air bottle compartments, One (1) left side and two (2) right side
• Kussmaul Pump-Plus Ho air compressor/battery charger
• Kussmaul super auto eject 120-volt shoreline

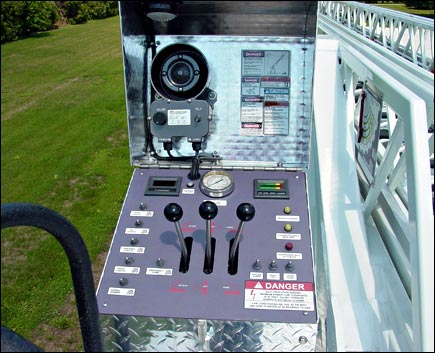

• 75′ Three-section rear mount ladder
• Akron electric monitor at the end of the ladder
• Two (2) Unity 6″ bulb deck lights, rear

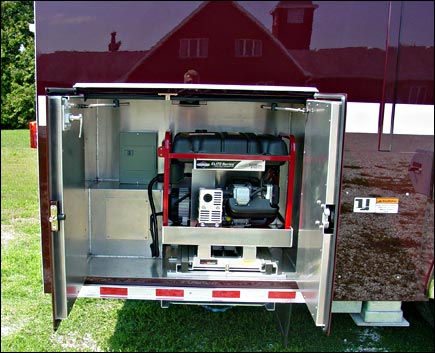

• Briggs and Stratton Elite 6200-watt generator
• Federal Q2B siren
• Southpark 12″ chrome bell
• PowerArc Warning light package
• 11′ 4″ Overall height
• 37′ 8″ Overall length
• 209″ Wheelbase
• 155″ Cab to Axle
• 21,500 FAWR
• 30,440 RAWR
• 51,940 GVWR

Year: 2014
Make: Alexis Fire Equipment
Model: Aerial
Body Style: Ladder Aerial
Pump Size: 1250
Tank Size: 300
Exterior Color: Red
