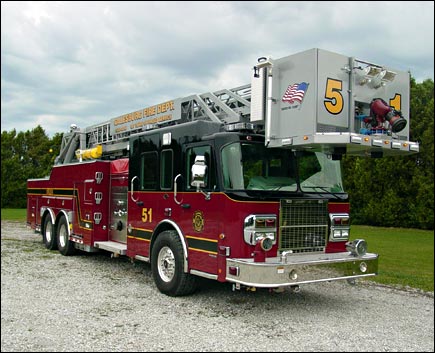

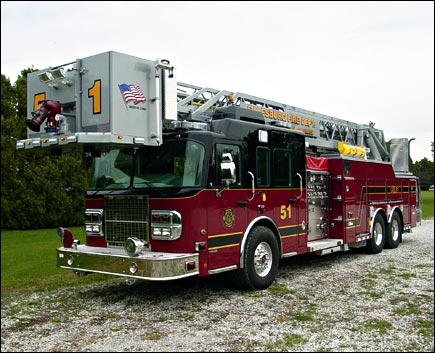

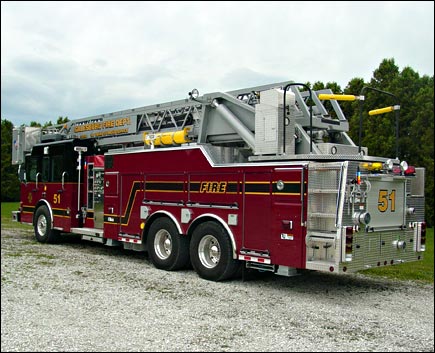

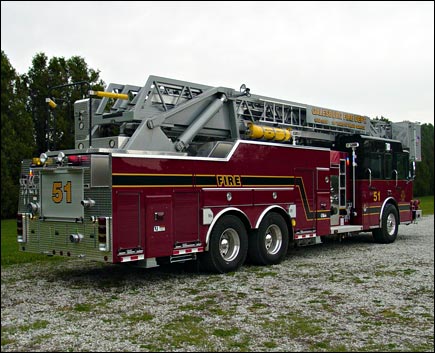

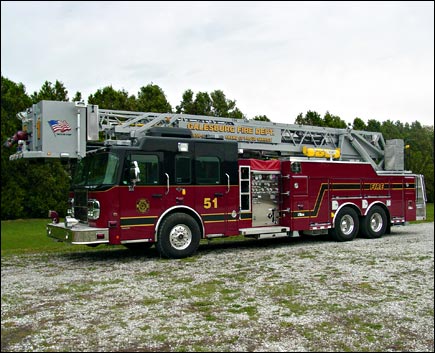

CUSTOM 104-FOOT AERIAL #1982

Galesburg Fire Department - Galesburg, Illinois

• Spartan Gladiator Tandem Axle, 10-inch raised roof Chassis
• Cummins ISM 500, 500-HP Diesel Engine
• Allison 4000 EVP Automatic Transmission
• Heavy Duty 3/16″ Aluminum Body
• UPF 300-Gallon Rectangular Poly Tank with 10-gallon foam tank
• Hale QMAX-150, 1500-GPM Pump
• ROM Roll Up Doors
• Left side Pump Controls
• 104-Foot, Four Section Rear-Mount Platform

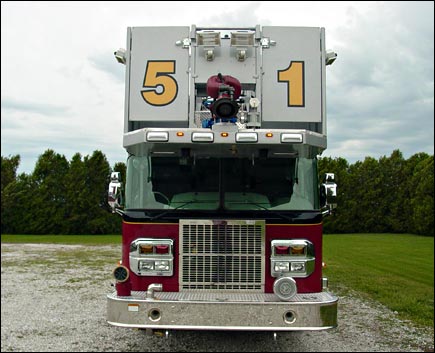

• Akron Remote controlled Electric Monitor at end of platform
• Breathing Air system to end of platform
• One (1) Firecom radio interface headset unit at the pump panel
• Kussmaul Pump Plus 1200 air compressor/battery charger
• Kussmaul 20-amp super Auto Eject Shoreline
• Two (2) 2 ½” Discharges, right side
• Two (2) 3″ Discharges, one (1) right side and one (1) rear
• One (1) 4″ Discharge feeding the waterway, rear
• FoamLogix 2.1-A Foam concentrate proportioning system
• Two (2) 1 ½” and One 2 ½”Cartridge Lay Preconnects
• One (1) 2 ½” preconnect in right side bumper extension

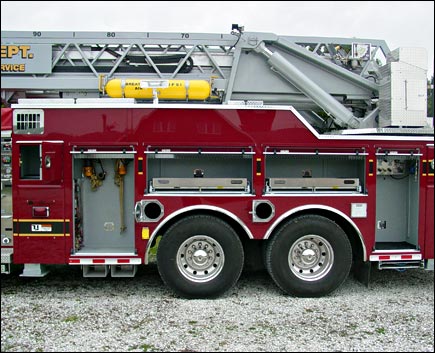

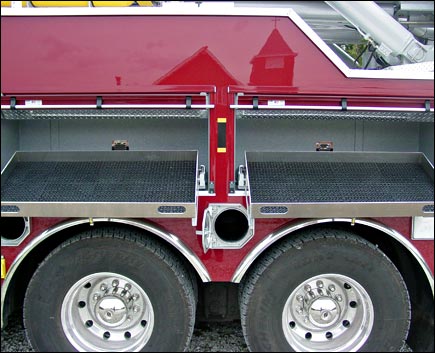

• Four (4) Air bottle compartments, two (2) each side wheel wells
• Two (2) Whelen #900 series halogen scene lights, one (1) each side of cab
• Two (2) Unity 6″ Deck lights, rear
• Onan 8-kW Hydraulically driven Generator
• Hannay 120-volt electric cord reel, right side compartment
• Two (2) Extenda Light 750-watt telescopic flood lights, rear
• 3-bottle 4500-PSI Cascade system with left side control panel
• Dual Grover Stuttertone 24″ Air Horns recessed in the front bumper

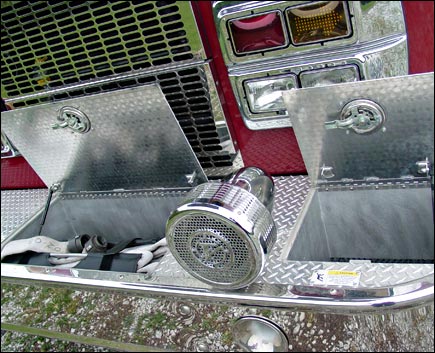

• Federal Q22B 10″ Electric Siren
• Whelen Warning light package
• 11′ 8″ Overall height
• 45′ Overall length
• 255″ Wheelbase
• 187.5″ Cab to Axle
• 21,500 FAWR
• 58,000 RAWR
• 79,500 GVWR

Year: 2014
Make: Alexis Fire Equipment
Model: Aerial
Body Style: Platform Aerial
Pump Size: 1500
Tank Size: 300
Exterior Color: Red
