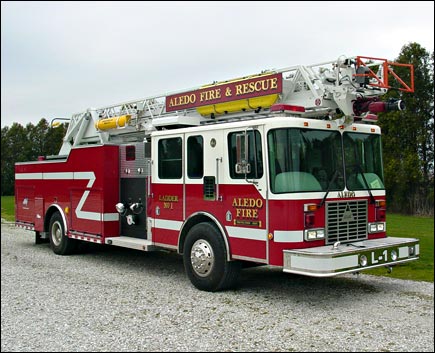

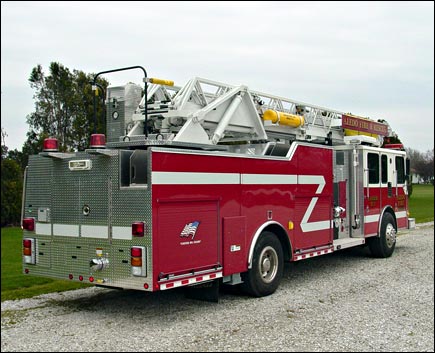

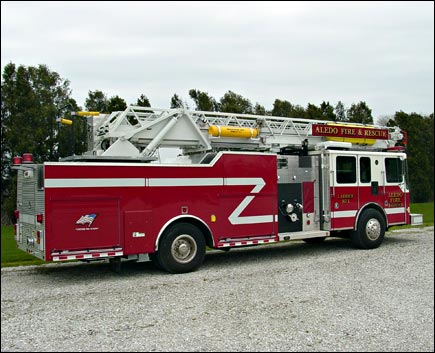

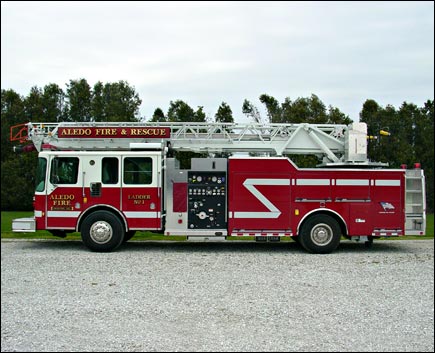

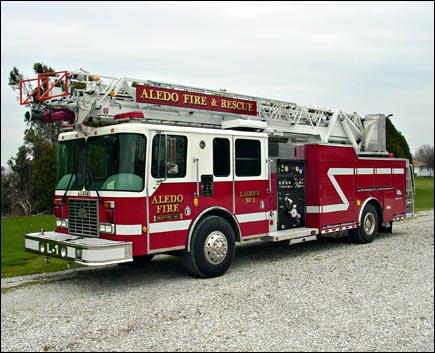

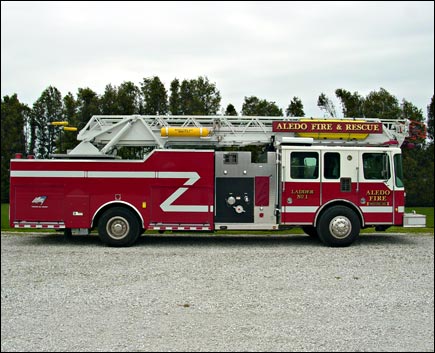

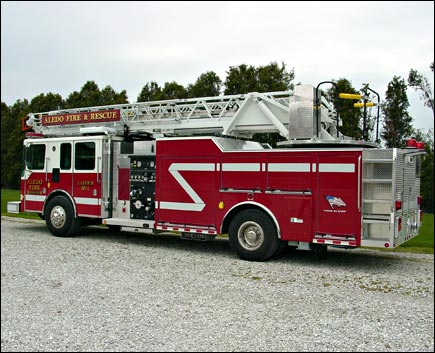

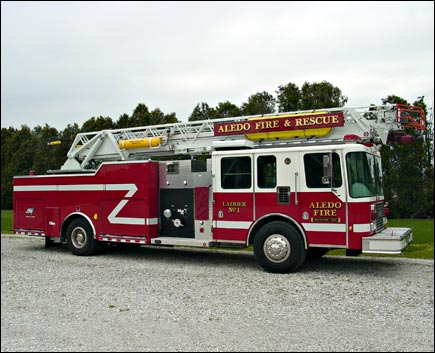

75' ALEXIS QUINT #1955

Aledo Fire Protection District - Aledo, Illinois

• HME 1871 P2 MFDXL Custom Cab
• Cummins ISL 400 HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• 300 Gallon UPF Poly Tank IIE
• Hale QMAX150 1500 GPM Pump
• Heavy Duty 3/16″ Aluminum Body
• Two (2) 1½” Cartridge Lay Preconnects and One (1) 2½” Mattydale preconnect
• Akron Electric Monitor at the tip of the ladder
• Turntable Control Console with Soft Touch Controls
• Rear outrigger controls
• Ladder turntable access steps on left side
• Junkins Rescue Basket mounted outside the base section on the right side
• 14′ Roof Ladder mounted outside the base section on the left side
• 3-Bottle 6000 PSI Cascade System
• Side Control Pump Operator’s Panel
• Ladder and pike pole storage at the rear in the torque box
• Side stack hosebed on passenger side
• PowerArc NFPA Warning Light Package
• Onan 8kw Hydraulic Generator
• Two (2) 750 Watt Telescopic Lights Mounted one (1) each side on the back of the cab
• One (1) 500 Watt Recesses light mounted at the rear of the apparatus
• 11′-4″ Overall Height
• 37′-8″ Overall Length
• 223″ WB
• 163″ CA
• 21,500 FAWR
• 31,000 RAWR
• 52,500 GVWR

Year: 2014
Make: Alexis Fire Equipment
Model: Aerial
Body Style: Quint Aerial
Pump Size: 1500
Tank Size: 300
Exterior Color: Red
