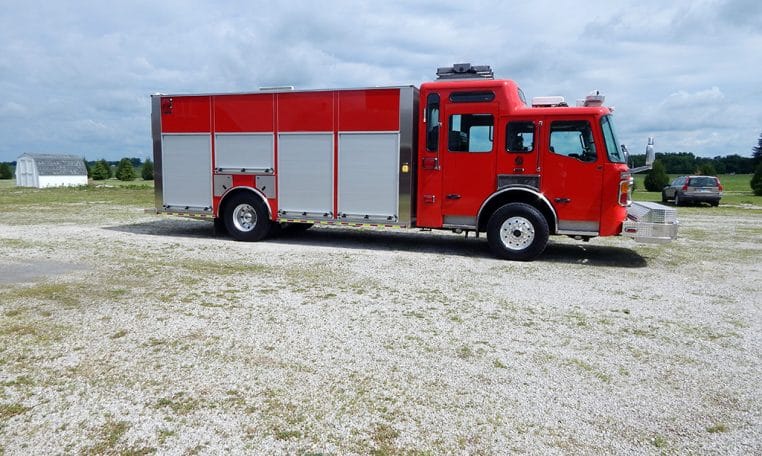

CUSTOM 1500 GPM REAR MOUNT PUMPER #2380

DUNLAP FIRE PROTECTION DISTRICT - DUNLAP, ILLINOIS
FEATURES:
  • Customer Supplied Chassis
  • Cat 525-HP Diesel Engine
  • Allison 4000 Automatic Transmission
  • Heavy Duty Stainless Steel Body and Sub-Frame
  • ROM Roll Up Doors
  • 750-Gallon Poly Tank
  • Waterous S100C20, 1500-GPM Pump

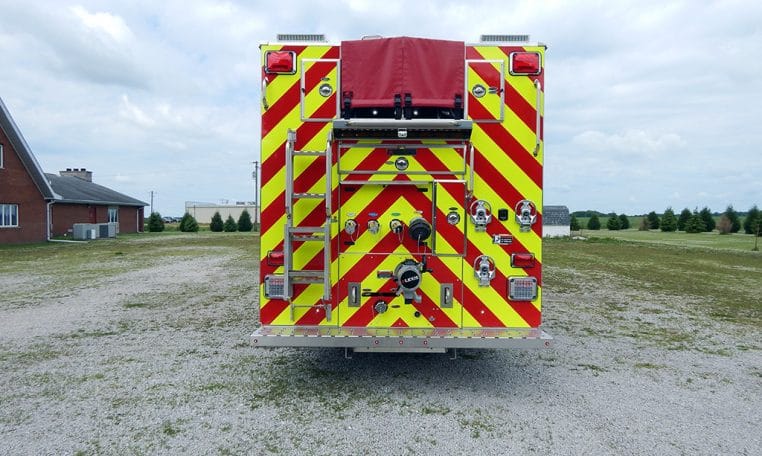

  • Three (3) 2 ½” Discharges, rear
  • One (1) 4” Discharge, rear
  • One (1) 3” Discharge, front dunnage for Deck Gun
  • Two (2) 1 ½” Cartridge Lay Preconnects, front of body
  • One (1) Hannay Booster Reel  with 100’ of hose, above rear discharge panel
  • TFT Hurricane remote control monitor kit
  • TFT electrically controlled 18” telescopic waterway
  • One (1) 2 ½” Gated Suction, rear
  • Front Bumper Rescue Tool Modification and one (1) 2 ½” Preconnect
  • Two (2) Triple bottle Air bottle compartments, right side

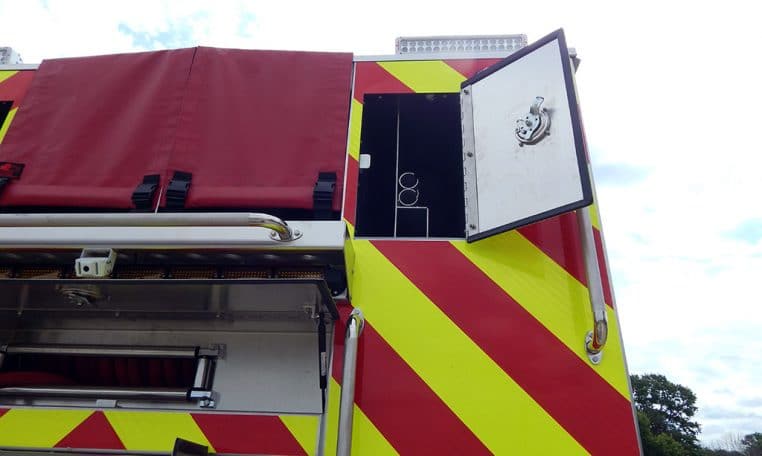

  • Treadplate Electrically activated hose bed cover
  • Stainless steel Top Access Ladder, rear mounted
  • Suction hose Storage compartment , left side upper with rear access
  • Ladder Storage, right side with rear access
  • Two (2) Hannay Dual Hydraulic hose Reels with 100” of hose each

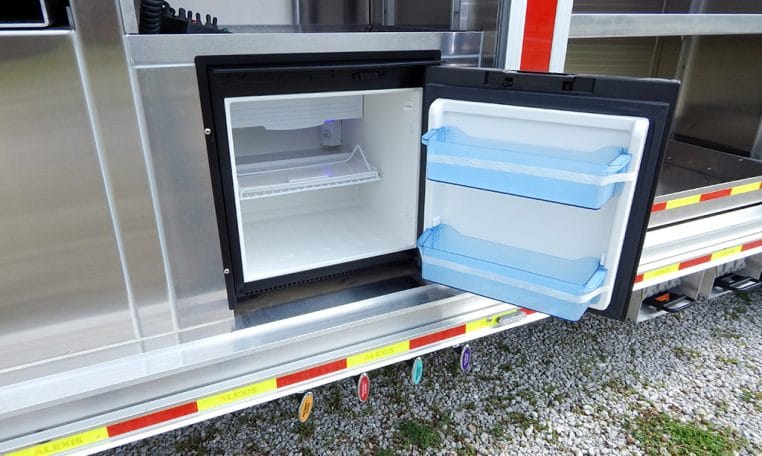

  • One (1) Norcold Refrigerator, left side compartment

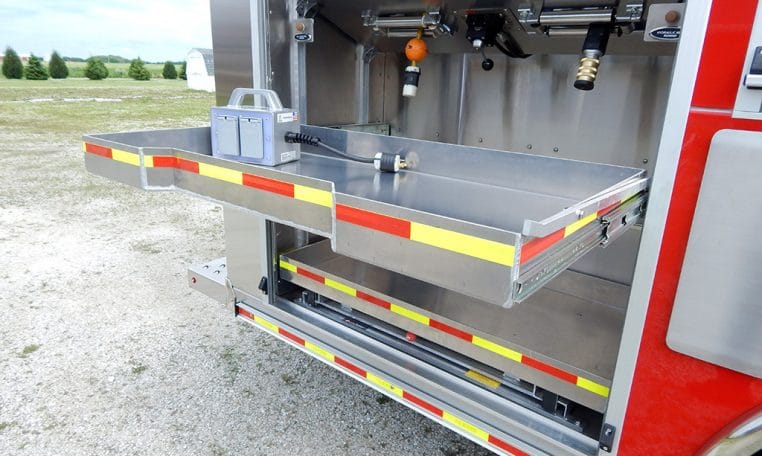

  • Smart Power LI-10, 10-kW Generator with 5-kW XRT rescue tool pump
  • Progressive Dynamics on-board battery charger with Viair air compressor
  • Kussmaul Super Auto Eject 120-volt shoreline connection
  • One (1) Golight LED remote controlled spotlight, front of cab
  • FireTech 12-volt Scene Light Package
  • Federal Q2B Siren, front bumper
  • Whelen LED Warning Light Package
  • Diamond Grade Chevron pattern striping, rear
  • 10’ 8” Overall height
  • 35’ 10” Overall length
  • 221” Wheelbase
  • 147” Cab to Axle
  • 20,000 FAWR
  • 31,000 RAWR
  • 51,000 GVWR
