22-FOOT CUSTOM HEAVY RESCUE #S770

CLOVER TOWNSHIP FIRE PROTECTION DISTRICT - WOODHULL, ILLINOIS
FEATURES:

• Spartan Metro Star LFD 20” Raised Roof Chassis
• Cummins L9 450 HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless-Steel Body and Sub-Frame
• Six (6) Person Cab Seating w/ Four (4) SCBA Seats
• ROM Roll-Up Doors
• Warn 9,000# Multi-Mount Winch Kit
• Two (2) Hitch Receiver Assemblies, Left and Right Side
• Custom EMS Compartment w/ Adjustable Shelf, Cab
• Three (3) Triple Air Bottle Storage Compartments, Two (2) Right, One (1) Left

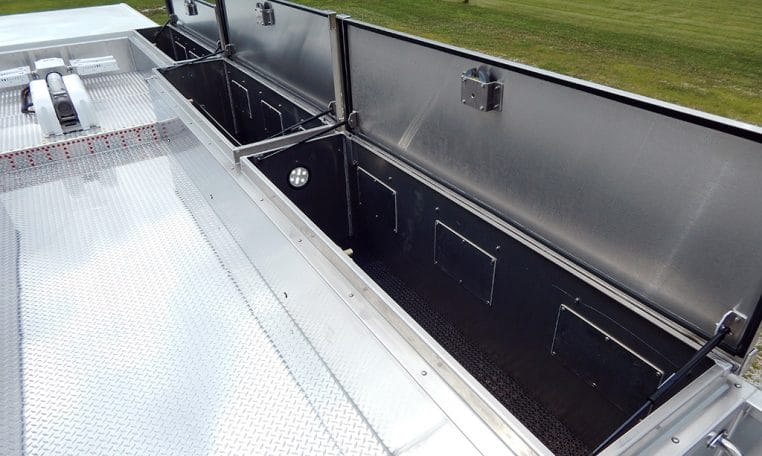

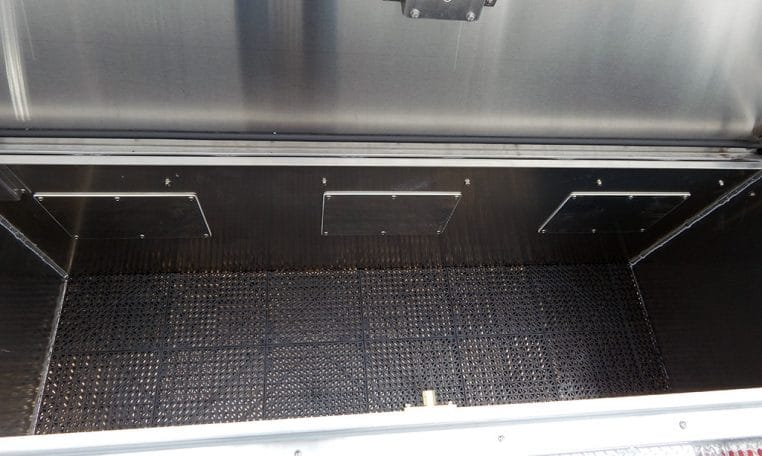

• Six (6) Upper Storage Compartments, Roof
• Custom Oil Dry Hopper, Left Rear Upper Storage Compartment

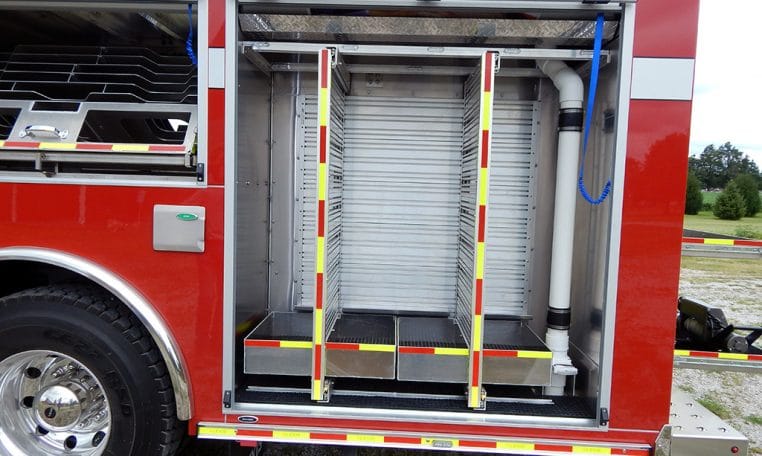

• Two (2) Vertical Pull Out Tool Boards, Left Side
• Custom Air Bag Rack, Left Side
• Four (4) Bank 6000-PSI Cascade System w/ Fill Panel and Bottle Enclosure
• Five (5) Zico Air Bottle Holders, Right Side
• Two (2) Hannay Dual Hydraulic Hose Reels, Rear Compartment
• Norcold Refrigerator, Right Side
• InView Guardian Video/Audio 4-Channel System Kit
• Onan 25,000-watt PTO-driven Generator with 120-volt Electrical System
• Two (2) Akron Brass Electric Cord Reels, one (1) each side
• Two (2) Akron Brass Electrical Junction Boxes
• Night Scan Powerlite Light Tower
• Fire Extinguisher Rack for Three (3) Extinguishers, Right Side
• One (1) Hannay Air Reel, Right Side
• Whelen LED Warning Light Package
• Whelen Traffic Advisor Arrow Stick
• Whelen LED Scene Light Package
• Federal Q2B Siren
• Diamond Grade Chevron Striping
• 11’ 1” Overall Height
• 36’ 8” Overall Length
• 233” Wheelbase
• 165.5” Cab to Axle
• 21,500 FAWR
• 27,000 RAWR
• 48,500 GVWR

Year: 2020
Make: Alexis Fire Equipment
Model: Rescue
Chassis: Custom
Body Style: Heavy Rescue
Feature: Cascade System
Exterior Color: Red
New Delivery: New Delivery
