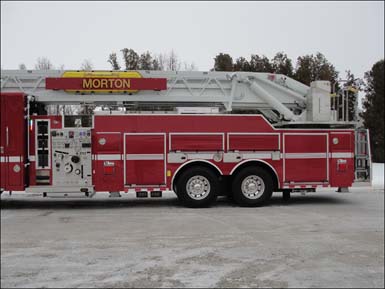

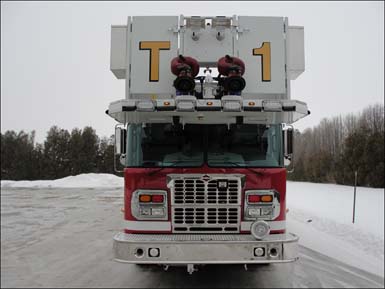

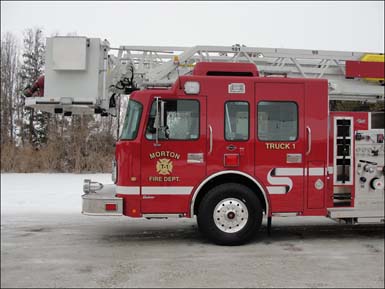

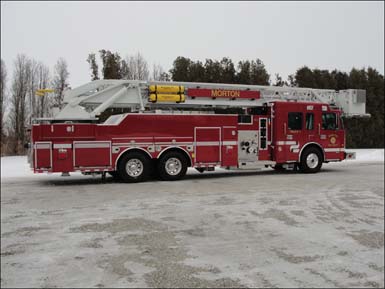

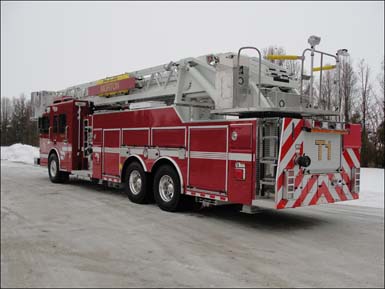

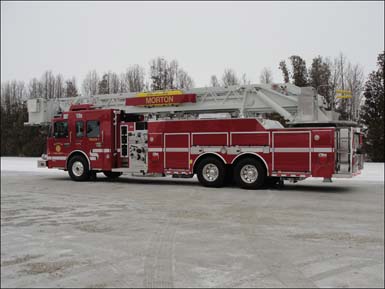

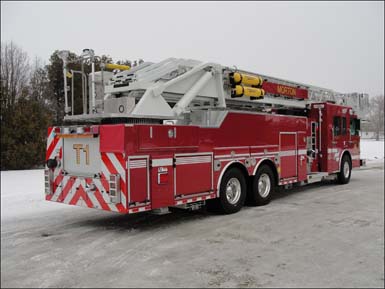

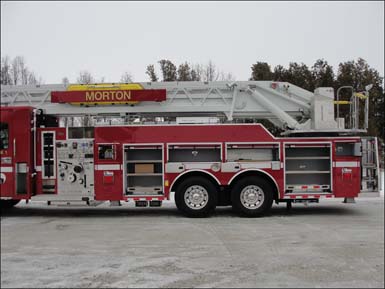

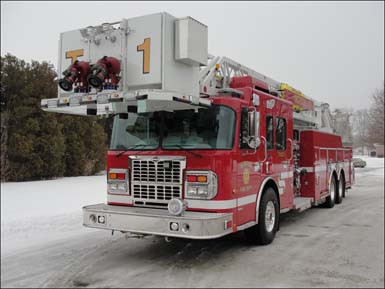

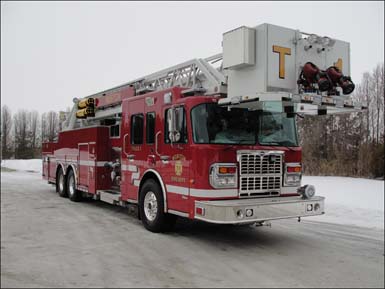

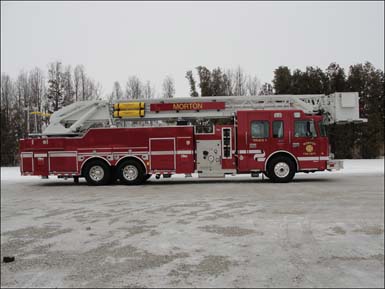

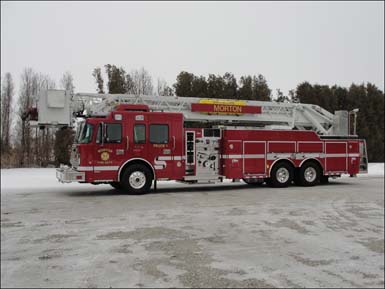

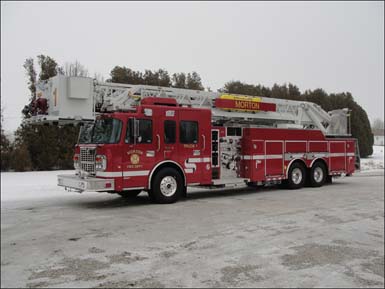

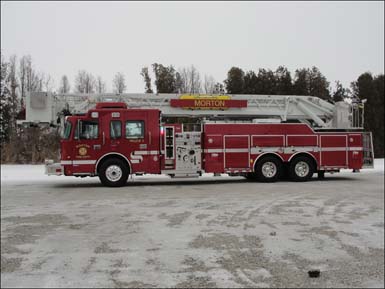

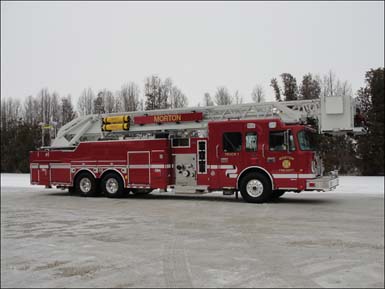

101-FOOT AERIAL PLATFORM #2081

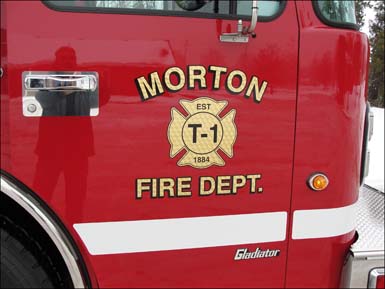

Village Of Morton Fire Department - MORTON, ILLINOIS

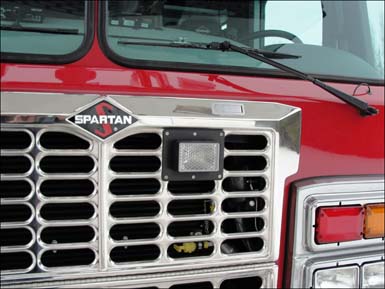

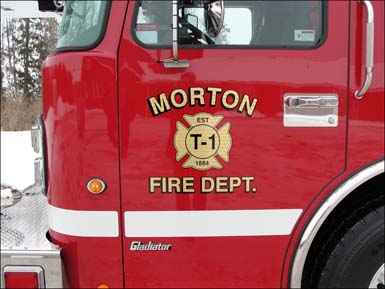

• Spartan Gladiator LFD 10” raised roof Chassis
• Caterpillar C13, 525-HP Diesel Engine
• Allison 4000 EVS Automatic Transmission

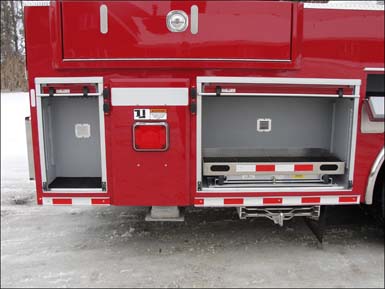

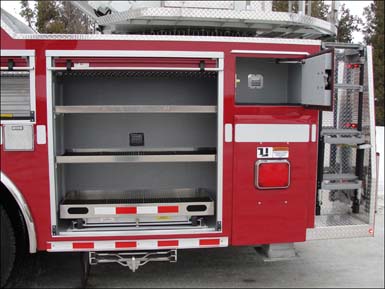

• Heavy Duty 3/16” Aluminum Body with ROM Roll Up and box style doors

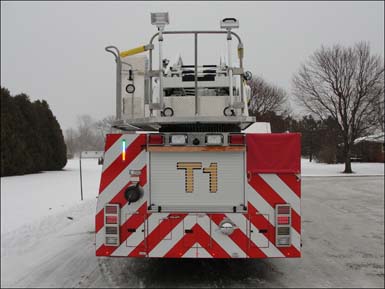

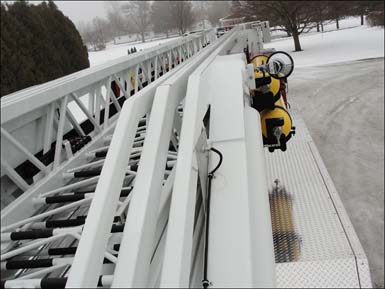

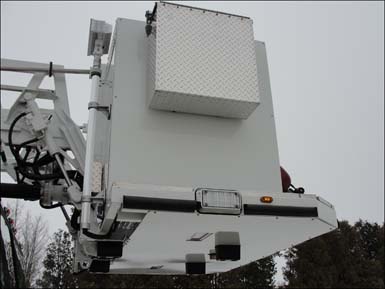

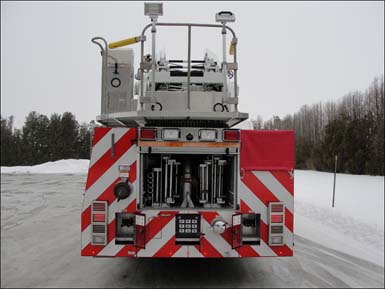

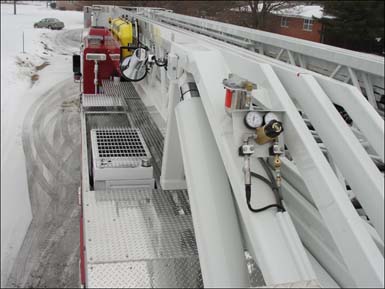

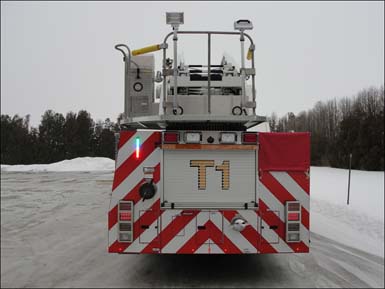

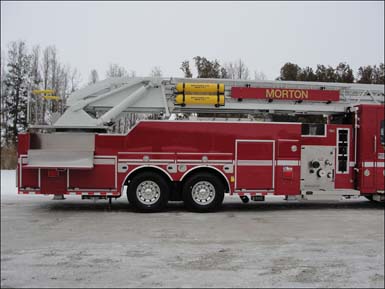

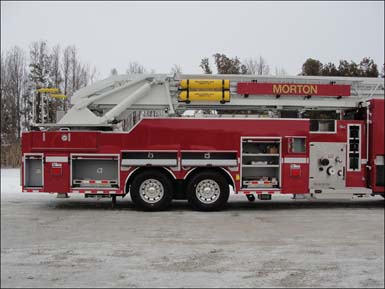

• 101-Foot 3-Section Rear Mount Platform

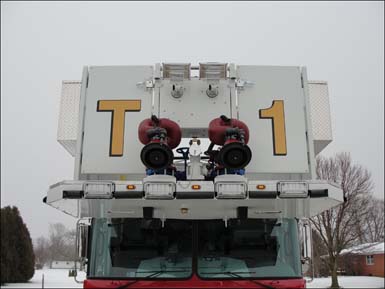

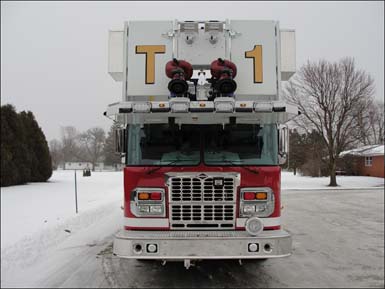

• Akron Remote controlled Electric Monitors at end of platform
• Breathing Air system to end of platform
• 450-gallon Poly Tank

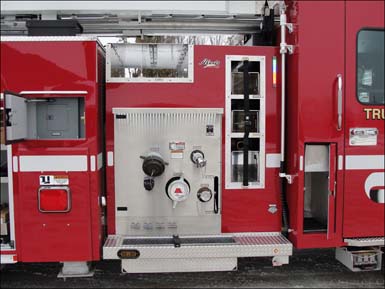

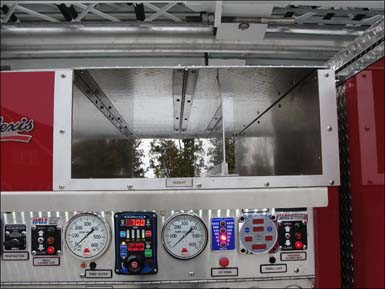

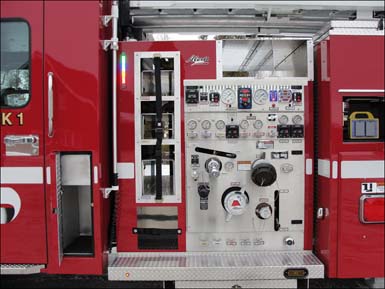

• Hale QMAX 200, 2000-GPM Pump
• Two (2) 2 ½” Discharges, one (1) each side
• Three (3) 4” Discharges, one (1) each side and one (1) rear
• Two (2) 2 ½” Gated Suction, one (1) each side
• One (1) 2 ½” and two 1 ¾” Cartridge Lay Preconnects

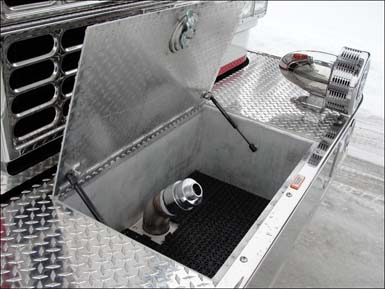

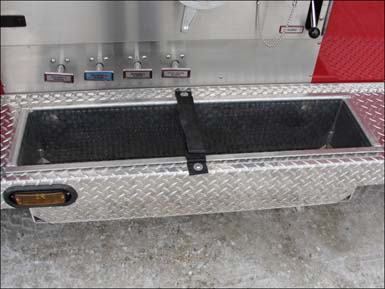

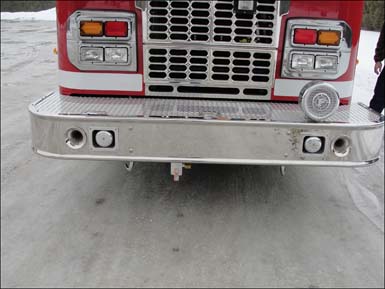

• One (1) 2 ½” Preconnect, front bumper extension
• One (1) Mattydale deadlay for 400-ft of 3” hose

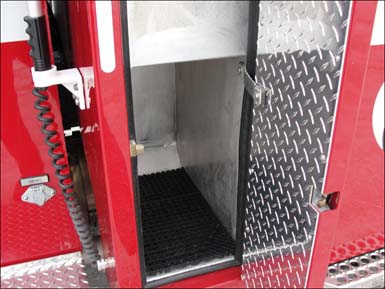

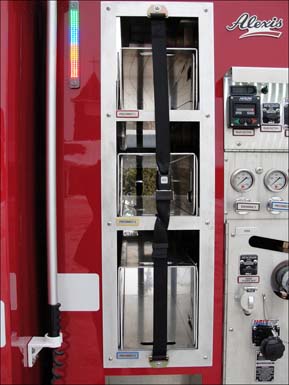

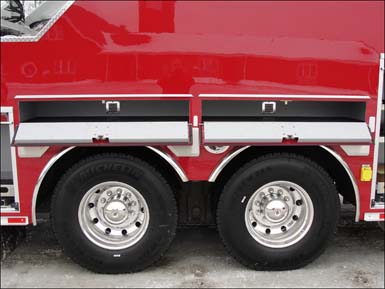

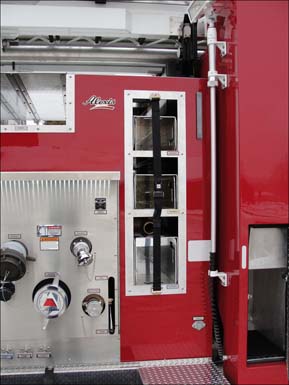

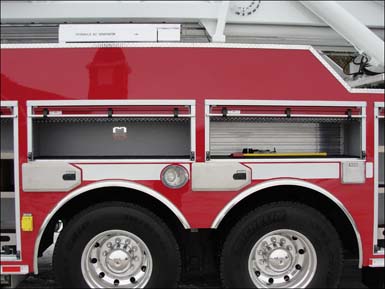

• Three (3) single and two (2) Dual Air bottle compartments, wheel wells

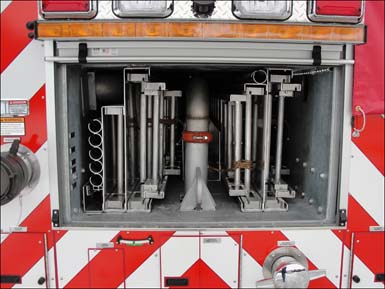

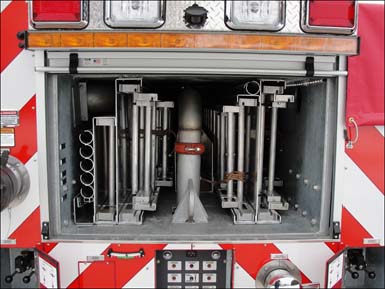

• Ladder, pike pole and backboard storage with rear access
• Kussmaul 1200 battery charger with air compressor and Auto Eject
• Firecom intercom system
• Two (2) Code-3 12-volt scene lights, one (1) each side of cab
• Three (3) Weldon Scene lights, two (2) rear and one (1) hosebed

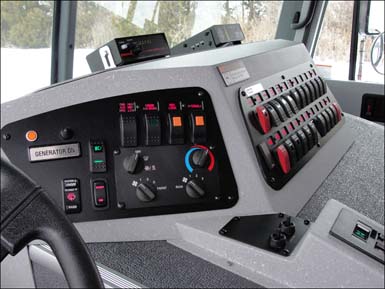

• Smart Power 20-kW hydraulically driven Generator with 120-volt system

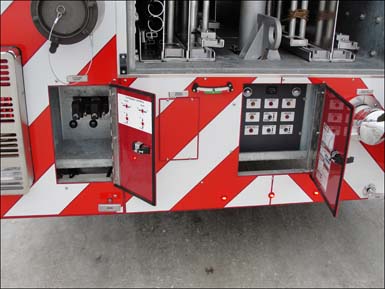

• Two (2) 120-volt outlets, one (1) each side wheel well area
• Two (2) Akron electric cord Reels with 150-ft of 10/3 cord and junction box
• Two (2) Extenda-Lite 120-volt 759-watt telescopic lights, one (1) each side
• Two (2) FRC 120-volt 750-watt scene lights, one (1) each side of cab
• One (1) Federal Q2B mechanical Siren, front bumper
• Code-3 200-watt electronic Siren with two Cast products 100-watt speakers
• Two (2) Air Horns, front bumper
• Code-3 Warning Light package
• 11’ 5” Overall height
• 47’ 3” Overall length
• 263” Wheelbase
• 195.5” Cab to Axle
• 23,000 FAWR
• 60,000 RAWR
• 83,000 GVWR

Year: 2015
Make: Alexis Fire Equipment
Model: Aerial
Body Style: Platform Aerial
Pump Size: 2000
Tank Size: 450
Exterior Color: Red
