HME 80-FOOT THREE SECTION REAR MOUNT AERIAL LADDER #H1006

CITY OF CHARITON FIRE DEPARTMENT - CHARITON, IOWA
  • HME 1871-WxL MFD Flat Roof Chassis
  • Cummins ISL9, 450-HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • Six (6) man cab seating with five (5) SCBA seats
  • Stainless steel Body with Galvanized Sub-Frame

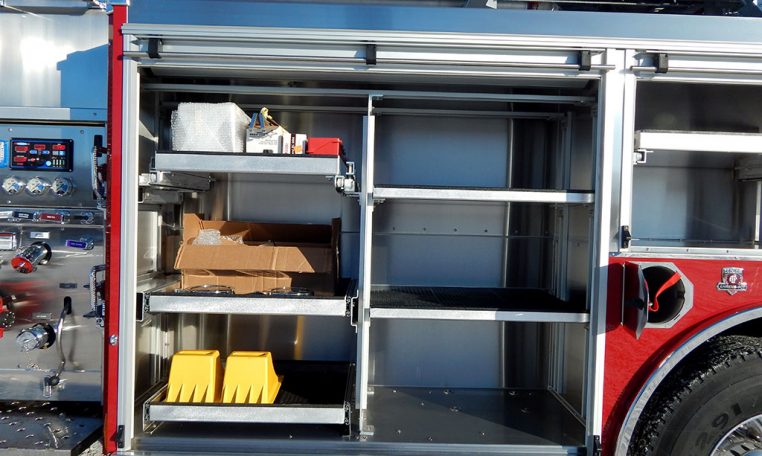

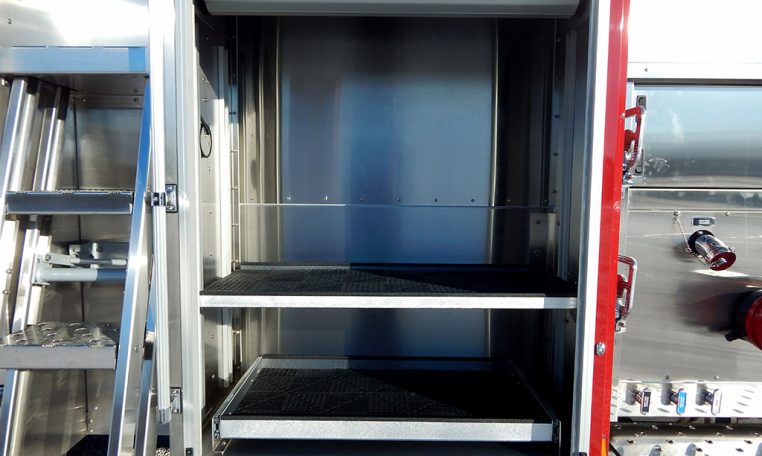

  • Gortite Roll Up Compartment Doors
  • 21” Front bumper extension
  • Aluminum Wheels
  • Four (4) Air bottle compartments, two (2) each side wheel well
  • 400-Gallon Poly Tank
  • Hale Q-MAX 1500-GPM Pump

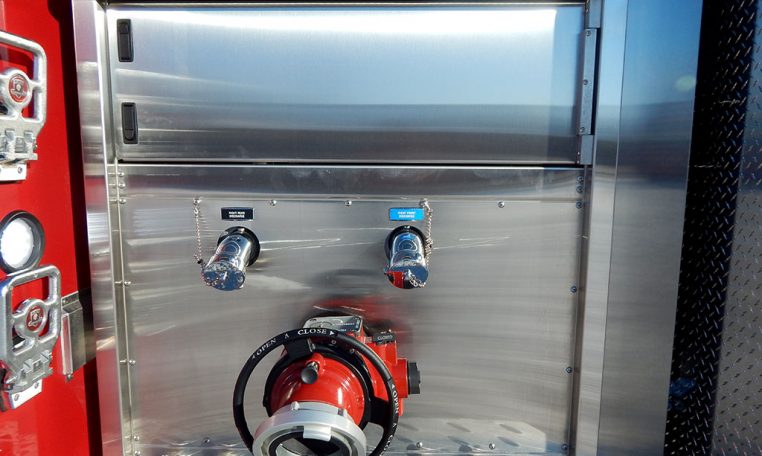

  • Four (4) 2 ½” Discharges, two (2) each side
  • One (1) 4” Aerial Discharge
  • One (1) 2 ½” Gated Suction, left side
  • Two (2) 1 ½” and one (1) 2 ½” Crosslay Preconnects, top of pump module
  • Akron Brass Stream Master Electric Monitor with Akromatic Electric nozzle
  • Ladder storage compartment, aerial torque box rear access
  • Kussmaul Pump Plus on-board battery charger/air compressor
  • Kussmaul Super Auto Eject 120-volt shoreline connection
  • One (1) Audiovox back-up Camera system with 7” color monitor
  • Two (2) Air Horns, front bumper
  • Whelen Electronic Siren with two (2) Cast Products speakers
  • Federal Q2B mechanical siren, front grille
  • Fire Research two -way Intercom system, Aerial tip and turntable
  • Whelen and FRC 12-volt Scene Light packages
  • Whelen LED Warning Light Package
  • Chevron pattern striping, rear
  • 11’ 6” Overall height
  • 38’ 4” Overall length
  • 220” Wheelbase
  • 160” Cab to Axle
  • 21,500 FAWR
  • 33,000 RAWR
  • 54,500 GVWR
Year: 2017
Make: HME
Model: Aerial
Chassis: Custom
Body Style: Ladder Aerial
Pump Size: 1500
Tank Size: 400
Feature: Exterior Mount Ladder
Exterior Color: Red
New Delivery: New Delivery
