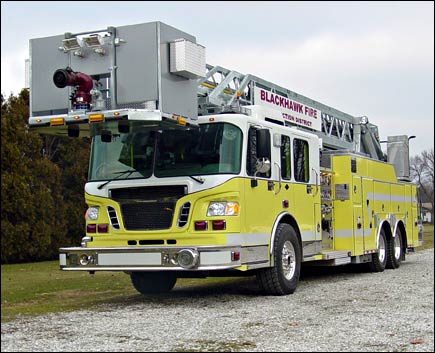

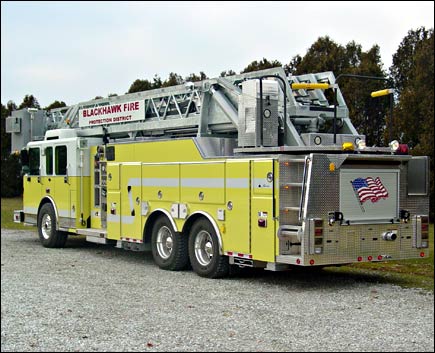

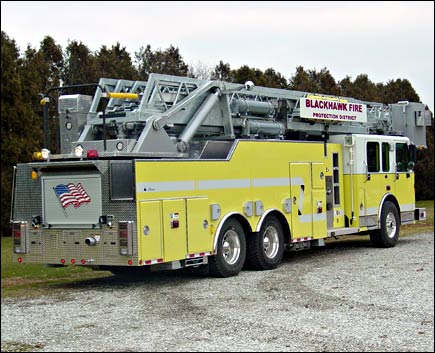

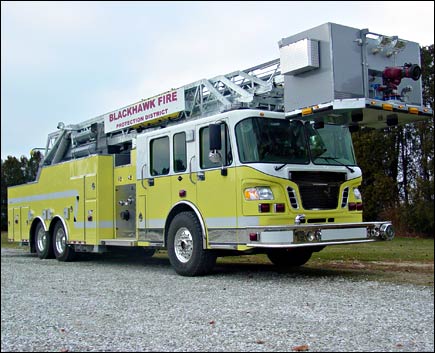

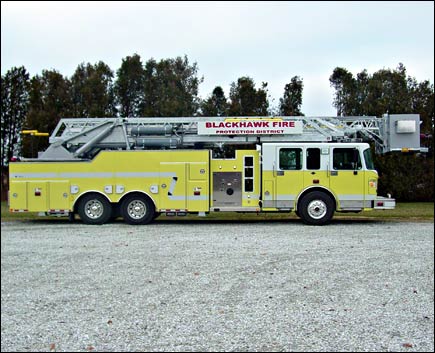

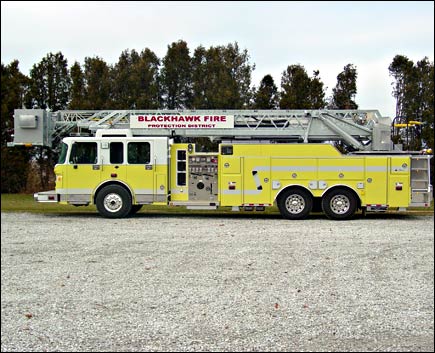

104′ AERIAL PLATFORM #1934

Blackhawk Fire Protection District - Milan, IL

• Spartan Gladiator LFD Chassis
• Detroit 60 Series 515 HP Diesel Engine
• Allison 4000 EVP Automatic Transmission
• 300 Gallon UPF Poly Tank IIE
• Hale QMAX 200-23S 2000 gpm Pump
• One (1) 2½”Mattydale Deadlay Hosebed
• Two (2) 1½” Cartridge Lay Preconnects
• One (1) 2½” Cartridge Lay Preconnect

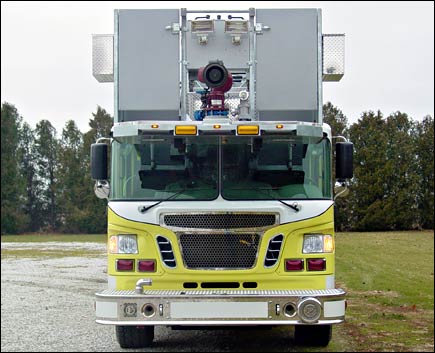

• 2000 gpm nozzle at the tip of the ladder
• One (1) 2½” Preconnect in bumper extension
• One (1) 4″ direct waterway below rear compartment

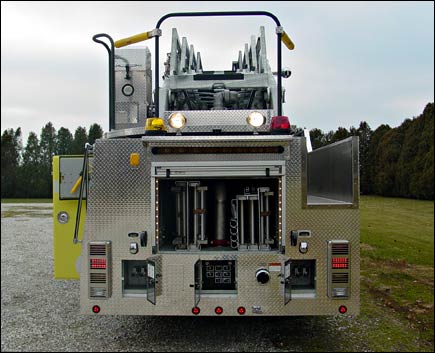

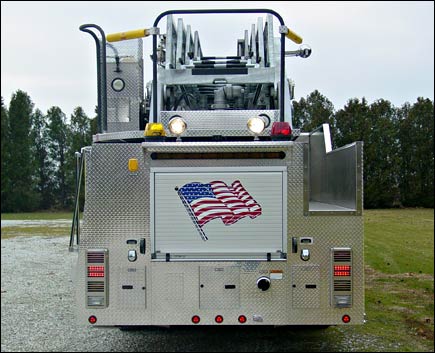

• Rear outrigger controls
• Ladder turntable access steps on left side
• 6000 PSI Breathing air bottles mounted two (2) on right side of base section

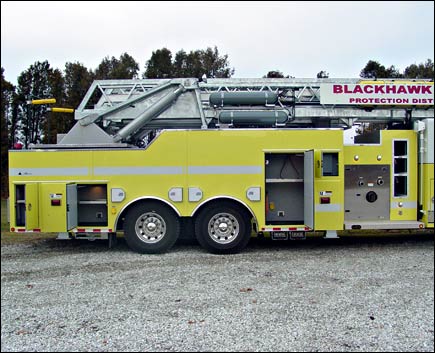

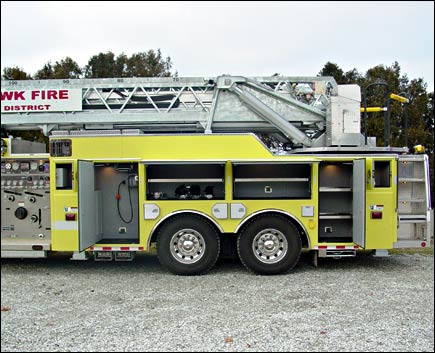

• Seven (7) air bottle compartments in the wheel well assemblies

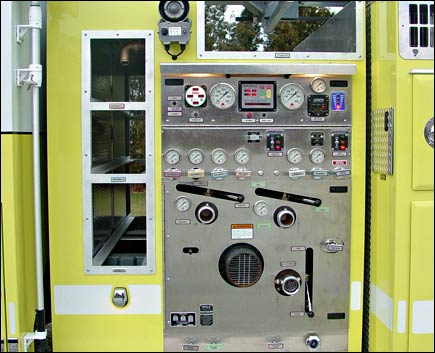

• Side Control Pump Operator’s Panel
• Ladder and pike pole storage at the rear in the torque box
• Side stack hosebed on passenger side
• Whelen LED NFPA Warning Light Package
• Rear Camera
• Onan 10kw Hydraulic Generator with two (2) 500 Watt Telescopic Lights
• 11′-8″ Overall Height
• 44′-8″ Overall Length
• 254″ WB
• 186.5″ CA
• 21,500 FAWR
• 54,000 RAWR
• 75,500 GVWR

Year: 2012
Make: Alexis Fire Equipment
Model: Aerial
Body Style: Platform Aerial
Pump Size: 2000
Tank Size: 300
Exterior Color: Yellow
