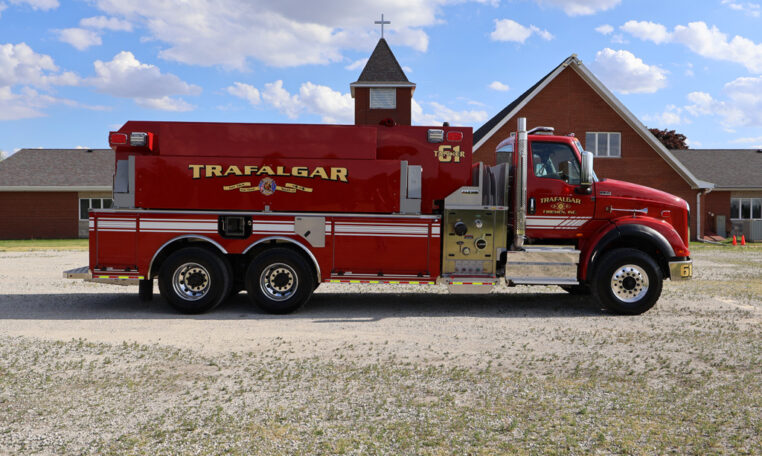

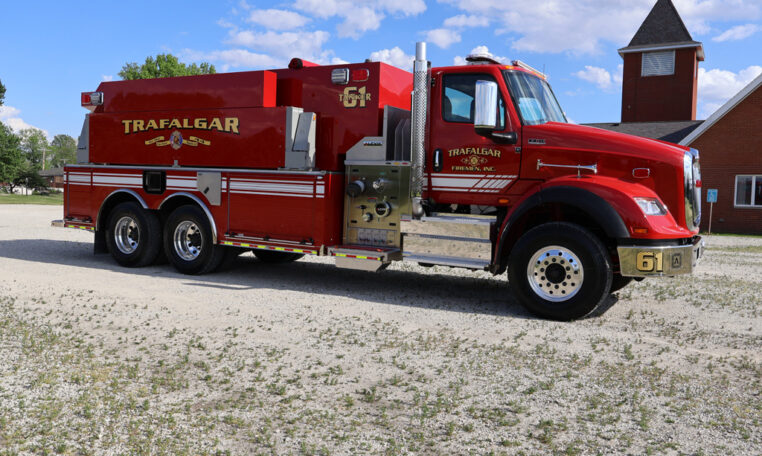

Delivered Apparatus

FEATURES:

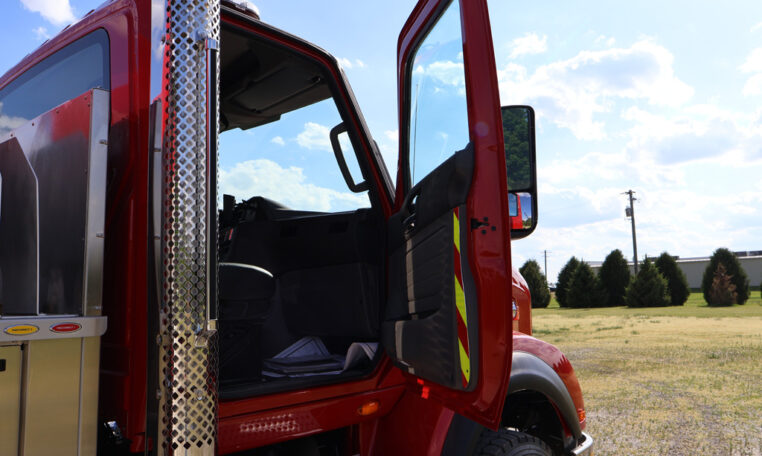

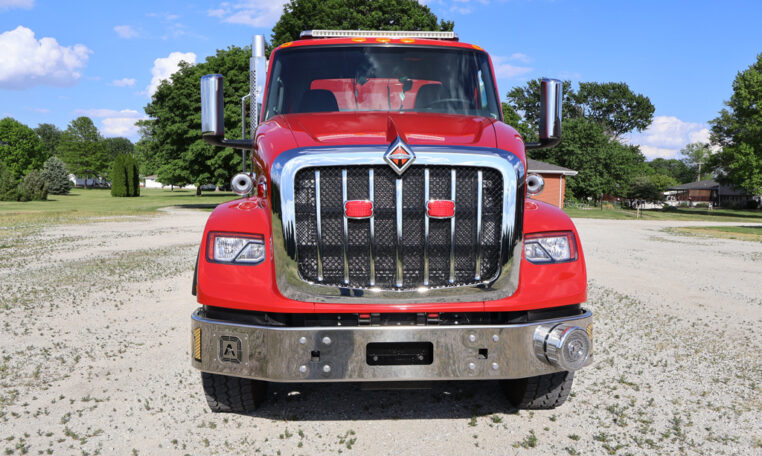

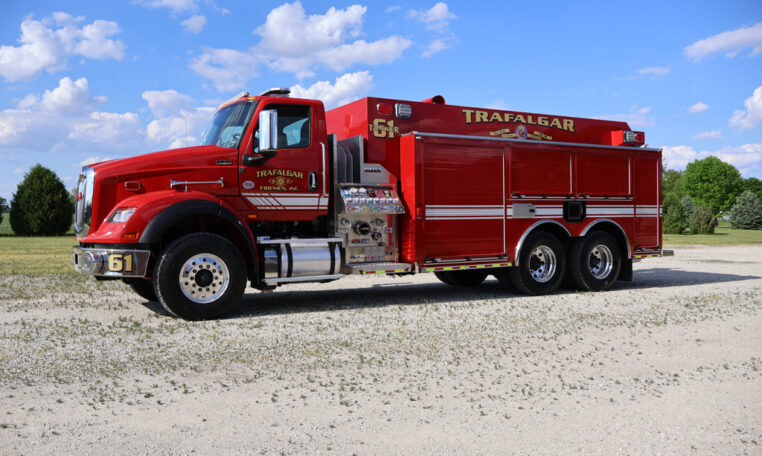

• International HX620 2-Door Cab Chassis
• Cummins 500 HP X15 Engine
• Allison 4500 EVS Automatic Transmission
• Heavy Duty Stainless Steel Body and Stainless Steel Subframe

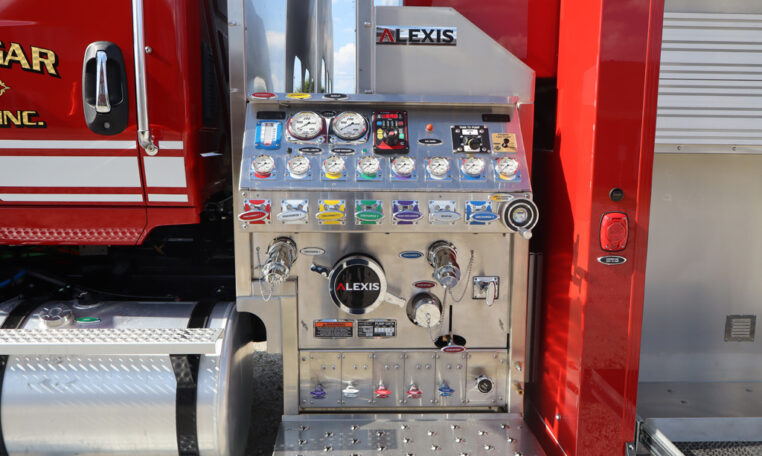

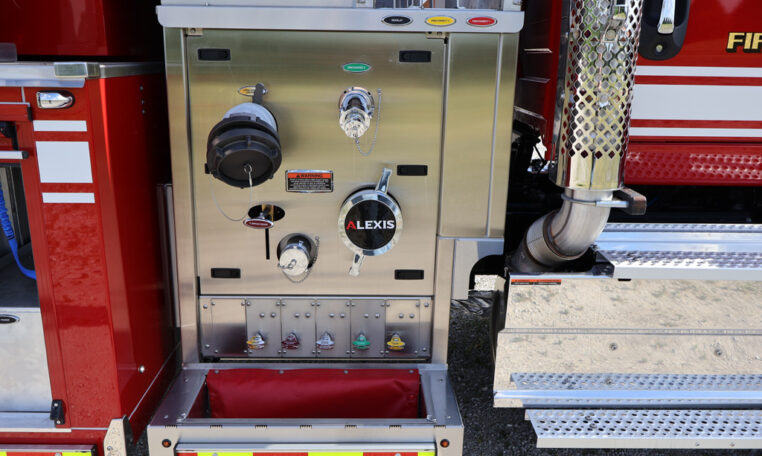

• Intermediate Stainless Pump Module with Stainless Steel Subframe

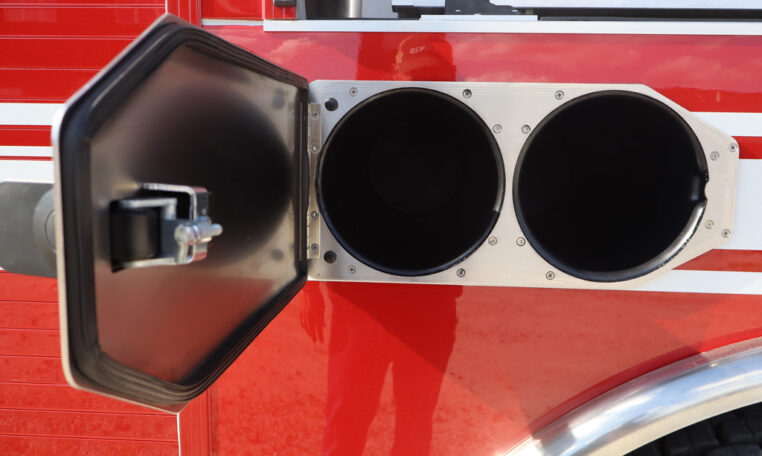

• Free Floating Hose Well for 25’ of 5” Hose, Right Side
• Waterous CXVC20 1500 GPM Single Stage Pump
• Trident Air Prime System
• FRC Pump Boss Pressure Governor
• FRC TankVision Water Tank Level Gauge with Three (3) Whelen PSTANK Strip Lites
• Two (2) 6” Intakes, One (1) Each Side
• Two (2) 2½” Gated Intakes, One (1) Each Side
• Two (2) 2½” Discharges, Left Side and One (1) 2½” Discharge, Right Side
• One (1) 2½” Discharge, Rear Left Side
• One (1) 4” Discharge Adapted to 5” Storz, Right Side
• One (1) 3” Discharge Dunnage Area with Elkhart Stinger Deck Gun and TFT Extenda-Gun
• One (1) 1½” and One (1) 2½” Mattydale Preconnects with One (1) Deadlay Hose Bed
• One (1) Booster Reel Rear Below Dump with 100’ of 1” Booster Hose

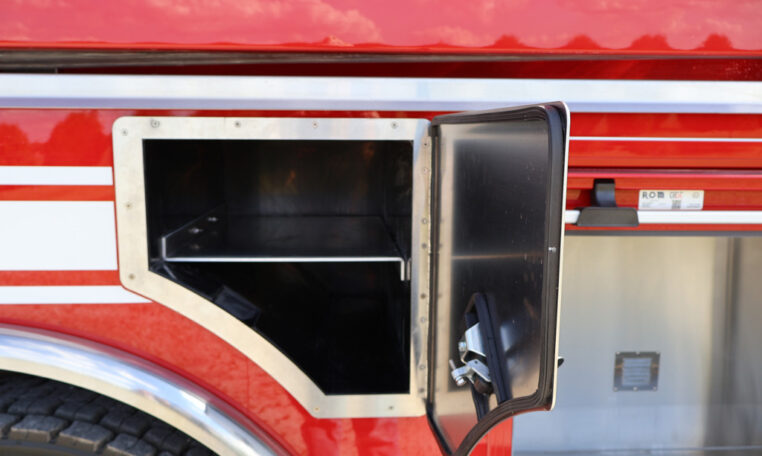

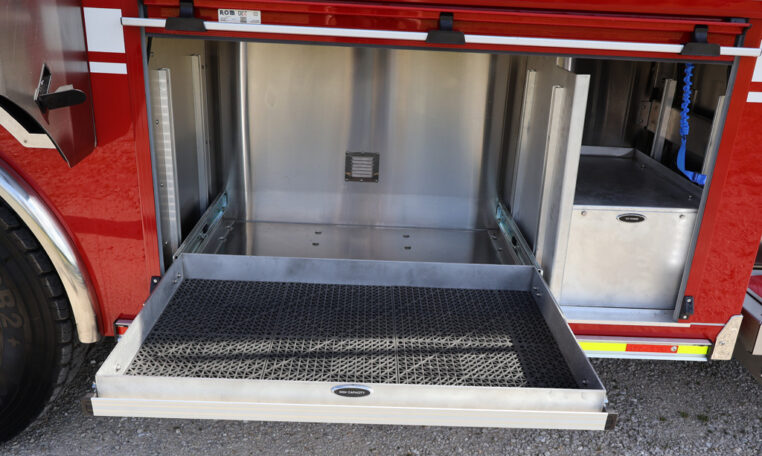

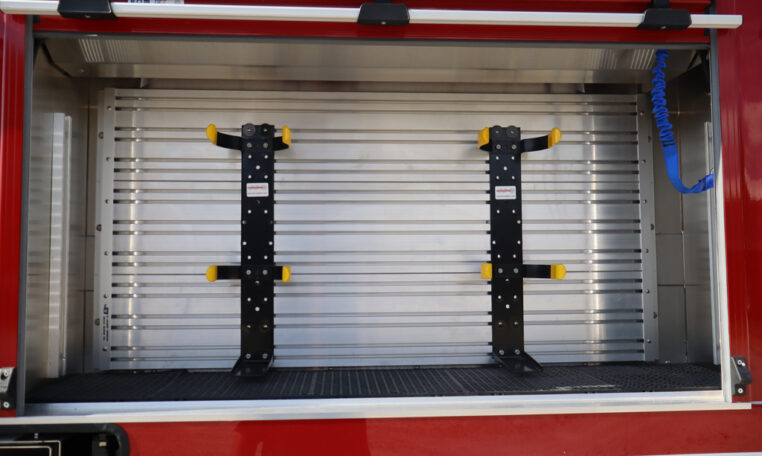

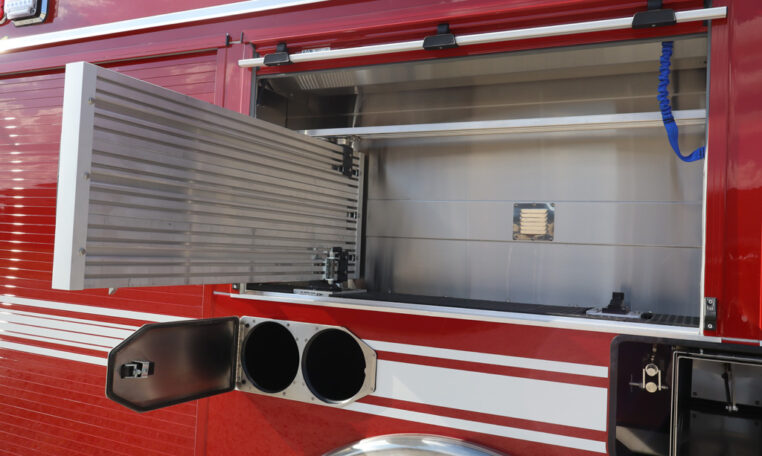

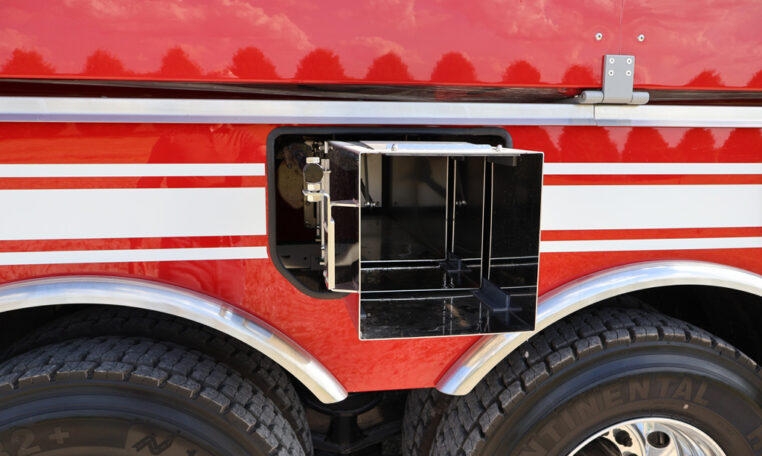

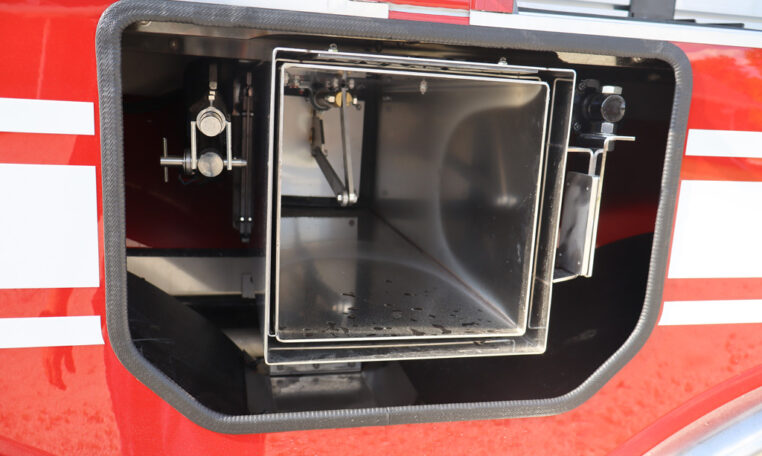

• One (1) Dual Air Bottle Wheel Well Compartment
• One (1) Fire Extinguisher Wheel Well Compartment
• ROM Painted Roll Up Doors

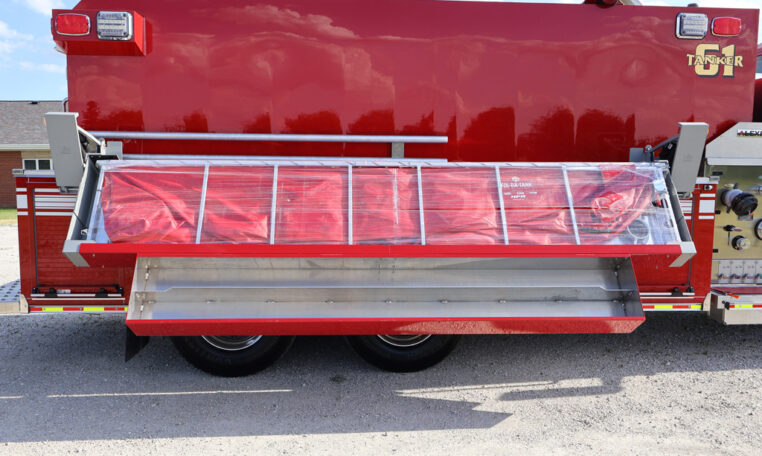

• Zico Hydraulic Folding Tank Bracket, Right Side

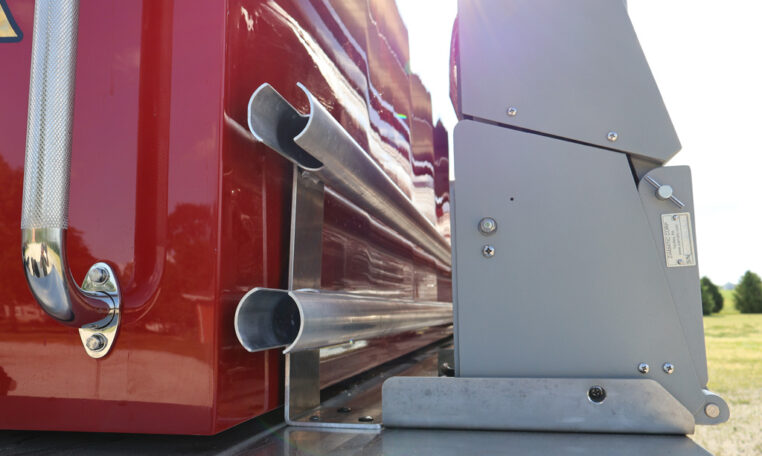

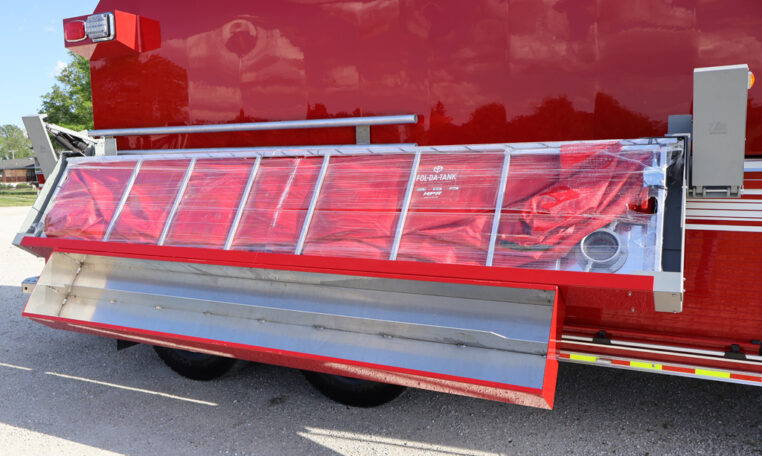

• Suction Hose Storage, Right Side on Fol-Da-Tank Rack

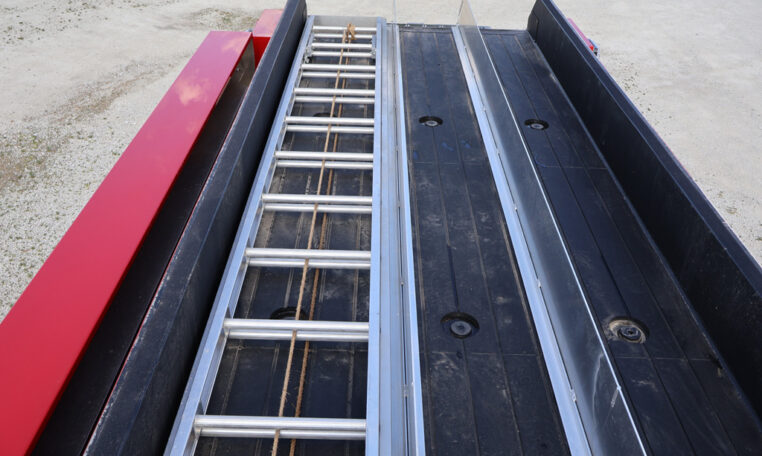

• Ladder Storage in Hose Bed, Right Side

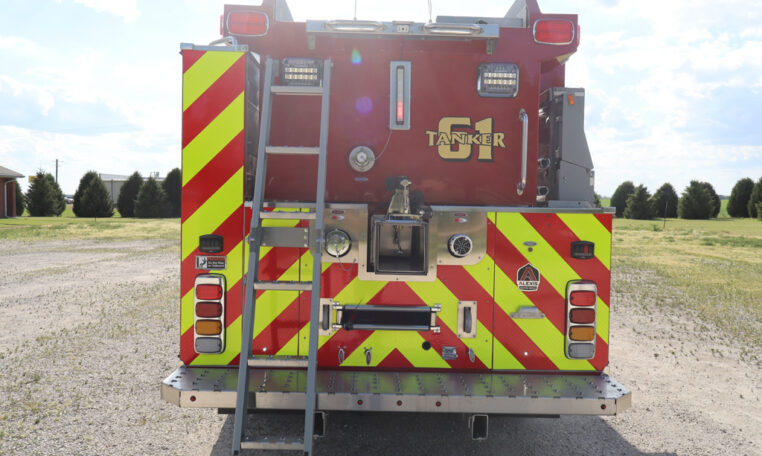

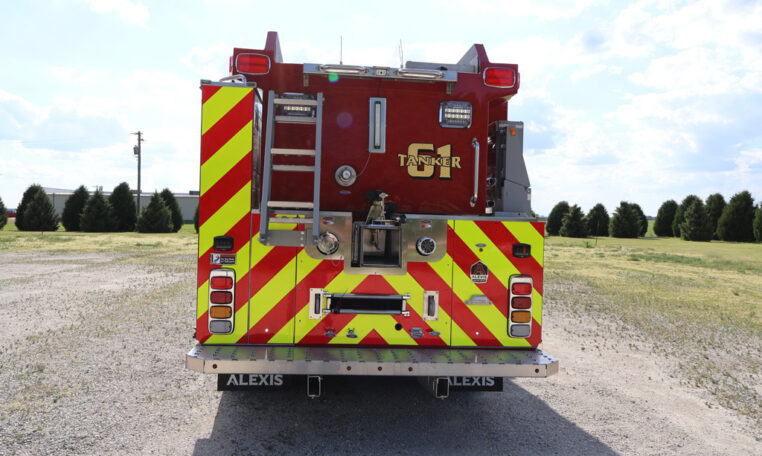

• Stainless Steel Rear Access Ladder with Flip Down Step, Left Side

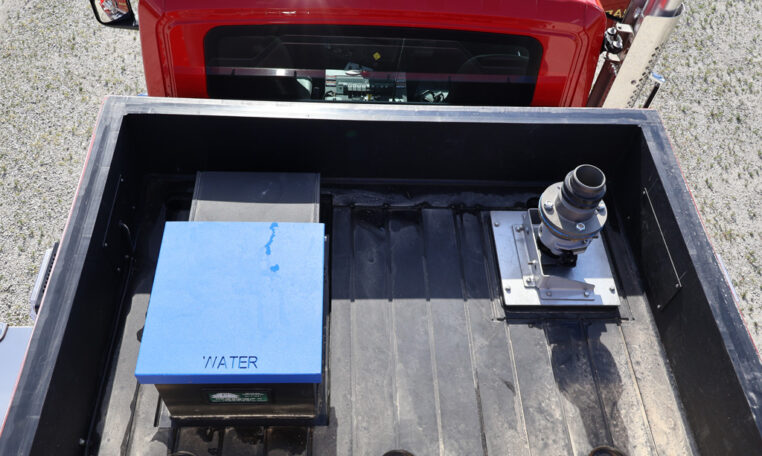

• 3000 Gallon Poly Wetside Tank with Wetside Hose Bed & Front Fill Tower
• One (1) 2½” FirePrograms Tank Fill, Rear Right Side
• One (1) 4” Butterfly Valve Tank Fill with 5” Storz Elbow, Rear Left Side

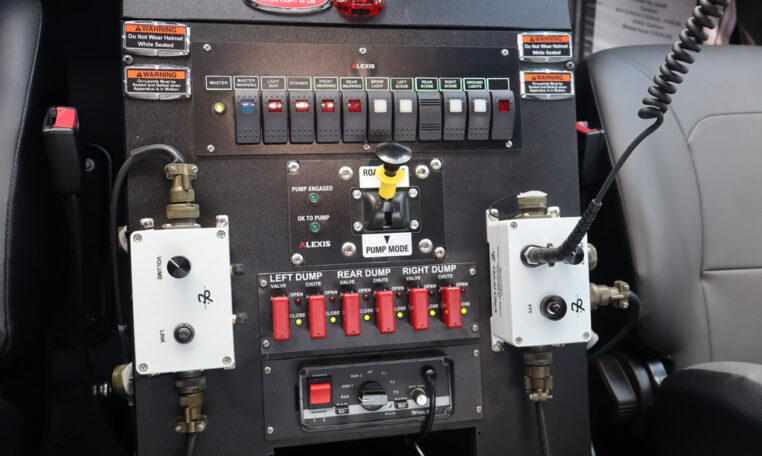

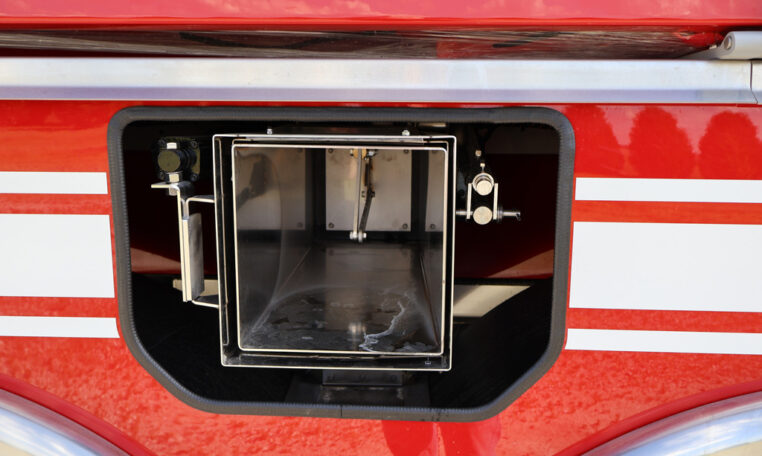

• Three (3) 10” Newton Stainless Steel Electric Dumps with 18” Electric Extensions, One (1) Each Side and One (1) Rear
• 12 Volt Electrical System with NFPA Compliant Warning Light Package
• Progressive Dynamics Battery Charger with Viair Compressor, L1 Compartment
• Kussmaul 20 Amp Super Auto-Eject 120V Shoreline Connection, Left Front Body Post
• Whelen LED Warning Lights
• Whelen 200W Siren and 100W Speaker
• Federal Q2B Siren
• Six (6) FireTech HiViz Guardian GESM LEF Scene Lights, Two (2) Each Side and Two (2) Rear
• One (1) Firetech HiViz 46” LED Brow Light
• One (1) 24’ 2-Section Ladder, Two (2) 10’ Lengths of 6” Suction Hose and One (1) 3000 Gallon Fol-Da-Tank
• 10’-1” Overall Height
• 33’-3” Overall Length
• 240” Wheelbase
• 170.90” Cab to Axle
• 18,000 FAWR
• 46,000 RAWR
• 64,000 GVWR
