3000-GALLON ELLIPTICAL TANKER #2325

BELLEGROVE FIRE COMPANY - ANNVILLE, PENNSYLVANIA

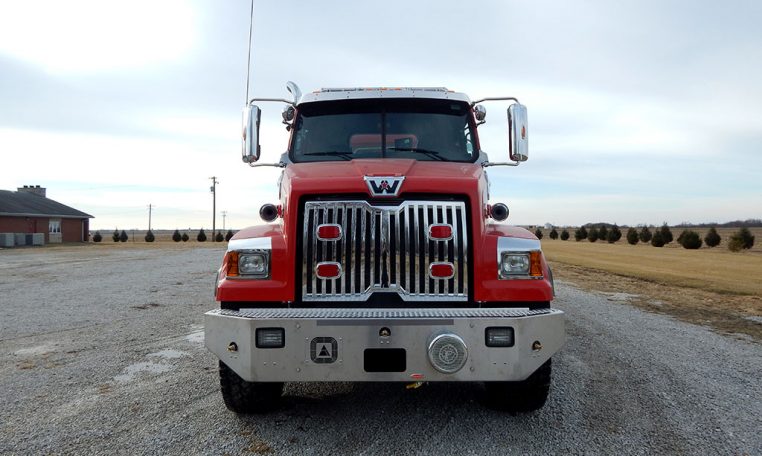

  • Western Star 4700SF 2-Door Chassis
  • Detroit DD13, 450-HP Diesel Engine
  • Allison 4500 EVS Automatic Transmission
  • On Spot Automatic Tire chains
  • Stainless steel body and sub-frame

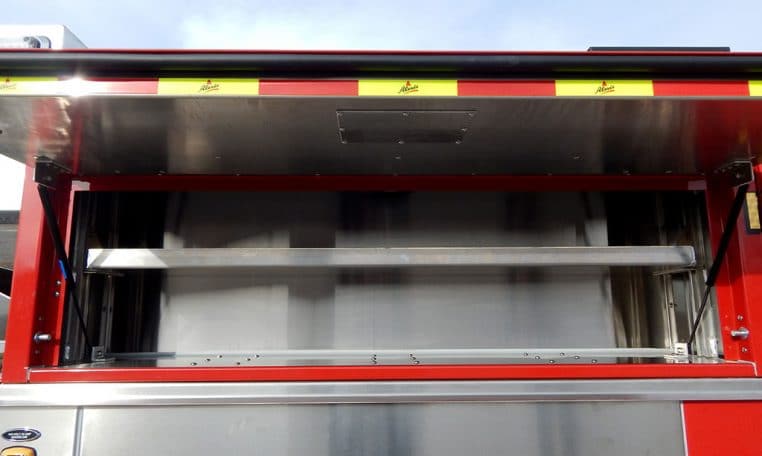

  • ROM Roll Up Doors
  • 3000-Gallon Elliptical Poly Tank with stainless steel jacket
  • Two (2) 2 ½” ball valve Tank fills, rear
  • Three (3) Newton 10” square electric dumps with 18” electric dump extensions
  • Free floating hose well, left side running board
  • Three (3) Electrically controlled spray booms, one (1) each side and center
  • Waterous CX, 1000-GPM Pump with left intermediate pump operator’s panel
  • Four (4) 2 ½” Discharges, two (2) each side
  • One (1) 2 ½” Gated Suction, left side
  • Two (2) 1 ½” Mattydale Preconnects, behind cab
  • One (1) Triple bottle Air bottle compartment, left side wheel well
  • Three (3) Wheel well storage compartments, two (2) right and one (1) left side
  • Ziamatic Hydraulic Folding Tank bracket for 3000-gallon folding tank
  • Suction hose storage compartment, left side with rear access
  • Progressive Dynamics on-board battery charger with Viair air compressor
  • Kussmaul Super Auto Eject 120-volt shoreline connection
  • Audiovox Back-up Camera system with 7” color monitor
  • Floor mounted console for emergency switches, cab
  • Two (2) Air Horns, one (1) each side of cab hood
  • Federal Q2B mechanical Siren, front bumper
  • Whelen Electronic Siren with Whelen 100-watt speaker
  • Six (6) Whelen LED Scene lights, two (2) each side and two (2) rear
  • Code 3 Upper and Whelen Lower LED Warning Light Packages
  • Diamond Grade Chevron pattern striping, rear
  • 11’ 6” Overall height
  • 32’ 7” Overall length
  • 252” Wheelbase
  • 171” Cab to Axle
  • 18,000 FAWR
  • 46,000 RAWR
  • 64,000 GVWR
Year: 2018
Make: Alexis Fire Equipment
Model: Tanker
Chassis: Commercial
Body Style: Elliptical Tanker
Pump Size: 1000
Tank Size: 3000
Exterior Color: Red
New Delivery: New Delivery
