12-FOOT RESPONSE ONE #RE523

BOONE COUNTY FIRE PROTECTION DISTRICT #1 - CAPRON, ILLINOIS

• Ford 2006 F-550 Supercab Chassis, customer supplied
• Ford Powerstroke 325-HP Diesel Engine
• Allison Automatic Transmission
• Heavy Duty Stainless Steel Body and Sub-frame

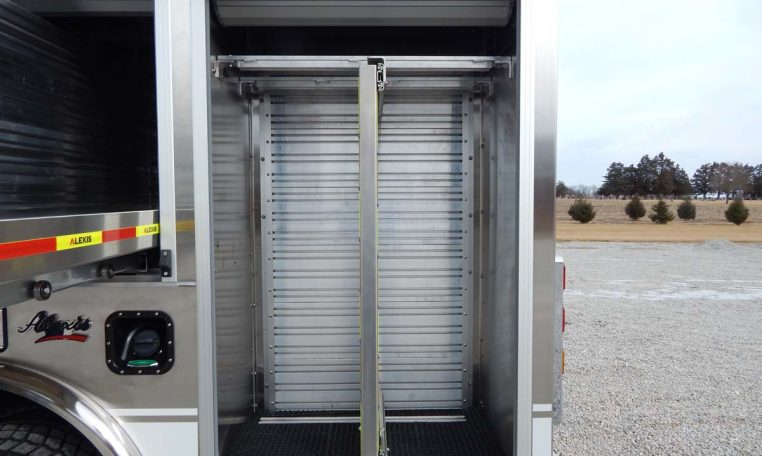

• ROM Roll Up Doors
• Front and Rear Reese type hitch/winch receivers with electrical connections
• Stokes Basket/backboard storage rack, front transverse compartment
• One (1) 1000-lb Transverse Roll Out tray with vertical tool boards
• One (1) Vertical pull-out Tool board, left side compartment
• Four (4) bottle 4500-PSI Cascade System with control panel
• Permanently mounted bottle rack for six (6) bottles, right side compartment
• Turtle tile on floors and/or shelves and trays of compartments
• Progressive Dynamics on-board battery charger
• Kussmaul Super Auto Eject 120-volt shoreline connection
• Wil-Burt Night Scan Chief 12-volt light tower with four (4) Whelen LED lights
• Whelen Scene Light Package
• Whelen LED Warning Light Package
• Chevron pattern striping, rear
• 8’ 10” Overall height
• 25’ 4” Overall length
• 200.2” Wheelbase
• 84” Cab to Axle
• 7,000 FAWR
• 13,660 RAWR
• 17,950 GVWR

Make: Alexis Fire Equipment
Model: Response One
Chassis: Ford F550
Body Style: Response One
Exterior Color: Red
New Delivery: New Delivery
