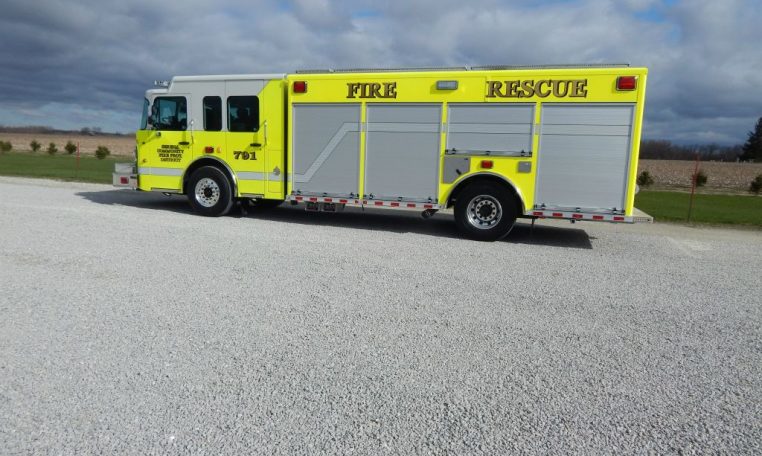

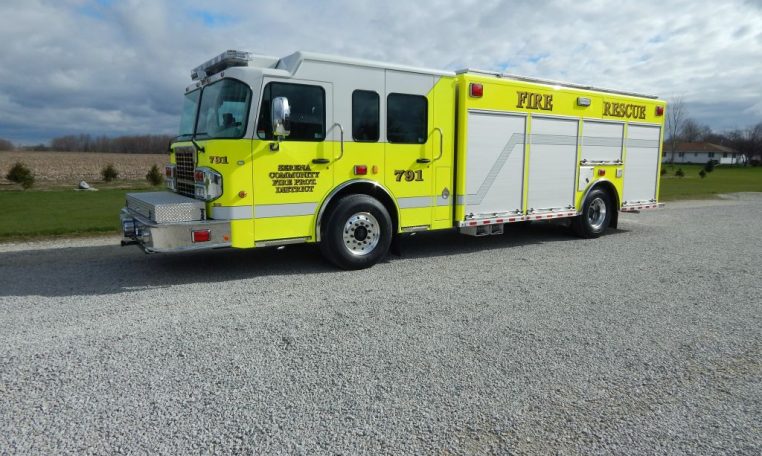

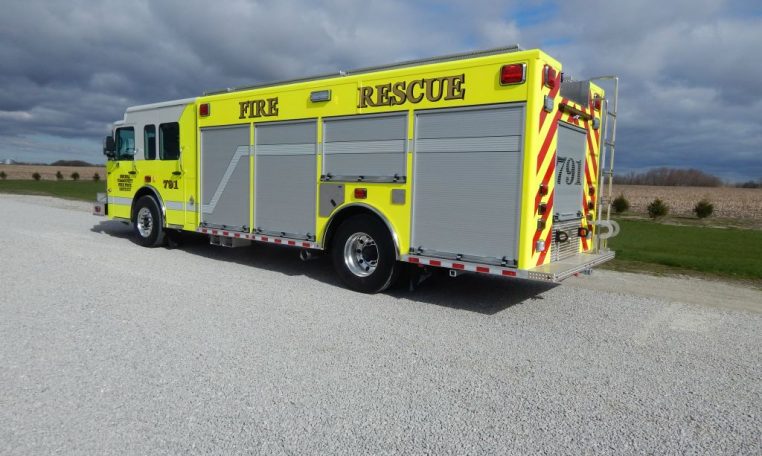

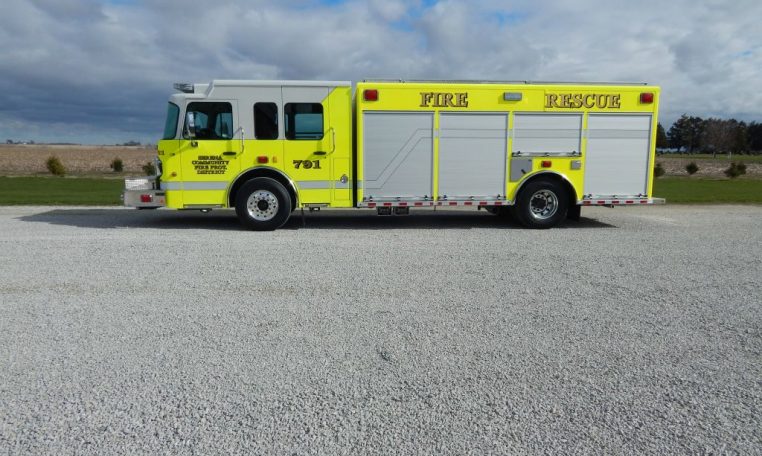

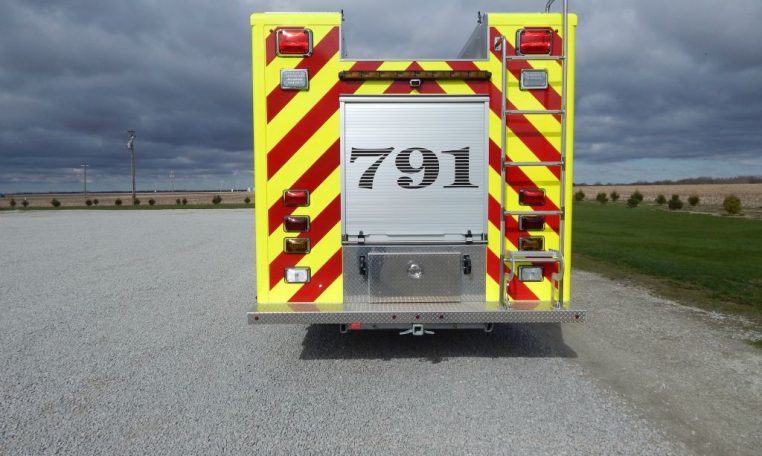

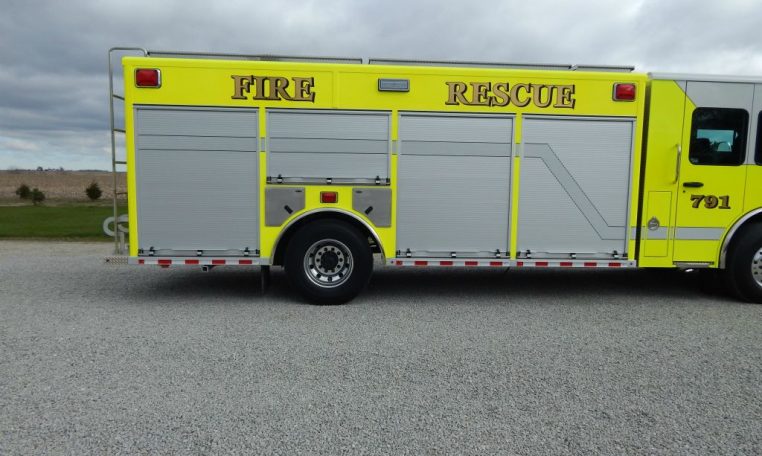

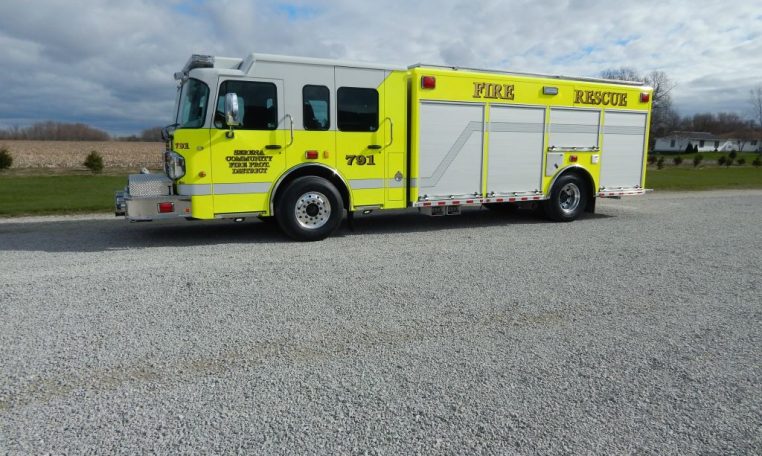

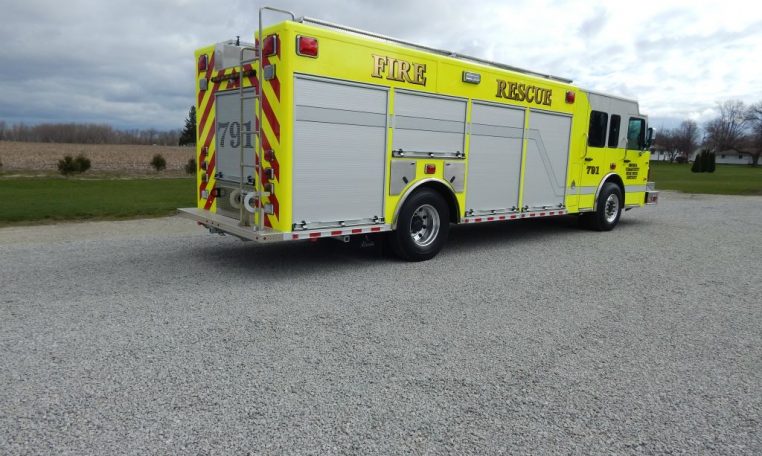

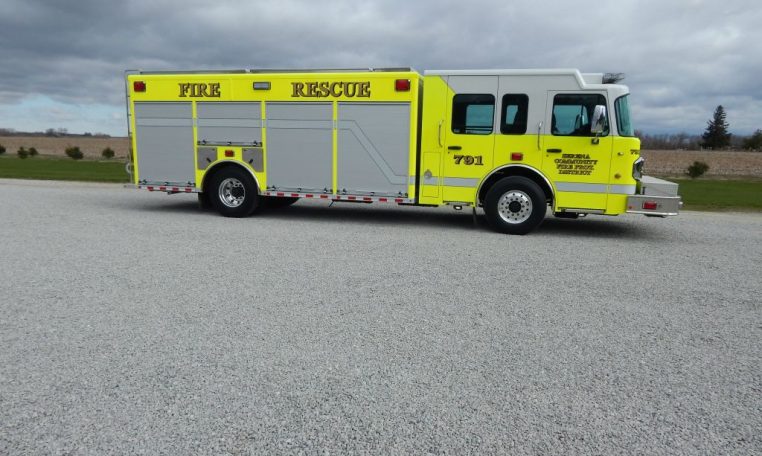

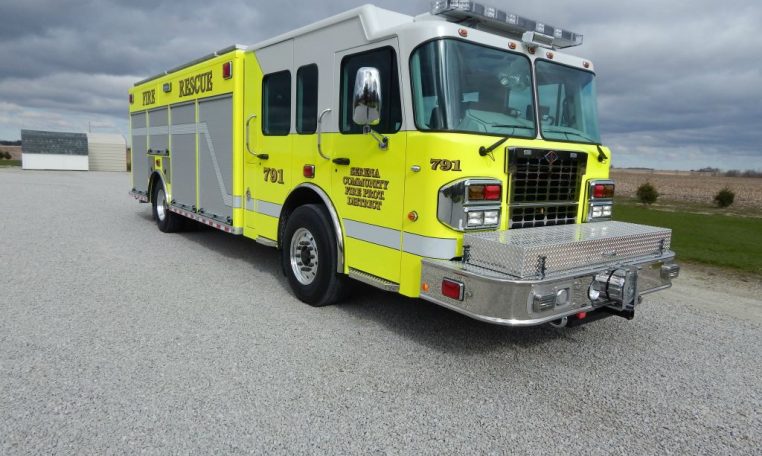

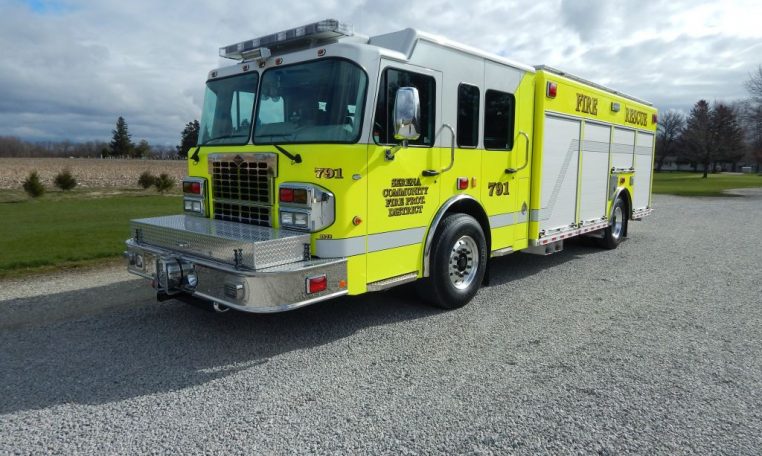

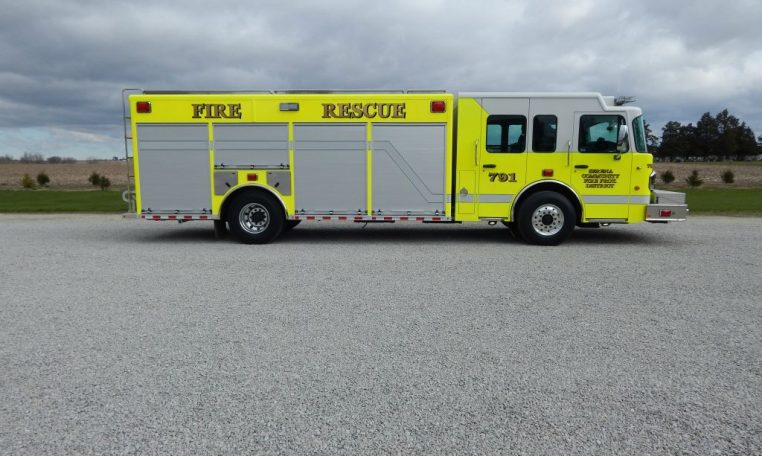

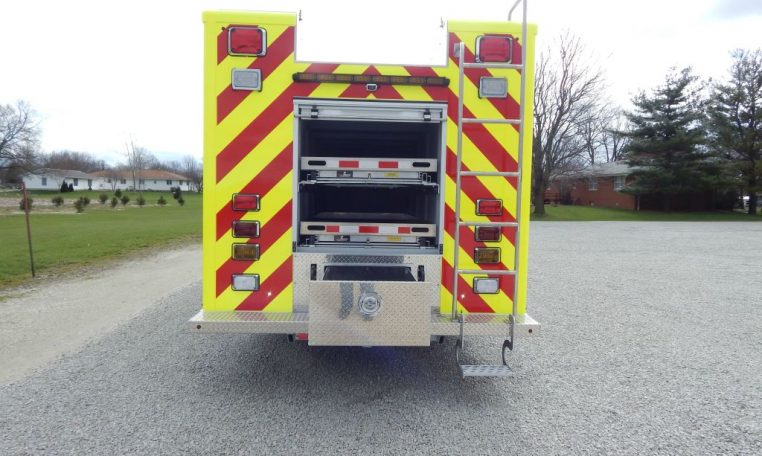

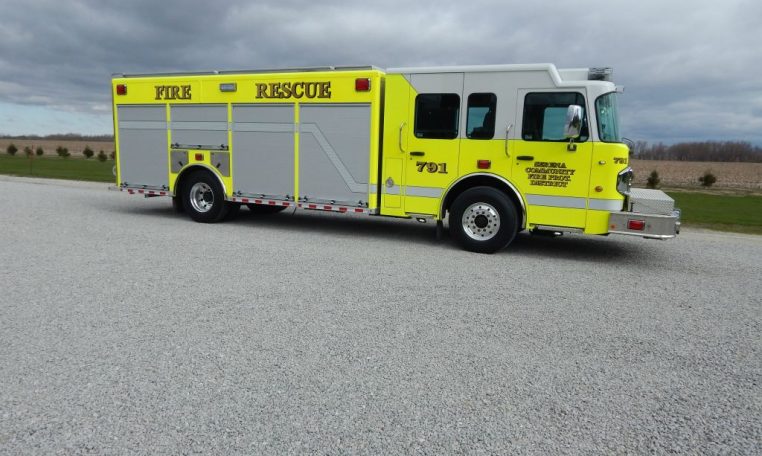

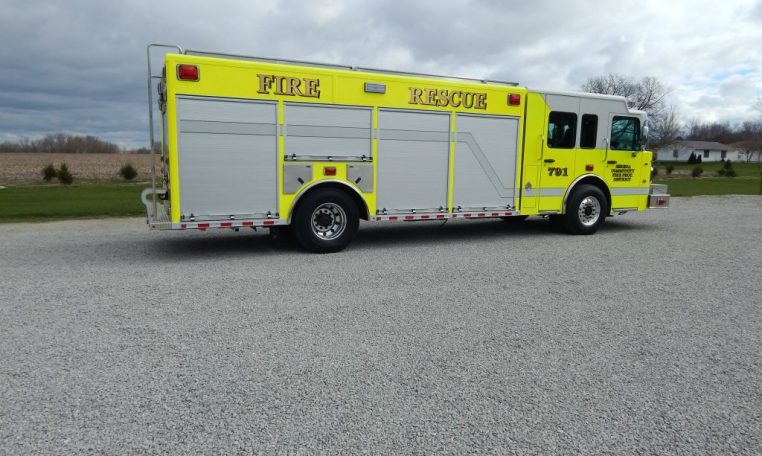

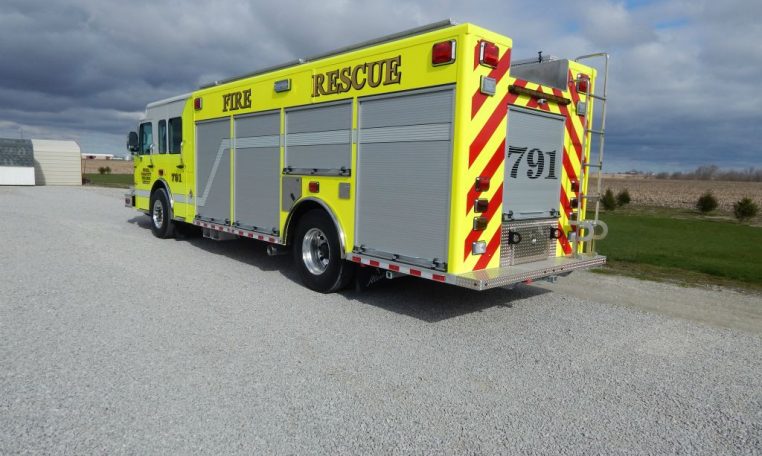

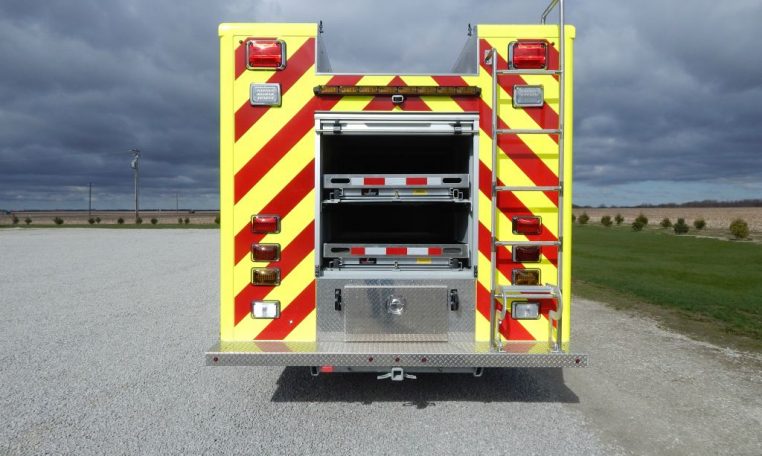

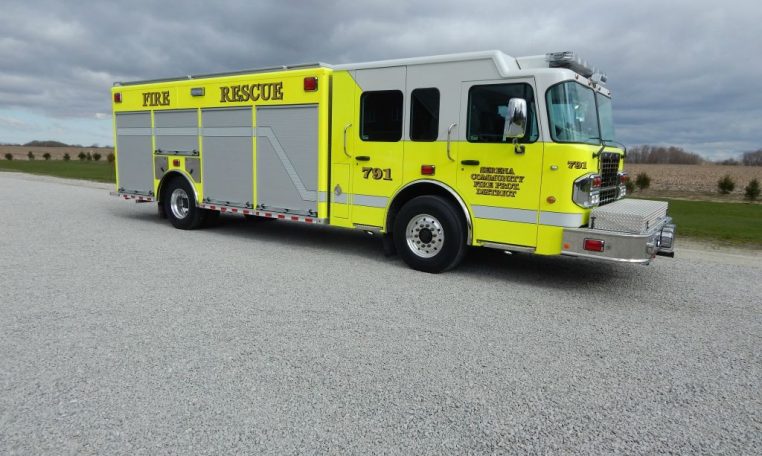

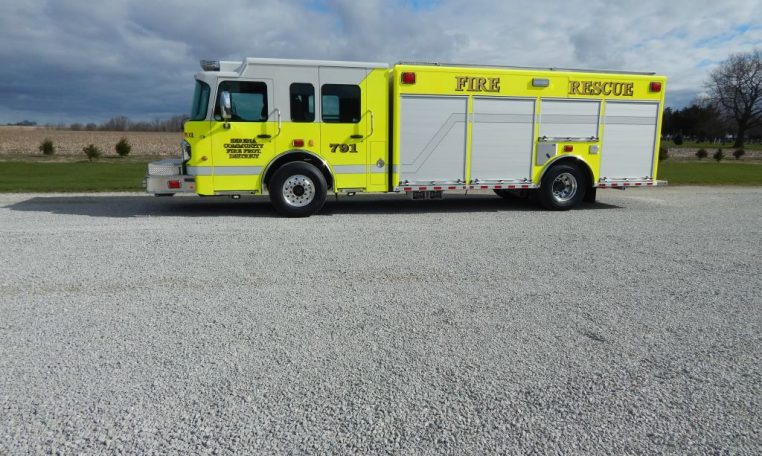

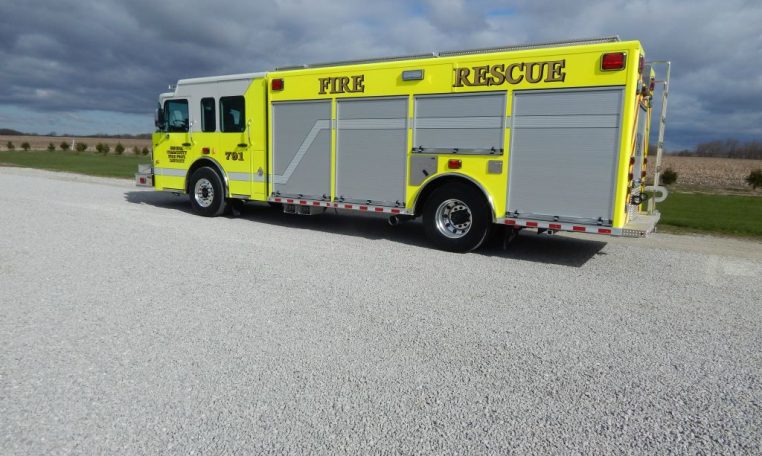

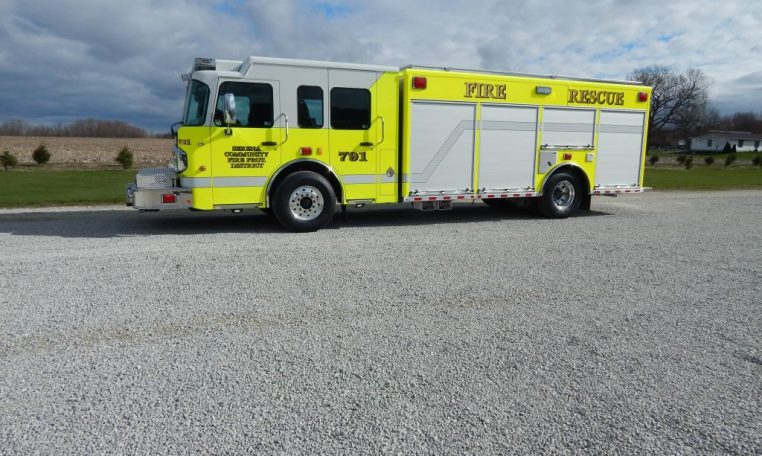

20-FOOT HEAVY RESCUE #S731

SERENA COMMUNITY FIRE PROTECTION DISTRICT - SERENA, ILLINOIS

• Spartan Metro Star LFD with 10″ raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Seven (7) man cab seating with six (6) SCBA seats

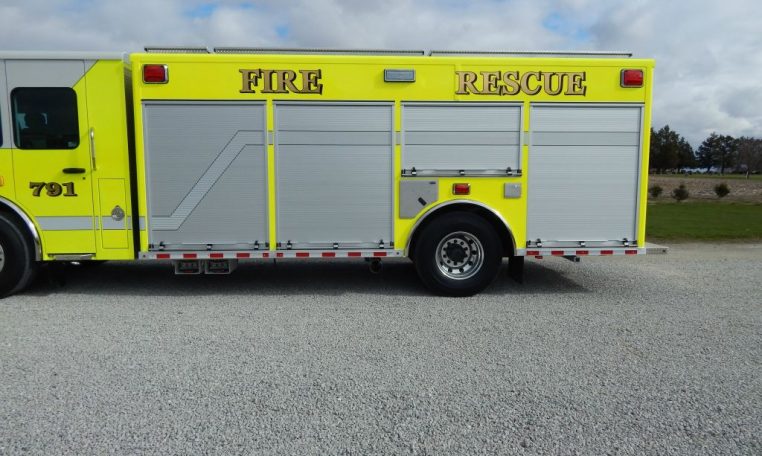

• Heavy Duty 3/16″ Aluminum Body with Amdor Roll Up Doors

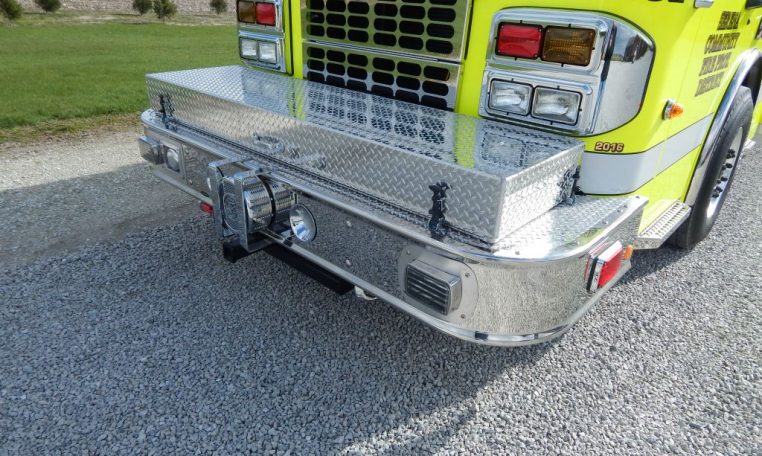

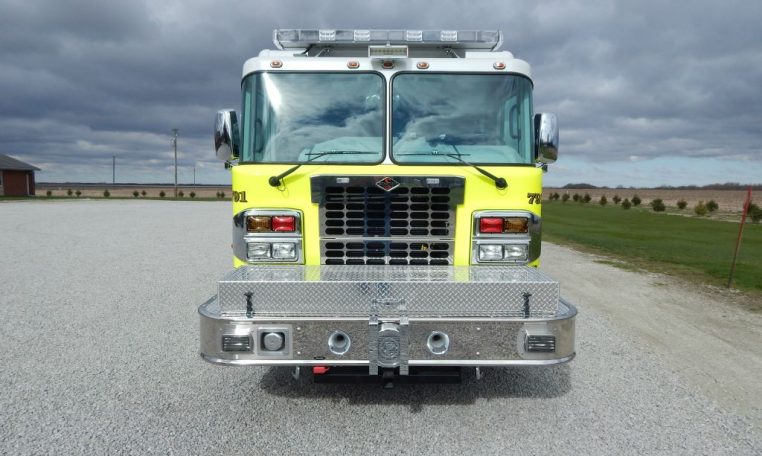

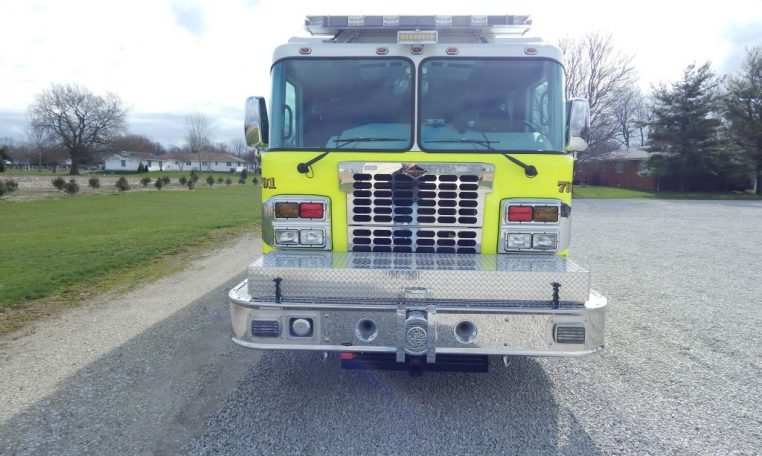

• 28″ Front Bumper extension with Preconnected extrication tools
• Front and Rear Winch/Trailer hitches with electrical connections
• Two (2) Winch Points, one (1) each side behind rear wheels

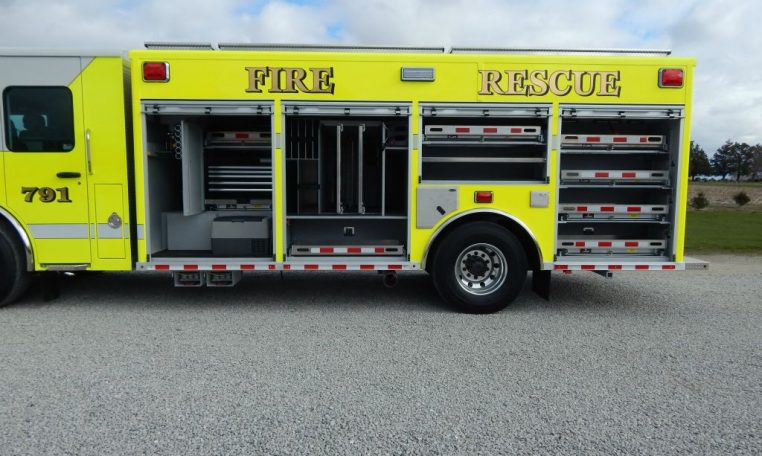

• EMS compartment with shelves, LED lighting and retention webbing, cab
• Three (3) Fire Extinguisher compartments, two (2) right and one (1) left side
• Four (4) Upper storage compartments with Top Access ladder, rear mounted
• One (1) Oil Dry Hopper with upper fill access
• One (1) Backboard storage rack for four (4) backboards
• One (1) Stokes Basket storage rack and Little Giant ladder storage
• Two (2) Vertical pull out tool boards,
• Air Bag Rack for five (5) air bags, right side
• Four (4) bottle 6000-PSI Cascade system and Spacesaver two (2) cylinder fill

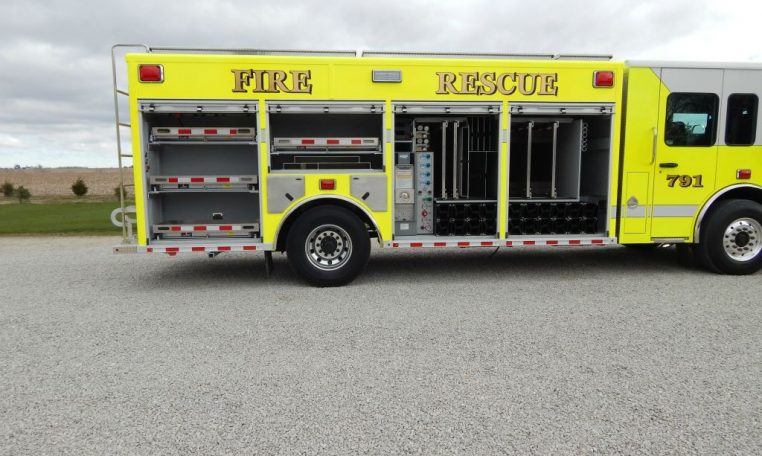

• Air bottle storage rack for twenty (20) bottles, right side
• One (1) Norcold chest type AC/DC Refrigerator
• Four (4) CMW Rescue Reels, two (2) Hydraulic and two (2) Electric/Hydraulic
• Two (2) CMW Air hose Reels with 200-ft of hose, one (1) each side upper
• Progressive Dynamics on-board battery charger with Viair air compressor
• Kussmaul Super Auto Eject 120-volt shoreline connection
• One (1) Audiovox back-up camera with 7″ color monitor and side view cameras
• Federal Q2B Mechanical siren, front bumper
• Whelen Electronic Siren with Cast Products 100-watt speaker
• Onan 25,000 watt Generator with 120-volt system
• Will-Burt Vertical Light Tower with six (6) 150-watt Whelen Pioneer LED lights
• FRC LED 12-volt and 120-volt Scene lighting packages
• Whelen LED Warning Light Package and Diamond Grade rear Chevron striping
• 9′ 11″ Overall height
• 35′ 9″ Overall length
• 220.5″ Wheelbase
• 153″ Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR

Year: 2016
Make: Alexis Fire Equipment
Model: Rescue
Body Style: Heavy Rescue
Exterior Color: Yellow
