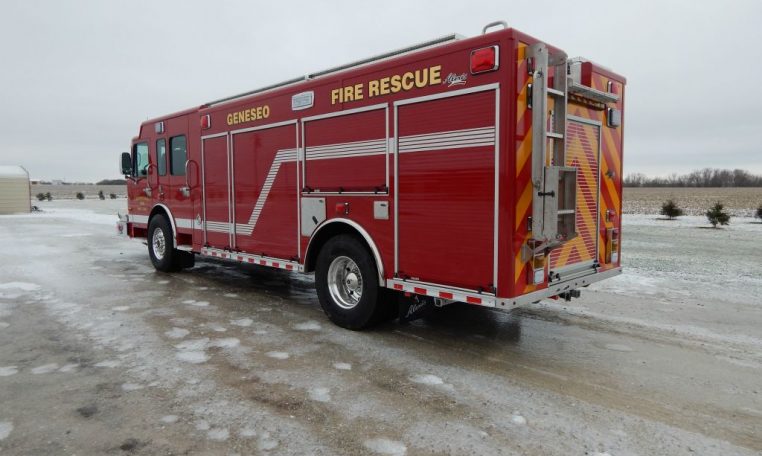

• Spartan Metro Star LFD 10″ raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission

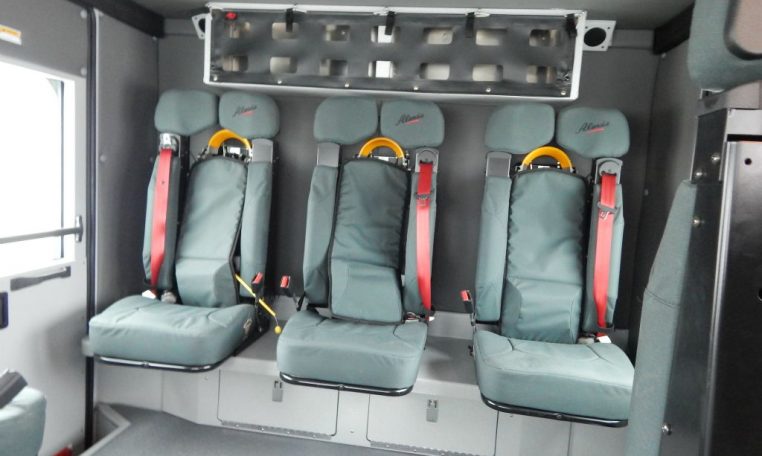

• Seven (7) man cab seating with three (3) SCBA seats
• Heavy Duty 3/16″ Aluminum Body with ROM Painted Roll Up Doors

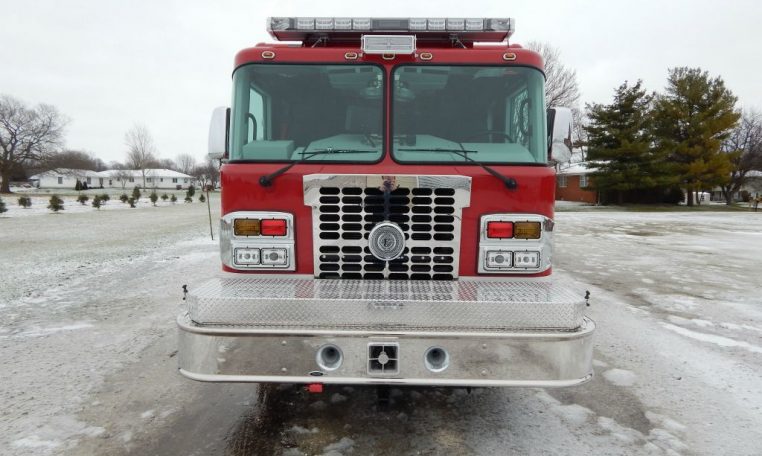

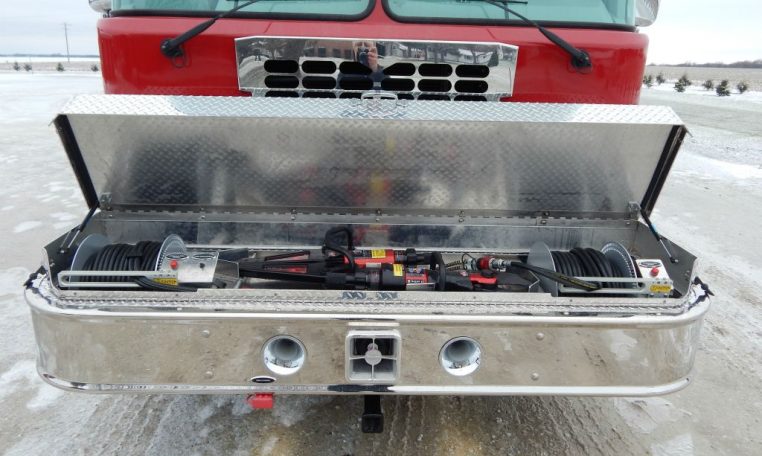

• 28″ Front bumper extension with rescue tool storage and hydraulic reels
• Two (2) Reese type hitch/winch receivers with electrical connections, front/rear
• Two (2) Winch points with electrical connections, one (1) each side
• One (1) Warn 9.5 Multi-mount Winch with electrical connections
• EMS cabinet with cargo netting, cab upper rear wall
• Two (2) Triple bottle Air bottle compartments, right side wheel well
• One (1) Open storage compartment, left side wheel well
• Stokes basket, backboard and little giant ladder storage, transverse compartment
• Two (2) Custom cribbing storage trays, one (1) each side compartment
• Four (4) Upper storage compartments with shoe box style lids, body roof
• Oil Dry hopper upper left compartment with dispensing in lower compartment

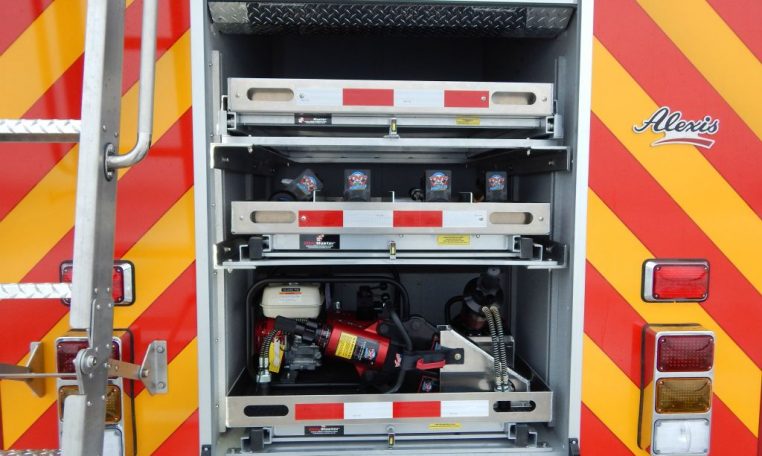

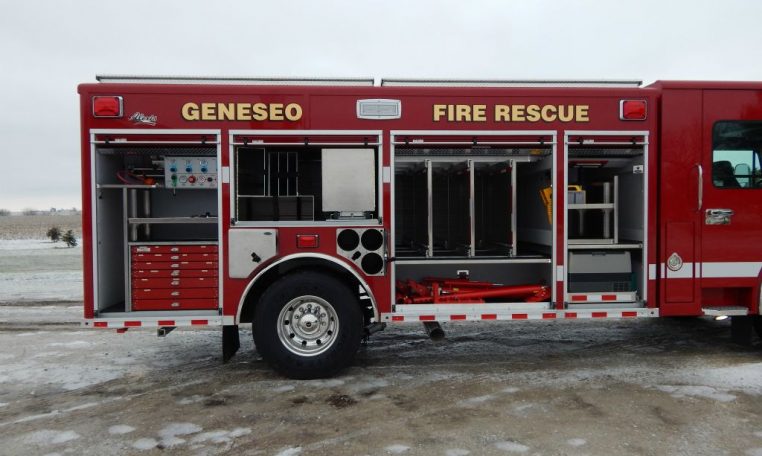

• Six (6) Vertical pull-out tool boards, three (3) each side

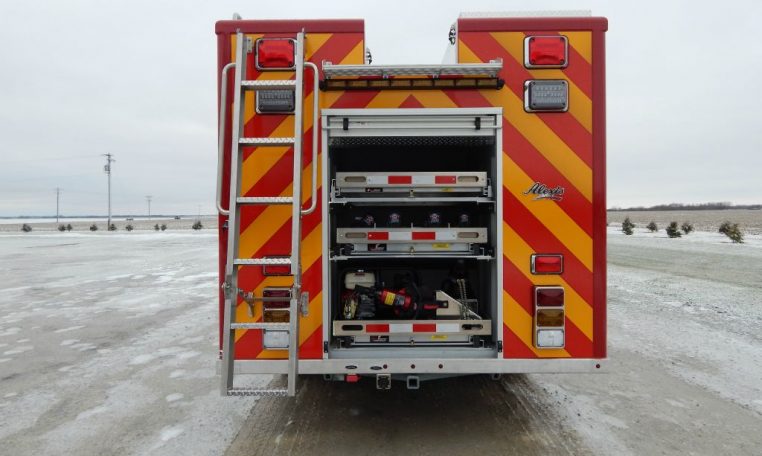

• Top access ladder, rear mounted
• Turtle tile on floors and/or shelves and trays of compartments
• Four (4) bottle 6000 psi cascade system with control panel
• One (1) Hannay Air hose Reel with 200-ft of 3/8″ hose, right side
• Norcold refrigerator on roll out tray, right side compartment
• Progressive Dynamics on-board battery charger with Viair Air compressor
• Super Auto Eject 120-volt shoreline connection
• Q2B mechanical Siren, front grill and two (2) Air Horns, front bumper
• Optronics hand-held spotlight, right front officer seat area
• Onan 25,000 watt Generator with 120-volt electrical system
• Two (2) Akron electric cord reels with 150-ft of 10/3 cord and junction box each

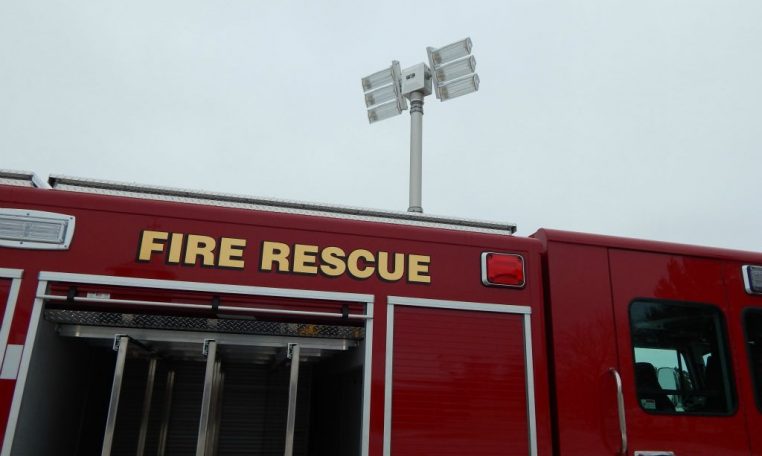

• Night Scan Vertical Light Tower with six (6) 1500-watt FRC Halogen lights
• Whelen LED Warning Light and Scene light Packages

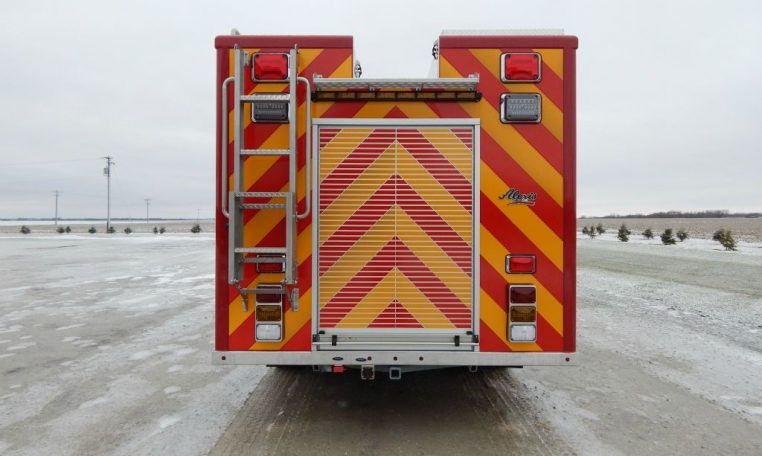

• Diamond Grade Chevron pattern striping, rear
• 9′ 10″ Overall height
• 33′ 4″ Overall length
• 208″ Wheelbase
• 140.5″ Cab to Axle
• 20,000 FAWR
• 24,000 RAWR
• 44,000 GVWR

Year: 2016
Make: Alexis Fire Equipment
Model: Rescue
Body Style: Heavy Rescue
Exterior Color: Red
