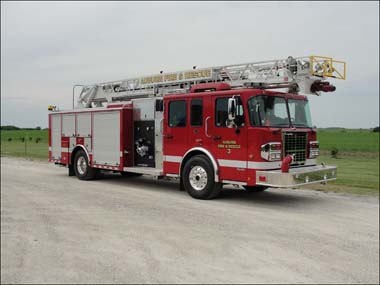

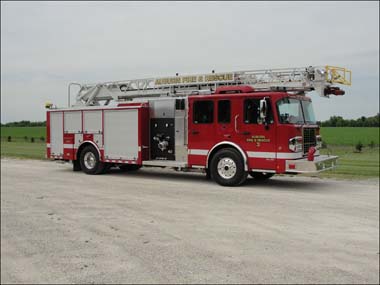

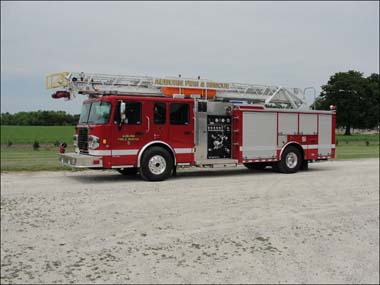

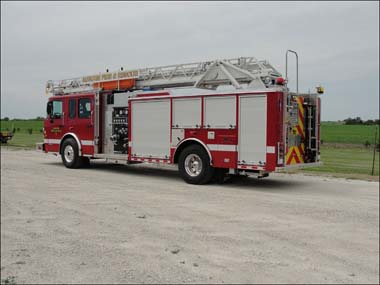

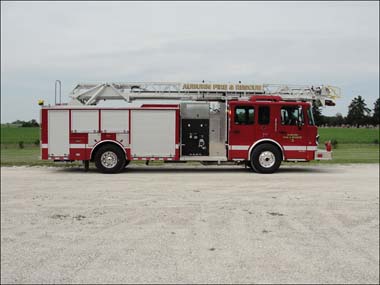

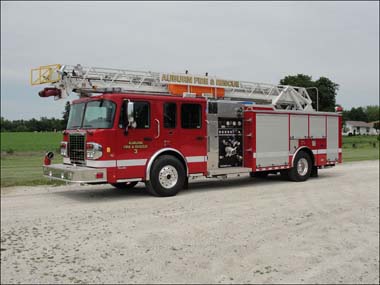

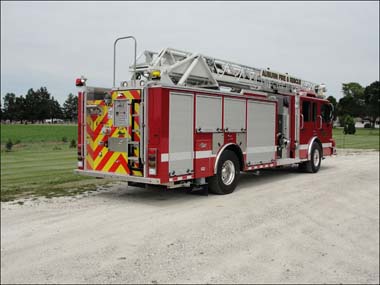

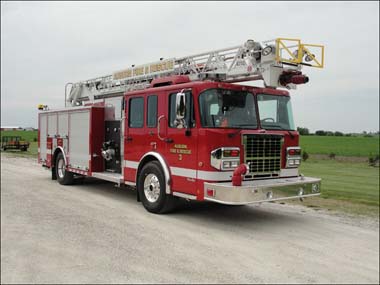

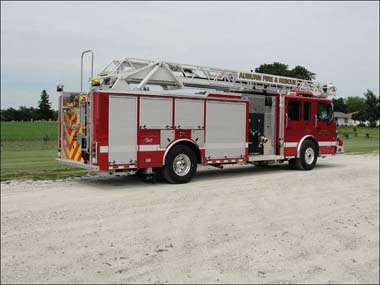

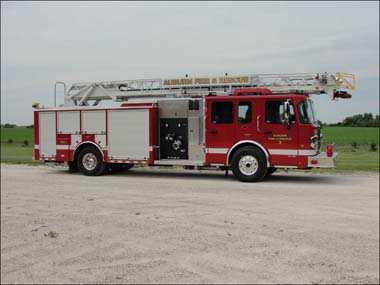

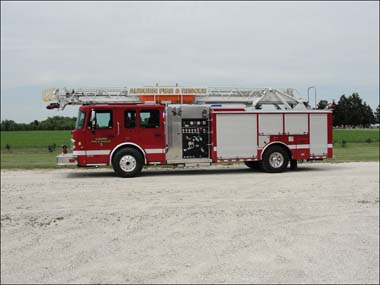

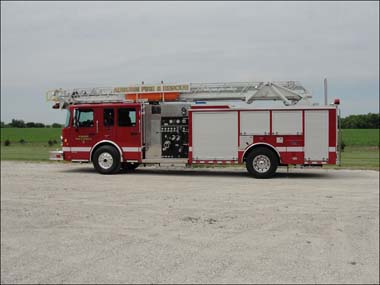

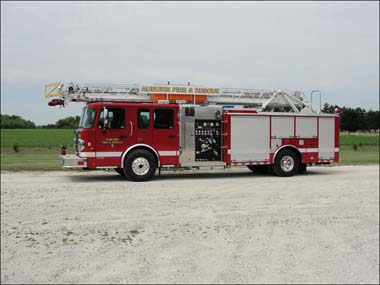

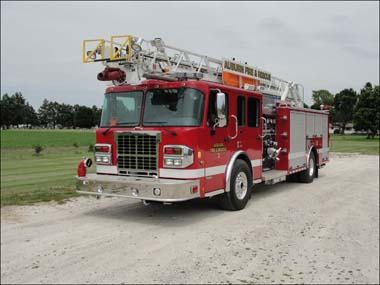

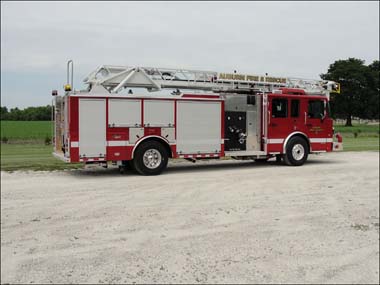

65-FOOT TWO SECTION AERIAL LADDER #2171

AUBURN FIRE AND RESCUE DISTRICT - AUBURN, ILLINOIS

• Spartan Metro Star MFD flat roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission

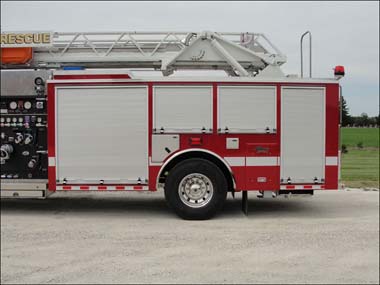

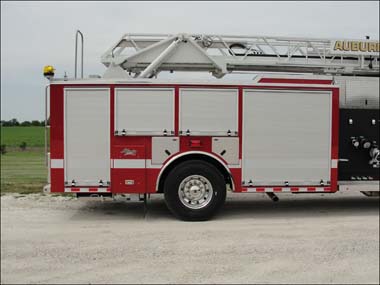

• Heavy Duty 3/16” Aluminum Body with Amdor brand Roll Up Doors

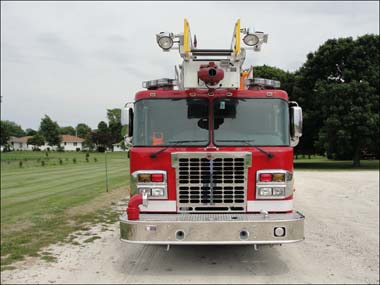

• 24” Front Bumper extension with 1 ½” Preconnect and center hosewell
• 750-Gallon Poly Tank
• One (1) 2 ½” Fireman’s Friend Tank fill, rear

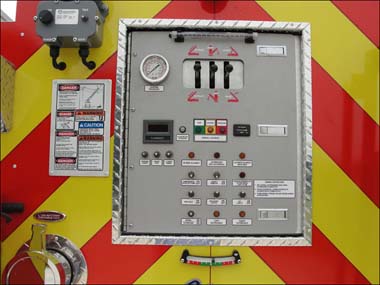

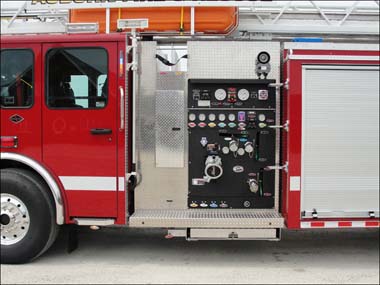

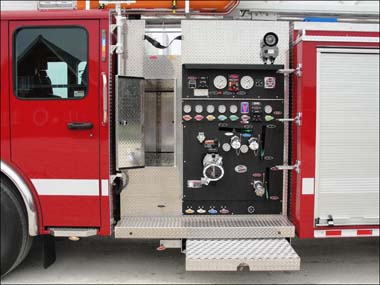

• Waterous CXVC, 1500-GPM Pump with left side pump operator’s panel
• Four (4) 2 ½” Discharges, two (2) left side, one (1) right side and one (1) hose bed

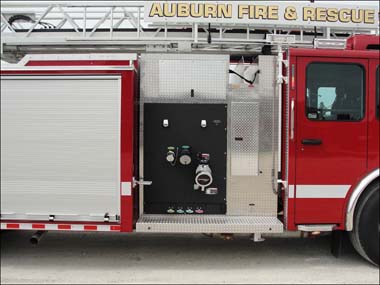

• One (1) 3” Discharge, right side
• One (1) 4” Discharge feeding aerial waterway
• Two (2) 1 ½” Mattydale Preconnects, across top of pump module
• One (1) 2 ½” Gated Suction, left side
• One (1) 5” front suction
• Akron remote controlled Electric monitor at end of ladder

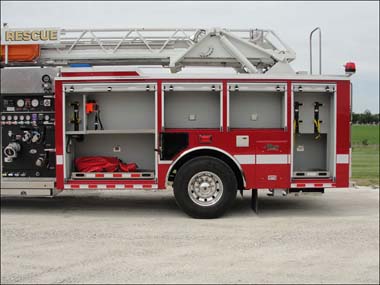

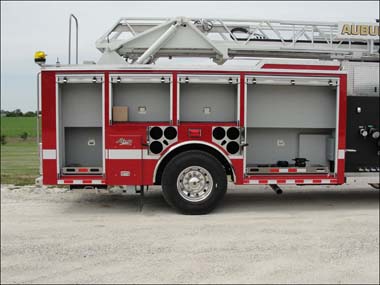

• Two (2) Triple bottle Air bottle compartments, right side wheel well
• One (1) General storage compartment, left side wheel well

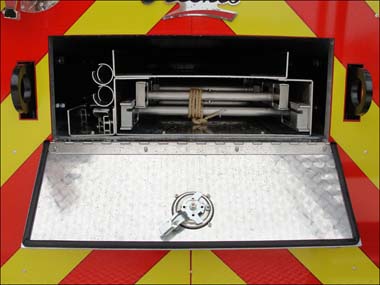

• Ladder and Pike pole storage in rear torque box
• Alco-Lite Sure Step Ladder, rear mounted

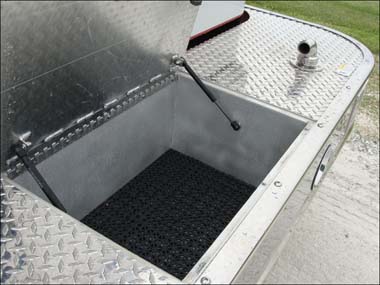

• One (1) Suction hose storage compartment with rear access, left side
• Firecom Intercom System
• Audiovox Color Back-up Camera with 7” color monitor
• Kussmaul 1200 pump plus battery charger/air compressor with auto eject
• Code 3 Electronic Siren with 100-watt Cast Products speaker
• Two (2) Air Horns, front bumper and two (2) Unity deck lights, rear
• Two (2) Whelen 12-volt LED Brow lights, one (1) each side

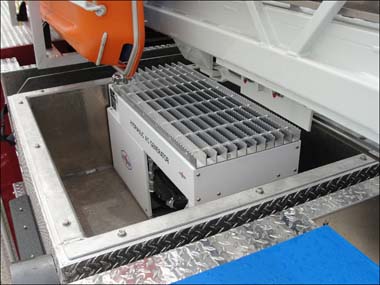

• Smart Power 8000-watt Hydraulic Generator with 120-volt electrical system
• One (1) Electric cord reel with 150-ft of 10/3 cord and junction box, right side
• Two (2) Akron Extenda-Lite 120-volt 750-watt telescopic lights
• Whelen LED Warning Light Package

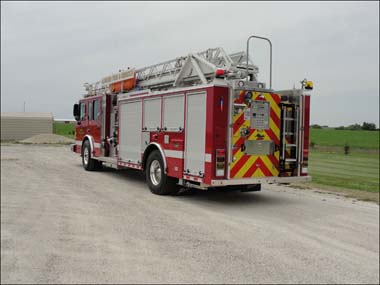

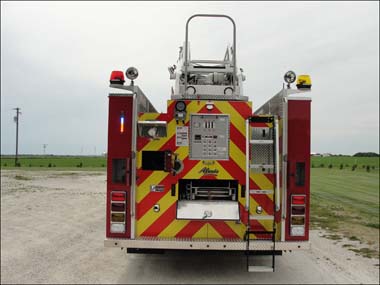

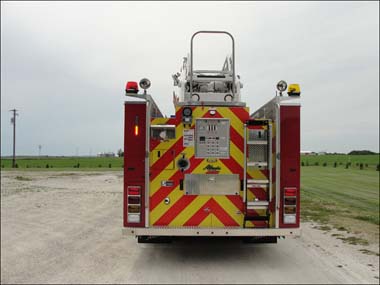

• Chevron pattern striping, rear
• 11’ 2” Overall height
• 37’ 5” Overall length
• 225” Wheelbase
• 171” Cab to Axle
• 21,500 FAWR
• 31,000 RAWR
• 52,500 GVWR

Year: 2016
Make: Alexis Fire Equipment
Model: Aerial
Body Style: Ladder Aerial
Pump Size: 1500
Tank Size: 750
Exterior Color: Red
