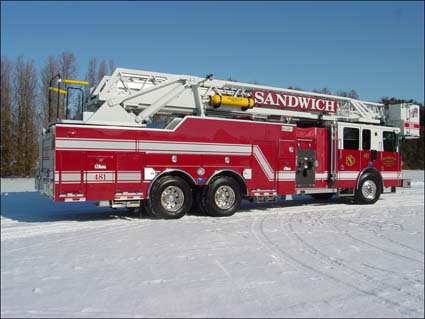

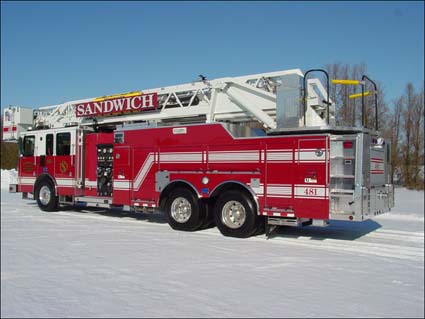

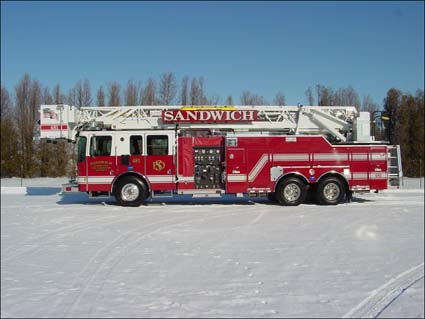

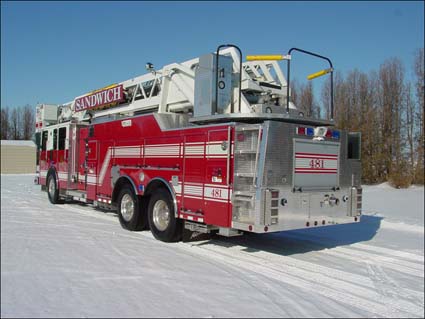

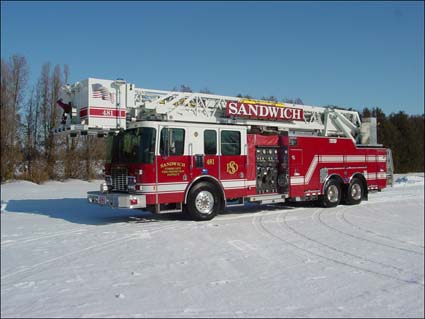

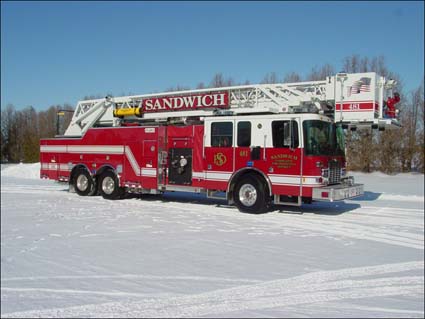

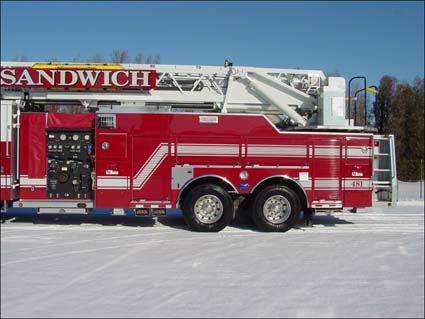

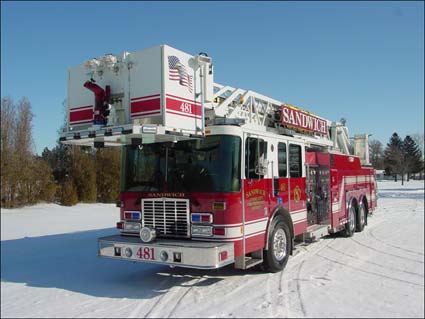

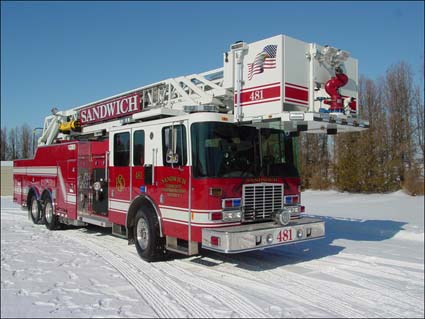

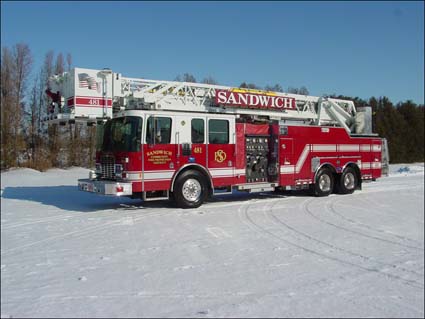

104-FOOT AERIAL PLATFORM #2027

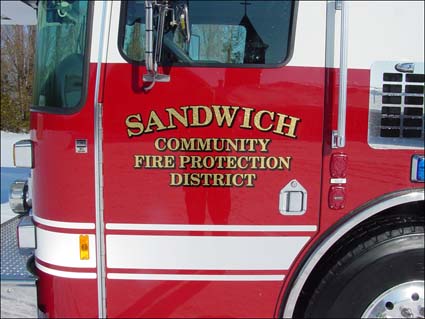

Sandwich Fire Protection District - Sandwich, Illinois

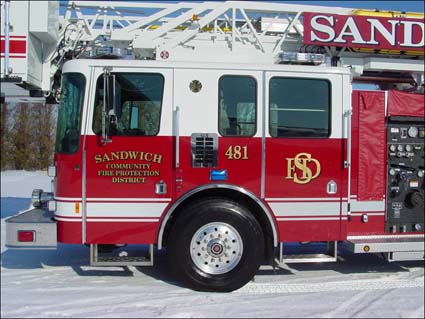

• HME 1871 MFD Flat Roof Tandem Chassis
• Detroit Diesel 515-HP Series 60 Diesel Engine
• Allison 4000 EVS Automatic Transmission

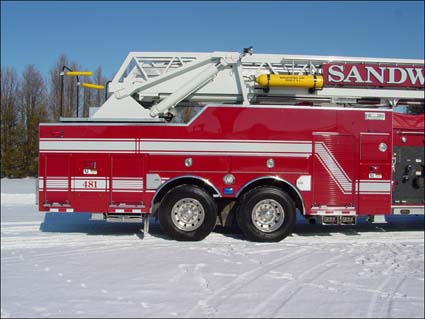

• Heavy Duty 3/16” Aluminum Body
• ROM Roll Up Doors
• UPF 300-Gallon Poly Tank
• Hale QMAX200, 2000-GPM Midship Pump

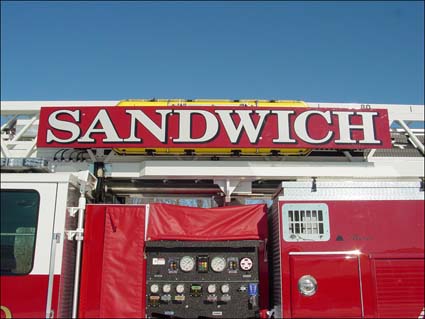

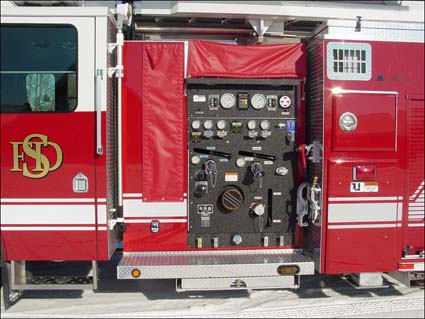

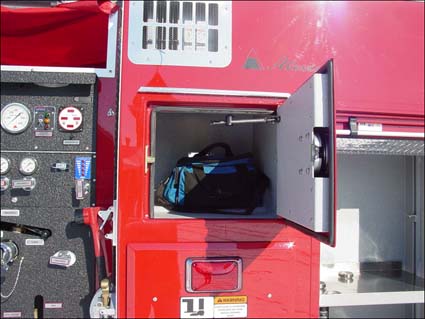

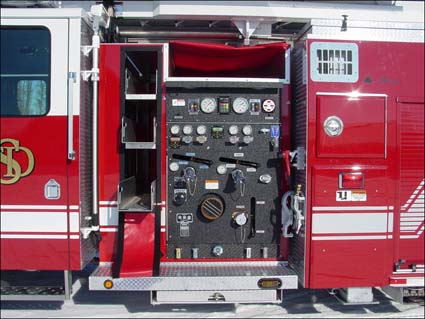

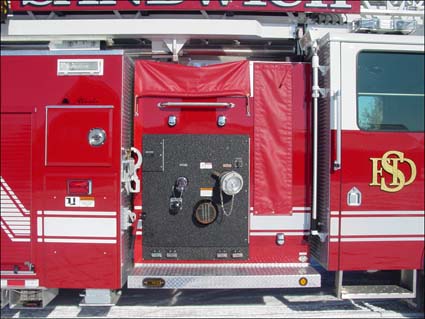

• Left Side Control Pump Operator’s panel

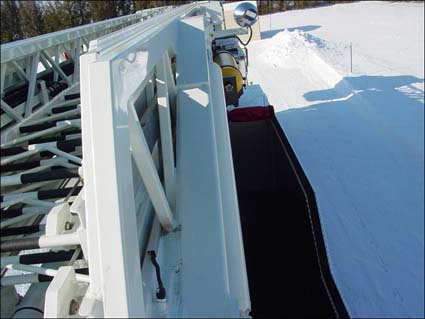

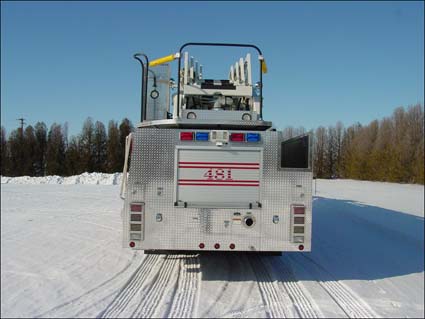

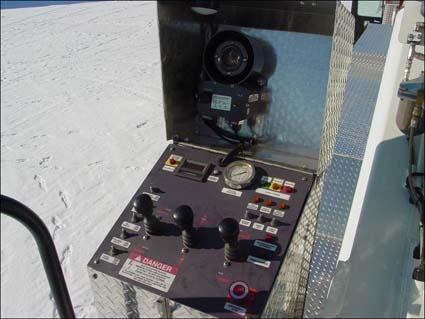

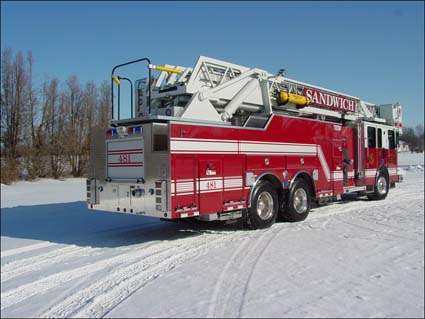

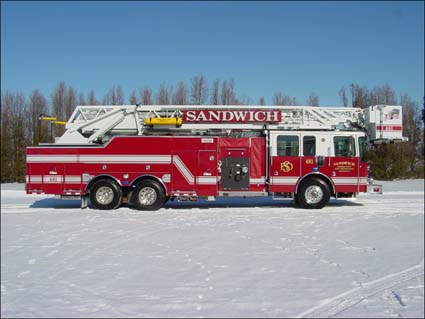

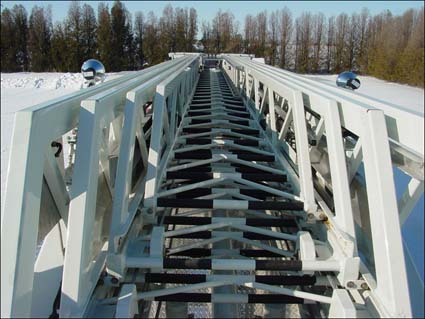

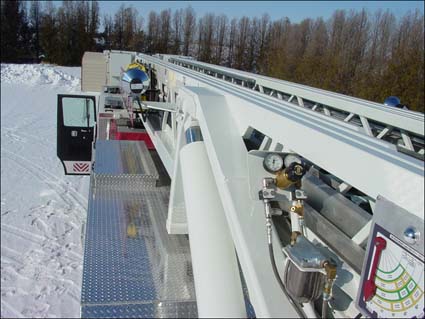

• 104-Foot, Four Section Rear-Mount Platform

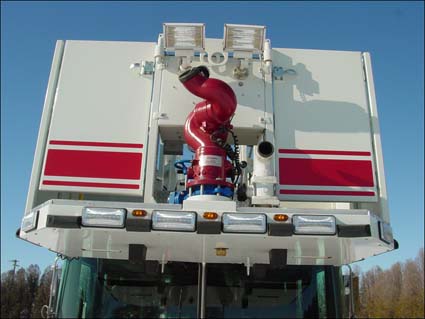

• Remote controlled Electric Monitor at end of platform
• Breathing Air System to end of platform
• Three (3) 2 ½” Discharges, Two (2) left side and one (1) right side
• Two (2) 4” Discharges, One (1) right side and one (1) feeding waterway
• One (1) 2 ½” Gated Suction, left side

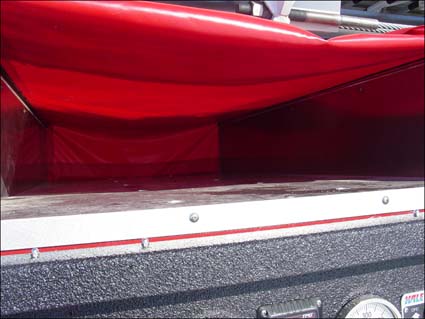

• One (1) 1 ¾” Mattydale deadlay hose bed, pump module area

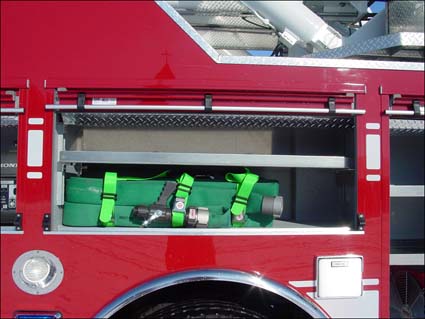

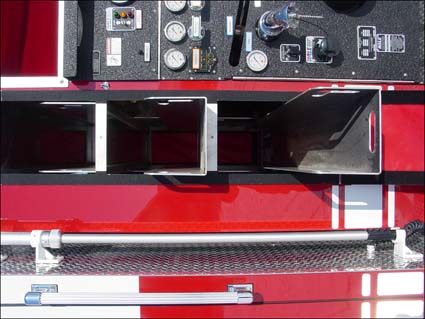

• Three (3) Cartridge Lay Preconnects, two (2) 1 ½” and one (1) 2 ½”
• One (1) Elkhart Scorpion Deck Gun

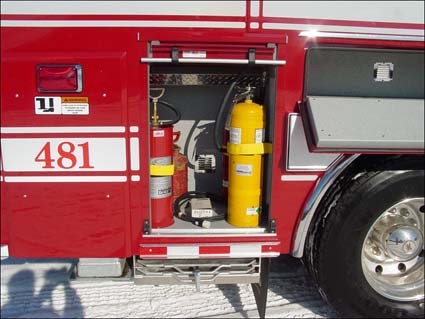

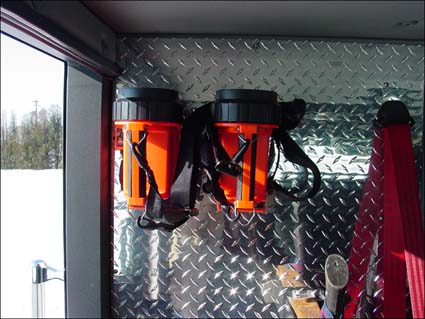

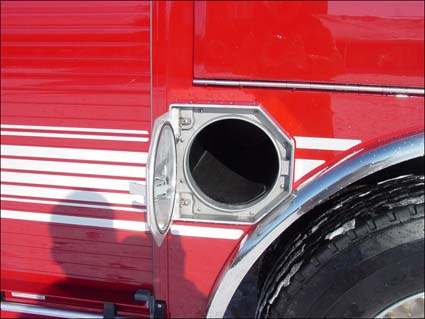

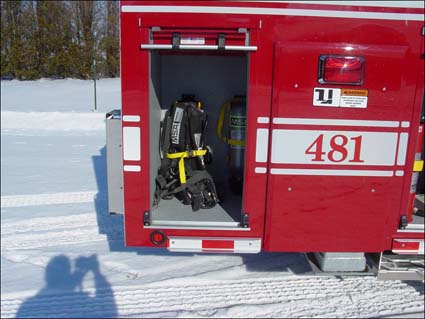

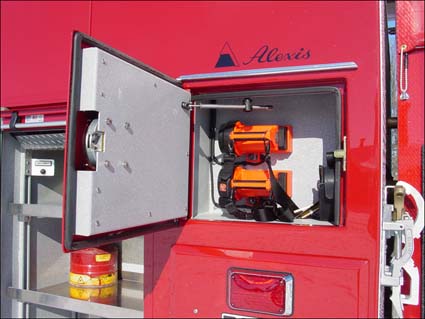

• Three (3) Dual Air bottle compartments, two (2) right side and one (1) left side
• Kussmaul 40-amp on-board Battery charger
• Kussmaul Automatic Air Eject

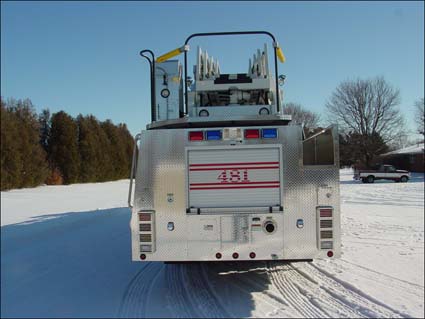

• Two (2) Unity 12-volt Deck lights, rear
• Onan Hydraulically driven 10-kW Generator system
• Two (2) Akron Electric cord reels with 150-ft. of 10/3 cord each, each side
• Four (4) Extenda-Lite 120-volt 750-watt Telescopic lights, two (2) rear and one (1) each side, Additional Aerial 12-volt and 120-volt lighting

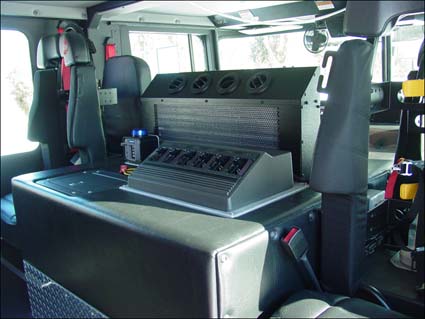

• Atkinson Electronics Two (2) station intercom system
• Audiovox color observation back up camera with side view cameras
• Whelen Electronic Siren with two (2) 100-watt speakers

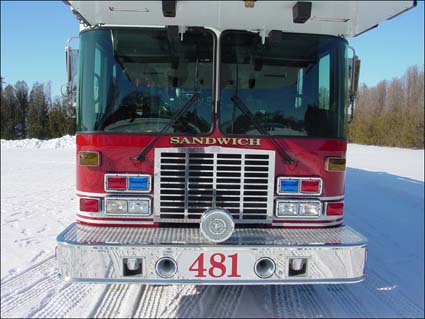

• One (1) Federal Q2B Siren, front bumper
• Dual Grover Stuttertone Air Horns, front bumper

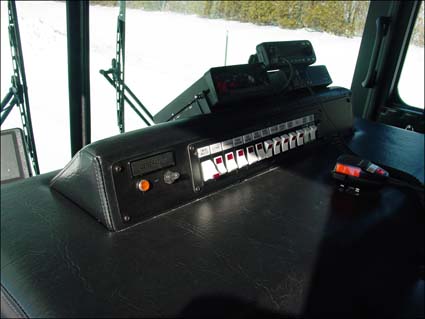

• Whelen Warning Light Package
• 11’ 9” Overall height
• 44’ 7” Overall length
• 247” Wheelbase
• 187” Cab to Axle
• 21,500 FAWR
• 58,000 RAWR
• 79,500 GVWR

Year: 2014
Make: Alexis Fire Equipment
Model: Aerial
Body Style: Platform Aerial
Pump Size: 2000
Tank Size: 300
Exterior Color: Red
