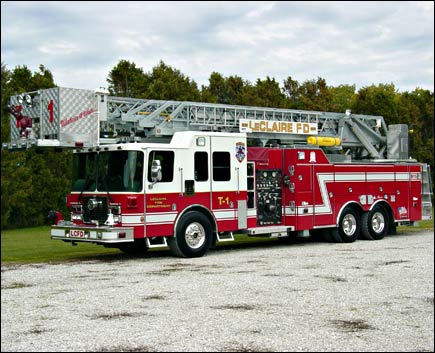

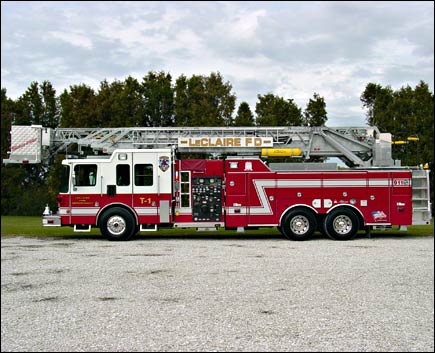

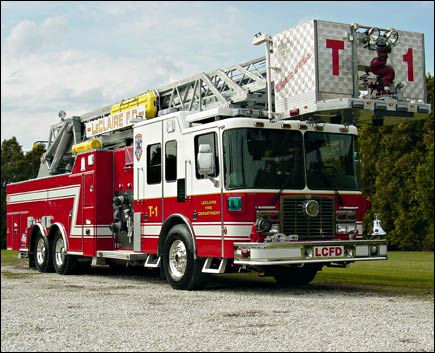

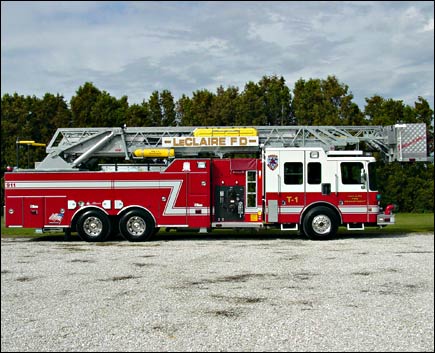

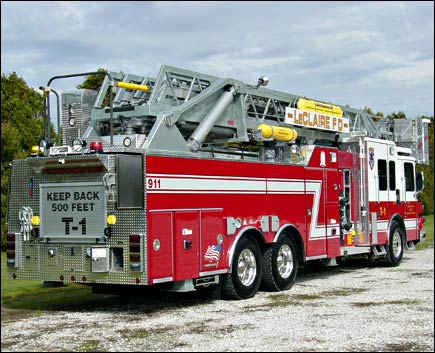

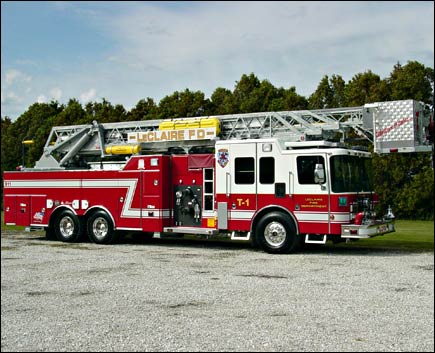

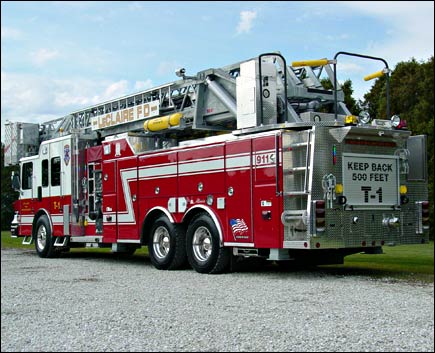

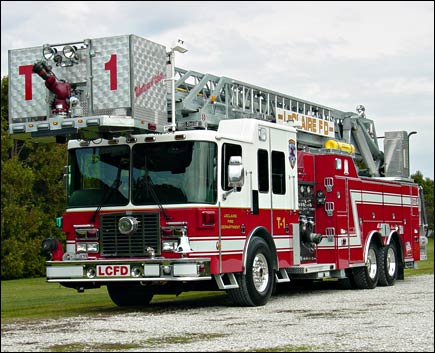

104′ AERIAL PLATFORM #1920

LeClaire Fire Department - LeClaire, Iowa

• HME 1871 P2 LFD Custom Cab
• Caterpillar C13 430 HP Diesel Engine
• Allison 4000 EVS Automatic Transmission
• 300 Gallon UPF Poly Tank IIE
• Hale QMAX 200 Pump
• One (1) 3″Mattydale Deadlay Hosebed
• Two (2) 1½” Cartridge Lay Preconnects
• One (1) 2½” Cartridge Lay Preconnect
• Front 5″ Suction on bumper extension

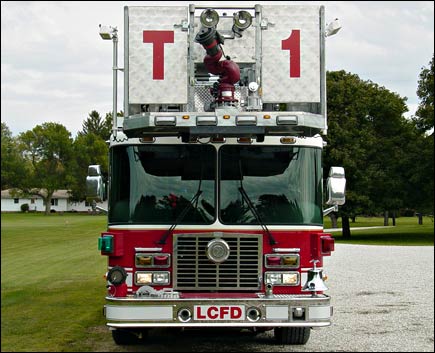

• Nozzle at the tip of the ladder
• One (1) 2½” Preconnect in bumper extension
• Rear outrigger controls
• Ladder turntable access steps on left side
• 6000 PSI Breathing air bottles mounted on right side of base section

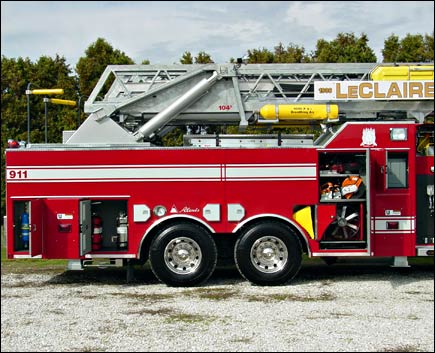

• Five () air bottle compartments in the wheel well assemblies

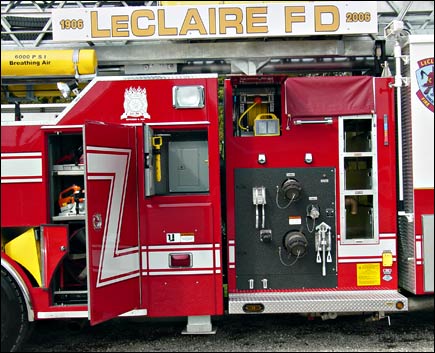

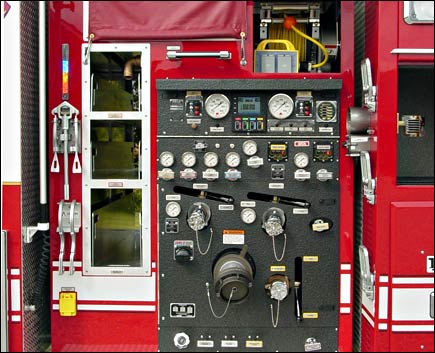

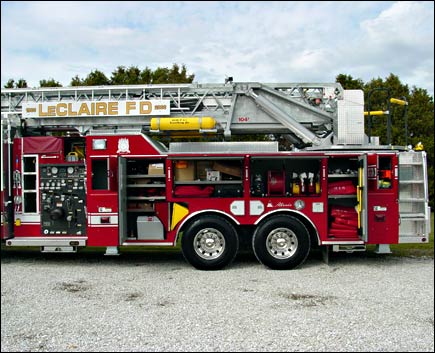

• Side Control Pump Operator’s Panel

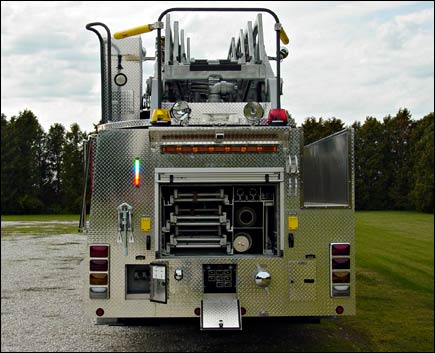

• Ladder and pike pole storage at the rear in the torque box
• Side stack hosebed on passenger side
• 12″ Brass Bell on front face of the cab
• Four (4) Whelen 22″ Mini Lightbars
• Two (2) reverse activated bow lights
• Federal Q2B Siren on front bumper
• Whelen LED NFPA Warning Light Package
• ONAN 10kw Hydraulic Generator with four (4) 650 Watt Lift Lights
• Two (2) electric cord reels in pump module
• Rear mounted camera
• 12′-2″ Overall Height
• 44′-0″ Overall Length
• 254″ WB
• 186.5″ CA
• 21,500 FAWR
• 54,000 RAWR
• 75,500 GVWR

Year: 2015
Make: Alexis Fire Equipment
Model: Aerial
Body Style: Platform Aerial
Pump Size: 2000
Tank Size: 300
Exterior Color: Red
