1000-GALLON TOP MOUNT PUMPER #2409

ARCOLA FIRE PROTECTION DISTRICT - ARCOLA, IL
FEATURES:
  • Spartan Metro Star EMFD 10” Raised Roof Chassis
  • Cummins L9 450 HP Diesel Engine
  • Allison 3000 EVS Automatic Transmission
  • Heavy-Duty Stainless-Steel Body and Sub-Frame
  • Six (6) Person Cab Seating with Five (5) SCBA Seats
  • ROM Roll Up Doors

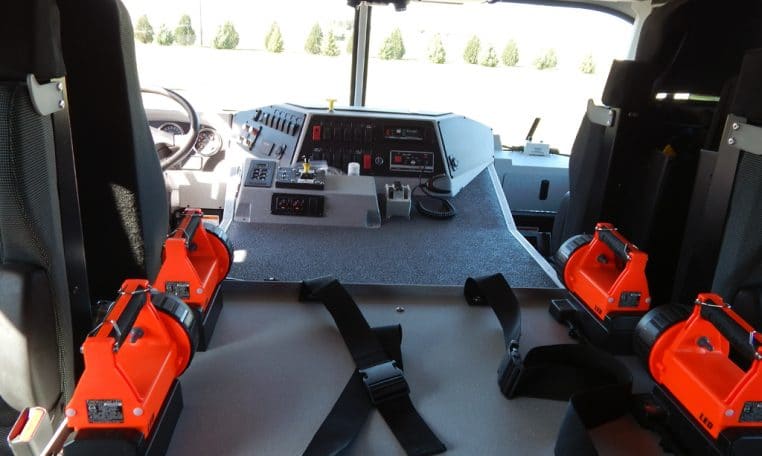

  • Custom EMS Compartment, Cab
  • 1000-Gallon Poly Tank
  • Hale DSD150 1500 GPM Pump
  • Two (2) Running Board Hose Wells
  • Two (2) 6” Suctions, Left and Right Side
  • Five (5) 2 ½” Discharges, Two (2) Left, Two (2) Right, One (1) Rear

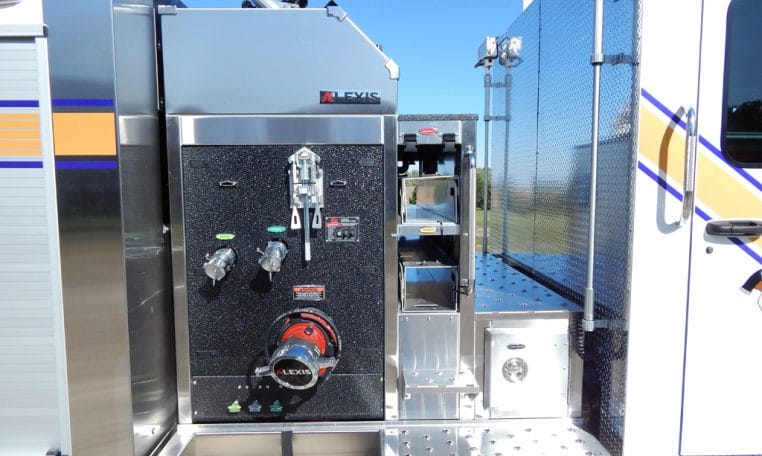

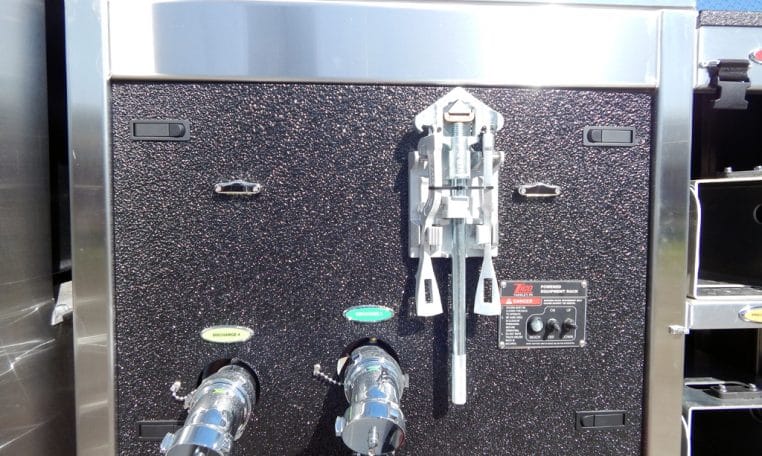

  • One (1) 2 ½” Gated Suction, Left side
  • Two (2) 5” Suctions, Front Bumper Extension and Rear
  • TFT Hurricane Remote-Control Monitor Package and Extend-A-Gun
  • Two (2) 1 ½” Cartridge Lay Preconnects
  • One (1) 1 ½” Preconnect, Front Bumper Extension

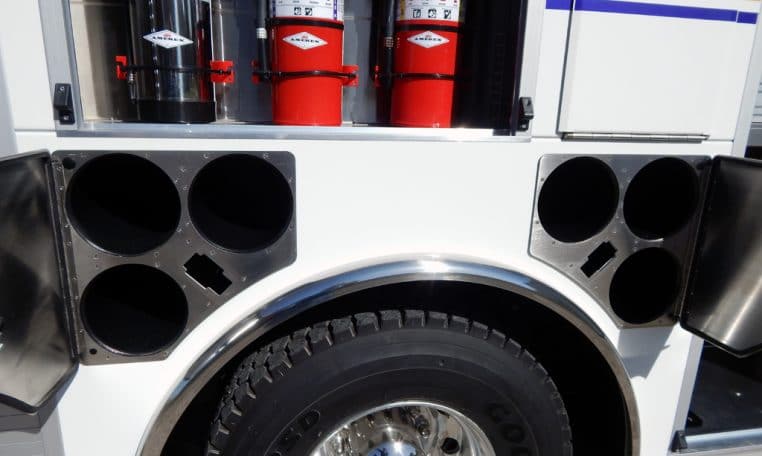

  • Three (3) Triple Wheel Well Air Bottle Compartments
  • Zico Hydraulic Ladder Rack
  • Pike Pole and Suction Hose Storage, Ladder Rack
  • David Clark Headset Assembly, Pump Panel
  • Whelen LED Warning Light Package
  • Whelen Scene Light Package
  • Two (2) Whelen Pioneer Telescoping Flood Lights, One (1) Each Side Back of Cab
  • Whelen Traffic Advisor Arrow Stick
  • Command Light Knight Light Tower with Custom Brush Guard
  • Federal Q2B Siren
  • Diamond Grade Chevron Striping
  • 10’ 11” Overall Height
  • 34’ 5” Overall Length
  • 213” Wheelbase
  • 153” Cab to Axle
  • 20,000 FAWR
  • 27,000 RAWR
  • 47,000 GVWR
Year: 2020
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Top Mount Pumper
Pump Size: 1500
Tank Size: 1000
Feature: Hydraulic Ladder Rack
Exterior Color: White
New Delivery: New Delivery
