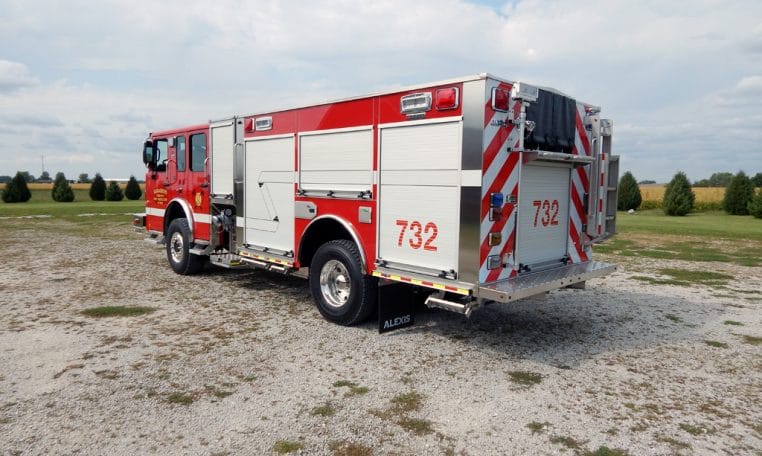

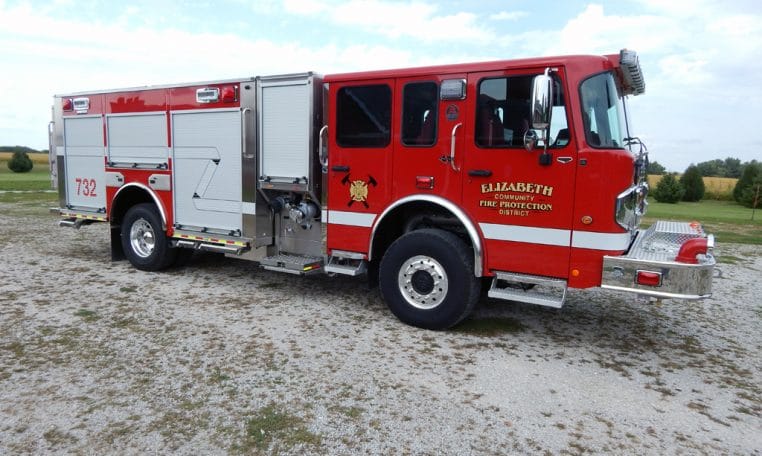

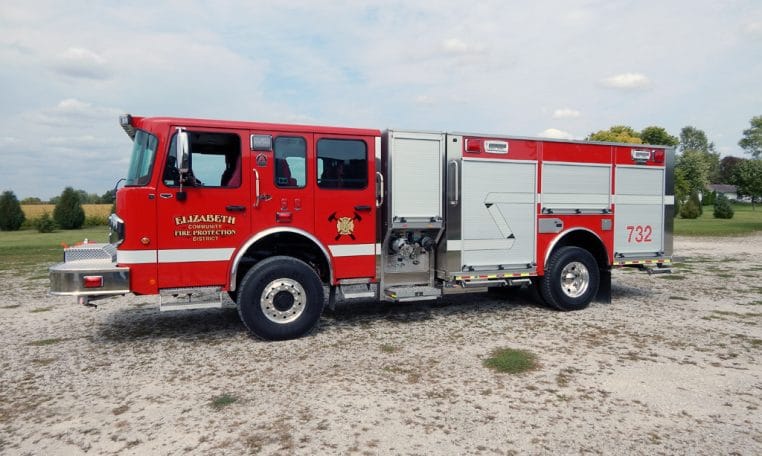

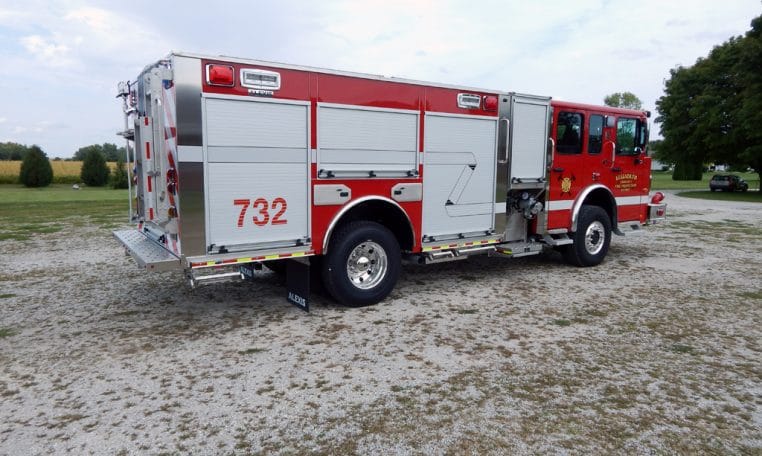

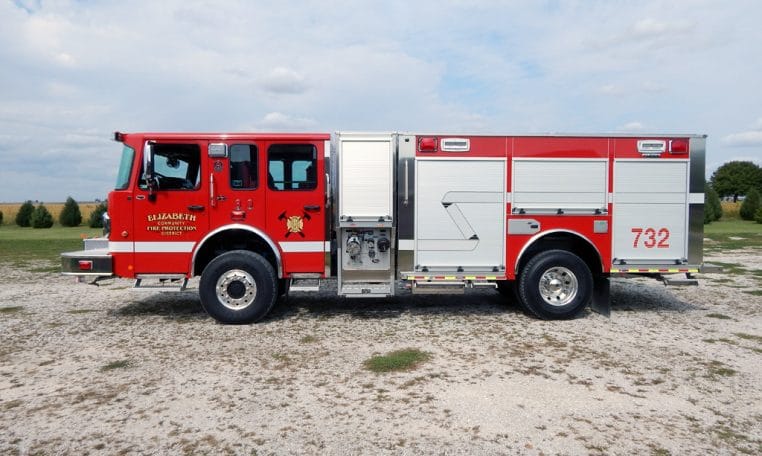

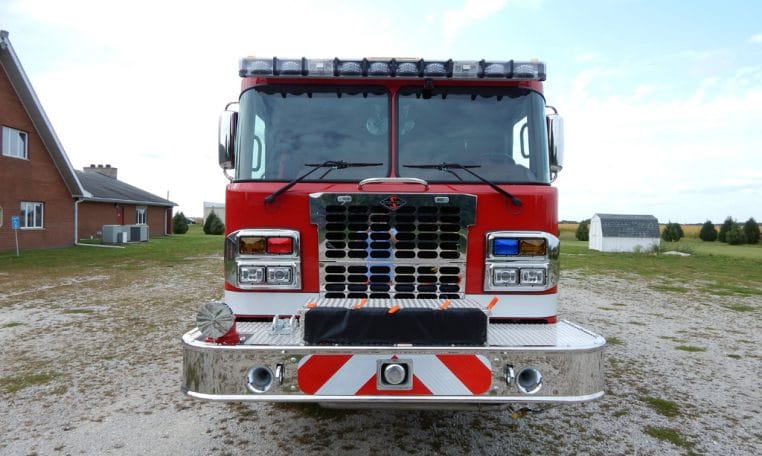

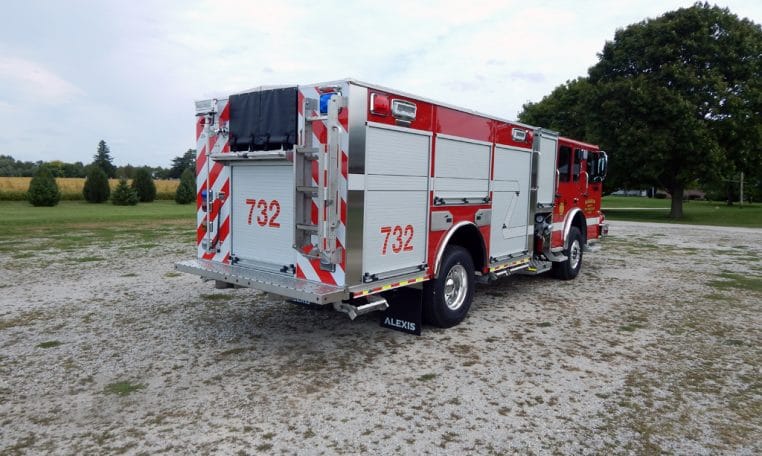

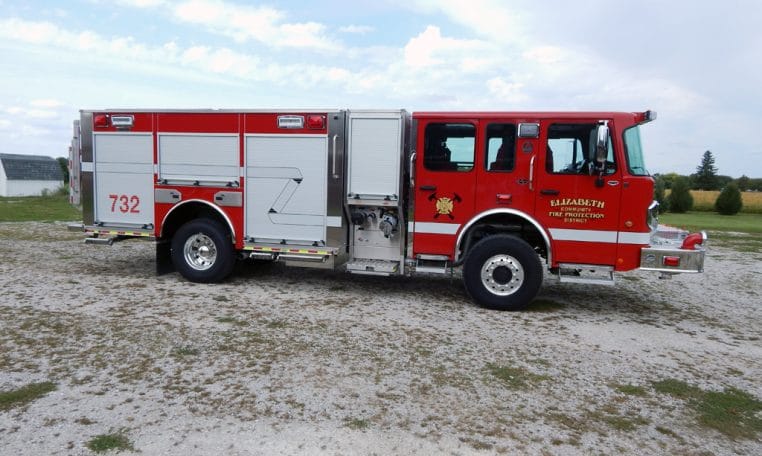

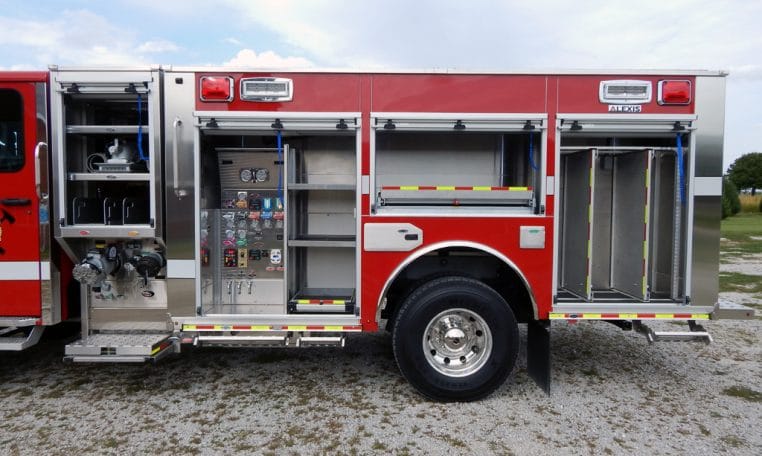

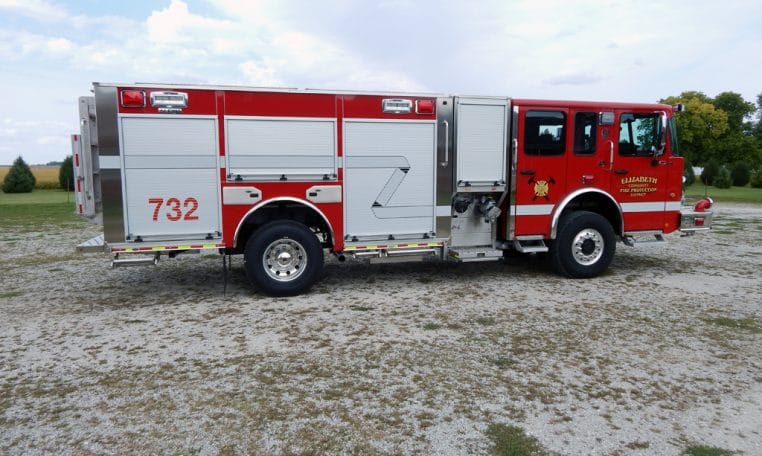

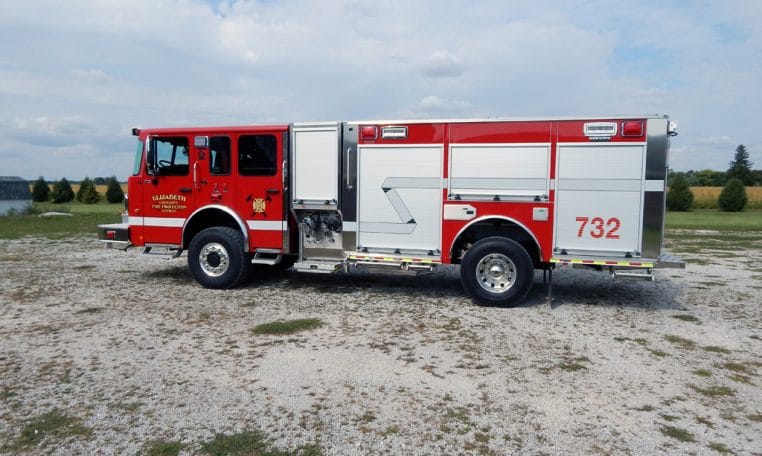

CUSTOM SIDE CONTROL 4X4 RESCUE PUMPER #2398

ELIZABETH COMMUNITY FIRE PROTECTION DISTRICT - ELIZABETH, ILLINOIS
FEATURES:

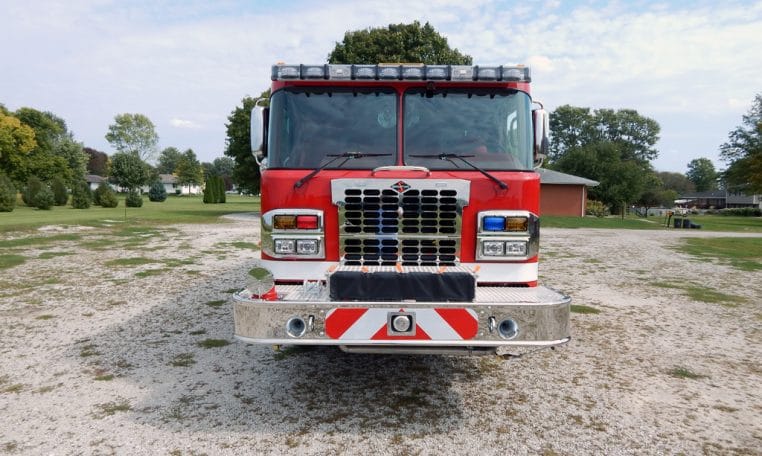

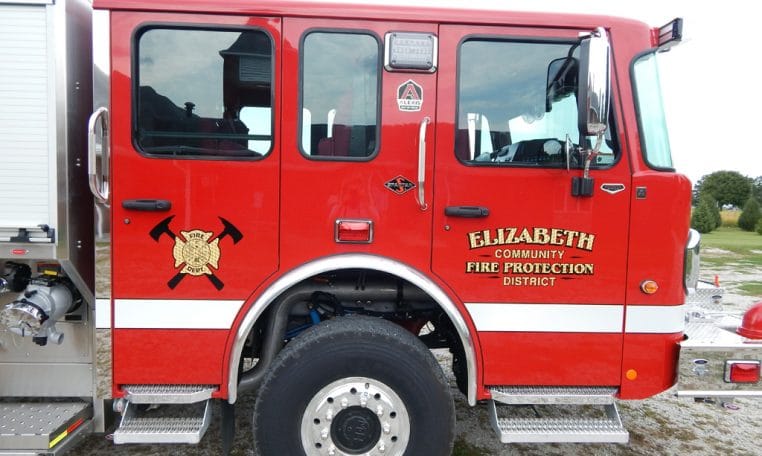

  • Spartan Metro Star MFD Flat Roof Chassis
  • Cummins L9 450-HP Diesel Engine
  • Allison 3000 EVS Transmission
  • Stainless-Steel Body and Subframe

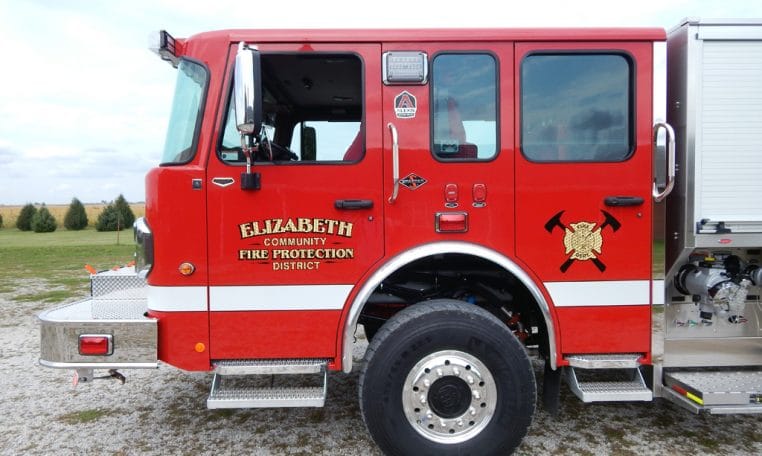

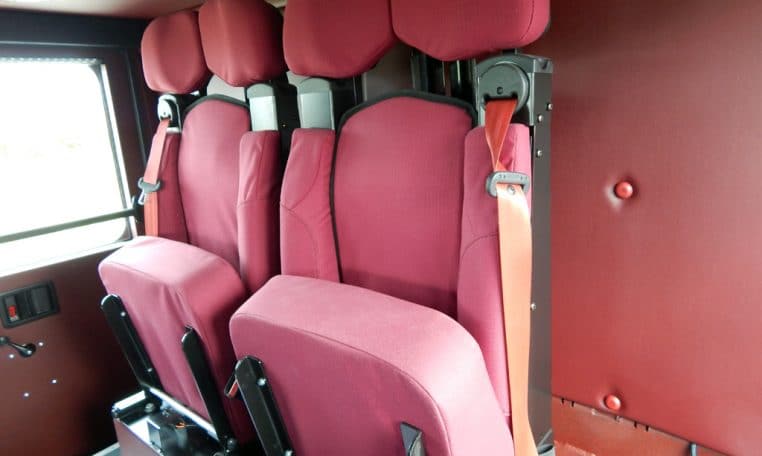

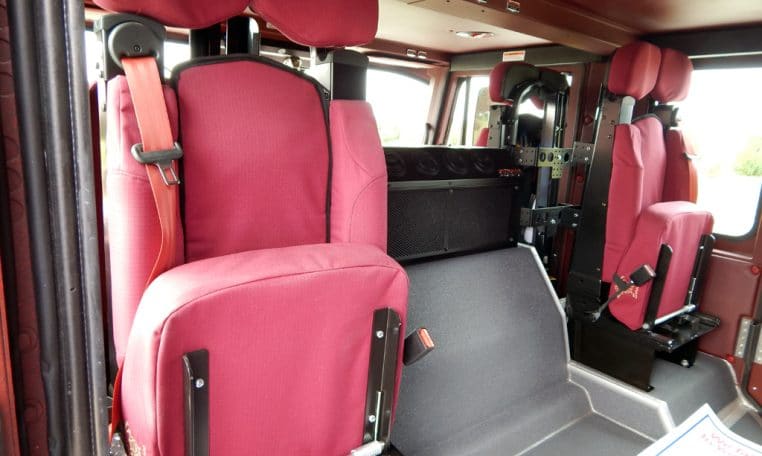

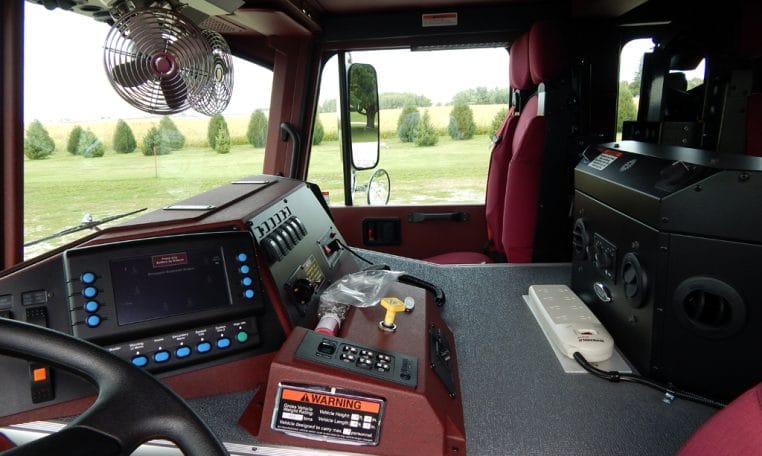

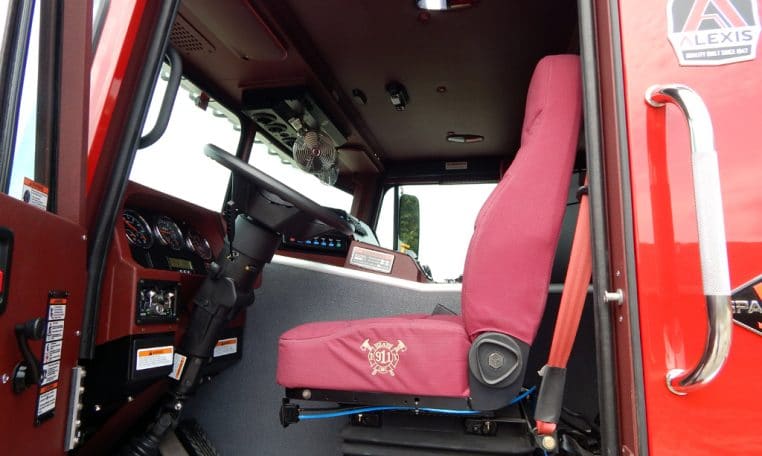

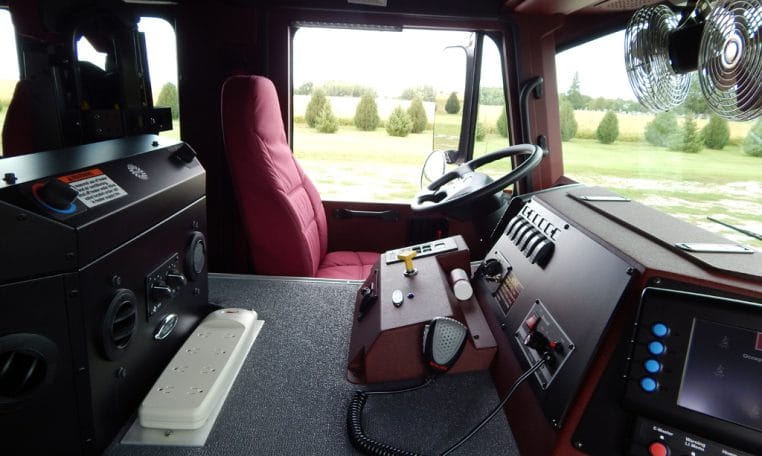

  • Six (6) Person Cab Seating w/ Five (5) SCBA Seats

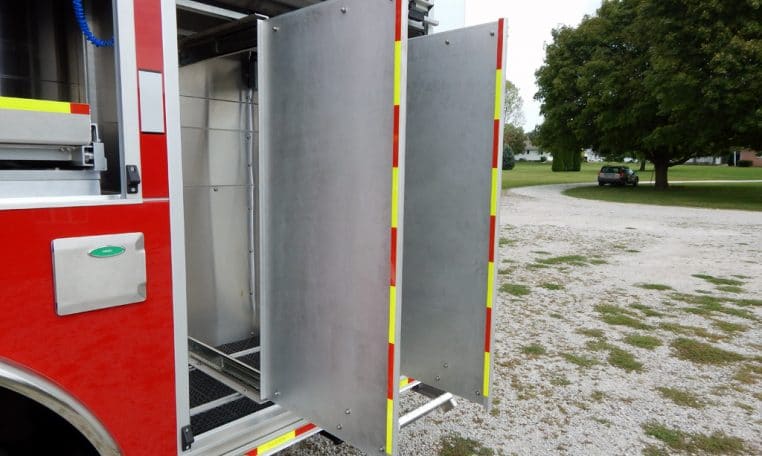

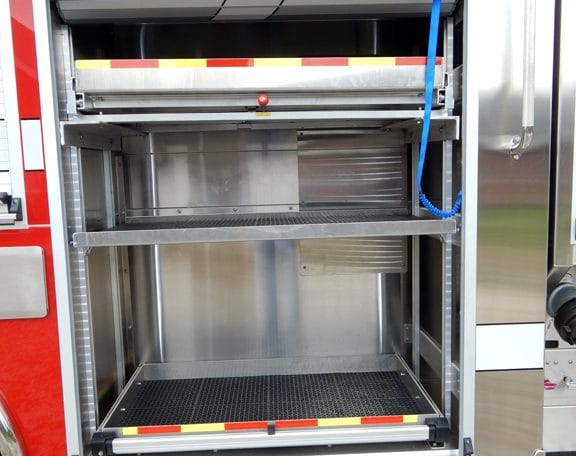

  • ROM Roll-Up Doors
  • 500-Gallon Poly Tank

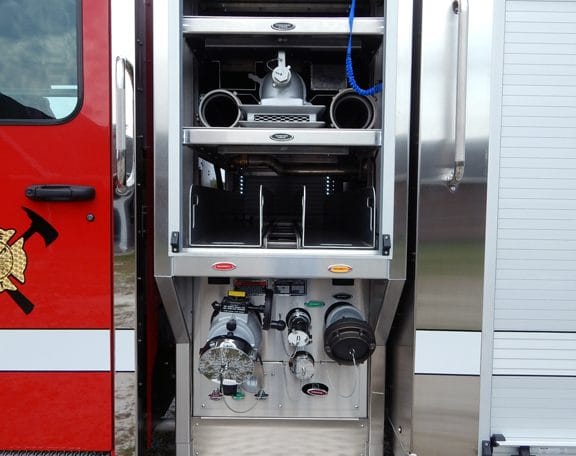

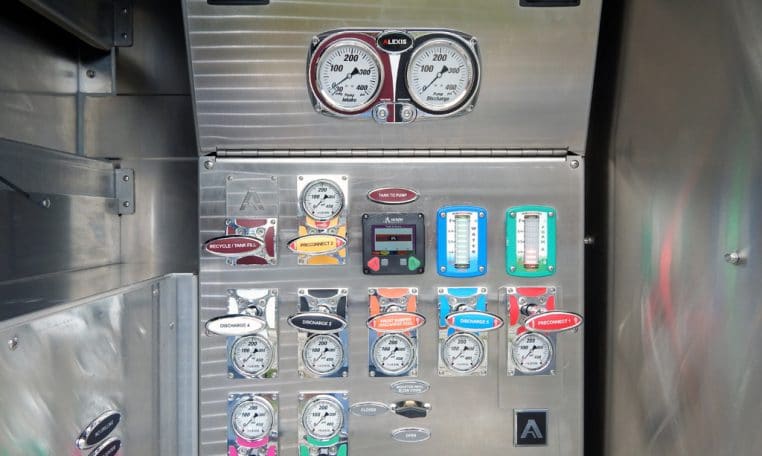

  • Waterous CXSC20 1500 GPM Pump

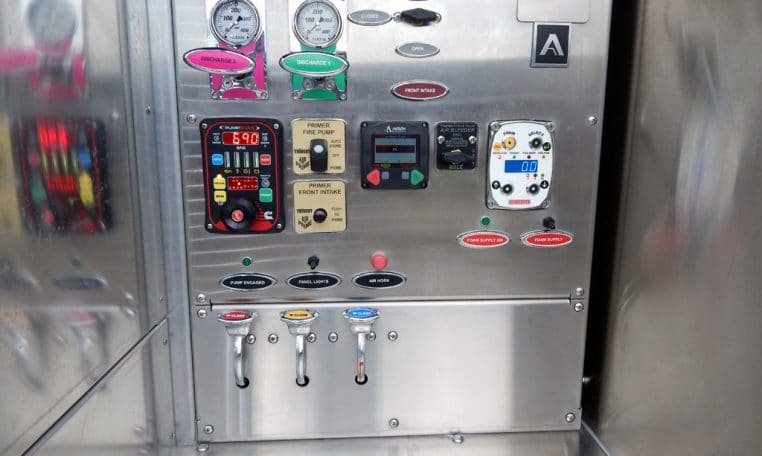

  • Heated Pump Enclosure

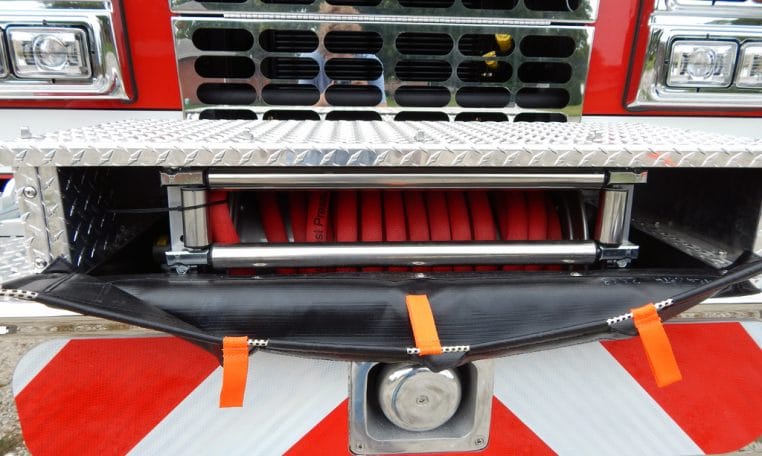

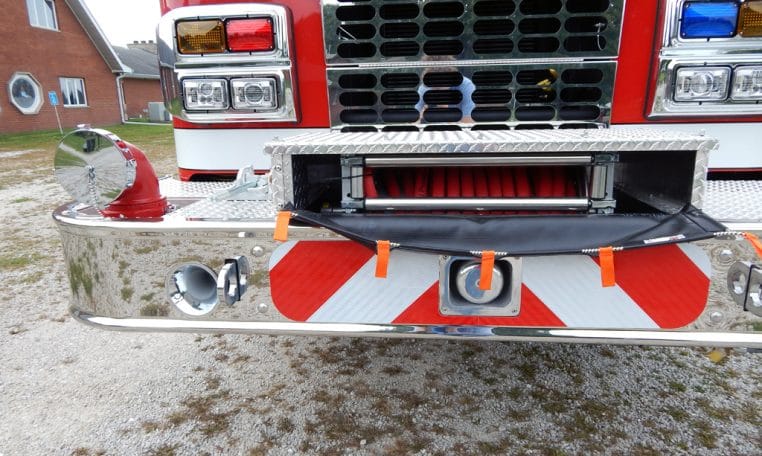

  • Hannay 1” Booster Reel, Front Bumper

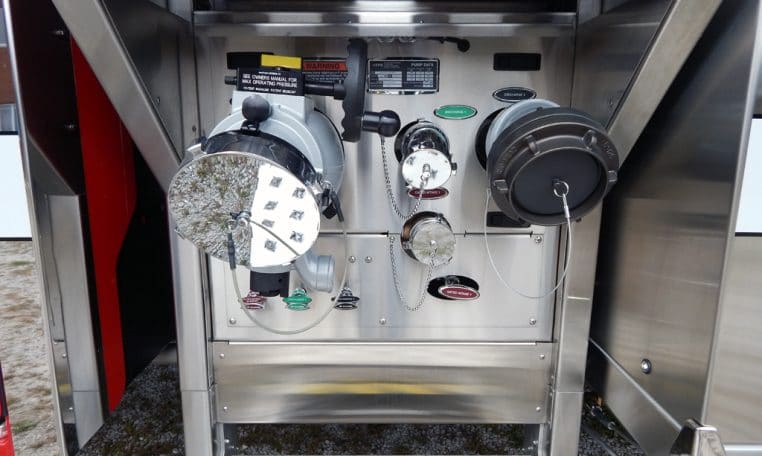

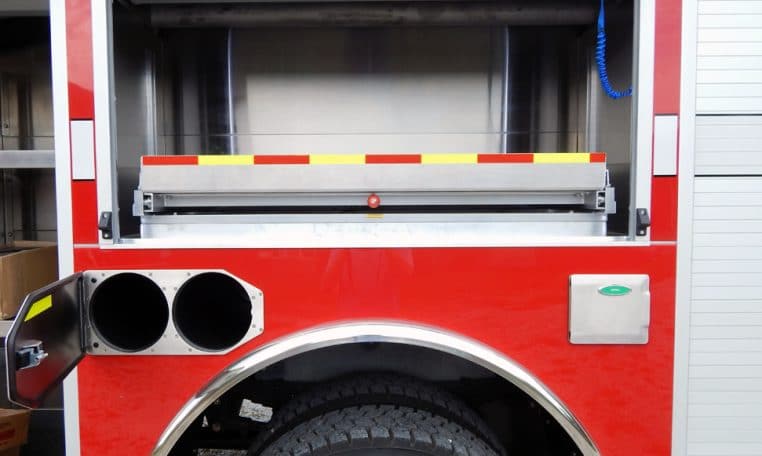

  • Two (2) 6” Suction, Left and Right Side

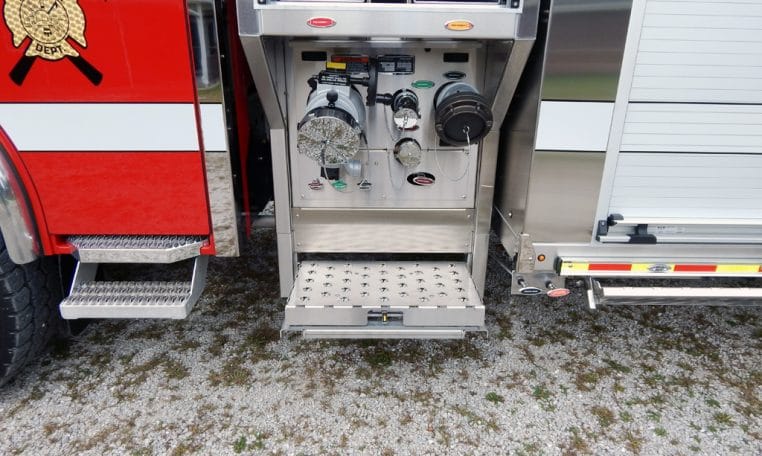

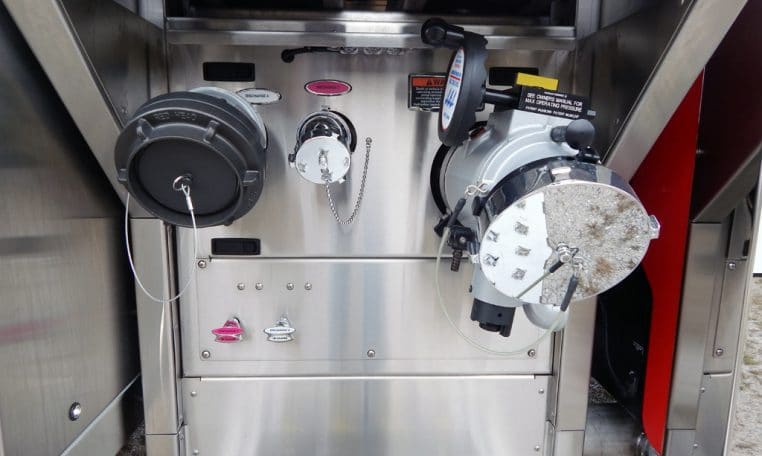

  • Two (2) TFT Jumbo Ball Intake Valves, Left and Right Side
  • Two (2) 3” Discharges w/ 5” Storz Adapter, Left and Right Side
  • Three (3) 2 ½” Discharges, Left Side, Right Side, Rear
  • One (1) 2 ½” Gated Suction, Left Side

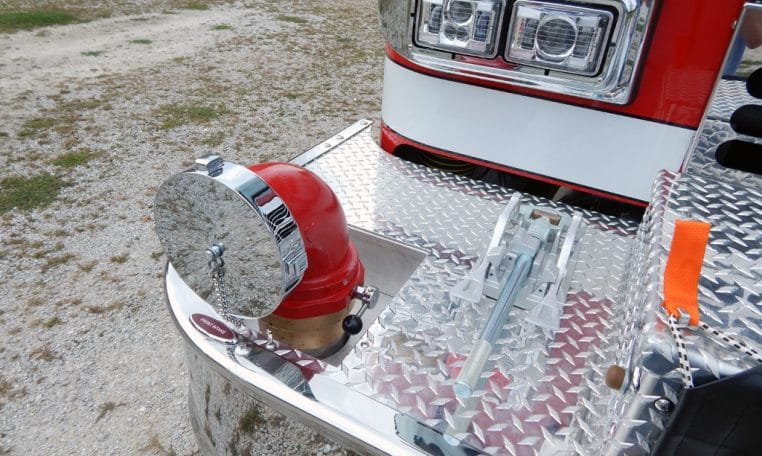

  • One (1) 5” Suction, Front Bumper

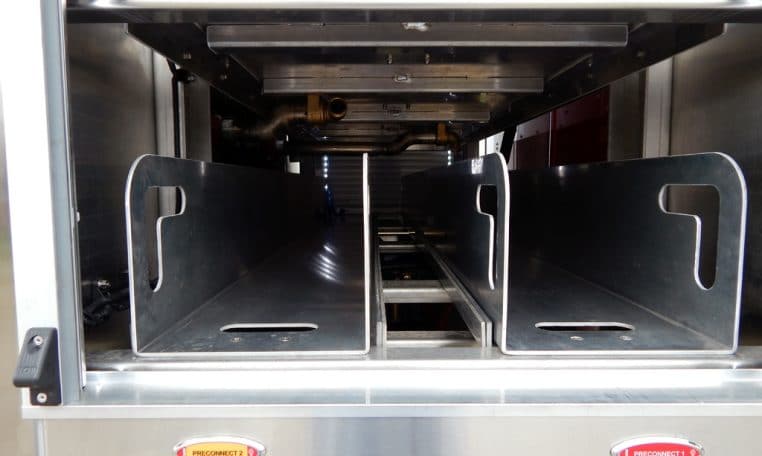

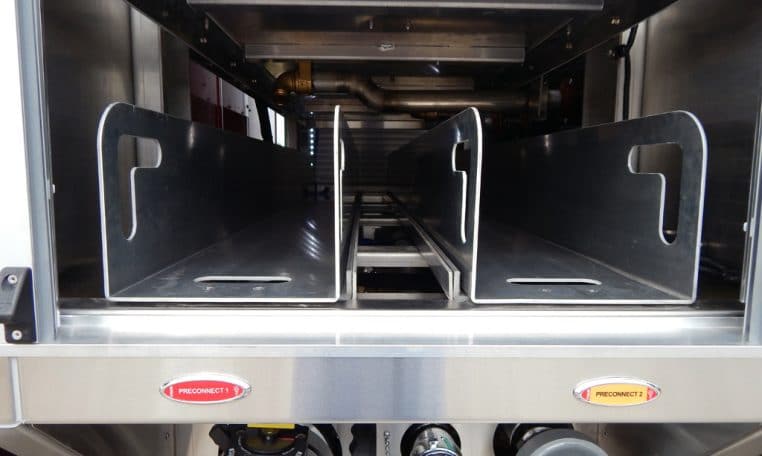

  • Two (2) 1 ½” Cartridge Lay Preconnects

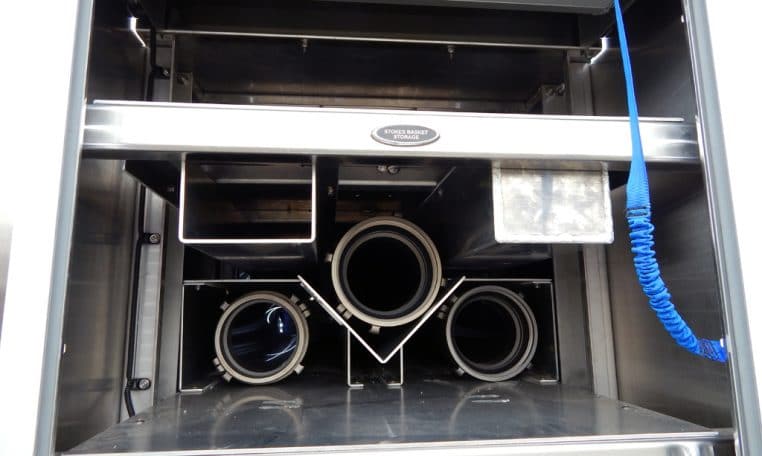

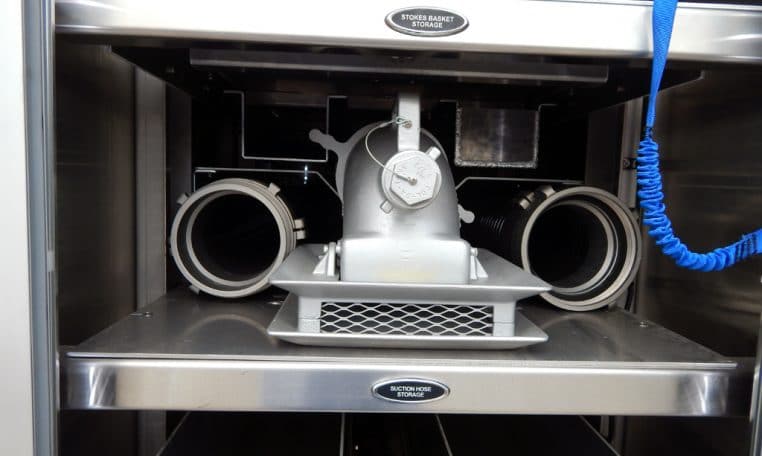

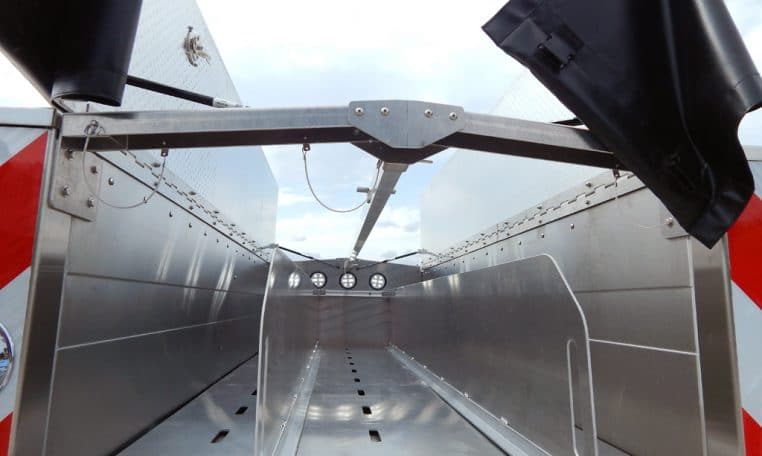

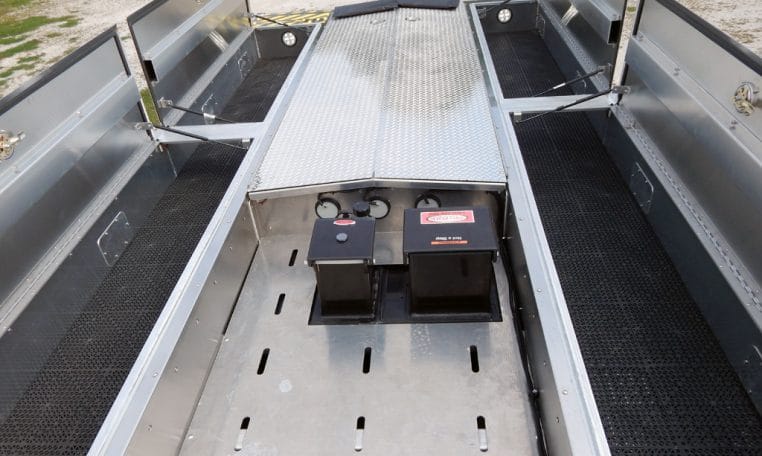

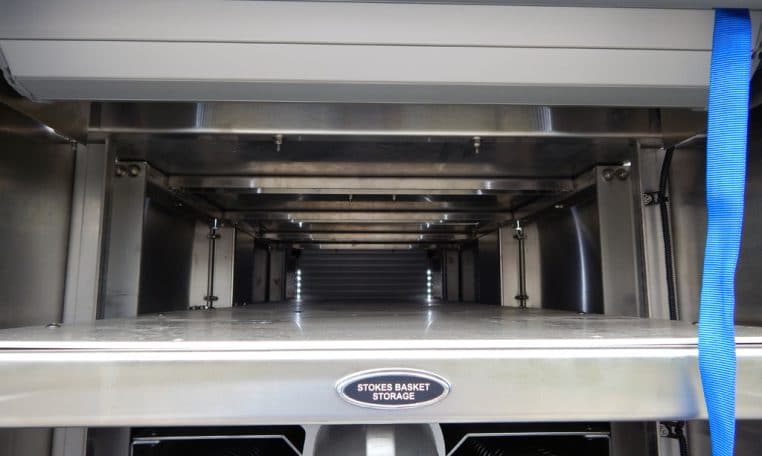

  • Suction Hose Rack and Stokes Basket Storage, Above Preconnects
  • Waterous Aquis 3.0 Foam System w/ 20-gallon Foam Tank

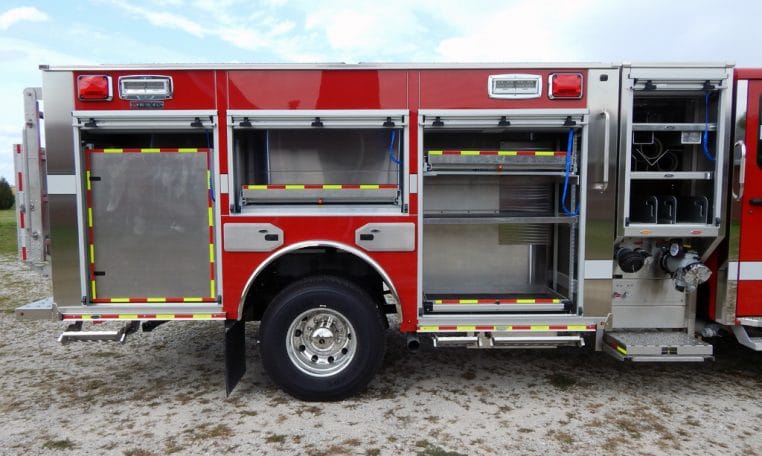

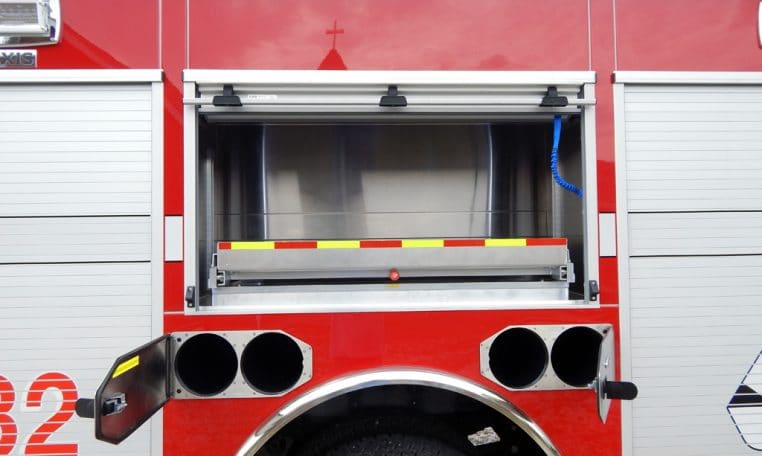

  • Three (3) Dual Air Bottle Compartments, One (1) Left, Two (2) Right

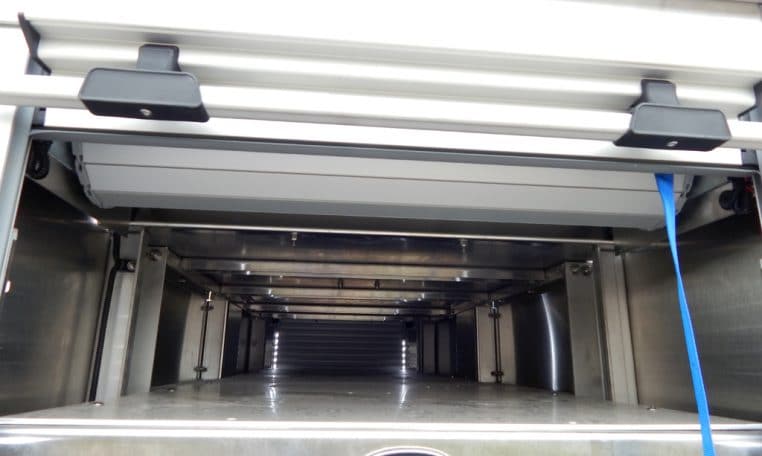

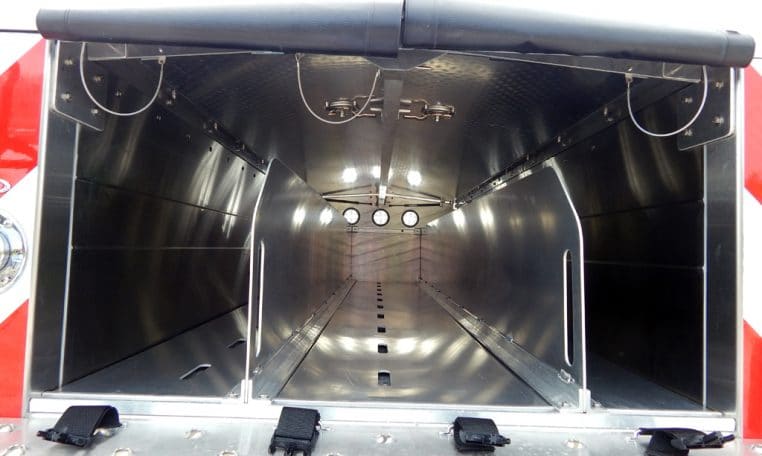

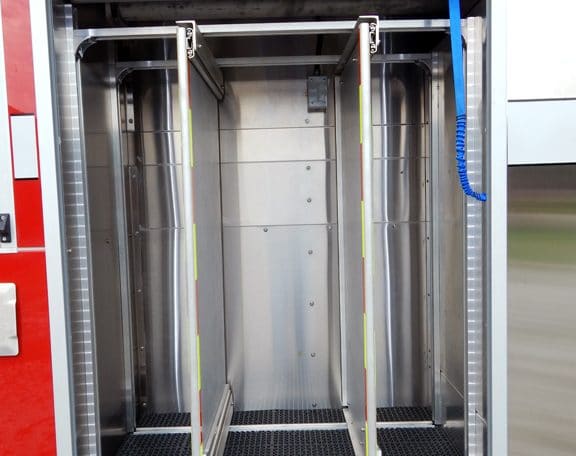

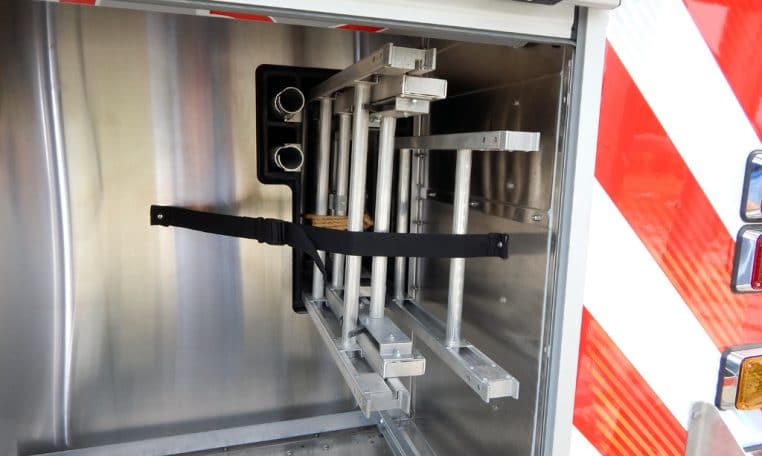

  • Ladder and Pike Pole Tube Storage, Through the Tank

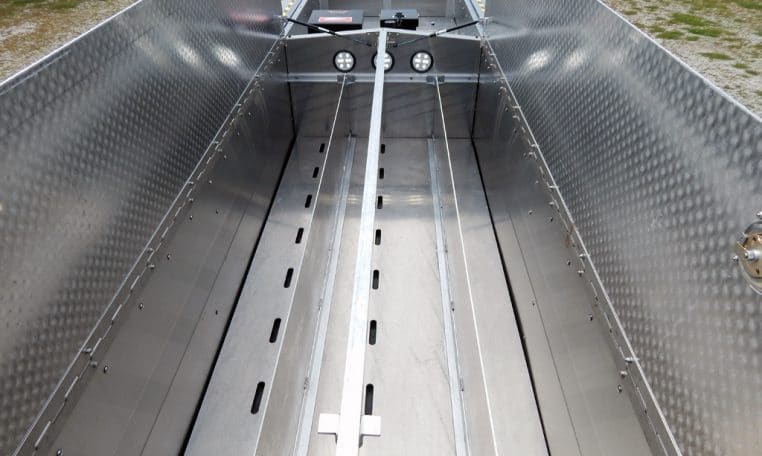

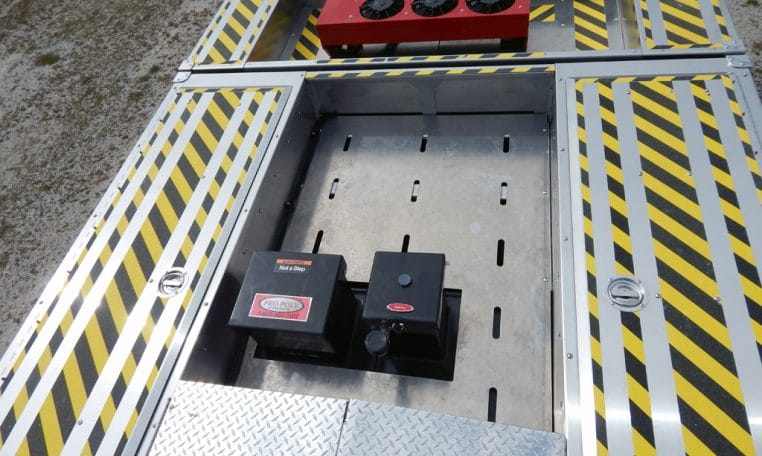

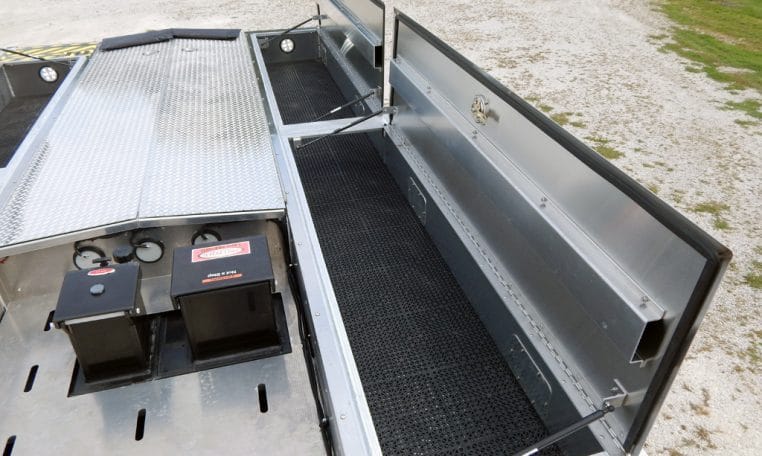

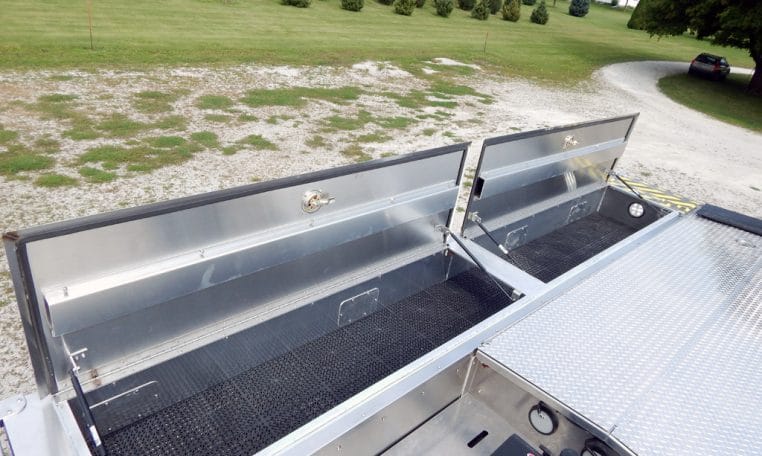

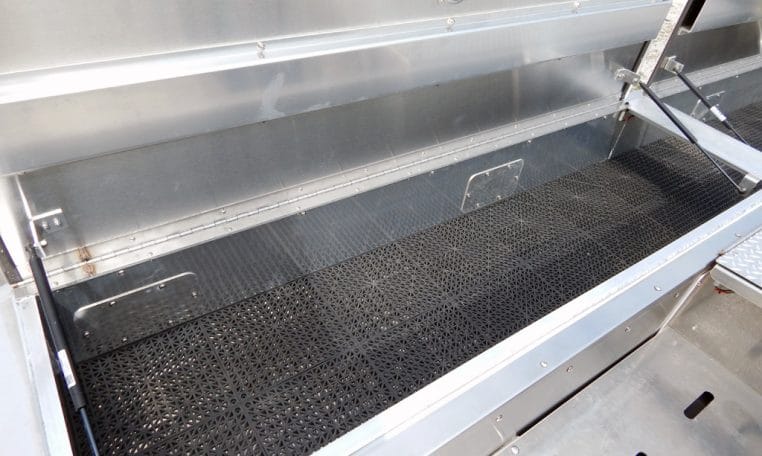

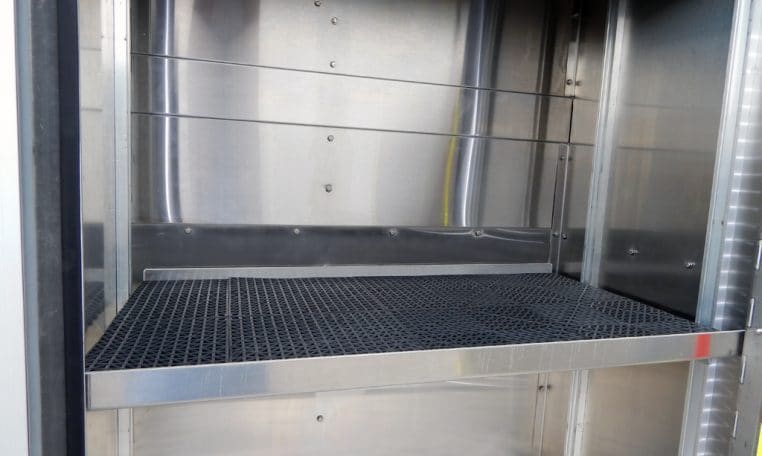

  • Four (4) Upper Storage Compartments
  • Whelen LED Warning Light Package
  • Whelen LED Scene Light Package
  • One (1) Whelen Pioneer Spot/Flood Light, Left Side Rear

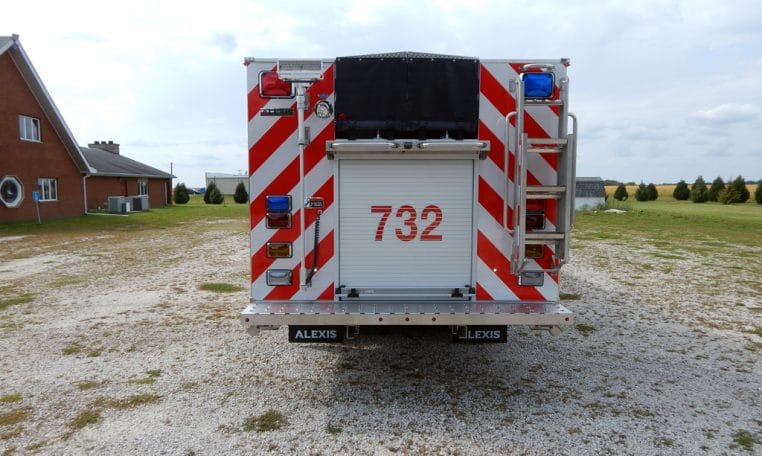

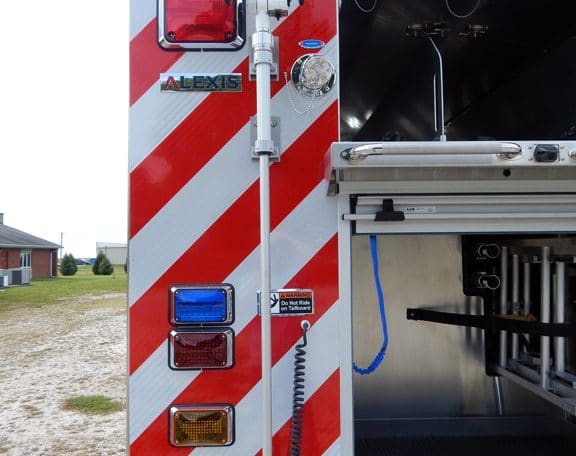

  • Diamond Grade Chevron Striping
  • 9’ 6” Overall Height
  • 32’ 9” Overall Length
  • 189” Wheelbase
  • 135” Cab to Axle
  • 20,000 FAWR
  • 27,000 RAWR
  • 47,000 GVWR
Year: 2020
Make: Alexis Fire Equipment
Model: Pumper
Chassis: Custom
Body Style: Equalizer Pumper
Pump Size: 1500
Tank Size: 500
Feature: 20-Gallon Foam Tank
Exterior Color: Red
New Delivery: New Delivery
